RICOH G5i TH5241 Print Head 100% Original And New - J381-0038
In stock
SKU
RI-TH5241-PH
$1,682.00
- Buy 2 for $1,654.00 each and save 2%
- Buy 4 for $1,638.00 each and save 3%
| Parts Name | RICOH TH5241 100% Original And New Print Head - J381-0038 |
|---|---|
| Brand | EPSON - EPSON |
| Parts Code | J381-0038 |
| Type | PRINT HEAD (INK) |
| Condition | Genuine, Original ,100% Brand-new, Unused, Undamaged, Original Packaging |
| Compatible Model | . |
| Packaged Weight (kg) | 0.25 |
| Packaged Size (cm) | 15*12*10 |

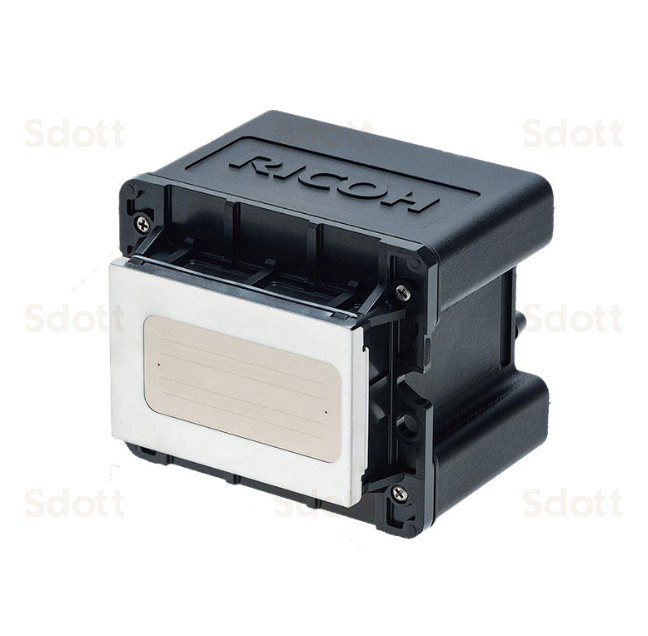

RICOH G5i TH 5241
Print Head
100% Original and New
Made in Japan
| RICOH TH5241 | |
|---|---|
| Method | Thin-film piezoelectric transducer with bend mode |
| Print Width | 27.1 mm (1.06") |
| Number of nozzles | 1280 (320 nozzles/row x4 rows, staggered) |
| Nozzle Resolution | 600npi(2 colors, 1 color) 300npi(4 colors) |
| Nozzle spacing (Row to row distance) | A : 2.286mm B : 6.095mm |
| Compatible ink | UV, Solvent, Aqueous, Others. |
| Total printhead dimensions | W：52.7mm D：45.8mm H：55.4mm |
| Weight | 63g |
| Max.number of color inks | 4 colors |
| Operating temperature range | 40℃ |
| Temperature control | Integrated thermistor, without heater |
| Firing frequency | 40kHz (2 levels) 24kHz (4 levels) |
| Grey-scale | 4 levels |
| Drop volume | 3pl (Single drop) 3～12pl (max 21pl) (Multi drop) |
| Viscosity range | 7ｍPa・s |
| Surface tension | 27±5mN/m |
* * * * * * * * PRINT HEAD GUARANTEE * * * * * * * *
SDOTT guarantees that the print head is a brand new original product. To facilitate storage, there is usually a little protective liquid on the print head. Upon receiving the package, please check the model and specifications of the print head carefully, and install it by a professional engineer.
Any improper operation or substandard accessory products will damage the print head. If you have any questions, please contact us as soon as possible via email info (at) sdott-parts.com. Any problems that occur after the print head has been installed and used, print head cannot be replaced or refunded.
