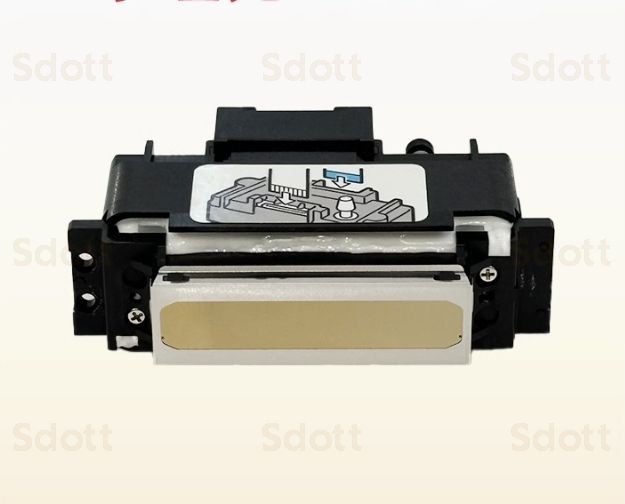

RICOH GH2220 Print Head 100% Original And New
In stock
SKU
RI-GH2220-PH
$439.00
- Buy 4 for $436.00 each and save 1%
| Parts Name | RICOH GH2220 100% Original And New Print Head |
|---|---|
| Brand | RICOH |
| Parts Code | GH2220 |
| Type | PRINT HEAD (INK) |
| Condition | Genuine, Original ,100% Brand-new, Unused, Undamaged, Original Packaging |
| Compatible Model | Oric TS1519-GH-6HWER RF1808 R3208 R1808 R3T RD3TWinjet W2-GH2220Yuxunda SGH0606 SGH0609 SGH1013 SGH2513Xante X32Gateway GJ5058 GJ5028 GJ5038 GJ5038L GJ5088 |
| Packaged Weight (kg) | 0.25 |
| Packaged Size (cm) | 15*12*10 |
RICOH GH 2220
Print Head
100% Original And New
Made in Japan
| GH2220 | |
|---|---|
| Method | Piston pusher with metallic diaphragm plate |
| Print Width | 32.4 mm(1.28") |
| Number of nozzles | 384 |
| Nozzle spacing (Within a row) | 1/150"(0.1693 mm)/row |
| Nozzle spacing (Row to row distance) | 0.931 mm |
| Compatible ink | Aqueous, Solvent |

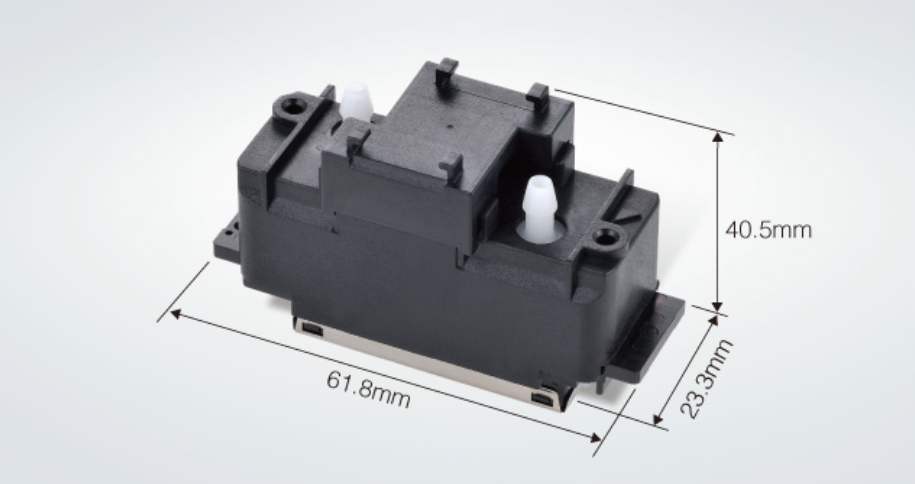

| Total printhead dimensions | 61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92") |
| Weight | 36g |
| Max number of color inks | 2 colors |
| Temperature control | No heater or thermistor |
| Life | 30 billion actuations per nozzle |
| Jetting frequency | Binary mode : 30kHz / Grey-scale mode : 24kHz |
| Drop volume | Binary mode : 3-5pl / Grey-scale mode : 21±2pl *depending on the ink |
| Viscosity range | 8±0.5mPa・s(@25℃) |
| Surface tension | 25±5mN/m (@23±2℃) |
| Maximum gray scale | 4 levels * depends on ink characteristics |
| Alignment mechanism | Frame-abutting |
* * * * * * * * PRINT HEAD GUARANTEE * * * * * * * *
SDOTT guarantees that the print head is a brand new original product. To facilitate storage, there is usually a little protective liquid on the print head. Upon receiving the package, please check the model and specifications of the print head carefully, and install it by a professional engineer.
Any improper operation or substandard accessory products will damage the print head. If you have any questions, please contact us as soon as possible via email info (at) sdott-parts.com. Any problems that occur after the print head has been installed and used, print head cannot be replaced or refunded.
