EPSON XP-225 Parts Manual

In stock
SKU
EP-XP225-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON XP_225 Parts Manual
Format PDF
PDF Archive 2.76M
Pages 3
Type SERVICE or PARTS MANUAL
Compatible Model EPSON XP_225 Series



****** The following content is not included in the PDF manual, please use it online ******

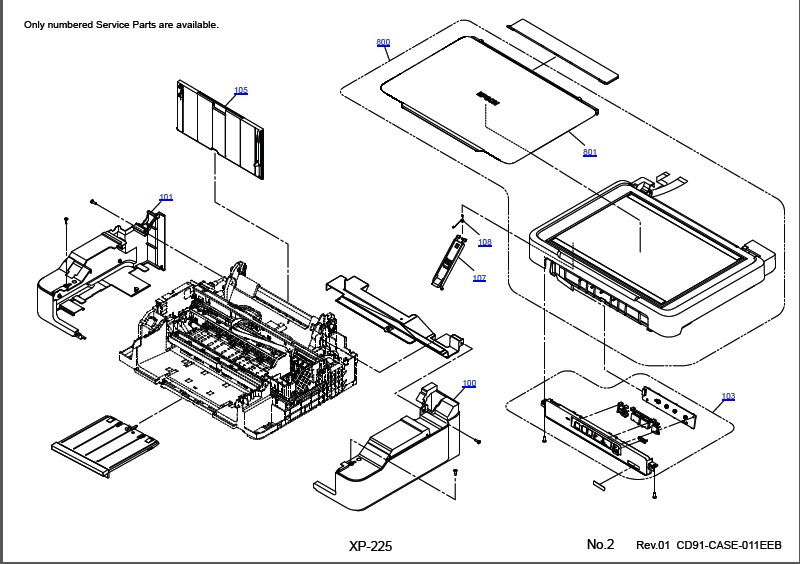

Model Article Reference Description
EXPRESSION HOME XP-225 1568269 100 HOUSING,RIGHT
EXPRESSION HOME XP-225 1701234 100 HOUSING,RIGHT
EXPRESSION HOME XP-225 1568270 101 HOUSING,LEFT
EXPRESSION HOME XP-225 1596498 103 PANEL ASSY.,C,CC90,EPPI
EXPRESSION HOME XP-225 1684717 103 PANEL ASSY.,C,CC90,EPPI
EXPRESSION HOME XP-225 1569308 105 PAPER SUPPORT ASSY.,CC05,EPPI
EXPRESSION HOME XP-225 1610790 107 STAND,SC,B
EXPRESSION HOME XP-225 1576993 108 TORSION SPRING,25.37
EXPRESSION HOME XP-225 2157768 200 BOARD ASSY.,MAIN
EXPRESSION HOME XP-225 2174813 200 BOARD ASSY.,MAIN
EXPRESSION HOME XP-225 2169341 202 Ersetzt durch: 2171393
EXPRESSION HOME XP-225 2171393 202 WIRELESS LAN USB MODULE
EXPRESSION HOME XP-225 2140467 204 CR CONTACT MODULE
EXPRESSION HOME XP-225 2139742 205 CONNECTOR,CSIC
EXPRESSION HOME XP-225 2147874 300 POWER SUPPLY UNIT
EXPRESSION HOME XP-225 1548493 501 LEVER,DETECTORPE
EXPRESSION HOME XP-225 2158910 505 BOARD ASSY.,ENCORDER,PF,B
EXPRESSION HOME XP-225 1646107 506 POROUS PAD,PAPER GUIDE,LOWER,D
EXPRESSION HOME XP-225 1569311 507 HOLDER RETURD ASSY.,CC05,EPPI
EXPRESSION HOME XP-225 1576550 508 FRAME PUMP ASSY,,CC03,EPPI
EXPRESSION HOME XP-225 1569314 510 SHAFT ROLLER LD ASSY.,CC05,EPPI
EXPRESSION HOME XP-225 1593349 511 SCALE,CR
EXPRESSION HOME XP-225 1610594 513 CAP ASSY.,CC05,EPPI,ASP
EXPRESSION HOME XP-225 1576548 514 PAPER GUIDER FRONT ASSY.,CC03,EPPI
EXPRESSION HOME XP-225 1598331 515 MOTOR ASSY,CR
EXPRESSION HOME XP-225 1640526 517 CR ASSY.,O2,PIS,CD91,EPPI,ASP
EXPRESSION HOME XP-225 2145560 518 CABLE,HEAD,O2
EXPRESSION HOME XP-225 2150123 519 CABLE,CSIC,O2,B
EXPRESSION HOME XP-225 1548518 521 SCALE,PF
EXPRESSION HOME XP-225 2145562 525 CABLE,PIS
EXPRESSION HOME XP-225 2150454 526 BOARD ASSY.,SUB
EXPRESSION HOME XP-225 1548528 527 CLUTCH
EXPRESSION HOME XP-225 1548529 528 SPUR GEAR,37.2
EXPRESSION HOME XP-225 1548530 529 EXTENSION SPRING,0.137
EXPRESSION HOME XP-225 1548494 531 EXTENSION SPRING,0.067
EXPRESSION HOME XP-225 F197010 700 PRINT HEAD
EXPRESSION HOME XP-225 1567191 701 HOLDER,BOARD
EXPRESSION HOME XP-225 1639535 703 TRAY POROUSPAD,ASSY.,CD91,EPPI
EXPRESSION HOME XP-225 1569226 705 LABEL,INK POSITION
EXPRESSION HOME XP-225 1595843 706 COVER,CABLE,HEAD
EXPRESSION HOME XP-225 2164966 800 SCANNER UNIT.,CD91,EPPI,ASP
EXPRESSION HOME XP-225 1598958 801 COVER DOCUMENT ASSY.,CC90,EPPI
EXPRESSION HOME XP-225 1710203 801 COVER DOCUMENT ASSY.,CC90,EPPI
EXPRESSION HOME XP-225 1033657 NON FIG GREASE G-45
EXPRESSION HOME XP-225 1480655 NON FIG GREASE G-71(BLUE)
EXPRESSION HOME XP-225 1409257 NON FIG GREASE G-74
EXPRESSION HOME XP-225 1462531 NON FIG I/P,DPIC009BSP,110,PRINTING
EXPRESSION HOME XP-225 1578752 NON FIG INK CART.UNBOXED,BK,PIG'T,2710MEC,180,AS
EXPRESSION HOME XP-225 1578753 NON FIG INK CART.UNBOXED,C,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-225 1578754 NON FIG INK CART.UNBOXED,M,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-225 1578755 NON FIG INK CART.UNBOXED,Y,DYE,2710M,EC,180,AS
EXPRESSION HOME XP-225 2107708 NON FIG POWER CABLE
EXPRESSION HOME XP-225 6104714 NON FIG SHIPPING CLEANING LIQUID,CR06A,18kg
EXPRESSION HOME XP-225 6104713 NON FIG SHIPPING CLEANING LIQUID,CR06A,1kg
EXPRESSION HOME XP-225 1640645 NON FIG SONIC TENSION METER U508
