EPSON XP-6100 XP-6105 Parts Manual
In stock
SKU
EP-XP6100-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-6100 XP-6105 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.29M |
| Pages | 6 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-6100 Series |
EPSON XP-6100 XP-6105 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

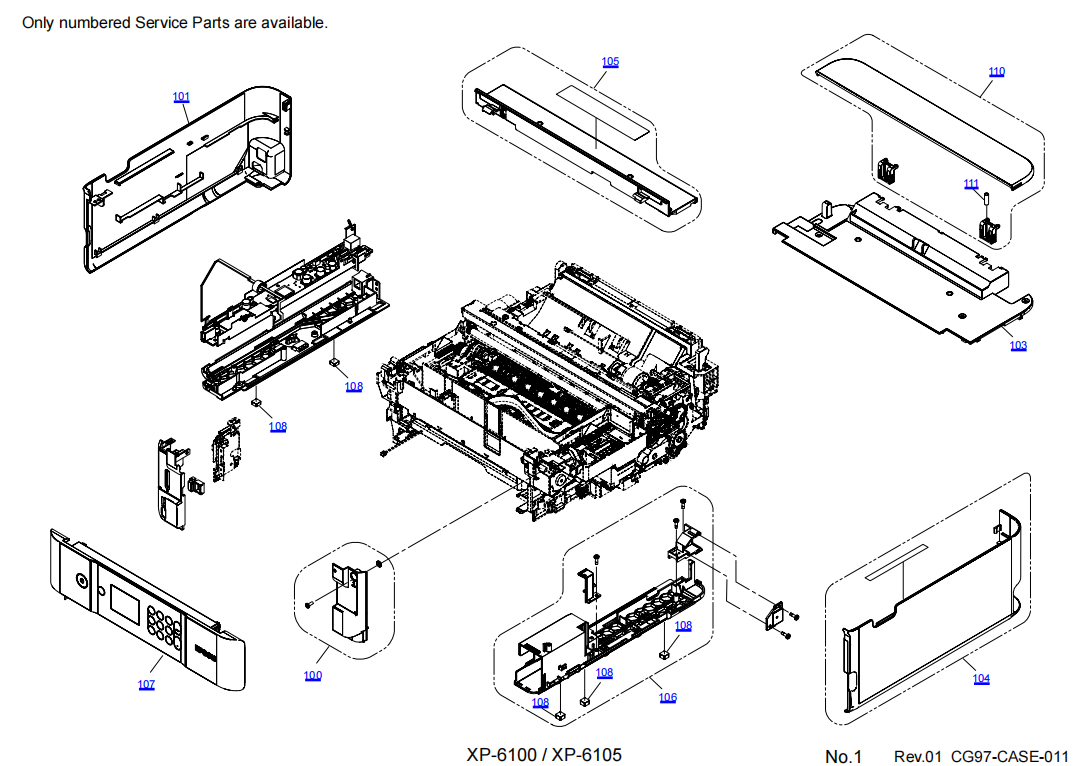

| Article | Reference | Description |
| 1738574 | 100 | HOUSING,FRONT,RIGHT,B,ASSY,ASP |
| 1723545 | 101 | HOUSING,LEFT,B |
| 1724759 | 103 | HOUSING,UPPER,REAR,B |
| 1743843 | 104 | HOUSING,RIGHT,B,ASSY,ASP |
| 1738571 | 105 | HOUSING,UPPER,FRONT,B ASSY:ASP |
| 1738573 | 106 | HOUSING LOWER RIGHT ASSY,ASP |
| 1754712 | 107 | Ersetzt durch: 1833262 |
| 1833262 | 107 | PANEL ASSY,IEI |
| 1725030 | 108 | FOOT,8.5x8.5x5 |
| 1732391 | 110 | COVER ASF ASSY,B,IEI |
| 1694957 | 111 | COMPRESSION SPRING,1.25 |
| 1754716 | 200 | HOUSING LOWER LEFT ASSY,IEI |
| 2194848 | 300 | BOARD ASSY.,POWER SUPPLY 7107A,CG17/CG18/CG97 STANDARD |
| 2194158 | 350 | WIRELESS LAN USB MODULE |
| 2182303 | 351 | BOARD ASSY.,SUB |
| 1764645 | 352 | CARD SLOT ASSY,D,IEI,ASP |
| 2199254 | 354 | HARNESS |
| 2177254 | 355 | HARNESS |
| 1754715 | 356 | CONNECTOR ASSY,IEI |
| 1699755 | 501 | PICK UP ASSY |
| 1693910 | 502 | STACKER,MAIN |
| 1284698 | 503 | H.N.-1,3,F/ZN-3C |
| 2184617 | 504 | BOARD ASSY.,SNS |
| 2177132 | 505 | CABLE,DETECTOR,PW |
| 1699896 | 506 | ASF BANK ASSY |
| 1756367 | 507 | STARWHEEL ASSY,CG97,IEI |
| 1732366 | 508 | PGF,ASSY,IEI |
| 1764069 | 509 | CARRIAGE ASSY,CG17,B,IEI,ASP |
| 2183681 | 510 | MOTOR,ASSY,CR |
| 1723309 | 511 | SCALE,CR |
| 2183259 | 512 | BOARD ASSY.,SNS |
| 1775672 | 513 | MSF LOWER ASSY,B,IEI |
| 1734854 | 514 | PGU CENTER ASSY RIGHT ASSY,IEI |
| 1734853 | 515 | PGU CENTER ASSY LEFT ASSY,IEI |
| 1734852 | 516 | PGU ASSY,IEI |
| 2183622 | 519 | MOTOR ASSY.,ASF |
| 1693836 | 520 | POROUS PAD,IS,LOWER |
| 2147998 | 521 | BOARD ASSY.,SUB |
| 1693988 | 522 | POROUS PAD,FRAME,COVER,LOWER |
| 1755112 | 523 | FFC ASSY,B,IEI |
| 2170099 | 524 | BOARD ASSY.,ENC |
| 1693987 | 525 | POROUS PAD,PAPER GUIDE,LOWER,BRIDGE |
| 1725029 | 526 | FOOT,4x15x5 |
| 2184118 | 527 | CABLE,DETECTOR,PE,B |
| 1732356 | 528 | FRAME,PANEL,ASSY,B,IEI |
| 1693986 | 529 | POROUS PAD,PAPER GUIDE,LOWER |
| 1486341 | 530 | SPACER,4.3x0.5x8 |
| 2185132 | 531 | MOTOR ASSY.,PF |
| 1572184 | 583 | SPURGEAR,16,CASSETTE,PHOTO |
| 1693972 | 584 | SPUR GEAR,14.4,TRANSMISSION,PF |
| 1724211 | 585 | HOLDER,FFC |
| 1729340 | 586 | PF ROLLER ASSY,CG17,IEI |
| 1723311 | 588 | TIMING BELT,CR |
| 2192563 | 589 | CABLE,ENCODER |
| FA37000 | 700 | PRINT HEAD,IG148V |
| FA37010 | 700 | PRINT HEAD,IG148V |
| FA37020 | 700 | PRINT HEAD,IG148V |
| 1804154 | 701 | DUPLEX ASSY,E,CG97,IEI (WHITE) [1762139] |
| 1743847 | 702 | CASSETTE CDR,ASSY,B,IEI,ASP |
| 1735309 | 703 | TRAY,BD |
| 1735667 | 704 | CASSETTE PHOTO ASSY,D,CF15,IEI |
| 1732415 | 707 | APG TRANS ASSY,IEI |
| 1775362 | 708 | INK SYSTEM ASSY,B:IEI |
| 5144319 | 710 | PAD,CR |
| 1724213 | 711 | GUIDE,IC |
| 1732385 | 712 | CSIC ASSY,IEI |
| 1694144 | 713 | COMBINATION GEAR,22.4,17.5 |
| 1283937 | 714 | C.B.P-TITE SCREW,2X8,F/ZN-3C |
| 1694173 | 715 | SHEET,PAPER GUIDE,ASF |
| 1694149 | 716 | RACK,DAMPER |
| 1694147 | 717 | SPUR GEAR,22.4 |
| 1694145 | 718 | SPUR GEAR,11.2 |
| 1694148 | 719 | CLUTCH,ONE WAY,DAMPER |
| 1694146 | 720 | SPUR GEAR,9.6 |
| 1694151 | 721 | DAMPER,00ZB |
| 1738260 | 722 | SHEET,PAPER GUIDE,ASB,B |
| 1744777 | 800 | SCANNER UNIT,CG18,D,IEI,ASP |
| 1735364 | 801 | COVER,DOCUMENT,,B,ASSY,CG17 |
