EPSON XP-540 Parts Manual
In stock
SKU
EP-XP540-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-540 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 6.72M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-500 Series |
EPSON XP-540 Parts Manual

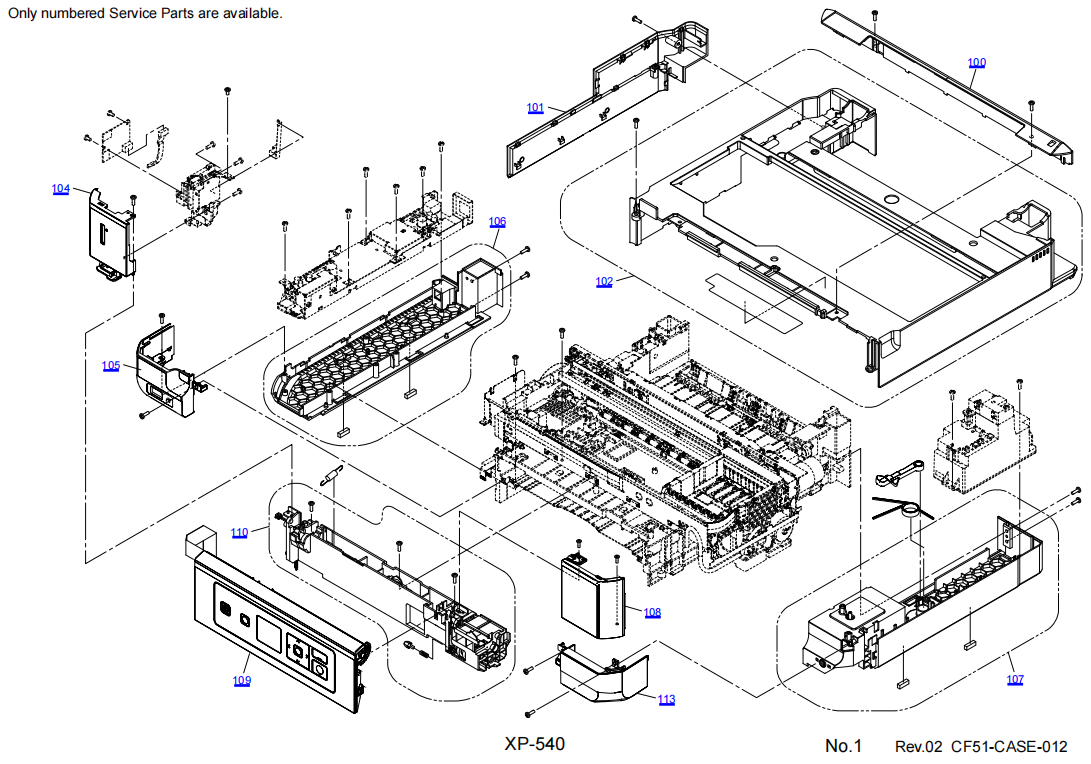

***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Article | Reference | Description |
| 1631652 | 100 | HOUSING,FRONT,TOP,B |
| 1665712 | 101 | HOUSING,LOWER,LEFT,,CE76,ASSY,IEI |
| 1673372 | 102 | HOUSING,UPPER,D,ASSY,ASP |
| 1656673 | 104 | HOUSING,FRONT,LEFT,D |
| 1830344 | 104 | HOUSING,FRONT,LEFT,D |
| 1631648 | 105 | HOUSING,FRONT,LOWER,LEFT,B |
| 1637509 | 106 | FRAME,BASE,LEFT,ASSY,ASP,E,IEI |
| 1733187 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| 1693228 | 108 | HOUSING,FRONT,RIGHT,L |
| 1663376 | 109 | PANEL,ASSY,CE81,IEI |
| 1663076 | 110 | FRAME,PANEL,CE81,ASSY,IEI |
| 1631685 | 113 | HOUSING,FRONT,LOWER,RIGHT,B |
| 1694017 | 200 | MAIN BOARD ASSY.,CF51,IEI |
| 2159109 | 205 | HARNESS MAIN-SUBB,2159109-01 |
| 2159101 | 206 | BOARD ASSY.,SUB 6844C,CE02 STANDARD |
| 1662646 | 207 | HOUSING,FRONT,LEFT.,CE79,ASSY,IEI |
| 1831987 | 207 | HOUSING,FRONT,LEFT.,CE79,ASSY,IEI |
| 2192160 | 210 | WIRELESS LAN USB MODULE |
| 2142556 | 211 | HARNESS |
| 2194836 | 300 | BOARD ASSY.,POWER SUPPLY 6669B,CD36 EEB/CD65/CD98/CE02/ |
| 1572503 | 501 | FOOT |
| 1722020 | 502 | HINGE ASSY,SC |
| 1632847 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| 1645826 | 504 | DUPLEX,UNIT,B,IEI |
| 1817292 | 504 | DUPLEX,UNIT,B,IEI |
| 1572221 | 505 | COVER,MSF,MC |
| 1611228 | 506 | FRAME,MSF,C,ASSY |
| 1612118 | 507 | TRAY,POROUS PAD,INK EJECT ASSY |
| 1612121 | 508 | INK,SYSTEM ASSY |
| 1436642 | 509 | CLAMP,TUBE |
| 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| 1695671 | 512 | CASSETTE.,CE81,ASSY,IEI,ASP |
| 1656706 | 513 | COVER,CASSETTE |
| 1640384 | 515 | STACKER,MAIN,C |
| 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| 1612102 | 520 | HOLDER,STAR WHEEL ASSY |
| 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| 1571772 | 522 | TORSION SPRING,5.1 |
| 1662106 | 523 | PAPER GUIDE,FRONT,,CE78,ASSY,IEI |
| 1607102 | 524 | COVER,CLIP,B |
| 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| 1611329 | 526 | SCALE,CR,B |
| 1572225 | 528 | COVER,CR,FRONT |
| 1632596 | 529 | CONNECTOR,CSIC,B,ASSY |
| 1589856 | 530 | CABLE HEAD,ASSY,ASP |
| 1611533 | 531 | GUIDE,IC,B |
| 1589857 | 532 | COVER,FFC ASSY,ASP |
| 1638191 | 533 | ENCODER,PF,E ASSY |
| 1577835 | 534 | HOLDER,CAM ASSY |
| 1612525 | 535 | PAPER GUIDE,UPPER,INNER,B,ASSY |
| 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| 1612099 | 542 | FRAME,PICKUP UNIT,C |
| 1607398 | 547 | SPUR GEAR,14.4,B |
| 1607397 | 548 | SPUR GEAR,17.6,B |
| 1616336 | 549 | DUAL ONE WAY CLUTCH,C,ASSY |
| 1572152 | 551 | SHAFT,DRIVE,PICKUP |
| 2144455 | 552 | CABLE,ENCODER,B |
| 2144454 | 553 | CABLE,CRCM,B |
| 1576559 | 563 | CENTER SUPPORT,EJ |
| 1608941 | 564 | TIMING BELT,CR |
| 2140849 | 568 | CR CONTACT MODULE |
| 2154774 | 569 | BOARD ASSY.,SENSOR |
| 2154772 | 570 | BOARD ASSY.,SENSOR |
| FA09070 | 700 | PRINT HEAD,ID284V-M1 |
| FA09170 | 700 | PRINT HEAD,ID284V-M1 |
| 5130574 | 701 | PAD,SHEET,CR |
| 5130846 | 702 | PAD,CR,B |
| 2179667 | 800 | SCANNER UNIT,.CF50,IEI,ASP |
| 1620232 | 801 | HOUSING,UPPER,SC,,D,ASSY,ASP |
| 1612531 | 802 | CARRIAGE,CIS,SC,B,ASSY |
| 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC |
| 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| 1703781 | 805 | COVER,DOCUMENT,ASSY,IEI,ASP |
| 1589095 | 806 | COVER,HOUSING,UPPER,SC,CA |
