EPSON XP-102 XP-103 Parts Manual
In stock
SKU
EP-XP102-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-102 XP-103 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.57M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-100 Series |
****** The following content is not included in the PDF manual, please use it online ******

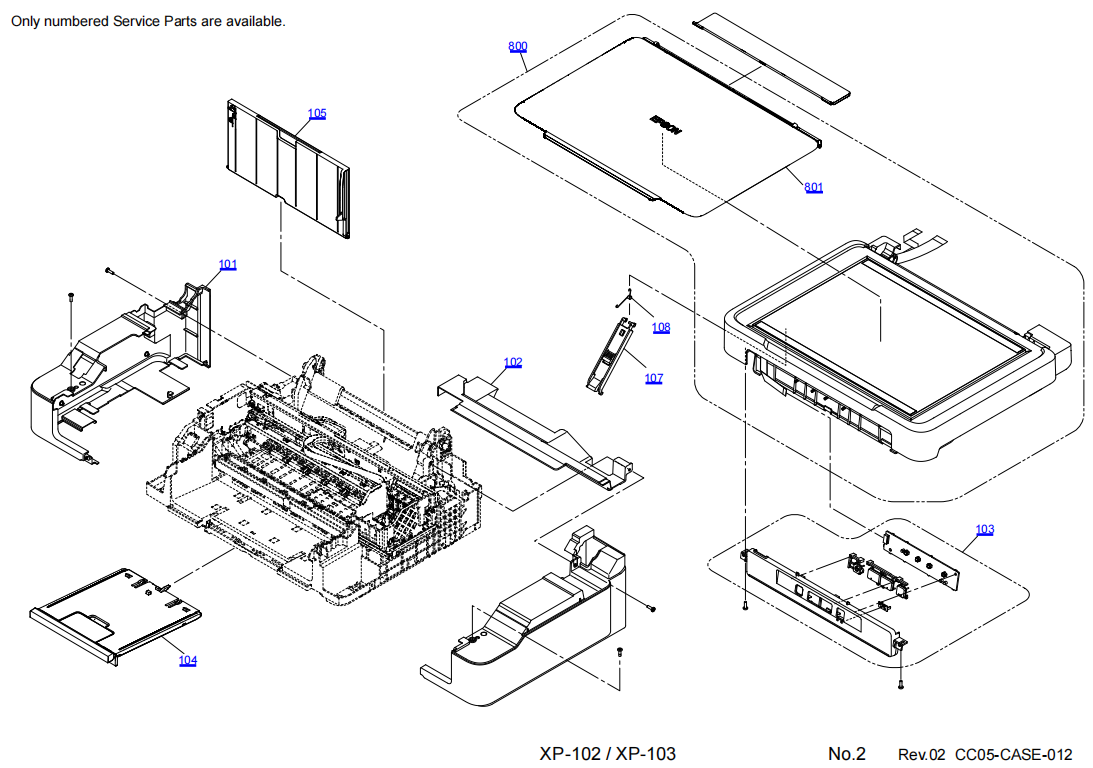

| Article | Reference | Description |
| 1568270 | 101 | HOUSING,LEFT |
| 1568272 | 102 | COVER,REAR |
| 1569302 | 103 | PANEL ASSY.,CC05,EPPI |
| 1569304 | 104 | STACKER ASSY.,CC05,EPPI |
| 1569308 | 105 | PAPER SUPPORT ASSY.,CC05,EPPI |
| 1610790 | 107 | STAND,SC,B |
| 1576993 | 108 | TORSION SPRING,25.37 |
| 2140861 | 200 | BOARD ASSY.,MAIN |
| 2140467 | 204 | CR CONTACT MODULE |
| 2139742 | 205 | CONNECTOR,CSIC |
| 2155568 | 300 | POWER SUPPLY UNIT |
| 2121764 | 400 | POWER CABLE |
| 1548493 | 501 | LEVER,DETECTORPE |
| 1548500 | 502 | ROLLER,EJ |
| 1548501 | 503 | SPUR GEAR,31.2 |
| 2141730 | 504 | MOTOR ASSY.,PF |
| 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| 1593845 | 506 | POROUS PAD,PAPER GUIDE,FRONT,LOWER,SMALL |
| 1569311 | 507 | HOLDER RETURD ASSY.,CC05,EPPI |
| 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| 1569313 | 509 | HOLDER STARWHEEL ASSY.,CC05,EPPI |
| 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| 1593349 | 511 | SCALE,CR |
| 1548480 | 512 | EXTENSION SPRING,1.41 |
| 1610594 | 513 | CAP ASSY.,CC05,EPPI,ASP |
| 1570618 | 514 | PAPER GUIDE FRONT ASSY.,CC04,EPPI |
| 1568274 | 515 | MOTOR ASSY.,CR |
| 1569341 | 516 | PAPER,GUIDE,UPPER ASSY.,CC05,EPPI |
| 1630382 | 517 | CR ASSY.,CC05,EPPI,ASP |
| 2145560 | 518 | CABLE,HEAD,O2 |
| 2150123 | 519 | CABLE,CSIC,O2,B |
| 1549887 | 520 | LEVER,PAPER BACK |
| 1548518 | 521 | SCALE,PF |
| 1569312 | 522 | ROLLER PF ASSY.,CC05,EPPI |
| 1577172 | 523 | TIMING BELT,CR |
| 2145562 | 525 | CABLE,PIS |
| 2150454 | 526 | BOARD ASSY.,SUB |
| 1548528 | 527 | CLUTCH |
| 1548529 | 528 | SPUR GEAR,37.2 |
| 1548530 | 529 | EXTENSION SPRING,0.137 |
| 1595847 | 537 | HOLDER,FFC |
| F197010 | 700 | PRINT HEAD |
| 1567191 | 701 | HOLDER,BOARD |
| 1596495 | 702 | HOPPER ASSY.,CC90,EPPI |
| 1639535 | 703 | TRAY POROUSPAD,ASSY.,CD91,EPPI |
| 1613284 | 704 | COMPRESSION SPRING,3.43 |
| 1595843 | 706 | COVER,CABLE,HEAD |
| 2159374 | 800 | SCANNER UNIT,CC23,EPPI,ASP |
| 1570619 | 801 | COVER DOCUMENT ASSY.,CC04,EPPI |
