Epson WorkForce WF-M5690 WF-M5693 WF-M5694 Parts Manual

In stock
SKU
EP-WFM5690-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name Epson WorkForce WF-M5690 WF-M5693 WF-M5694 Parts Manual
Format PDF
PDF Archive 5.28M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-M5690 WF-M5693 WF-M5694 Series

Epson WorkForce WF-M5690 WF-M5693 WF-M5694 Parts Manual

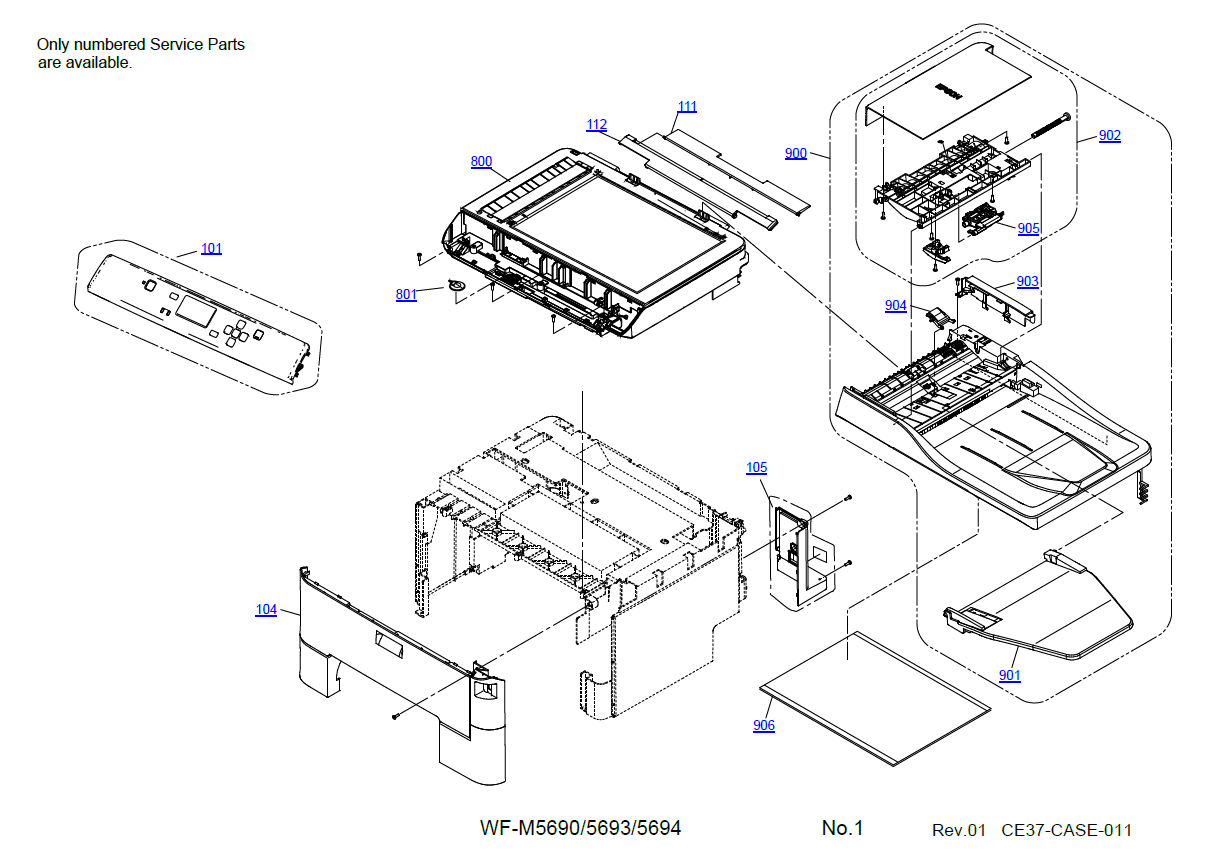

****** The following content is not included in the PDF manual, please use it online ******

1606971100HOUSING,MIDDLE
1651858101PANEL ASSY.,SEC
1805272101PANEL ASSY.,SEC
1616411104HOUSING FRONT ASSY.,C,SEC
1799880104HOUSING FRONT ASSY.,C,SEC
1624230105COVER,FAX ASSY.,ASP
1822883105COVER,FAX ASSY.,ASP
1550189106HOUSING,REAR
1550186107PAPER SUPPORT
1550447111COVER,ASF,REAR
1550448112COVER,ASF,FRONT
1678679127LABEL,OPENPLATFORM
2178562200BOARD ASSY.,MAIN
2184467200BOARD ASSY.,MAIN 6796H,CE37 STANDARD
2188184200BOARD ASSY.,MAIN 6796H,CE37 STANDARD
2194651200BOARD ASSY.,MAIN 6796H,CE37 STANDARD
2195171200BOARD ASSY.,MAIN
2153413201BOARD ASSY.,INTERFACE
2171673202WIRELESS LAN USB MODULE
2150740204HARNESS
2193699204HARNESS MAIN-I/F,
2150768205BOARD ASSY.,SUB
2150738206HARNESS SDOTT.COM
2170687211FLASH MEMORY
2195173211FLASH MEMORY OTHERS,4 GBIT,
2177533300BOARD ASSY.,POWER SUPPLY
1671402500FRAME,BASE ASSY.,B,ASP
1822901500FRAME,BASE ASSY.,B,ASP
1615454501CARRIAGE ASSY.,SEC
1549854502SCALE,CR
1549855503EXTENSION SPRING,2.03
2136746504CONNECTOR,DRAWER,MAIN
1522498511SHAFT,DRIVE,PICK UP
2060220512CONNECTOR,CARTRIDGE,A
2143968513BOARD ASSY.,SUB
2136631514CABLE,BOARD ASSY.,IC
2194031514CABLE,BOARD ASSY.,IC
1471944531ROLLER,DRIVEN
1471945532SHAFT,ROLLER,DRIVEN
FA22041700PRINT HEAD,IE744V-4,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA22051700PRINT HEAD,IE744V-4,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA22061700PRINT HEAD,IE744V-4,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA22071700PRINT HEAD,IE744V-4,ASP ORDER TO SEC WITH MOQ=12PCS, S
1615727701I/S MENTENANCE ASSY.,SEC
1799788701I/S MENTENANCE ASSY.,SEC
1705429704I/S SUPPLY ASSY.,B,ASP
1822903704I/S SUPPLY ASSY.,B,ASP
1607033705SEAL,JOINT,HEAD
1766374705SEAL,JOINT,HEAD
1615726706I/S PUMP ASSY.,SEC
1799787706I/S PUMP ASSY.,SEC
1615714708R-ASF ASSY.,SEC
1799727708R-ASF ASSY.,SEC
1554431709GUIDE RASF UPPER ASSY.
1615448711ROLLER,EJ ASSY.,SEC
1554412712PICK UP ASSY.,SEC
1797654712PICK UP ASSY.,SEC
1554415713STOPPER PAPER ASSY.,SEC
2136669714BOARD ASSY.,ENCORDER,PF
2136637715CABLE,ENCODER,PF
2152712716CABLE,CSIC
2186794716CABLE,CSIC
2194556716CABLE,CSIC
1615715717CABLE,HEAD ASSY.,SEC
1799786717CABLE,HEAD ASSY.,SEC
1616298718STACKER ASSY.,SEC
1624464719CASSETTE ASSY.,C,SEC
1636228720DUPLEX ASSY.,E,SEC
1721589720DUPLEX ASSY.,E,SEC
1797737720DUPLEX ASSY.,E,SEC
1610750732GROUNDING PLATE,PS,C
1552602733CLUTCH SPRING,ASSY
1550615734SPUR GEAR,30.4
1624228800SCANNER UNIT,CD08,ASP
1822879800SCANNER UNIT,CD08,ASP
2154516801SPEAKER
1659154900ADF UNIT,CD08,B,ASP
1741471900ADF UNIT,CD08,B,ASP
1822886900ADF UNIT,CD08,B,ASP
1739471900Replace: 1741471 SP
1616393901DOCUMENT,SUPPORT,ADF ASSY.,SEC
1616392902COVER,ADF ASSY.,SEC
1606969903COVER,REAR,ADF
1555114904PAD,ADF ASSY.,SEC
1588569905FRAME,LD ASSY.,B,SEC
1797648905FRAME,LD ASSY.,B,SEC
1550947906MAT,COVER,DOCUMENT
