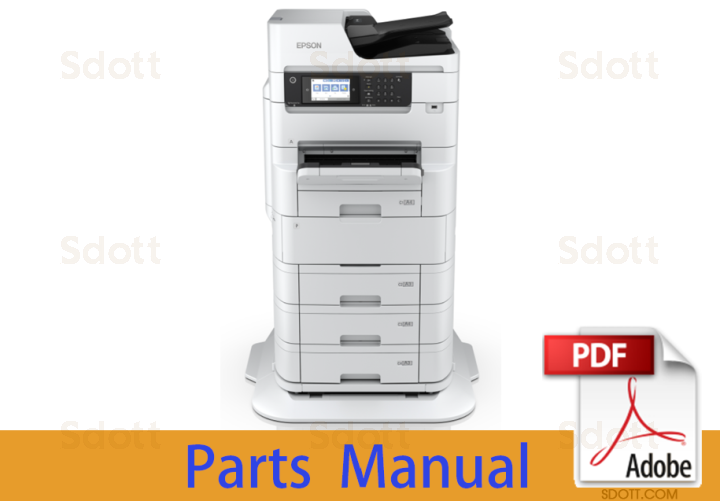

main product photo

Epson WorkForce WF-C878R WF-C878Ra Parts Manual

In stock
SKU
EP-WFC878R-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name Epson WorkForce WF-C878R WF-C878Ra Parts Manual
Format PDF
PDF Archive 11.8M
Pages 6
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-C878R WF-C878Ra Series

Epson WorkForce WF-C878R WF-C878Ra Parts Manual





****** The following content is not included in the PDF manual, please use it online ******

1830390101PANEL ASSY.,CH60,ASP
1610795103BAND,COVER,REAR,OPT
1833706104COVER,FRONT,RIPS,CH60,ASP
1831407105STACKER ASSY.,CH60,ASP
1834611106COVER,REAR,RIPS ASSY.,CH60,ASP
1804744107PAPER SUPPORT,MIDDLE,ASSY.CF34.,B,IEI
1792890108HOUSING,RIGHT
1833683109HOUSING,RIGHT,RIPS ASSY.,ASP
1834618110USB HOST ASSY.,CH60,ASP
1716952112COVER,CONNECTOR,MFP,ASP
1753663113COVER,REAR,ASF,ASSY.,ASP
1858701113COVER,REAR,ASF,ASSY.,ASP
1600316116BELT,STOPPER,MSF
1753662118COVER,FRONT,ASSY.,ASP
1833684121HOLDER LEVER LOCK ASSY.,ASP
1833685122HOUSING,LEFT,RIPS,ASSY.,ASP
1696904134HOUSING,FRONT,MIDDLE
1696908135HOUSING,FRONT,LEFT
1696909136HOUSING,FRONT,RIGHT
1696912137DECORATION,LEFT,SC
1696951138DECORATION,RIGHT,SC
1743975140HOUSING,REAR ASSY.,C,ASP
1792889150HOUSING,LEFT
1804217152HOLDER,MANUAL
1839418153HOLDER,CLOTH,ASSY.,ASP
1792854155LABEL,BLIND,SCREW
1701082161GUIDE,PAPER SUPPORT,B
1696914162HOUSING,REAR,UPPER
1682129163LABEL,PRECISIONCORE,B
1745141164HOUSING,FRONT,ASSY.CG68,IEI
1696910165HOUSING,FRONT,RIGHT,UPPER
1830396200MB ASSY.,CH60,ASP
2204221300BOARD ASSY.,POWER SUPPLY
2207228351WIRELESS LAN USB MODULE
2203094352BOARD ASSY.,MAIN
2177050356BOARD ASSY.,INTERFACE 7023A,STANDARD_ringer
2183464360BOARD ASSY.,SUB
2201389361BOARD ASSY.,INTERFACE
2193694362HARNESS
2175287363HARNESS
2197085364BOARD ASSY.,SUB
2192188365MEMORY CARD
1745189501PW SHUTTER.,ASSY.CG68,IEI
1745190502MOTOR,APG.,ASSY.CG68,IEI
1835464503MOTOR DRIVE APG,ASSY.,ASP
1767608504BOARD ASSY.,ENCODER,PF,ASSY.CG68,IEI
1608786505TIMING BELT,PF
1702648506DRIVE,PF ASSY.,IEI
1835465507DRIVE ASF,ASSY.,ASP
1844206508IS DECOMP PUMP ASSY.,CH35,B,ASP
1833698509TUBE ASSY SUPPLY,UNIT,CH35,ASP
1716951510CABLE,CSIC,INK EJECT,ASP
1830067511HOLDER,STARWHEEL ASSY.,CH35,IEI
1702433512CARRIAGE,ASSY.CF34,IEI
1872664512CARRIAGE,ASSY.CF34,IEI
2162797513SCALE,CR,ASSY.,ASP
2143464514PHOTO INTERRUPTER
1608899515LEVER,BLOCK,COVER,REAR,ASF
1792727516TORSION SPRING,FE LEVER,RIPS
1830402517INK SYSTEM ASSY.,ASP
1792711518LEVER,FE DETECTOR,RIPS
1608790519STOPPER,TENSION,PF
2109393521BOARD ASSY.,DETECTOR,PW,B
1831402523DUCT PUMP,ASSY.,UNIT,ASP
1865121523DUCT PUMP,ASSY.,UNIT,ASP
1835463524AMADOI ASSY.,CH35,ASP
1653940525SUPPLY,ROLLER,ASSY.,C,SEC
1682249526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B
2177044528BOARD ASSY.,SUB
1608693529TIMING BELT,CR
1702394530MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY
1859873530MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY
2187886531BOARD ASSY.,ENCODER
1833697532TUBE MOTOR DECOMP,ASP
1614832533SHOULDER BOLT,3X4,RASF
1731530534MOUNTING PLATE,SOLENOID,ASSY.,ASP
1874653534MOUNTING PLATE,SOLENOID,ASSY.,ASP
1703396536COMPRESSION SPRING,2.7,RETARD
2178529543HARNESS,GROUNDING,RASF
2176012547SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
1835466548LIFT DRIVE ASSY.,ASP
1617356549PAPER GUIDE,UPPER,LEFT.,ASSY,,IEI
1617344550PAPER GUIDE,UPPER,CENTER ASSY,,IEI
2188022551MOTOR ASSY.,CR
17413055524 LINE SWITCH
1696881553HOLDER,DETECTOR,PAPER LENGTH
1696882554LEVER,DETECTOR,PAPER LENGTH
2201168555CABLE,CSIC,M
2201166556CABLE,CSIC,BK
1617343557ROLLER,DRIVEN,PF,,IEI
1720452558PAPER GUIDE,UPPER,LEFT.,ASSY,CF34,B,IEI
1720450559PAPER GUIDE,UPPER,RIGHT.,ASSY,CF34,B,IEI
1617342560PAPER GUIDE,UPPER,RIGHT.,ASSY,,IEI
2201169561CABLE,CSIC,C
2201167562CABLE,CSIC,Y
1696872566MOUNTING PLATE,DETECTOR,SOLENOID
1608879567SPUR GEAR,20,LIFT,ASF
2202769568BOARD ASSY.,SENSOR
1614492570POROUS PAD,CR
1696873571LEVER,PAPER DETECT,MIDDLE
2187890572BOARD ASSY.,ENCODER
FA30022700PRINT HEAD,HOP3,ASP ORDER TO SEC WITH MOQ=12PCS, S
FA30032700PRINT HEAD,HOP3,ASP ORDER TO SEC WITH MOQ=12PCS, S
1753654701REAR,ASF,ASSY.,ASP
1614447702SHEET,GUIDE,ROOLER,RASF
1617440705LEVER,CLUTCH,ASSY.,SEC
1617439706CLUTCH,LD,ASSY.,SEC
1835469710CABLE,HEAD ASSY.,ASP
1841459710CABLE,HEAD ASSY.,ASP
1830401715CASSETTE ASSY.,ASP
1753656718DUP ASSY.,ASP
2150699720LEAF SENSOR,P599
1792703721COVER,OPEN DETECTOR,REAR,RIPS
1701851722HOLDER,RETARD,CASSETTE,ASSY.,IEI
1792676723HOUSING,REAR,RIPS
1833695726TRAY,INK PACK,CL,ASP
1833696729TRAY,INK PACK,BK,ASP
1701491763LABEL,PAPER SIZE,CASSETTE
1615762766LABEL,CASSETTE POSITION
1696308770SCREW MOUNT HEAD ASSY.,ASP
1833705771HOUSING,FRONT,RIPS,ASP
1831396800ADF SCANNER ASSY UNIT,CH60,ASP
1871495800ADF SCANNER ASSY UNIT,CH60,ASP
1716965902COVER,REAR,ADF,ASP
1701096903DECORATION,REAR,ADF,B
1831398904COVER,FRONT,ADF,CH60,ASP
1852820904COVER,FRONT,ADF,CH60,ASP
1701095905DECORATION,FRONT,ADF,B
1753660906DOC,SUPPORT,ADF ASSY.,ASP
1701094907DOCUMENT,SUPPORT,LOWER,ADF,B
1745399908DOCUMENT GUIDE,LOWER,ADF ASSY.,IEI
2156412909PAD,ADF ASSY,,SEC
1675259910HINDGE ASSY.,RIGHT,B
1675258911HINDGE ASSY.,LEFT,B
1718499912MAT,COVER DOCUMENT
1834619914COVER,ASF,CH60,ASP
2156418915LD ASSY,,SEC
1615265916COVER,RIGHT,ADF
1609392917STOPER,DOCUMENT,ADF
1626349918LABEL,BLIND,PANEL,B
1800544919LABEL,FUNCTION,ADF
1697083921PRESSING PLATE,RIGHT,SC
1713644925LABEL,EDGE GUIDE OPERATION
1800546926LABEL,ACCESS,POINT,SET
1697085931HOUSING,REAR,LEFT,ADF
1697086932HOUSING,REAR,RIGHT,ADF
