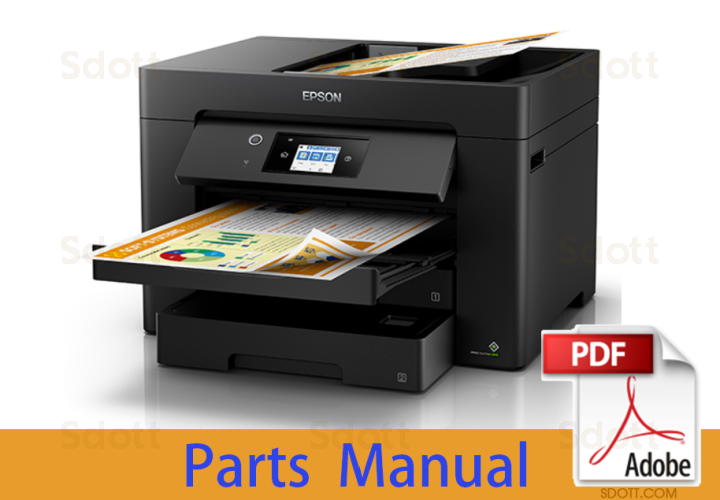

Epson WorkForce WF-7830 WF-7835 Parts Manual
In stock
SKU
EP-WF7830-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | Epson WorkForce WF-7830 WF-7835 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 7.55M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-7830 WF-7835 Series |
Epson WorkForce WF-7830 WF-7835
Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| 5157027 | 10 | PAD,SCANNER,COVER,D |
| 1768255 | 100 | HOUSING,LEFT |
| 1848886 | 101 | HOUSING,RIGHT,C |
| 1847226 | 102 | Panel unit(FB/FA) (Bk),ASP |
| 1768214 | 107 | HOUSING,UPPER |
| 1845726 | 109 | LABEL,PrecisionCore,F2 |
| 5157439 | 11 | PAD,SC,120x10x3T |
| 1803703 | 110 | LABEL,TRANSFER,BK |
| 2196048 | 200 | BOARD ASSY.,MAIN |
| 2214115 | 200 | BOARD ASSY.,MAIN |
| 1802750 | 300 | POWER SUPPLY,ASSY,CH67,C.,IEI |
| 2196053 | 351 | BOARD ASSY.,SUB |
| 2207228 | 352 | WIRELESS LAN USB MODULE |
| 2195932 | 354 | BOARD ASSY.,INTERFACE |
| 2198231 | 356 | FFC,MAIN-PNL(2.7inch) |
| 2198233 | 357 | FFC,MAIN-SUB,29 Pin |
| 1768577 | 501 | SCALE,CR |
| 1768579 | 502 | TORSION SPRING,15.66 |
| 2198125 | 503 | MOTOR ASSY.,CR |
| 1853117 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| 1858221 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| 1867251 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| 1887754 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| 1768590 | 507 | TORSION SPRING,142.52 |
| 1845645 | 509 | HOUSING,FRONT,C |
| 1829637 | 510 | SPEAKER,ASSY,CH71.,IEI |
| 1802309 | 511 | GUIDE,RASF,UPPER,ASSY,IEI |
| 1824006 | 512 | SCALE,PF,IEI,ASP |
| 1768589 | 514 | TORSION SPRING,154.73 |
| 2198112 | 516 | CABLE,ENCODER,PF |
| 1768538 | 518 | POROUS PAD,PAPER GUIDE,LOWER |
| 1834810 | 519 | POROUS PAD,PAPER GUIDE,LOWER,B2 |
| 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C |
| 1802316 | 521 | PAPER GUIDE,FRONT,ASSY,CH67,IEI |
| 1802313 | 522 | HOLDER,STAR WHEEL,EJ1,ASSY,IEI |
| 1802312 | 523 | HOLDER,STAR WHEEL,EJ2,ASSY,IEI |
| 1768567 | 524 | TORSION SPRING,8.81 |
| 2205102 | 525 | MOTOR ASSY.,PF,B |
| 1522628 | 526 | EXTENSION SPRING,11.11 |
| 1768542 | 527 | EXTENSION SPRING,6.25 |
| 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI |
| 1829639 | 529 | PAPER GUIDE UPPER ASSY, SIDE,CH71.,IEI |
| 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI |
| 1802407 | 532 | FRAME,SEPARATE,ASSY,IEI |
| 2205104 | 533 | MOTOR ASSY.,ASF,B |
| 2147998 | 534 | BOARD ASSY.,SUB |
| 2198048 | 535 | CABLE,ENCODER,ASF |
| 1768052 | 536 | COMPRESSION SPRING,41.6 |
| 1108107 | 539 | FOOT |
| 1802308 | 540 | FRAME,BASE,2nd,ASSY,IEI |
| 1856143 | 540 | FRAME,BASE,2ND,ASSY,IEI |
| 1821090 | 541 | ONEWAY CLUTCH ASSY,2ND.,IEI |
| 1768576 | 542 | TIMING BELT,CR |
| 1802310 | 543 | APG,ASSY,IEI |
| 1881756 | 543 | APG,ASSY,IEI |
| 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI |
| 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI |
| 1834813 | 550 | SHEET,20x18 |
| 1834812 | 552 | DOUBLE SIDED TAPE,15x65 |
| 1801903 | 701 | STACKER ASSY (BK),IEI |
| 1827728 | 702 | CASSETTE ASSY 1ST BIN (BK),IEI,ASP |
| 1768048 | 703 | COVER,CASSETTE |
| 1827730 | 704 | CASSETTE ASSY 2ND BIN (BK),IEI,ASP |
| 1801904 | 707 | DUPLEX UNIT (MSF) (BK),IEI |
| 2199020 | 713 | CABLE,CSIC |
| 2197925 | 714 | CONECTOR,CSIC |
| 1772632 | 715 | JOINT,MAINTENANCE BOX |
| 1847227 | 721 | HOLDER,ADAPTER,CH67,ASSY,ASP |
| 1836892 | 722 | LABEL,COVER,IC |
| 1768574 | 723 | COVER,IC |
| 1802408 | 724 | STACKER,DRIVE,ASSY,CH67,IEI |
| 1436642 | 725 | CLAMP,TUBE |
| 1847228 | 726 | I/S MAINTENANCE UNIT,CH67,IEI,ASP |
| 2150699 | 729 | LEAF SENSOR,P599 |
| 1803722 | 730 | COVER,INK EJECT,C |
| 1775081 | 731 | POROUS PAD,CAP,LOWER |
| 1836893 | 742 | LABEL,ARROW,COVER,IC |
| 1835191 | 743 | COVER,IC,SUB |
| 1631063 | 744 | COVER,CABLE,HEAD,INNER |
| 1794087 | 745 | GUIDE,IC,B |
| 1847229 | 800 | SCANNER UNIT,CH68,IEI,ASP |
| 1768156 | 801 | HINGE ASSY.,SC |
| 1847230 | 900 | ADF UNIT,CH68,IEI,ASP |
| 1768122 | 901 | MAT,COVER,DOCUMENT |
| 1821028 | 902 | LD ASSY, ADF,IEI |
| 1803702 | 904 | LABEL,INSTRUCTION,ADF |
| 1803018 | 905 | PAPER GUIDE,UPPER,ADF,ASSY,IEI |
| 1829633 | 907 | PAD ADF,ASSY,CH71.,IEI |
| 1524343 | 908 | COMPRESSION SPRING,2.25 |
| 1768121 | 909 | HINGE ASSY.,ADF |
