EPSON WorkForce WF-7310 WF-7311 WF-7318 Parts Manual
In stock
SKU
EP-WF7310-PM
$1.60
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON WorkForce WF-7310 WF-7311 WF-7318 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.44M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WF-7300 Series WF-7310 7311 7318 |
EPSON WorkForce WF-7310 WF-7311 WF-7318
Parts Manual
EPSON WorkForce WF-7300 Series WF-7310 7311 7318
****** The following content is not included in the PDF manual. Please refer to ONLINE ******

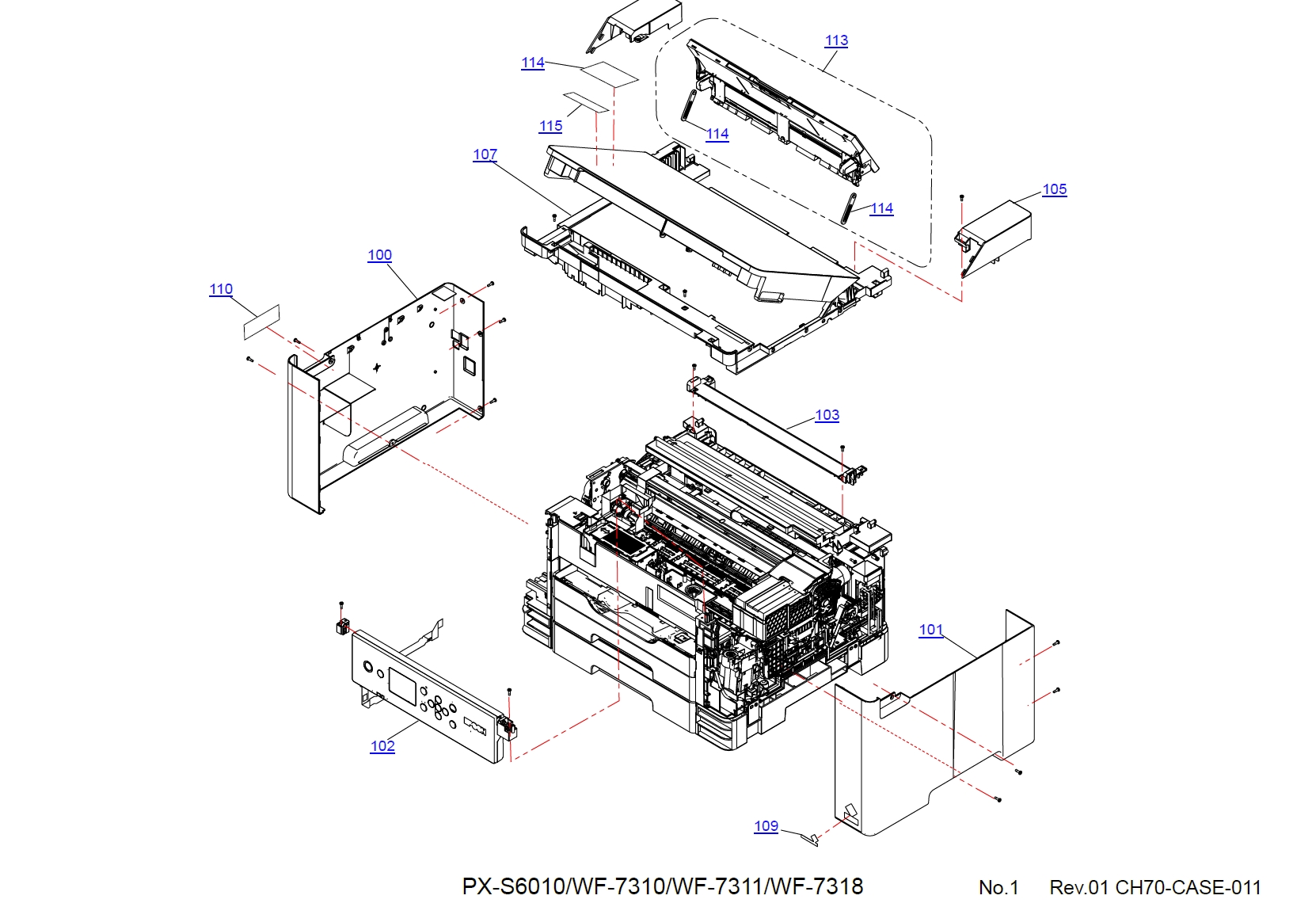

| WORKFORCE WF-7310DTW | 1768255 | 100 | HOUSING,LEFT |
| WORKFORCE WF-7310DTW | 1848886 | 101 | HOUSING,RIGHT,C |
| WORKFORCE WF-7310DTW | 1865113 | 102 | PANEL UNIT,FD/FC (WHITE),CH7020S,IEI,ASP |
| WORKFORCE WF-7310DTW | 1850605 | 103 | COVER,SENSOR,MSF |
| WORKFORCE WF-7310DTW | 1855685 | 104 | HOUSING,MSF,LEFT |
| WORKFORCE WF-7310DTW | 1855684 | 105 | HOUSING,MSF,RIGHT |
| WORKFORCE WF-7310DTW | 1865119 | 107 | COVER,PRINTER ASSY,CH70,ASP |
| WORKFORCE WF-7310DTW | 1845726 | 109 | LABEL,PrecisionCore,F2 |
| WORKFORCE WF-7310DTW | 1803703 | 110 | LABEL,TRANSFER,BK |
| WORKFORCE WF-7310DTW | 1865117 | 113 | MSF ASSY,ASP |
| WORKFORCE WF-7310DTW | 1850616 | 114 | LEVER,STOPPER,MSF |
| WORKFORCE WF-7310DTW | 1835650 | 116 | LABEL,BLIND,FAX,B |
| WORKFORCE WF-7310DTW | 2210450 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-7310DTW | 2214122 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-7310DTW | 1802750 | 300 | POWER SUPPLY,ASSY,CH67,C.,IEI |
| WORKFORCE WF-7310DTW | 2210451 | 351 | BOARD ASSY.,SUB |
| WORKFORCE WF-7310DTW | 2207228 | 352 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-7310DTW | 2198233 | 357 | FFC,MAIN-SUB,29 Pin |
| WORKFORCE WF-7310DTW | 1768577 | 501 | SCALE,CR |
| WORKFORCE WF-7310DTW | 1768579 | 502 | TORSION SPRING,15.66 |
| WORKFORCE WF-7310DTW | 2198125 | 503 | MOTOR ASSY.,CR |
| WORKFORCE WF-7310DTW | 1853117 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| WORKFORCE WF-7310DTW | 1867251 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| WORKFORCE WF-7310DTW | 1887754 | 504 | CARRIAGE,ASSY,CH67,B:IEI |
| WORKFORCE WF-7310DTW | 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| WORKFORCE WF-7310DTW | 1768590 | 507 | TORSION SPRING,142.52 |
| WORKFORCE WF-7310DTW | 1845645 | 509 | HOUSING,FRONT,C |
| WORKFORCE WF-7310DTW | 1855208 | 511 | GUIDE,RASF,UPPER,ASSY,CH7010SIEI |
| WORKFORCE WF-7310DTW | 1824006 | 512 | SCALE,PF,IEI,ASP |
| WORKFORCE WF-7310DTW | 1768589 | 514 | TORSION SPRING,154.73 |
| WORKFORCE WF-7310DTW | 2198112 | 516 | CABLE,ENCODER,PF |
| WORKFORCE WF-7310DTW | 1768538 | 518 | POROUS PAD,PAPER GUIDE,LOWER |
| WORKFORCE WF-7310DTW | 1834810 | 519 | POROUS PAD,PAPER GUIDE,LOWER,B2 |
| WORKFORCE WF-7310DTW | 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C |
| WORKFORCE WF-7310DTW | 1802316 | 521 | PAPER GUIDE,FRONT,ASSY,CH67,IEI |
| WORKFORCE WF-7310DTW | 1802313 | 522 | HOLDER,STAR WHEEL,EJ1,ASSY,IEI |
| WORKFORCE WF-7310DTW | 1802312 | 523 | HOLDER,STAR WHEEL,EJ2,ASSY,IEI |
| WORKFORCE WF-7310DTW | 1768567 | 524 | TORSION SPRING,8.81 |
| WORKFORCE WF-7310DTW | 2205102 | 525 | MOTOR ASSY.,PF,B |
| WORKFORCE WF-7310DTW | 1522628 | 526 | EXTENSION SPRING,11.11 |
| WORKFORCE WF-7310DTW | 1768542 | 527 | EXTENSION SPRING,6.25 |
| WORKFORCE WF-7310DTW | 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI |
| WORKFORCE WF-7310DTW | 1829639 | 529 | PAPER GUIDE UPPER ASSY, SIDE,CH71.,IEI |
| WORKFORCE WF-7310DTW | 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI |
| WORKFORCE WF-7310DTW | 1802407 | 532 | FRAME,SEPARATE,ASSY,IEI |
| WORKFORCE WF-7310DTW | 2205104 | 533 | MOTOR ASSY.,ASF,B |
| WORKFORCE WF-7310DTW | 2147998 | 534 | BOARD ASSY.,SUB |
| WORKFORCE WF-7310DTW | 2198048 | 535 | CABLE,ENCODER,ASF |
| WORKFORCE WF-7310DTW | 1768052 | 536 | COMPRESSION SPRING,41.6 |
| WORKFORCE WF-7310DTW | 1108107 | 539 | FOOT |
| WORKFORCE WF-7310DTW | 1856143 | 540 | FRAME,BASE,2nd,ASSY,IEI,ASP |
| WORKFORCE WF-7310DTW | 1821090 | 541 | ONEWAY CLUTCH ASSY,2ND.,IEI |
| WORKFORCE WF-7310DTW | 1768576 | 542 | TIMING BELT,CR |
| WORKFORCE WF-7310DTW | 1802310 | 543 | APG,ASSY,IEI |
| WORKFORCE WF-7310DTW | 1881756 | 543 | APG,ASSY,IEI |
| WORKFORCE WF-7310DTW | 1813534 | 544 | POROUS PAD,PAPER GUIDE,LOWER,D |
| WORKFORCE WF-7310DTW | 1814233 | 545 | POROUS PAD,PAPER GUIDE,LOWER,E |
| WORKFORCE WF-7310DTW | 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI |
| WORKFORCE WF-7310DTW | 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| WORKFORCE WF-7310DTW | 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI |
| WORKFORCE WF-7310DTW | 1834813 | 550 | SHEET,20x18 SDOTT |
| WORKFORCE WF-7310DTW | 1834812 | 552 | DOUBLE SIDED TAPE,15x65 |
| WORKFORCE WF-7310DTW | 2150699 | 557 | LEAF SENSOR,P599 |
| WORKFORCE WF-7310DTW | 1522680 | 558 | TIMMING BELT,PF |
| WORKFORCE WF-7310DTW | 1522660 | 559 | CAP,DETECTOR,PW |
| WORKFORCE WF-7310DTW | 1768189 | 561 | SPUR GEAR,24 |
| WORKFORCE WF-7310DTW | 1881528 | 561 | SPUR GEAR,24 |
| WORKFORCE WF-7310DTW | 1801903 | 701 | STACKER ASSY (BK),IEI |
| WORKFORCE WF-7310DTW | 1827728 | 702 | CASSETTE ASSY 1ST BIN (BK),IEI,ASP |
| WORKFORCE WF-7310DTW | 1768048 | 703 | COVER,CASSETTE |
| WORKFORCE WF-7310DTW | 1827730 | 704 | CASSETTE ASSY 2ND BIN (BK),IEI,ASP |
| WORKFORCE WF-7310DTW | 1855220 | 707 | DUPLEX UNIT (ASF) (BK),CH7020S,IEI |
| WORKFORCE WF-7310DTW | 1865111 | 708 | HOUSING MSF ASSY,ASP |
| WORKFORCE WF-7310DTW | 1865623 | 709 | TORTION SPRING,0.44,MSF |
| WORKFORCE WF-7310DTW | 1768078 | 710 | LEVER,DETECTOR,PE3 |
| WORKFORCE WF-7310DTW | 2164868 | 711 | PHOTO INTERRUPTER |
| WORKFORCE WF-7310DTW | 2199020 | 713 | CABLE,CSIC |
| WORKFORCE WF-7310DTW | 2197925 | 714 | CONECTOR,CSIC |
| WORKFORCE WF-7310DTW | 1772632 | 715 | JOINT,MAINTENANCE BOX |
| WORKFORCE WF-7310DTW | 1858223 | 718 | CABLE,HEAD ASSY,CH67,A, ASP,IEI |
| WORKFORCE WF-7310DTW | 1843250 | 720 | POROUS PAD,CR,ASP |
| WORKFORCE WF-7310DTW | 1847227 | 721 | HOLDER BOARD ASSY,CH67.,IEI,ASP |
| WORKFORCE WF-7310DTW | 1836892 | 722 | LABEL,COVER,IC |
| WORKFORCE WF-7310DTW | 1768574 | 723 | COVER,IC |
| WORKFORCE WF-7310DTW | 1855209 | 724 | STACKER,DRIVE,ASSY,CH7010S,IEI |
| WORKFORCE WF-7310DTW | 1436642 | 725 | CLAMP,TUBE |
| WORKFORCE WF-7310DTW | 1872609 | 726 | I/S MAINTENANCE UNIT,CH67A,IEI,ASP |
| WORKFORCE WF-7310DTW | 1803722 | 730 | COVER,INK EJECT,C |
| WORKFORCE WF-7310DTW | 1775081 | 731 | POROUS PAD,CAP,LOWER |
| WORKFORCE WF-7310DTW | 1817270 | 742 | POROUS PAD,HEAD,u2,C |
| WORKFORCE WF-7310DTW | 1835191 | 743 | COVER,IC,SUB SDOTT |
| WORKFORCE WF-7310DTW | 1631063 | 744 | COVER,CABLE,HEAD,INNER |
| WORKFORCE WF-7310DTW | 1794087 | 745 | GUIDE,IC,B SP |
| WORKFORCE WF-7310DTW | 1843241 | 746 | LABEL,ARROW,COVER,IC,SUB |
