EPSON WF-2630 WF-2631 Parts Manual
In stock
SKU
EP-WF2630-PM
$1.30
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WF-2630 WF-2631 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.28M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-2600 Series |
EPSON WF-2630 WF-2631 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

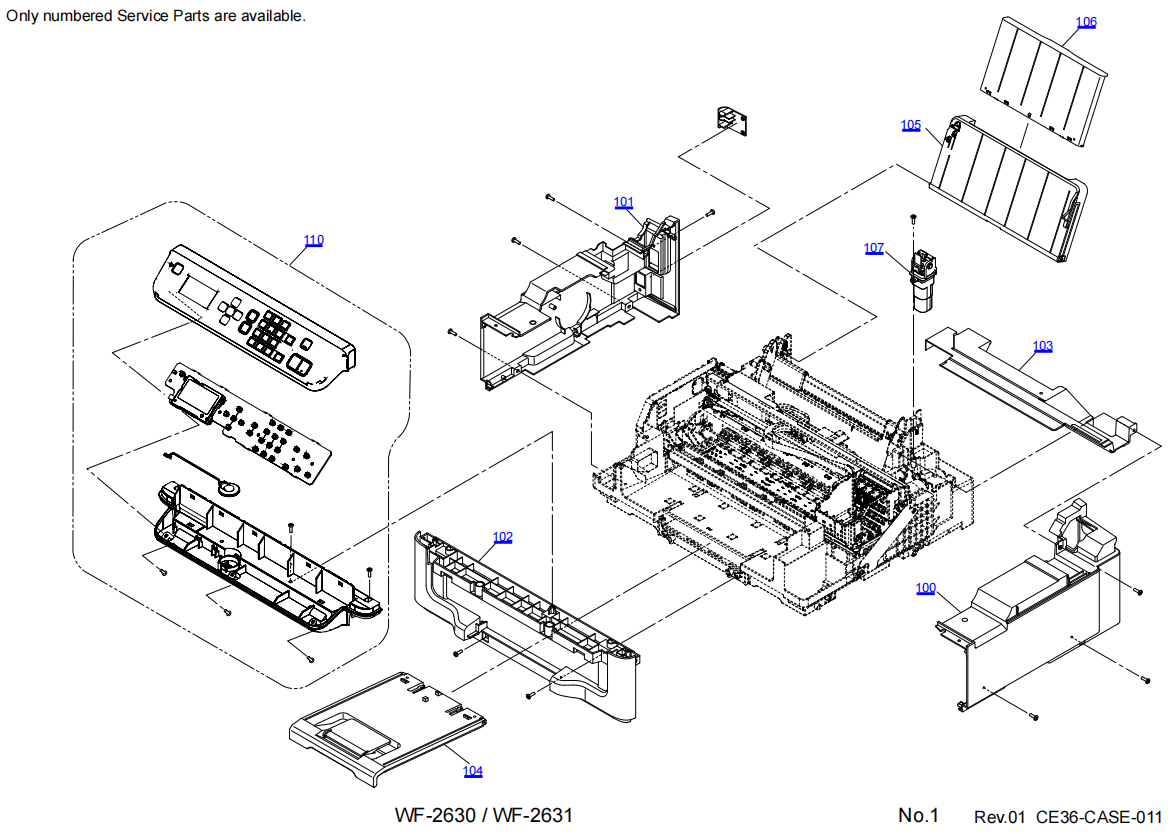

| Article | Reference | Description |
| 1572581 | 100 | HOUSING,RIGHT |
| 1572580 | 101 | HOUSING,LEFT |
| 1633047 | 102 | HOUSING,FRONT |
| 1628562 | 103 | COVER,REAR |
| 1624161 | 104 | STACKER ASSY.,B,SEC |
| 1799721 | 104 | STACKER ASSY.,B,SEC |
| 1595368 | 105 | PAPER SUPPORT,C |
| 1572583 | 106 | PAPER SUPPORT,SUPPORT |
| 1438860 | 107 | HINGE,ASSY.,B |
| 1635212 | 110 | PANEL UNIT,CE36,IEI |
| 1799796 | 110 | PANEL UNIT,CE36,IEI |
| 2167020 | 201 | BOARD ASSY.,MAIN 6849A,STANDARD |
| 2159201 | 201 | Ersetzt durch: 2167020 |
| 2164587 | 202 | Ersetzt durch: 2167574 |
| 2167574 | 202 | Ersetzt durch: 2169341 |
| 2169341 | 202 | Ersetzt durch: 2171393 |
| 2171393 | 202 | WIRELESS LAN USB MODULE |
| 1635282 | 203 | FAX ASSY.,IEI |
| 1799799 | 203 | FAX ASSY.,IEI |
| 2161580 | 300 | POWER SUPPLY UNIT |
| 2193662 | 300 | POWER SUPPLY UNIT |
| 1572338 | 501 | LEVER,DETECTOR,PE,HD |
| 1548501 | 503 | SPUR GEAR,31.2 |
| 1548502 | 504 | MOTOR ASSY.,PF |
| 1548519 | 505 | BOARD ASSY.,ENCORDER,PF |
| 1584704 | 507 | HOLDER RETARD ASSY.,SEC |
| 1799734 | 507 | HOLDER RETARD ASSY.,SEC |
| 1597297 | 508 | FRAME PUMP ASSY,B,SEC |
| 1799731 | 508 | FRAME PUMP ASSY,B,SEC |
| 1569342 | 509 | HOLDER STARWHEEL ASSY |
| 1573559 | 510 | SHAFT,ROLLER,LD,ASSY,IEI |
| 1603525 | 511 | SCALE,CR,B |
| 1548480 | 512 | EXTENSION SPRING,1.41 |
| 1577546 | 513 | CAP ASSY.,IEI |
| 1589549 | 514 | PGF ASSY,B,SEC,ASP |
| 2142590 | 515 | MOTOR ASSY,CR |
| 1550812 | 516 | PGU ASSY |
| 1635214 | 517 | CR ASSY,CE36,IEI |
| 1631503 | 518 | FFC CR ASSY.,B,ASP |
| 1556085 | 519 | POROUS PAD,PAPER GUIDE,FRONT,LOWER,B |
| 1593845 | 519 | POROUS PAD,PAPER GUIDE,FRONT,LOWER,B |
| 1549887 | 520 | LEVER,PAPER BACK |
| 1548518 | 521 | SCALE,PF |
| 2141062 | 525 | CABLE,PIS |
| 2150454 | 526 | BOARD ASSY.,SUB |
| 1548528 | 527 | CLUTCH |
| 1548529 | 528 | SPUR GEAR,37.2 |
| 1548530 | 529 | EXTENSION SPRING,0.137 |
| 1548494 | 530 | EXTENSION SPRING,0.067 |
| 1572561 | 531 | POROUSPAD,IS,LOWER |
| 1548561 | 533 | LEVER,LOCK,SLIDER |
| 1612779 | 535 | SHEET,GUIDE,FFC |
| 1635213 | 542 | PAPER DETECTION ASSY,IEI |
| 1799798 | 542 | PAPER DETECTION ASSY,IEI |
| 1567193 | 543 | COVER,CABLE,HEAD,F2 |
| FA04000 | 700 | Ersetzt durch: FA04040 |
| 1584718 | 701 | HOLDER BOARD ASSY.,SEC |
| 1799718 | 701 | HOLDER BOARD ASSY.,SEC |
| 1584721 | 703 | TRAY POROUSPAD,ASSY.,SEC |
| 1495647 | 704 | COMPRESSION SPRING,3.43 |
| 1644637 | 800 | SCANNER UNIT,CE36,ASP |
| 1686329 | 800 | SCANNER UNIT,CE36,ASP |
| 1590188 | 802 | COVER,ASF |
| 1644638 | 900 | ADF UNIT,CE36,ASP |
| 1585900 | 901 | PAPER SUPPORT ADF ASSY.,SEC |
| 1646289 | 902 | ADF COVER ASSY.,CE36,SEC |
| 1585902 | 903 | PAD ADF ASSY.,SEC |
| 1574388 | 904 | BEVEL GEAR SHAFT,10.4 |
| 1574387 | 905 | COMBINATION GEAR,24,9.6 |
