EPSON WF-2650 WF-2651 Parts Manual
In stock
SKU
EP-WF2650-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WF-2650 WF-2651 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.67M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-2600 Series |
****** The following content is not included in the PDF manual, please use it online ******

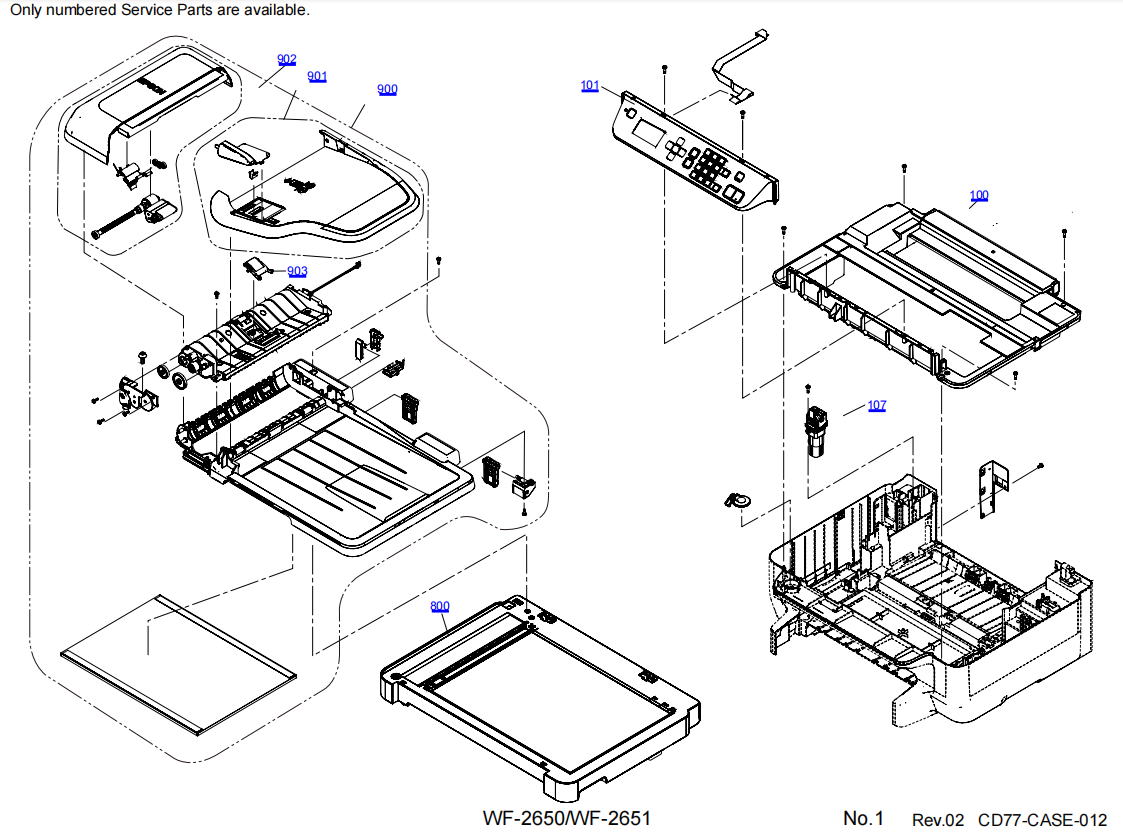

| Article | Reference | Description |
| 1631129 | 100 | HOUSING,UPPER |
| 1633517 | 101 | PANEL,ASSY.,SEC |
| 1438860 | 107 | HINGE,ASSY.,B |
| 2169948 | 200 | BOARD ASSY.,MAIN |
| 2188143 | 200 | BOARD ASSY.,MAIN |
| 2172191 | 202 | WIRELESS LAN USB MODULE |
| 1634830 | 203 | FAX,ASSY.,CE33,SEC |
| 1797878 | 203 | FAX,ASSY.,CE33,SEC |
| 2161580 | 300 | POWER SUPPLY UNIT |
| 2193662 | 300 | POWER SUPPLY UNIT |
| 2167253 | 500 | PRINTER MECHANISM,CD77,B,ASP |
| 2187535 | 500 | PRINTER MECHANISM,CD77,B,ASP |
| 1823318 | 500 | PRINTER MECHANISM,CD77,B,ASP |
| 2162328 | 501 | CABLE,HEAD |
| 2162327 | 502 | CABLE,ENCORDER,CR |
| 1631076 | 503 | POROUS PAD,PAPER GUIDE,LOWER |
| 1667623 | 504 | PICK UP ASSY,IEI |
| 1633452 | 507 | PAD,LEVER,PE,ASSY.,SEC |
| 1697789 | 508 | STACKER,ASSY.,B,SEC |
| 1797870 | 508 | STACKER,ASSY.,B,SEC |
| 1643392 | 509 | ENCODER PF ASSY,ASP |
| 2109393 | 510 | BOARD ASSY.,DETECTOR,PW,B |
| 1651388 | 511 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| 1633453 | 516 | PAPER,GUIDE,UPPER,ASSY.,SEC |
| 1643393 | 525 | PIS SENSOR ASSY,ASP |
| 1823325 | 525 | PIS SENSOR ASSY,ASP |
| 1633520 | 701 | HOLDER,BOARD,ASSY.,SEC |
| 1755329 | 701 | HOLDER,BOARD,ASSY.,SEC |
| 1634019 | 703 | DUPLEX,ASSY,SEC |
| 1797868 | 703 | DUPLEX,ASSY,SEC |
| 1851860 | 703 | DUPLEX,ASSY,SEC |
| 1643391 | 704 | SCALE,CR ASSY,ASP |
| 1823323 | 704 | SCALE,CR ASSY,ASP |
| 1633505 | 706 | CASSETTE,ASSY.,SEC |
| 1797863 | 706 | CASSETTE,ASSY.,SEC |
| 1633523 | 707 | MAINTENANCE BOX,SEC |
| 1797867 | 707 | MAINTENANCE BOX,SEC |
| 1633514 | 708 | DETECTOR,PE,ASSY,SEC |
| 1797864 | 708 | DETECTOR,PE,ASSY,SEC |
| 2162360 | 710 | DETECTOR,ASSY,CASSETTE |
| 1668119 | 715 | INK SYSTEM,ASSY,IEI |
| 1686854 | 800 | SCANNER UNIT,CD77,C,ASP |
| 1715347 | 800 | SCANNER UNIT,CD77,C,ASP |
| 1823319 | 800 | SCANNER UNIT,CD77,C,ASP |
| 1679599 | 900 | ADF UNIT,CE71,C,ASP |
| 1822512 | 900 | ADF UNIT,CE71,C,ASP |
| 1633494 | 901 | DOCUMENT,SUPPORT,ADF,ASSY.,SEC |
| 1633516 | 902 | COVER,PAPER GUIDE,LD,AD,ASSY.,SEC |
| 1555114 | 903 | PAD,ADF ASSY.,SEC |
