EPSON SureLab SL-D800 D830 D850 D860 D870 Parts Manual
In stock
SKU
EP-D800-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureLab SL-D800 D830 D850 D860 D870 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 7.68M |
| Pages | 7 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureLab D800 |

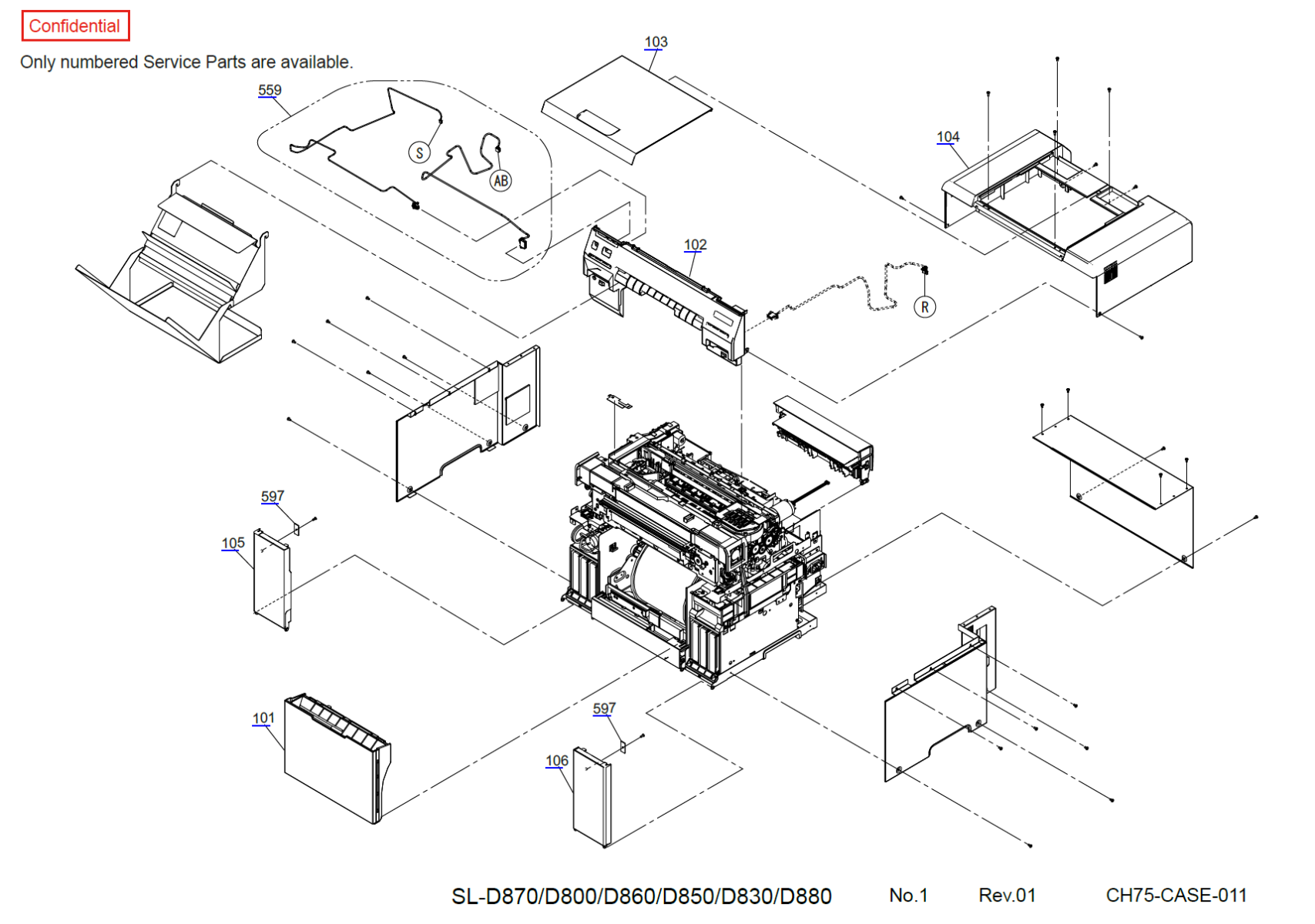

****** The following content is not included in the PDF manual, please use it online ******
| 1799589 | 101 | WASTEPAPER,BOX ASSY,CH75 ESL ASP |
| 1812886 | 102 | HOUSING FRONT ASSY,B,ASP |
| 1620853 | 103 | HOUSING,COVER,TOP,B |
| 1606119 | 104 | HOUSING,TOP |
| 1606128 | 105 | COVER,IC,LEFT |
| 1606129 | 106 | COVER,IC,RIGHT |
| 2198406 | 200 | BOARD ASSY.,MAIN |
| 2199036 | 201 | BOARD ASSY.,MCU |
| 2188983 | 202 | BOARD ASSY.,POWER SUPPLY |
| 2149057 | 203 | BOARD ASSY.,SUB |
| 1619741 | 204 | AID,BOARD ASSY ESL,ASP |
| 2170862 | 205 | HARNESS,HEATER |
| 2153382 | 206 | HARNESS,SET |
| 2152881 | 207 | HARNESS |
| 2152880 | 208 | HARNESS |
| 2152877 | 209 | HARNESS |
| 2181208 | 210 | HARNESS |
| 1619770 | 501 | COVER,TUBE ASSY ASP |
| 1799588 | 502 | MOTOR,ROLL ASSY.,CH75 ESL ,ASP |
| 1619771 | 503 | FLAGG,SENSOR,ROLLED PAPER ASSY ESL R ASP |
| 1619772 | 504 | FLAGG,SENSOR,ROLLED PAPER ASSY ESL L ASP |
| 1706069 | 505 | DUCT,FAN_Assy LEFT A,UNIT,ASP |
| 1697860 | 506 | DUCT,FAN_Assy RIGHT UNIT,A,ASP |
| 1708796 | 507 | PAPER GUIDE,MIDDLE ASSY A ESL,ASP |
| 1619747 | 508 | APG ASSY ESL,ASP |
| 1697842 | 509 | SHAFT,RELEASE,PAPER GUIDE,UPPER,A,ASP |
| 1299818 | 510 | HOLDER,SHAFT,RELEASE |
| 1619748 | 511 | DETECTOR PE ASSY ESL,ASP |
| 1619749 | 512 | FRAME EJ ASSY ESL,ASP |
| 1697841 | 513 | PAPER GUIDE,UPPER ASSY.,A,ESL,ASP |
| 1619751 | 514 | ROLLER IDLE ASSY ESL ASP |
| 1799590 | 515 | ROLL MAIN ASSY,CH75 ESL ,ASP |
| 1695898 | 516 | ROLLER ASSY.,ROLL,LOWER,C |
| 1606161 | 517 | ROLLER ASSY.,ROLL,UPPER |
| 1606199 | 518 | PAPER GUIDE,ROLL,UPPER |
| 2167430 | 519 | HARNESS,ROLL,FRONT,B |
| 2152625 | 520 | SENSOR,KUA0100B |
| 1799599 | 521 | EDGE GUIDE,FRONT_Assy,ASP |
| 1706070 | 522 | SHAFT,DRIVEN,ROLL A,ASSY,ASP |
| 1706071 | 523 | ROLL,MIDDLE A Assy,ASP |
| 1799591 | 524 | HOLDER,EDGE GUIDE,REAR ASSY,CH75 ESL,ASP |
| 1697840 | 525 | SHAFT,CAM,ROLLER,DECURL_Assy,A,ASP |
| 1619755 | 526 | PAPER GUIDE,ROLL,LOWER_Assy,ASP |
| 1799592 | 527 | CUTTER U ASSY,CH75 ESL,ASP |
| 1799593 | 528 | FRAME,HEATER ASSY,CH75 ESL,ASP |
| 1619758 | 529 | CABLE,HEAD ASSY ASP |
| 1619777 | 530 | CR CAM,PG KIT ASP |
| 1633219 | 531 | CARRIAGE ASSY ESL ASP |
| 1292709 | 532 | TIMING BELT,CR |
| 1619760 | 533 | PULLEY,DRIVEN ASSY ESL ASP |
| 1619761 | 534 | U-UNDER ASSY ESL,ASP |
| 1712349 | 535 | ROLLER PF ASSY,A,ESL,ASP |
| 1846613 | 535 | ROLLER PF ASSY,A,ESL,ASP |
| 1651185 | 536 | PAPER GUIDE,FRONT ASSY.,A,ESL,ASP |
| 1799600 | 537 | PAPER GUIDE,LOWER ASSY,ASP |
| 1766396 | 538 | PUMP CAP ASSY,B ESL,ASP |
| 1619767 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1873806 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1886594 | 539 | TUBE,JOINT ASSY ESL,ASP |
| 1799595 | 540 | I/H RIGHT MAIN ASSY,CH75 ESL,B,ASP |
| 1886599 | 540 | I/H RIGHT MAIN ASSY,CH75 ESL,B,ASP |
| 1799597 | 541 | I/H LEFT MAIN ASSY,CH75 ESL,B,ASP |
| 1826723 | 541 | I/H LEFT MAIN ASSY,CH75 ESL,B,ASP |
| 1876557 | 541 | I/H LEFT MAIN ASSY,CH75 ESL,B,ASP |
| 1886598 | 541 | I/H LEFT MAIN ASSY,CH75 ESL,B,ASP |
| 1712351 | 542 | DECOMPRESSION PUMP,ASSY,A,ESL,ASP |
| 1826721 | 542 | DECOMPRESSION PUMP,ASSY,A,ESL,ASP |
| 2133325 | 543 | BOARD ASSY.,ENCODER,PF |
| 2208679 | 543 | BOARD ASSY.,ENCODER,PF |
| 2210270 | 543 | BOARD ASSY.,ENCODER,PF |
| 2152538 | 544 | CABLE,ENCORDER,PF |
| 2152548 | 545 | FAN,MAIN,BOARD |
| 1606071 | 546 | HOLDER,TUBE |
| FA17020 | 547 | PRINT HEAD,ID852V |
| 1608061 | 548 | TUBE,DECOMPRESSION,RIGHT |
| 2020393 | 550 | DETECTOR,LEAF,B2 |
| 1299874 | 551 | PAPER GUIDE,REAR |
| 1292717 | 552 | EXTENSION SPRING,HOLDER,PULLEY,DRIVEN |
| 1514904 | 553 | SCALE,CR |
| 2117492 | 554 | MOTOR ASSY.,CR |
| 1292600 | 555 | TIMING BELT,PF |
| 2091940 | 556 | MOTOR ASSY.,PF |
| 2152561 | 557 | HARNESS,RELAY,ROLL |
| 2198213 | 558 | HARNESS,RELAY,ASSY |
| 2152913 | 560 | FFC,MAINTENANCE TANK |
| 1606057 | 561 | GUIDE,INK,EJECT |
| 2152549 | 562 | FAN,POWER SUPPLY,BOARD |
| 2170864 | 563 | HARNESS,RELAY,MOTOR |
| 2152909 | 564 | HARNESS,SENSOR,IE,RIGHT |
| 2152910 | 565 | HARNESS,SENSOR,IE,LEFT |
| 2152558 | 566 | CABLE,AID,BOARD |
| 2152908 | 567 | FFC,CSIC,LEFT |
| 1695899 | 568 | ROLLER ASSY.,ROLL,LOWER,D |
| 1627983 | 569 | GUIDE ASSY.,UPPER ASSY ESL,ASP |
| 1619629 | 570 | SCREW,HEATER,DUCT |
| 1606468 | 572 | SLIDE RAIL,20-D200-023 |
| 1643794 | 574 | IDLE,ROLLER |
| 1650709 | 575 | POROUS PAD,PAPER GUIDE,FRONT,RIGHT |
| 1650710 | 576 | POROUS PAD,PAPER GUIDE,FRONT,LEFT |
| 1306482 | 579 | POROUS PAD,MOUNTING PLATE FILTER,UPPER |
| 1300360 | 580 | SPACER,HOLDER,VALVE |
| 1679985 | 582 | CAP,AID ASSY ESL,ASP |
| 1679587 | 583 | SEAL RUBBER,JOINT,3,ASP |
| 1654656 | 584 | BUSHING,6,B |
| 1306477 | 586 | SPUR GEAR,PLANET |
| 1766395 | 587 | CAP HEAD ASSY A ASP |
| 1711298 | 589 | FRAME LEFT REAR ASSY,A,ESL,ASP |
| 1606151 | 590 | SPUR GEAR,31 |
| 1606257 | 592 | TENSION SPRING,0.21 |
| 1703734 | 593 | COVER,MOTOR,DP |
| 1525754 | 594 | SEAL RUBBER,JOINT |
| 2091555 | 595 | BOARD ASSY.,PE |
| 2207418 | 595 | BOARD ASSY.,PE |
| 2170863 | 596 | HARNESS,GROUNDING,SENSOR,ROLL,FRONT |
| 1639070 | 597 | STRIKER PLATE,MAGNET,CATCH |
| 1299814 | 598 | SPUR GEAR,EJ,TRANSMISSION,B |
| 1292595 | 599 | SPUR GEAR,EJ,DRIVE |
| 1608076 | 600 | COMBINATION GEAR,29,11 |
| 1606147 | 601 | SPUR GEAR,39 |
