EPSON SureColor T5100 T5150 T5170 T5100c T5100n T5100m Parts Manual
In stock
SKU
EP-T5100-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor T5100 T5150 T5170 T5100c T5100n T5100m Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.67 MB |
| Pages | 6 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor T5100 T5150 T5170 T5100c T5100n Series |

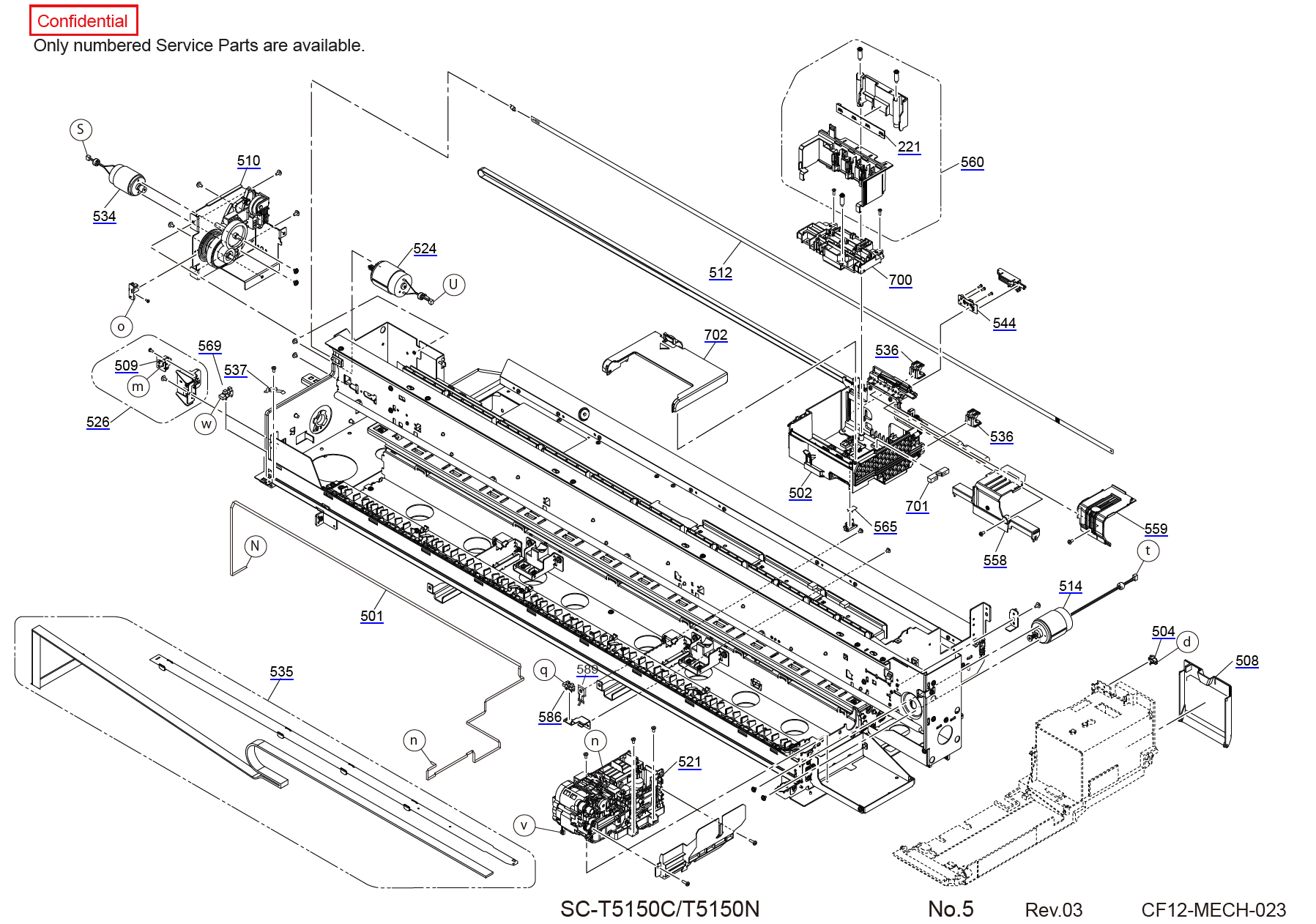

****** The following content is not included in the PDF manual ******
| SURECOLOR SC-T5100 | 1726378 | 103 | HOUSING,LOWER,R,SUB |
| SURECOLOR SC-T5100 | 1759328 | 106 | COVER ROLL PAPER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1845669 | 106 | COVER ROLL PAPER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1726387 | 107 | COVER,ASF,36 |
| SURECOLOR SC-T5100 | 1841458 | 107 | COVER,ASF,36 |
| SURECOLOR SC-T5100 | 1759330 | 108 | COVER PRINTER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1846725 | 108 | COVER PRINTER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1730825 | 109 | HOUSING FRONT,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1730788 | 110 | COVER ENCLOSURE,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1759326 | 111 | PANEL UNIT,,IEI ASP |
| SURECOLOR SC-T5100 | 1726368 | 112 | COVER,CUTTER,B |
| SURECOLOR SC-T5100 | 1726384 | 113 | HOUSING,REAR,36 |
| SURECOLOR SC-T5100 | 1726377 | 114 | HOUSING,UPPER,SUPPORT |
| SURECOLOR SC-T5100 | 1726381 | 115 | DECORATION PLATE,HOUSING,UPPER |
| SURECOLOR SC-T5100 | 1759334 | 116 | HOUSING,LOWER,RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1877022 | 116 | HOUSING,LOWER,RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1726350 | 117 | HOUSING,LOWER,LEFT |
| SURECOLOR SC-T5100 | 1759331 | 118 | HOUSING UPPER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1749876 | 119 | STACKER,SUPPORT,B |
| SURECOLOR SC-T5100 | 1809740 | 120 | FLANGE,ROLL,LEFT,B |
| SURECOLOR SC-T5100 | 2184263 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-T5100 | 2184169 | 201 | HARNESS,MOTOR,IS,L |
| SURECOLOR SC-T5100 | 2192160 | 202 | WIRELESS LAN USB MODULE |
| SURECOLOR SC-T5100 | 2184811 | 203 | HARNESS,COVER,MENTENANCE,36 |
| SURECOLOR SC-T5100 | 2184329 | 204 | HARNESS,COVER,ROLL |
| SURECOLOR SC-T5100 | 2184328 | 205 | HARNESS,COVER,CUTTER |
| SURECOLOR SC-T5100 | 2184327 | 206 | HARNESS,COVER,PRINTER |
| SURECOLOR SC-T5100 | 2184168 | 207 | HARNESS,GROUNDING,150 |
| SURECOLOR SC-T5100 | 2183863 | 208 | HARNESS,DETECTOR,ATC |
| SURECOLOR SC-T5100 | 2183921 | 209 | HARNESS,DETECTOR,PE,36 |
| SURECOLOR SC-T5100 | 2183857 | 210 | HARNESS,CUTTER |
| SURECOLOR SC-T5100 | 2183922 | 211 | HARNESS,RELAY,CR,36 |
| SURECOLOR SC-T5100 | 2183853 | 212 | HARNESS,GROUND |
| SURECOLOR SC-T5100 | 2183852 | 213 | HARNESS,PW |
| SURECOLOR SC-T5100 | 2184269 | 214 | HARNESS,DETECTOR,ASF,PE,36 |
| SURECOLOR SC-T5100 | 2184268 | 215 | HARNESS,PHASE DETECT,ASF,36 |
| SURECOLOR SC-T5100 | 2183743 | 216 | HARNESS,PIS_36 |
| SURECOLOR SC-T5100 | 2183742 | 217 | HARNESS,PF_ENC |
| SURECOLOR SC-T5100 | 2183741 | 218 | HARNESS,WiFi |
| SURECOLOR SC-T5100 | 2183740 | 219 | HARNESS,DC_OUT |
| SURECOLOR SC-T5100 | 2183739 | 220 | HARNESS,P/S,INLET |
| SURECOLOR SC-T5100 | 2183114 | 221 | CR CONTACT MODULE |
| SURECOLOR SC-T5100 | 2150454 | 222 | BOARD ASSY.,SUB |
| SURECOLOR SC-T5100 | 2183745 | 225 | HARNESS,HEAD1,36 |
| SURECOLOR SC-T5100 | 2183746 | 226 | HARNESS,HEAD2,36 |
| SURECOLOR SC-T5100 | 2183752 | 227 | HARNESS,HEAD3,36 |
| SURECOLOR SC-T5100 | 2183754 | 228 | HARNESS,HEAD4,36 |
| SURECOLOR SC-T5100 | 2183757 | 229 | HARNESS,CR_SIG,36 |
| SURECOLOR SC-T5100 | 2183759 | 230 | HARNESS,CRCM,36 |
| SURECOLOR SC-T5100 | 2183744 | 231 | HARNESS,PANEL_FFC |
| SURECOLOR SC-T5100 | 2184171 | 232 | HARNESS,INK,DETECTOR |
| SURECOLOR SC-T5100 | 2184170 | 232 | HARNESS,INK,DETECTOR |
| SURECOLOR SC-T5100 | 2202150 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-T5100 | 1725533 | 351 | HOLDER,AC,INLET |
| SURECOLOR SC-T5100 | 2184167 | 501 | CABLE,ENCODER,IS |
| SURECOLOR SC-T5100 | 1759327 | 502 | CARRIAGE,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 2184028 | 503 | COOLING,FAN |
| SURECOLOR SC-T5100 | 2090717 | 504 | LEAF SENSOR |
| SURECOLOR SC-T5100 | 1759332 | 508 | COVER,MENTENANCE BOX ASP |
| SURECOLOR SC-T5100 | 2133325 | 509 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-T5100 | 1801303 | 510 | DRIVE ROLL PAPER,B,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1724111 | 512 | SCALE,CR,36 |
| SURECOLOR SC-T5100 | 1723929 | 514 | MOTOR ASSY.,CR |
| SURECOLOR SC-T5100 | 1279312 | 515 | ROLLER,DRIVEN |
| SURECOLOR SC-T5100 | 1724105 | 516 | RACK,CUTTER,36 |
| SURECOLOR SC-T5100 | 1730792 | 519 | STACKER DETECTOR,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1836199 | 521 | INK SYSTEM,IEI,,ASSY,CF11,CB, ASP |
| SURECOLOR SC-T5100 | 1730843 | 524 | MOTOR ASSY.,PF,UNIT,IEI |
| SURECOLOR SC-T5100 | 1730847 | 525 | CR PULLEY,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1767475 | 526 | PF ENCODER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1767476 | 528 | HOLDER ROLL LEFT,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1767477 | 529 | HOLDER ROLL RIGHT,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1759325 | 532 | CARRIAGE CUTTER ASSEMBLY,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1759324 | 533 | APG LEVER,IEI,,ASSY ASP |
| SURECOLOR SC-T5100 | 1724242 | 534 | MOTOR ASSY.,ATC |
| SURECOLOR SC-T5100 | 1730849 | 535 | HEAD FFC,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1834234 | 535 | HEAD FFC,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1723920 | 536 | OIL PAD,CR |
| SURECOLOR SC-T5100 | 1723978 | 537 | STOPPER,CUTTER |
| SURECOLOR SC-T5100 | 1767472 | 538 | THIRD EJ ASSY, 36 ASP |
| SURECOLOR SC-T5100 | 1767473 | 539 | EJ ROLLER ASSY REAR, 36 ASP |
| SURECOLOR SC-T5100 | 1767474 | 540 | EJ ROLLER C, 36 ASP |
| SURECOLOR SC-T5100 | 1771501 | 541 | HOLDER,STAR WHEEL UNIT ASP |
| SURECOLOR SC-T5100 | 1771502 | 542 | HOLDER,STAR WHEEL,B UNIT ASP |
| SURECOLOR SC-T5100 | 1771789 | 543 | HOLDER,STAR WHEEL,C UNIT ASP |
| SURECOLOR SC-T5100 | 2196565 | 544 | BOARD ASSY.,ENC |
| SURECOLOR SC-T5100 | 1730846 | 547 | ASF CLUTCH,IEI,ASSY |
| SURECOLOR SC-T5100 | 1730794 | 548 | ASF GEAR,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1724100 | 553 | PAPER GUIDE,ROLL,UPPER,36 |
| SURECOLOR SC-T5100 | 1724244 | 556 | PAPER GUIDE,REAR,36 |
| SURECOLOR SC-T5100 | 1723946 | 558 | COVER,HARNESS,CR |
| SURECOLOR SC-T5100 | 1723942 | 559 | HOLDER,HARNESS,CR |
| SURECOLOR SC-T5100 | 1759335 | 560 | HOLDER,BOARD,CR, ASSY ASP |
| SURECOLOR SC-T5100 | 1723927 | 562 | HOLDER,PULLEY,DRIVEN |
| SURECOLOR SC-T5100 | 1740591 | 563 | EXTENSION SPRING,41.6 |
| SURECOLOR SC-T5100 | 1724015 | 564 | SLIDER,TRANSMISSION,ASF |
| SURECOLOR SC-T5100 | 2109393 | 565 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-T5100 | 1724110 | 566 | BELT,CR,36 |
| SURECOLOR SC-T5100 | 2173296 | 569 | PHOTO INTERRUPTER |
| SURECOLOR SC-T5100 | 1725657 | 579 | C-RING,STW-16 |
| SURECOLOR SC-T5100 | 1767478 | 580 | ASF UNIT, 36 ASP |
| SURECOLOR SC-T5100 | 2143464 | 586 | PHOTO INTERRUPTER |
| SURECOLOR SC-T5100 | 1723982 | 587 | SCALE,PF |
| SURECOLOR SC-T5100 | 1723988 | 588 | TIMING BELT,60S2M376G |
| SURECOLOR SC-T5100 | 1730796 | 589 | PE DETECTOR FLAG,IEI,,ASSY |
| SURECOLOR SC-T5100 | 1688097 | 590 | ANTI-STATIC BRUSH,EJ,ADF |
| SURECOLOR SC-T5100 | 1724104 | 591 | FRAME,CUTTER,36 |
| SURECOLOR SC-T5100 | FA36021 | 700 | PRINT HEAD,IF649V-2,ASP |
| SURECOLOR SC-T5100 | FA36031 | 700 | PRINT HEAD,IF649V-2,ASP |
| SURECOLOR SC-T5100 | 1751368 | 701 | POROUS PAD,CR |
| SURECOLOR SC-T5100 | 1723943 | 702 | COVER,CR |
| SURECOLOR SC-T5100 | 1786630 | NON FIG | ASF Spacer Jig |
| SURECOLOR SC-T5100 | 1635441 | NON FIG | GREASE, G-97 |
| SURECOLOR SC-T5100 | 1516265 | NON FIG | GREASE,G-84 |
| SURECOLOR SC-T5100 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| SURECOLOR SC-T5100 | 1728255 | NON FIG | HOLDER,FRAME,PAPER EJECT |
| SURECOLOR SC-T5100 | 1728256 | NON FIG | HOLDER,FRAME,PAPER EJECT,B |
| SURECOLOR SC-T5100 | 1858147 | NON FIG | HOLDER,FRAME,PAPER EJECT,B |
| SURECOLOR SC-T5100 | 1521154 | NON FIG | OIL,O-17 |
| SURECOLOR SC-T5100 | 5147058 | NON FIG | PAD,CUTTER |
| SURECOLOR SC-T5100 | 5151007 | NON FIG | PAD,SHEET,CR |
| SURECOLOR SC-T5100 | 1810726 | NON FIG. | SHEET,PAPER GUIDE,FRONT,SUB |
| SURECOLOR SC-T5100 | 1810727 | NON FIG. | SHEET,PAPER GUIDE,FRONT,SUB,B |
