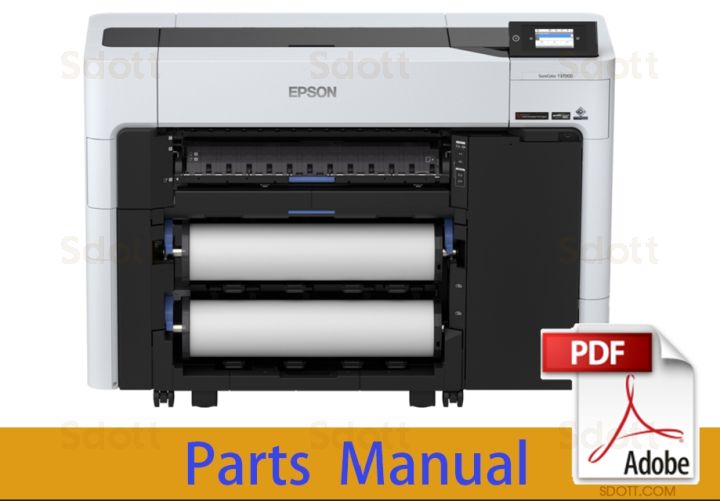

EPSON SureColor T3700D T3730D T3740D T3750D T3760D T3770D T3790D T3700DE T3730DE T3740DE T3750DE T3760DE T3770DE T3790DE Parts Manual

In stock
SKU
EP-T3700D-PM
$1.50
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.50
More Information
Manual Name EPSON SureColor T3700D T3730D T3740D T3750D T3760D T3770D T3790D T3700DE T3730DE T3740DE T3750DE T3760DE T3770DE T3790DE Parts Manual
Format PDF
PDF Archive 25.7M
Pages 9
Version 1.0
Brand EPSON - EPSON
Reference 2023.3
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor T3700D T3730D T3740D T3750D T3760D T3770D T3790D
EPSON SureColor T3700DE T3730DE T3740DE T3750DE T3760DE T3770DE T3790DE

EPSON SureColor

T3700D T3730D T3740D T3750D T3760D T3770D T3790D

T3700DE T3730DE T3740DE T3750DE T3760DE T3770DE T3790DE

Parts Manual

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

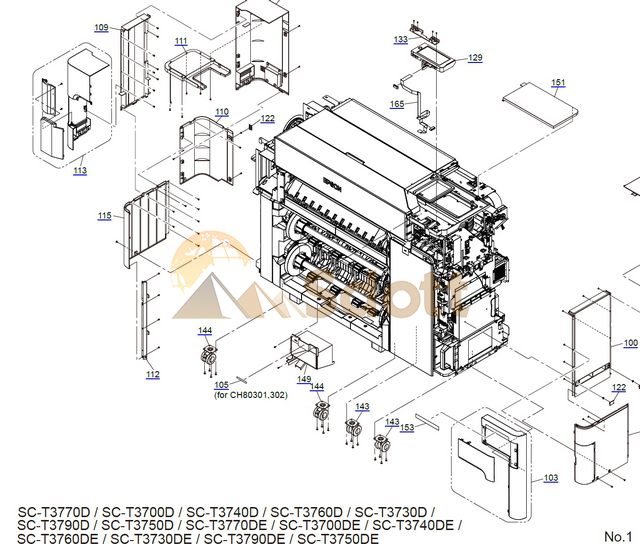

1897166100HOUSING,RIGHT,B,ASSY,ASP
1889134101HOUSING,RIGHT,LOWER,REAR,RECYCLE
1889126102COVER,I/F,RECYCLE
1895567103HOUSING,RIGHT,FRONT,B,ASSY,CH83,ASP
1895570104HOUSING,RIGHT,REAR,B,ASSY.,CH83,ASP
1893653105LABEL,PASSWORD
1844113107PAPER BLOCKER,ROLL
2186932108SENSOR,ASSY,COVER
1897463109HOUSING,LEFT,B,ASSY,ASP
1889136110HOUSING,LEFT,LOWER,REAR,RECYCLE
1901959111COVER,PRINTER,LEFT,B
1889138112HOUSING,LEFT,GUIDE,RECYCLE
1895557113HOUSING,LEFT,TOP,FRONT,B,ASSY,ASP
1895572114HOUSING,LEFT,UPPER,REAR,B,ASSY, CH83,ASP
1889125115HOUSING,LEFT,LOWER,FRONT,RECYCLE
1900768116HOUSING,TOP,FRONT ASSY,CH80,IEI,ASP
1911815117HOUSING,TOP,REAR ASSY,B,CH80IEI[1900765]
1856515118HOLDER,PNL,HOUSING,FRONT,RIGHT,CH83,IEI
1865345119HOUSING PNL FRONT RIGHT B ASSY,CH83,ASP
1865346120COVER,IH,ASSY,ASP
1895550121GUIDE,HOLDER,IH,ASSY,B,CH83,ASP
1844165122CAP,HANDLE
1844164124HOUSING,FRONT,RIGHT,LOWER
1844956125HOUSING,FRONT,RIGHT
1856435126HOUSING,FRONT,LEFT ASSY.,CH83,IEI
1930814126HOUSING,FRONT,LEFT ASSY.,CH83,IEI
1844949127COVER,JOINT,DRAWER,LEFT
1865350129PANEL ASSY, CH83 ASSY,ASP
1946853129PANEL ASSY, CH83 ASSY,ASP
1889122130GUIDE,HOLDER,MEINTENANCE,RECYCLE
1844589133HOLDER,PANEL,HINGE
1843281134COVER,NFC
1843292135HOUSING,INNER
1873066136COVER,LEVER,DRAWER
1844948138COVER,CONNECTION,DRAWER,RIGHT
1880574139COVER,CR,ASSY,CH83,IEI
1898041140COVER,TOP,PANEL,ASSY,CH81,ASP
1889110141HOUSING,REAR,C,RECYCLE
1889124142HOUSING,REAR,LOWER,LEFT,RECYCLE
1560663143CASTER,P60HG
1560664144CASTER,P60HGS
1843728145CASE,MOTOR,PF
1894459146COVER BACK ASSY,CH80,IEI
1913738146COVER BACK ASSY,CH80,IEI
1873077147HOUSING,REAR,LOWER,RIGHT,24
1873079148HOUSING,REAR,24,D
1889128149HOLDER,FRONT,RIGHT,RECYCLE
1844329150HOLDER,CUTTER,REPLACE
1901963151COVER,PRINTER,RIGHT,B
2206077152BOARD ASSY.,SUB
1877925153LABEL,MODEL NAME,T3700D
2209522154HARNESS, USB, PASORI
2209523155HARNESS, USB MEMORY
1906033156HOUSING,RIGHT,LOWER,FRONT,C,ASSY,ASP
2209524165HARNESS,FFC,PNL
2220501200BOARD ASSY.,MAIN
2206071201BOARD ASSY.,MAIN
2209052202BOARD ASSY.,SUB
2217252203Harness,FFC,MAIN,both,24,W-15
2209223300BOARD ASSY.,POWER SUPPLY
2207228350WIRELESS LAN USB MODULE
2206079351BOARD ASSY.,INTERFACE
2206081352BOARD ASSY.,DRV
2209513354HARNESS,P/S,INLET
2210895355BOARD ASSY.,SUB
2214235357BOARD ASSY.,SUB
1844914358HOLDER,PCB,LED
1856403359MAIN-B_DRV-H FFC ASSY,CH83,IEI
1874345360BLUE NOTE,ASSY,CH83,IEI
1900772501GUIDE PLATE TUBE ASSY,CH80,IEI,ASP
1900773502SLIDER CUTTER,CH80,IEI,ASP
1863344503FRAME MOTOR CUTTER ASSY,CH83,IEI
1919171503FRAME MOTOR CUTTER ASSY,CH83,IEI
1843730504SPUR GEAR,12
1844967505FAN,ASSY,EJ SDOTT
2167755506BOARD ASSY.,SUB
1865352507PUMP CAP ASSY CH83,,IEI,ASP
1921692507PUMP CAP ASSY CH83,,IEI,ASP
1948192507PUMP CAP ASSY CH83,,IEI,ASP
1893031508CLEANER WIPER ASSY,B,CH83,IEI,ASP
1864886509KEEP CAP ASSY CH83,IEI,ASP
1898040510IH ASSY.,CH81,WW,RD.ASP
1856426511HOLDER SLIDER CR ASSY,CH83,IEI
2150454512BOARD ASSY.,SUB
1862178513CUT WASHER,7.2X0.5X17
1080399514SPACER,4.1X0.5,L/NA
1843294515CONBINATION GEAR,48,21
1843072516COMBINATION GEAR,39,19.2
1851568517COMBINATION GEAR,66,30,B
1842865518COMBINATION GEAR,66,30
2182573519MOTOR ASSY.,REWIND
1844093520MOTOR ASSY,DRIVEN,RELEESE
2210366521HARNESS,SENSOR,HOME,CUTTER
2143464522PHOTO INTERRUPTER
1900776523HEAD FFC,CH80,IEI,ASP
1927741523HEAD FFC,CH80,IEI,ASP
1843716524SHEET,FLANGE,ROLL,1st
1843153525CUT WASHER,6.2X0.5X9.5
1839941526CASE,INK DETECTOR ASSY,CH83
1865358527HOLDER,CSIC,ASSY,IEI,ASP
1843293529SPUR GEAR,52.8
1856467530ONEWAY DUAL GEAR ASSY,CH83,IEI
1900771531STACKER 24 ASSY.,CH80,IEI,ASP
1911813531STACKER 24 ASSY.,CH80,IEI,ASP
1864887532DUCT BRANCH ASSY CH83,IEI,ASP
1865359533SEAL RUBBER,JOINT,,ASP
1759657534SEAL RUBBER,JOINT,DUCT,ASP
1865361535HOLDER MAINTENANCE BOX IS CH83,IEI,ASP
1865362536FRAME APG,ASSY.,CH83,IEI,ASP
1843070537COMBINATION_GEAR,48.8,14.4
1843193538COMBINATION_GEAR,58.4,19.2
2209149539BOARD ASSY.,SENSOR
2209532541COOLING FAN,BOX
1873088542BELT,CR,24
2206075543BOARD ASSY.,SUB
1843195544BUSH,ROLL,RELEASE
1842868545SPUR GEAR,62.4
1894469546HOLDER STAR WHEEL ASSY,CH80,IEI
2200023547FAN, COOLING,PS
2210355548HARNESS,SENSOR,COVER FRONT,2
1560667549FLAT CLAMP,FCR-60 V0
2177061550BOARD ASSY.,ENCODER
1843720551COVER,CR,MAIN,TOP
1901243552PAPER GUIDE REAR 24,D,ASSY,CH80,IEI
1913317554PAPER GUIDE UPPER ASSY,CH83,ASP
2210354556HARNESS,SENSOR,COVER FRONT,1
1865366557SUPPORT PF ASSY,ASP
1848285558TIMINGBELT,MOTOR,CUTTER
1843139559EXTENSION SPRING,6.10
1895396561HOLDER OPTION ASSY,B,CH83,IEI
1930812561HOLDER OPTION ASSY,B,CH83,IEI
2210431562CABLE,ENCORDER,PF
2213404563BOARD ASSY.,ENCODER
2210429565CABLE,ENCORDER,SYS
1843143566COMBINATION GEAR,35.2,15.2
1901242567PAPER GUIDE REAR 24,C,ASSY,CH83,IEI
1843126568TIMING BELT,PF
1844085569MOTOR ASSY,PF
1862179570EXTENSION SPRING,12.21
1845493571MOTOR ASSY,SYS
1843154572COMBINATION GEAR,43.2,18.4
1843144573COMBINATION GEAR,50.4,20.8
1843145574COMBINATION GEAR,56,21
1856506576LOCK SPINDLE ASSY,CH83,IEI
1895546577PG ROLL ENTRC UP 24,B,CH83,IEI,ASP
2211420579MOTOR ASSY.,CR,B
2232561579MOTOR ASSY.,CR,B
2222127580CABLE,CSIC,WASTE
1843646581TUBE,INK EJECT,MB
1658973582SPRING,GUIDE,TUBE,FL BOX
1843146583SPUR GEAR,24
1843124584PULLEY,PF
1844086585SPUR GEAR,24,B
2221373586MICRO DOOR SWITCH,D3DC-3N
1292650587BUSHING,5,LEFT
2150699588LEAF SENSOR,P599
1853259589WIPER Assy,B
1844134590HOLDER,FIXED,TUBE
1856449591PULLEY ROLLER PF ASSY,CH83,IEI
1845640592C RING,STW-20
1856444593PULLEY ROLLER MIDDLE ASSY,CH83,IEI
1864888594DUCT CR ASSY CH83,IEI,ASP
1900777595CR ASSY,CH80,IEI,ASP
1928548595CR ASSY,CH80,IEI,ASP
1843732596BELT,EJ
1894463597COVER FRONT ASSY,CH80,IEI
1913736597COVER FRONT ASSY,CH80,IEI
1843187600EXTENSION SPRING,1.89
1865368601STAR WHEEL RELEASE DRIVE,CH83,IEI,ASP
1843302602COVER,FFC,CR SDOTT
1946746602COVER,FFC,CR
1843200603MOTOR ASSY,RELEASE
1862086604EXTENSION SPRING,3.2
1776823605SCALE,CR,24
1895545607HOLDER,WHEEL,EJ,ASSY,B,ASP
1946849607HOLDER,WHEEL,EJ,ASSY,B,ASP
1894468608ROLLER EJ ASSY,CH80,IEI
2210384610HARNESS,SENSOR,PAPER GUIDE,2ND
1894465611PAPER GUIDE,SUPPORT,24,B ASSY,CH80,IEI
2210385612HARNESS,SENSOR,RELEASE,2ND
1856413614OP STACKER SENSOR ASSY,CH83,IEI
2215031615HARNESS ASSY,SENSOR,REREASE,1ST
1843735616EXTENSION SPRING,3.5
1480124618CUT PLAINE WASHER,3.1X0.5X6.7,L/NA
2212310619HARNESS ASSY,SENSOR,RELEASE,EJ
1895365624PAPER GUIDE,BOARD ASSY,CH83:IEI
1697458625SHEET,SUPPORT,SENSOR,ASF
1892175627COVER,STACKER,44,RECYCLE
1873071628COVER,STACKER,24
1889113629COVER,STACKER,SUB,20,RECYCLE
FA54001700PRINT HEAD,HIR,ASP
