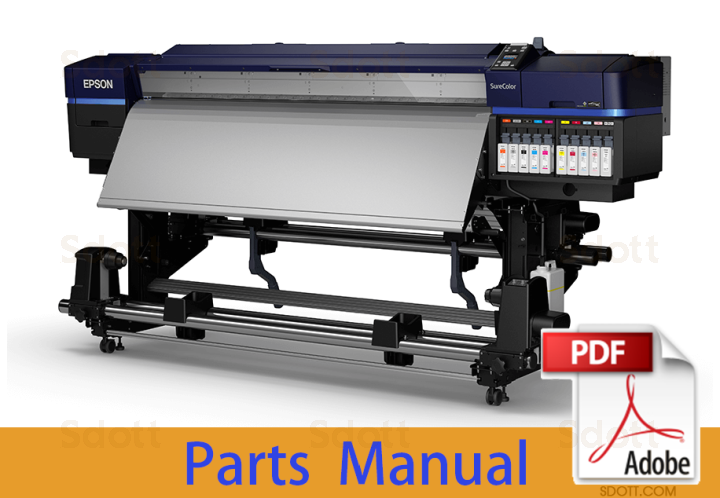

EPSON SureColor S80600/S80610/S80650/S80670 Parts Manual

In stock
SKU
EP-S80600-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.10
More Information
Manual Name EPSON SureColor S80600/S80610/S80650/S80670 Parts Manual
Format PDF
PDF Archive 17.3M
Pages 12
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor S80600 S80610 S80650 S80670 Series



****** The following content is not included in the PDF manual, please use it online ******

ModelArticleReferenceDescription
SURECOLOR SC-S8060016806931SCREW KIT ASSY,ASP
SURECOLOR SC-S8060016548162ADJUSTER ASSY.,STAND
SURECOLOR SC-S8060016548183CASER,6043STNO
SURECOLOR SC-S8060016548194CASER,6043STYS
SURECOLOR SC-S8060016806918STAND LEFT ASSY AD,ASP
SURECOLOR SC-S8060017099028STAND LEFT ASSY AD,ASP
SURECOLOR SC-S8060016806929STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S8060017099039STAND RIGHT ASSY AD,ASP
SURECOLOR SC-S80600165482010ADJUSTER,D-B3 10X75FR
SURECOLOR SC-S806001680680100COVER TOP LEFT ASSY ESL,ASP
SURECOLOR SC-S806001665556101COVER,SIDE,RIGHT,UPPER,B
SURECOLOR SC-S806001680682102COVER TOP RIGHT ASSY ESL,ASP
SURECOLOR SC-S806001680699103COVER,FRONT,RIGHT,64 ASSY ESL,ASP
SURECOLOR SC-S806001691372104COVER MAINTERNANCE,RIGHT ASSY CE45 ASP
SURECOLOR SC-S806001714504104COVER MAINTERNANCE,RIGHT ASSY CE45 ASP
SURECOLOR SC-S806001691371105COVER MAINTERNANCE,LEFT ASSY CE45 ASP
SURECOLOR SC-S806001587013106COVER SIDE RIGHT DOWN ASSY ESL,ASP
SURECOLOR SC-S806001587014107COVER SIDE LEFT DOWN ASSY ESL,ASP
SURECOLOR SC-S806001587015108COVER,FRONT,LEFT,64, ASSY ESL ASP
SURECOLOR SC-S806001665557109COVER,TOP,PANEL,B
SURECOLOR SC-S80600168070711STAY STAND SUB ASSY,ASP
SURECOLOR SC-S806001665555110COVER,SIDE,LEFT,UPPER,B
SURECOLOR SC-S806001665560112COVER,MAINTENANCE,B
SURECOLOR SC-S806001665568113COVER,MAINTENANCE,HEAD,B
SURECOLOR SC-S806001577202115HOUSING,BASE,SUPPORT,RIGHT,B
SURECOLOR SC-S806001577204116HOUSING,BASE,SUPPORT,LEFT,B
SURECOLOR SC-S806001665566117CAP,COVER,TUBE,B
SURECOLOR SC-S806001552177119KNOB,LEVER
SURECOLOR SC-S80600168070612STAY STAND ASSY,ASP
SURECOLOR SC-S806001690556120LABEL,MODEL NAME
SURECOLOR SC-S806001584143121LABEL,PERIODIC MAINTENANCE
SURECOLOR SC-S806001665562125CAP,CR,ADJUST,B
SURECOLOR SC-S806001682129128LABEL,PRECISIONCORE,B
SURECOLOR SC-S806001662963131COVER,PRINTER,PROTECT,RIGHT
SURECOLOR SC-S806001662964132COVER,PRINTER,PROTECT,LEFT
SURECOLOR SC-S806001680710133COVER PRINTER ASSY ESL,ASP
SURECOLOR SC-S806001662969134COVER,SUB,RIGHT
SURECOLOR SC-S806001662970135COVER,SUB,LEFT
SURECOLOR SC-S806001662981136COVER,RIGHT,MIST
SURECOLOR SC-S80600168069415ACCESSORY KIT,ASP
SURECOLOR SC-S806002174851200BOARD ASSY.,MAIN
SURECOLOR SC-S806002138619201HARNESS
SURECOLOR SC-S806002130945202HARNESS
SURECOLOR SC-S806002130944203HARNESS
SURECOLOR SC-S806002142891204BOARD ASSY.,MAIN
SURECOLOR SC-S806002149216205BOARD ASSY.,SUB
SURECOLOR SC-S806002138603206HARNESS
SURECOLOR SC-S806002143593207HARNESS
SURECOLOR SC-S806002138605208HARNESS
SURECOLOR SC-S806002168583210BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S806002138596211HARNESS
SURECOLOR SC-S806002138598212HARNESS
SURECOLOR SC-S806002138614213HARNESS
SURECOLOR SC-S806002138618214HARNESS
SURECOLOR SC-S806002142882217BOARD ASSY.,SUB
SURECOLOR SC-S806002142879218BOARD ASSY.,SUB
SURECOLOR SC-S806002139319219FAN SET. DC (PROPELLER TYPE)
SURECOLOR SC-S806002174036220BOARD ASSY.,PANEL
SURECOLOR SC-S806002143596222HARNESS
SURECOLOR SC-S806002154132223BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S806002143594224HARNESS
SURECOLOR SC-S806002149057225BOARD ASSY.,SUB
SURECOLOR SC-S806002169990227FAN SET. DC(PROPELLER TYPE)
SURECOLOR SC-S806002142889228BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-S806002175355229BOARD ASSY.,SUB
SURECOLOR SC-S806002170607230HARNESS,DC
SURECOLOR SC-S806002170609231HARNESS,RELAY,SUB-J
SURECOLOR SC-S806002170611232HARNESS,RELAY,HEATER,3
SURECOLOR SC-S806002175354233BOARD ASSY.,SUB
SURECOLOR SC-S806002170614234HARNESS,RELAY,1
SURECOLOR SC-S806001680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-S806002171014502CABLE,FRONT,COVER,LEFT
SURECOLOR SC-S806001673176503FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP
SURECOLOR SC-S806002171016504CABLE,FRONT,COVER,RIGHT
SURECOLOR SC-S806001673177505INK LOCK,MAINTENANCE,ASSY.CF06,ESL,ASP
SURECOLOR SC-S806001706647506CARRIGE ASSY ESL,CE46.B, ASP
SURECOLOR SC-S806001710709506CARRIGE ASSY ESL,CE46.B, ASP
SURECOLOR SC-S806001480133507PULLEY,DRIVEN
SURECOLOR SC-S806001480177508BOARD ASSY.,ENCODER
SURECOLOR SC-S806001662705509BELT,CR
SURECOLOR SC-S806002143464510PHOTO INTERRUPTER
SURECOLOR SC-S80600FA06092511PRINT HEAD,IA522V-9,ASP
SURECOLOR SC-S806002171913512BOARD ASSY.,INK MARK,B
SURECOLOR SC-S806002109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-S806002158133514HARNESS,CR,ENCODER
SURECOLOR SC-S806002142289515HARNESS,IMS
SURECOLOR SC-S806002158134516HARNESS,PW
SURECOLOR SC-S806002171011517CABLE,SENSOR,PG
SURECOLOR SC-S806002174252518BOARD ASSY.,SUB
SURECOLOR SC-S806001680697519OIL PAD ASSY ESL.,ASP
SURECOLOR SC-S806001680679520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S806001710362520FRAME APG ASSY ESL,ASP
SURECOLOR SC-S806001680690521COVER,HEATER,TOP,REAR ASSY ESL,ASP
SURECOLOR SC-S806001680689523AFTER HEATER ASSY ESL,ASP
SURECOLOR SC-S806001680698525PANEL ASSY ESL,ASP
SURECOLOR SC-S806001717396525PANEL ASSY ESL,ASP
SURECOLOR SC-S806001684361526POROUS PAD,FLASHING BOX.,ASSY ESL,ASP
SURECOLOR SC-S806001694913527FLASHING BOX.,Assy.A,CE46 ESL ASP
SURECOLOR SC-S806001691375528IH ASSY.,R ESL,ASP
SURECOLOR SC-S806001575095529SEAL RUBBER,JOINT.,ASP
SURECOLOR SC-S806001680705530CLOTH WIPER CARRIAGE,Assy ESL,ASP
SURECOLOR SC-S806001691382532PUMP,CAP,ASSY.ESL,ASP
SURECOLOR SC-S806001708723532PUMP,CAP,ASSY.ESL,ASP
SURECOLOR SC-S806001691378533TUBEASSYA,CE45 ESL,ASP
SURECOLOR SC-S806001691377534DUCT,CR ASSY.,CE45,ESL,ASP
SURECOLOR SC-S806001574106535HARNESS,HEAD ASSY,ASP
SURECOLOR SC-S806001574107536HARNESS,HEAD ASSY,C,ASP
SURECOLOR SC-S806001662703537SCALE,CR
SURECOLOR SC-S806001680708538FAN ASSY ESL,ASP
SURECOLOR SC-S806001574122539HEATER,PAPER GUIDE,FRONT,ASP
SURECOLOR SC-S806001559726540SEAL,IMS
SURECOLOR SC-S806002139305541CABLE,THERMISTOR
SURECOLOR SC-S806002169091542MOTOR ASSY.,PF
SURECOLOR SC-S806002170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-S806002170930544HARNESS,PF,ENCORDER
SURECOLOR SC-S806002170931546HARNESS,SENSOR,PE
SURECOLOR SC-S806002170576547MOTOR,ASSY.,CR
SURECOLOR SC-S806002130110548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-S806002139286549CABLE,MOTOR,APG
SURECOLOR SC-S806001673000550FAN SET.DC,ASSY ASP
SURECOLOR SC-S806001559635552COVER,CR
SURECOLOR SC-S806001559650553SPACER,CR,B
SURECOLOR SC-S806001559681554SHEET,GUIDE RAIL,TUBE,LOWER
SURECOLOR SC-S806001664858555TIMING BELT,PF
SURECOLOR SC-S806001680709556MEDIA EDGE PLATE ASSY ESL,ASP
SURECOLOR SC-S806002139279559CABLE,RELAY,FRONT,COVER,LEFT
SURECOLOR SC-S806002174478560CABLE,RELAY,MAINTENANCE COVER,LEFT
SURECOLOR SC-S806002158128561HARNESS,PANEL
SURECOLOR SC-S806002142331562HARNESS
SURECOLOR SC-S806002158129563HARNESS,CRCM1
SURECOLOR SC-S806002139289564CABLE,SENSOR,CR
SURECOLOR SC-S806002158139565HARNESS,CR
SURECOLOR SC-S806002139297566CABLE,RELAY,MOTOR,PF
SURECOLOR SC-S806002171010567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-S806002171009568CABLE,RELAY,FAN
SURECOLOR SC-S806002139304569CABLE,RELAY,FAN,B
SURECOLOR SC-S806002170935572CABLE,RELAY,HEATER,B
SURECOLOR SC-S806002170934575CABLE,RELAY,THERMISTOR
SURECOLOR SC-S806002170595576HARNESS,RELAY,MOTOR,11
SURECOLOR SC-S806002170597577HARNESS,RELAY,ENCODER,21
SURECOLOR SC-S806002143600578HARNESS
SURECOLOR SC-S806002143601579HARNESS
SURECOLOR SC-S806002170599580HARNESS,RELAY,SENSOR,3
SURECOLOR SC-S806002143603581HARNESS
SURECOLOR SC-S806002143604582HARNESS
SURECOLOR SC-S806001664850583TAPE,HEATER WIRE,FASTEN
SURECOLOR SC-S806001691376584IH ASSY.,L ESL,ASP
SURECOLOR SC-S806001691381585CIRCULATION,PUMP ASSY ESL,ASP
SURECOLOR SC-S806001585151586HARNESS,HEAD,ASSY.,S ESL ASP
SURECOLOR SC-S806001585152587HARNESS,HEAD,ASSY.,S-C ESL ASP
SURECOLOR SC-S806002158130593HARNESS,CRCM2
SURECOLOR SC-S806001581618595SHEET,PROTECT,INK
SURECOLOR SC-S806001602678598SHEET,PROTECT,INK,B
SURECOLOR SC-S806001680676604PULLEY,ROLLER,PF ASSY ESL,ASP
SURECOLOR SC-S806001685414615SUB SHAFT,SLIDER ASSY ,ASP
SURECOLOR SC-S806002169089617FAN ASSY.,CR
SURECOLOR SC-S806002153099618HARNESS
SURECOLOR SC-S806002169335622HARNESS,RELAY,CR MOTOR COOLING FAN
SURECOLOR SC-S806002169336623HARNESS,RELAY,CR MOTOR
SURECOLOR SC-S806002170925624THERMISTOR,CR
SURECOLOR SC-S806001662690625DETECTOR PLATE,THERMISTOR
SURECOLOR SC-S806001691379626TUBEASSYB,CE45 ESL,ASP
SURECOLOR SC-S806001691380627SUB BUFFER ASSY,CE45 ESL,ASP
SURECOLOR SC-S806002170927628CABLE,SENSOR,TENSION
SURECOLOR SC-S806001662819629ANTISTATIC CLOTH,EJ
SURECOLOR SC-S806002170923630CABLE,SENSOR,NIP
SURECOLOR SC-S806002150441631MOTOR ASSY.,WIPER
SURECOLOR SC-S806002170924632CABLE,MOTOR,NIP
SURECOLOR SC-S806002175356633BOARD ASSY.,SUB
SURECOLOR SC-S806002170604634HARNESS,RELAY,2
SURECOLOR SC-S806002152327635FAN ASSY.,DRYING
SURECOLOR SC-S806002170606636HARNESS,RELAY,FAN2
SURECOLOR SC-S806002170933637CABLE,HEATER,SENSOR,RELAY
SURECOLOR SC-S806002170932638CABLE,HEATER,SENSOR
SURECOLOR SC-S806002170612639HARNESS,RELAY,HEATER,1
SURECOLOR SC-S806002170613640HARNESS,RELAY,HEATER,2
SURECOLOR SC-S806002170598641HARNESS,RELAY,ENCODER,3
SURECOLOR SC-S806001662767642FASTEN PLATE,ROLLER,DRIVEN
SURECOLOR SC-S806002170601643HARNESS,RELAY,SUB-H
SURECOLOR SC-S806002170602644HARNESS,RELAY,AC,1
SURECOLOR SC-S806002170603645HARNESS,RELAY,SUB
SURECOLOR SC-S806002170605646HARNESS,RELAY,FAN1
SURECOLOR SC-S806002170608647HARNESS,RELAY,PSH-C
SURECOLOR SC-S806002170610648HARNESS,RELAY,AC,2
SURECOLOR SC-S806001670304649ROLLER,DRIVEN,B SDOTT.COM
SURECOLOR SC-S806001706672650COVER,HEAD,CR ASSY,A.ASP
SURECOLOR SC-S806001690512652COIL SPRING ASSY ESL,ASP
SURECOLOR SC-S806001574337NON FIGGREASE,G-81
SURECOLOR SC-S806001516265NON FIGGREASE,G-84
SURECOLOR SC-S806001680696NON FIGGUIDE DRIVER,FR,IS,MAIN ASSY,ASP
SURECOLOR SC-S806001685924NON FIGINK CART.BOXED,BK,PIG'T,781C,T890,700,AS
SURECOLOR SC-S806001685925NON FIGINK CART.BOXED,C,PIG'T,781C,T890,700,AS
SURECOLOR SC-S806001694276NON FIGINK CART.BOXED,LC,PIG'T,894C,T890700AS
SURECOLOR SC-S806001694278NON FIGINK CART.BOXED,LK,PIG'T,894C,T890700AS
SURECOLOR SC-S806001694277NON FIGINK CART.BOXED,LM,PIG'T,894C,T890700AS
SURECOLOR SC-S806001685926NON FIGINK CART.BOXED,M,PIG'T,781C,T890,700,AS
SURECOLOR SC-S806001694282NON FIGINK CART.BOXED,MS,PIG'T,894C,T890350AS
SURECOLOR SC-S806001694279NON FIGINK CART.BOXED,OR,PIG'T,894C,T890700AS
SURECOLOR SC-S806001694280NON FIGINK CART.BOXED,R,PIG'T,894C,T890700AS
SURECOLOR SC-S806001694281NON FIGINK CART.BOXED,WH,PIG'T,894C,T890600AS
SURECOLOR SC-S806001685927NON FIGINK CART.BOXED,Y,PIG'T,781C,T890,700,AS
SURECOLOR SC-S806001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-S806001673002NON FIGLUBRICATION KIT CE30 ASP
SURECOLOR SC-S806001521154NON FIGOIL,O-17 SDOTT.COM
SURECOLOR SC-S806001640645NON FIGSONIC TENSION METER U508

Related Products
Check items to add to the cart or

  1. EPSON SureColor S80600 S80650 S80670 S80600L S60600 S60600L Service Manual

    EPSON SureColor S80600 S80650 S80670 S80600L S60600 S60600L Service Manual
    $29.50
    Compare
Upsell Products

  1. EPSON S30600 S30670 S40600 S40670 S50600 S50670 S60600 S60670 S70600 S70670 S80600 S80670 Print Head - FA06092 / FA06151 / FA06171

    EPSON S30600 S30670 S40600 S40670 S50600 S50670 S60600 S60670 S70600 S70670 S80600 S80670 Print Head - FA06092 / FA06151 / FA06171
    $2,210.00
    Compare

  2. EPSON SURECOLOR S80600 / S80610 / S80670 DUCT,CR ASSY.,CE45,ESL,ASP- 1911065 / 1833938

    EPSON SURECOLOR S80600 / S80610 / S80670 DUCT,CR ASSY.,CE45,ESL,ASP- 1911065 / 1833938
    $560.00
    Compare

  3. EPSON SC S80600 S80610 S80650 S80670 PUMP CAP ASSY / Cleaning Unit - 1832927 / 1738205

    EPSON SC S80600 S80610 S80650 S80670 PUMP CAP ASSY / Cleaning Unit - 1832927 / 1738205
    $263.00
    Compare

  4. EPSON S40600 S60600 S80600 S40670 S60670 S80670 P6000 P7000 P8000 P9000 P10000 P20000 F9300 F9400 F9400H B9000 POWER BOARD (PSH-B) - 2188975

    EPSON S40600 S60600 S80600 S40670 S60670 S80670 P6000 P7000 P8000 P9000 P10000 P20000 F9300 F9400 F9400H B9000 POWER BOARD (PSH-B) - 2188975
    $169.00
    Compare

Default Category

    All CategoriesClose

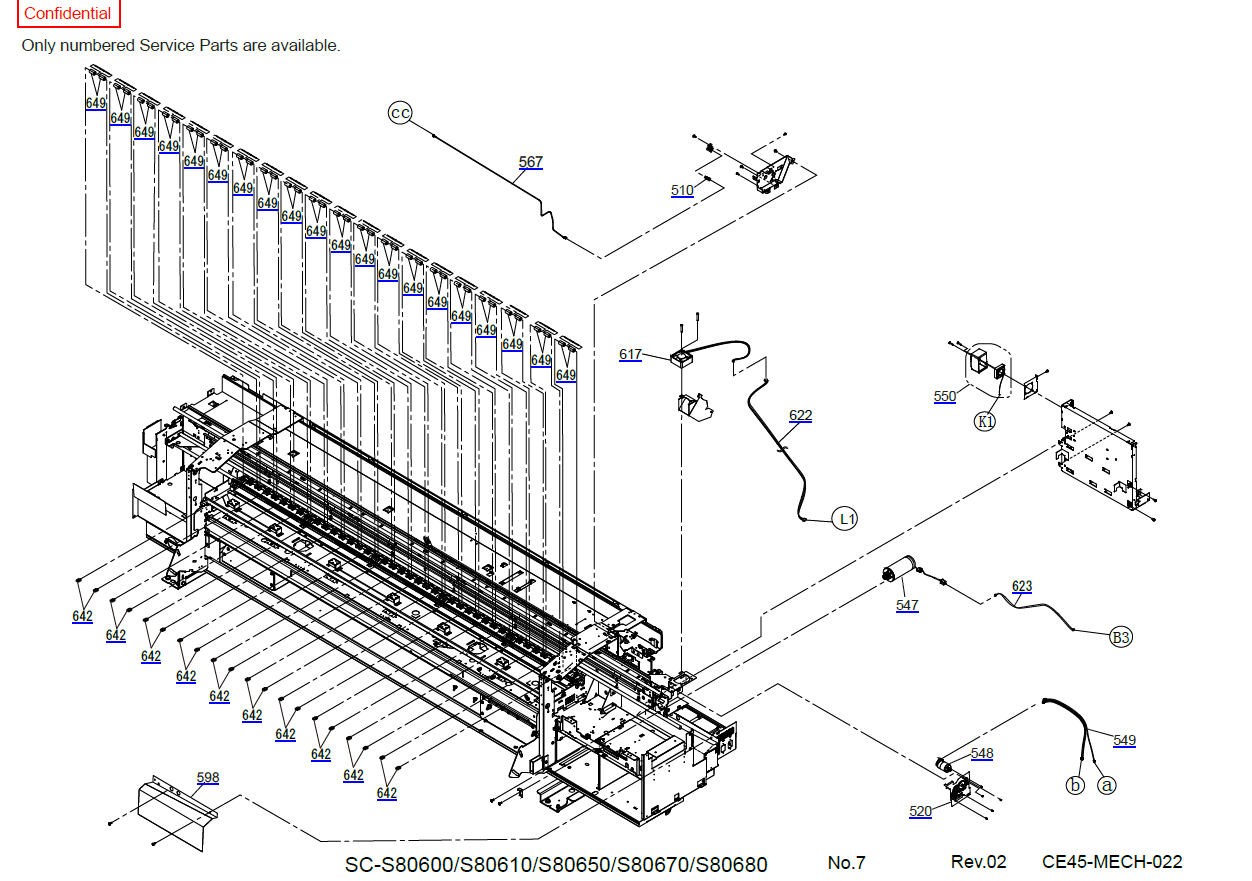

    EPSON SureColor S80600/S80610/S80650/S80670 Parts Manual
