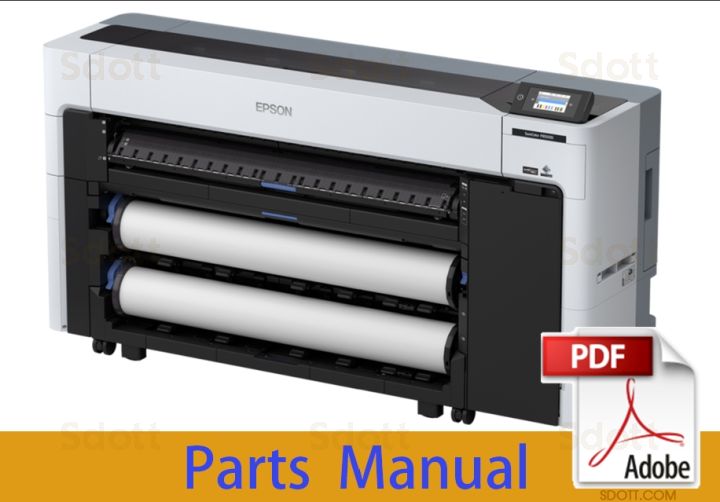

main product photo

EPSON SureColor P8500D P8530D P8540D P8550D P8560D P8570D P8580D P8590D Parts Manual

In stock
SKU
EP-P8500D-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON SureColor P8500D P8530D P8540D P8550D P8560D P8570D P8580D P8590D Parts Manual
Format PDF
PDF Archive 25.3M
Pages 8
Version 1.0
Brand EPSON
Reference 2022.3
Type SERVICE or PARTS MANUAL
Compatible Model EPSON Surecolor P8500D P8530D P8540D P8550D P8560D P8570D P8580D P8590D

EPSON SureColor P8500D P8530D P8540D

P8550D P8560D P8570D P8580D P8590D

Parts Manual

*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******



1865333100HOUSING,RIGHT,ASSY,ASP
1854795101HOUSING,RIGHT,LOWER,REAR,B
1892249101HOUSING,RIGHT,LOWER,REAR,B
1854796102COVER,I/F,B
1892246102COVER,I/F,B
1865334103HOUSING,RIGHT,FRONT,ASSY,CJ50,ASP
1895561103HOUSING,RIGHT,FRONT,ASSY,CJ50,ASP
1865336104HOUSING,RIGHT,REAR,ASSY.,CJ50,ASP
1895574104HOUSING,RIGHT,REAR,ASSY.,CJ50,ASP
1854797106CAP,HANDLE,B
1844113107PAPER BLOCKER,ROLL
2186932108SENSOR,ASSY,COVER
1844181109HOUSING,LEFT
1895385109HOUSING,LEFT
1897463109HOUSING,LEFT
1854794110HOUSING,LEFT,LOWER,REAR,B
1892250110HOUSING,LEFT,LOWER,REAR,B
1843288111COVER,PRINTER,LEFT
1901959111COVER,PRINTER,LEFT
1843032112HOUSING,LEFT,GUIDE
1889138112HOUSING,LEFT,GUIDE
1865338113HOUSING,LEFT,TOP,FRONT,ASSY,ASP
1895557113HOUSING,LEFT,TOP,FRONT,ASSY,ASP
1865339114HOUSING,LEFT,UPPER,REAR,ASSY,CJ50,ASP
1895575114HOUSING,LEFT,UPPER,REAR,ASSY,CJ50,ASP
1844173115HOUSING,LEFT,LOWER,FRONT
1865341116HOUSING,TOP,FRONT,IEI,ASP
1865342117HOUSING,TOP,REAR ASSY,CJ50,IEI,ASP
1912164117HOUSING,TOP,REAR ASSY,CJ50,IEI,ASP
1865344118HLDR,PNL,HOUSING,FRONT,RGT,ASSY,CH83,ASP
1856515118HLDR,PNL,HOUSING,FRONT,RGT,ASSY,CH83,ASP
1865345119HOUSING PNL FRONT RIGHT B ASSY,CH83,ASP
1865346120COVER,IH,ASSY,ASP
1865347121GUIDE,HOLDER,IH,ASSY,CJ50,ASP
1895549121GUIDE,HOLDER,IH,ASSY,CJ50,ASP
1844165122CAP,HANDLE
1844164124HOUSING,FRONT,RIGHT,LOWER
1844956125HOUSING,FRONT,RIGHT
1856435126HOUSING,FRONT,LEFT ASSY.,CH83,IEI
1930814126HOUSING,FRONT,LEFT ASSY.,CH83,IEI
1844949127COVER,JOINT,DRAWER,LEFT
1865350129PANEL ASSY, CH83 ASSY,ASP
1946853129PANEL ASSY, CH83 ASSY,ASP
1843900130GUIDE,HOLDER,MEINTENANCE
1889122130GUIDE,HOLDER,MEINTENANCE
1844946132GUARD,DRAWER
1844589133HOLDER,PANEL,HINGE
1843281134COVER,NFC
1843292135HOUSING,INNER
1844947136COVER,LEVER,DRAWER
1844948138COVER,CONNECTION,DRAWER,RIGHT
1865357139COVER,CR,ASSY,ASP
1880574139COVER,CR,ASSY,ASP
1865369140COVER,TOP,PANEL,ASSY,ASP
1844169141HOUSING,REAR,C
1889110141HOUSING,REAR,C
1854798142HOUSING,REAR,LOWER,LEFT,B
1892245142HOUSING,REAR,LOWER,LEFT,B
1560663143CASTER,P60HG
1560664144CASTER,P60HGS
1843728145CASE,MOTOR,PF
1856465146COVER BACK ASSY,CH83,IEI
1913705146COVER BACK ASSY,CH83,IEI
1854799147HOUSING,REAR,LOWER,RIGHT,B
1851920148HOUSING,REAR,D
1844983149HOLDER,FRONT,RIGHT
1889128149HOLDER,FRONT,RIGHT
1844329150HOLDER,CUTTER,REPLACE
1843287151COVER,PRINTER,RIGHT
1901963151COVER,PRINTER,RIGHT
2206077152BOARD ASSY.,SUB
1860040153LABEL,MODEL NAME,SC-P8500D
2209522154HARNESS, USB, PASORI
2209523155HARNESS, USB MEMORY
1871682156HOUSING,RIGHT,LOWER,FRONT,ASSY,ASP
1895568156HOUSING,RIGHT,LOWER,FRONT,ASSY,ASP
2206069200BOARD ASSY.,MAIN
2220501200BOARD ASSY.,MAIN
2206071201BOARD ASSY.,MAIN
2209052202BOARD ASSY.,SUB
2209223300BOARD ASSY.,POWER SUPPLY
2207228350WIRELESS LAN USB MODULE
2206079351BOARD ASSY.,INTERFACE
2206081352BOARD ASSY.,DRV
2209513354HARNESS,P/S,INLET
2210895355BOARD ASSY.,SUB
2214235357BOARD ASSY.,SUB
1844914358HOLDER,PCB,LED
1856403359MAIN-B_DRV-H FFC ASSY,CH83,IEI
1874345360BLUE NOTE,ASSY,CH83,IEI
1864883501GUIDE PLATE TUBE,CH83,IEI,ASP
1865351502SLIDER CUTTER,CH83,IEI,ASP
1863344503FRAME MOTOR CUTTER ASSY,CH83,IEI
1919171503FRAME MOTOR CUTTER ASSY,CH83,IEI
1843730504SPUR GEAR,12
1844967505FAN,ASSY,EJ
2167755506BOARD ASSY.,SUB
1865352507PUMP CAP ASSY CH83,,IEI,ASP
1921692507PUMP CAP ASSY CH83,,IEI,ASP
1948192507PUMP CAP ASSY CH83,,IEI,ASP
1864885508CLEANER WIPER ASSY,CH83,IEI,ASP
1893031508CLEANER WIPER ASSY,CH83,IEI,ASP
1864886509KEEP CAP ASSY CH83,IEI,ASP
1865353510IH ASSY CJ50 WW GR,ASSY,ASP
1909726510IH ASSY CJ50 WW GR,ASSY,ASP
1856426511HOLDER SLIDER CR ASSY,CH83,IEI
2150454512BOARD ASSY.,SUB
1862178513CUT WASHER,7.2X0.5X17
1080399514SPACER,4.1X0.5,L/NA
1843294515CONBINATION GEAR,48,21
1843072516COMBINATION GEAR,39,19.2
1851568517COMBINATION GEAR,66,30,B
1842865518COMBINATION GEAR,66,30
2182573519MOTOR ASSY.,REWIND
1844093520MOTOR ASSY,DRIVEN,RELEESE
2210366521HARNESS,SENSOR,HOME,CUTTER
2143464522PHOTO INTERRUPTER
1883758523HEAD FFC,CH83,IEI,ASP
1927739523HEAD FFC,CH83,IEI,ASP
1843716524SHEET,FLANGE,ROLL,1st
1843153525CUT WASHER,6.2X0.5X9.5
1839941526CASE,INK DETECTOR ASSY,CH83
1865358527HOLDER,CSIC,ASSY,IEI,ASP
1866476528PLATE SHUT GEAR,CH83,IEI.ASP
1843293529SPUR GEAR,52.8
1856467530ONEWAY DUAL GEAR ASSY,CH83,IEI
1865349531STACKER 44 ASSY.,CH83,IEI,ASP
1895548531STACKER 44 ASSY.,CH83,IEI,ASP
1912162531STACKER 44 ASSY.,CH83,IEI,ASP
1864887532DUCT BRANCH ASSY CH83,IEI,ASP
1865359533SEAL RUBBER,JOINT,,ASP
1759657534SEAL RUBBER,JOINT,DUCT,ASP
1865361535HOLDER MAINTENANCE BOX IS CH83,IEI,ASP
1865362536FRAME APG,ASSY.,CH83,IEI,ASP
1843070537COMBINATION_GEAR,48.8,14.4
1843193538COMBINATION_GEAR,58.4,19.2
2209149539BOARD ASSY.,SENSOR
2209532541COOLING FAN,BOX
1845357542BELT,CR,44
2206075543BOARD ASSY.,SUB
1843195544BUSH,ROLL,RELEASE
1842868545SPUR GEAR,62.4
1856419546HOLDER STAR WHEEL ASSY,CH83,IEI
2200023547FAN, COOLING,PS
2210355548HARNESS,SENSOR,COVER FRONT,2
1560667549FLAT CLAMP,FCR-60 V0
2177061550BOARD ASSY.,ENCODER
1843720551COVER,CR,MAIN,TOP
1856473552PAPER GUIDE REAR 24.,B ASSY,CH83,IEI
1895408552PAPER GUIDE REAR 24.,B ASSY,CH83,IEI
1902588552PAPER GUIDE REAR 24.,B ASSY,CH83,IEI
1856455553PAPER GUIDE ASSY,CH83,IEI
1895404553PAPER GUIDE ASSY,CH83,IEI
1856469554PAPER GUIDE UPPER ASSY,CH83,IEI
1913317554PAPER GUIDE UPPER ASSY,CH83,IEI
1866477555PLATE MOTOR SHUT,CH83,IEI,ASP
2210354556HARNESS,SENSOR,COVER FRONT,1
1865366557SUPPORT PF ASSY,ASP
1848285558TIMINGBELT,MOTOR,CUTTER
1843139559EXTENSION SPRING,6.10
1863760560FRAME,HORDER,SENSOR,RELEASE,CH83,IEI
1856440561HOLDER OPTION ASSY,CH83,IEI
1895396561HOLDER OPTION ASSY,CH83,IEI
1930812561HOLDER OPTION ASSY,CH83,IEI
2210431562CABLE,ENCORDER,PF
2213404563BOARD ASSY.,ENCODER
2210429565CABLE,ENCORDER,SYS
1843143566COMBINATION GEAR,35.2,15.2
1856474567PAPER GUIDE REAR 24 ASSY,CH83,IEI
1895409567PAPER GUIDE REAR 24 ASSY,CH83,IEI
1901242567PAPER GUIDE REAR 24 ASSY,CH83,IEI
1843126568TIMING BELT,PF
1844085569MOTOR ASSY,PF
1862179570EXTENSION SPRING,12.21
1845493571MOTOR ASSY,SYS
1843154572COMBINATION GEAR,43.2,18.4
1843144573COMBINATION GEAR,50.4,20.8
1843145574COMBINATION GEAR,56,21
1856475575PAPER GUIDE REAR 20 ASSY,CH83,IEI
1895410575PAPER GUIDE REAR 20 ASSY,CH83,IEI
1902589575PAPER GUIDE REAR 20 ASSY,CH83,IEI
1865370577PPR GUIDE ROLL ENTRC UP 24,CH83,IEI,ASP
1895546577PPR GUIDE ROLL ENTRC UP 24,CH83,IEI,ASP
1865371578PPR GUIDE ROLL ENTRC UP 20,CH83,IEI,ASP
1895547578PPR GUIDE ROLL ENTRC UP 20,CH83,IEI,ASP
2211420579MOTOR ASSY.,CR,B
2232561579MOTOR ASSY.,CR,B
2210288580CABLE,CSIC,WASTE
2222127580CABLE,CSIC,WASTE
1843646581TUBE,INK EJECT,MB
1658973582SPRING,GUIDE,TUBE,FL BOX
1843146583SPUR GEAR,24
1843124584PULLEY,PF
1844086585SPUR GEAR,24,B
2133208586MICRO DOOR SWITCH,D3DC-3
2221373586MICRO DOOR SWITCH,D3DC-3
1292650587BUSHING,5,LEFT
2150699588LEAF SENSOR,P599
1853259589WIPER Assy,B
1844134590HOLDER,FIXED,TUBE
1856449591PULLEY ROLLER PF ASSY,CH83,IEI
1845640592C RING,STW-20
1856444593PULLEY ROLLER MIDDLE ASSY,CH83,IEI
1864888594DUCT CR ASSY CH83,IEI,ASP
1865365595CR,CH83,IEI,ASP
1928546595CR,CH83,IEI,ASP
1943033595CR,CH83,IEI,ASP
1843732596BELT,EJ
1863761597COVER FRONT,CH83,IEI,ASP
1895551597COVER FRONT,CH83,IEI,ASP
1895406597COVER FRONT,CH83,IEI,ASP
1913703597COVER FRONT,CH83,IEI,ASP
1843187600EXTENSION SPRING,1.89
1865368601STAR WHEEL RELEASE DRIVE,CH83,IEI,ASP
1856408602COVER,FFC,CR ASSY,CH83,IEI
1843200603MOTOR ASSY,RELEASE
1862086604EXTENSION SPRING,3.2
1776103605SCALE,CR,44
1865364606HOLDER,WHEEL,EJ,B,ASSY,ASP
1946848606HOLDER,WHEEL,EJ,B,ASSY,ASP
1865363607HOLDER,WHEEL,EJ,ASSY,ASP
1895545607HOLDER,WHEEL,EJ,ASSY,ASP
1946849607HOLDER,WHEEL,EJ,ASSY,ASP
1856418608ROLLER EJ ASSY,CH83,IEI
2210384610HARNESS,SENSOR,PAPER GUIDE,2ND
1865367611PAPERGUIDE,SUP.,24,B ASSY,CH83,IEI,ASP
1892876611PAPERGUIDE,SUP.,24,B ASSY,CH83,IEI,ASP
1895841611PAPERGUIDE,SUP.,24,B ASSY,CH83,IEI,ASP
2210385612HARNESS,SENSOR,RELEASE,2ND
1856456613PAPER GUIDE,SUPPORT,20,B ASSY,CH83,IEI
1892875613PAPER GUIDE,SUPPORT,20,B ASSY,CH83,IEI
1856413614OP STACKER SENSOR ASSY,CH83,IEI
2215031615HARNESS ASSY,SENSOR,REREASE,1ST
1843735616EXTENSION SPRING,3.5
1439008618CUT PLAINE WASHER,4.1x0.5x7.7,L/NA
2212310619HARNESS ASSY,SENSOR,RELEASE,EJ
FA54001700PRINT HEAD,HIR,ASP
