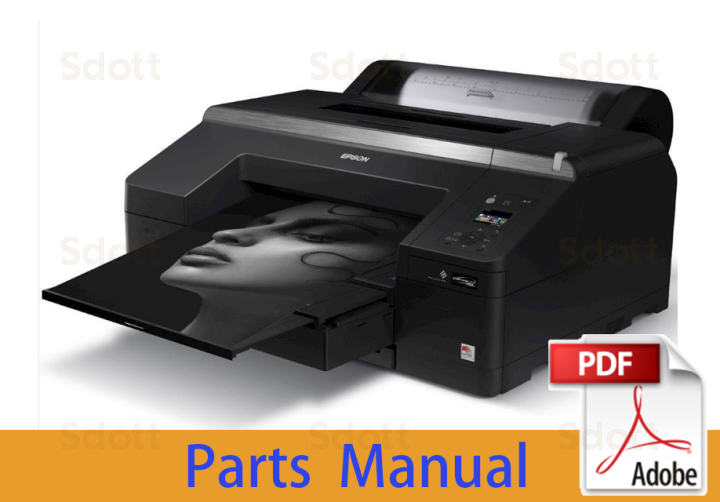

main product photo

EPSON SureColor P5000 P5050 P5070 Parts Manual

In stock
SKU
EP-P5000-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON SureColor P5000 P5050 P5070 Parts Manual
Format PDF
PDF Archive 15.8M
Pages 7
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor P5000 P5050 P5070 Series



****** The following content is not included in the PDF manual, please use it online ******

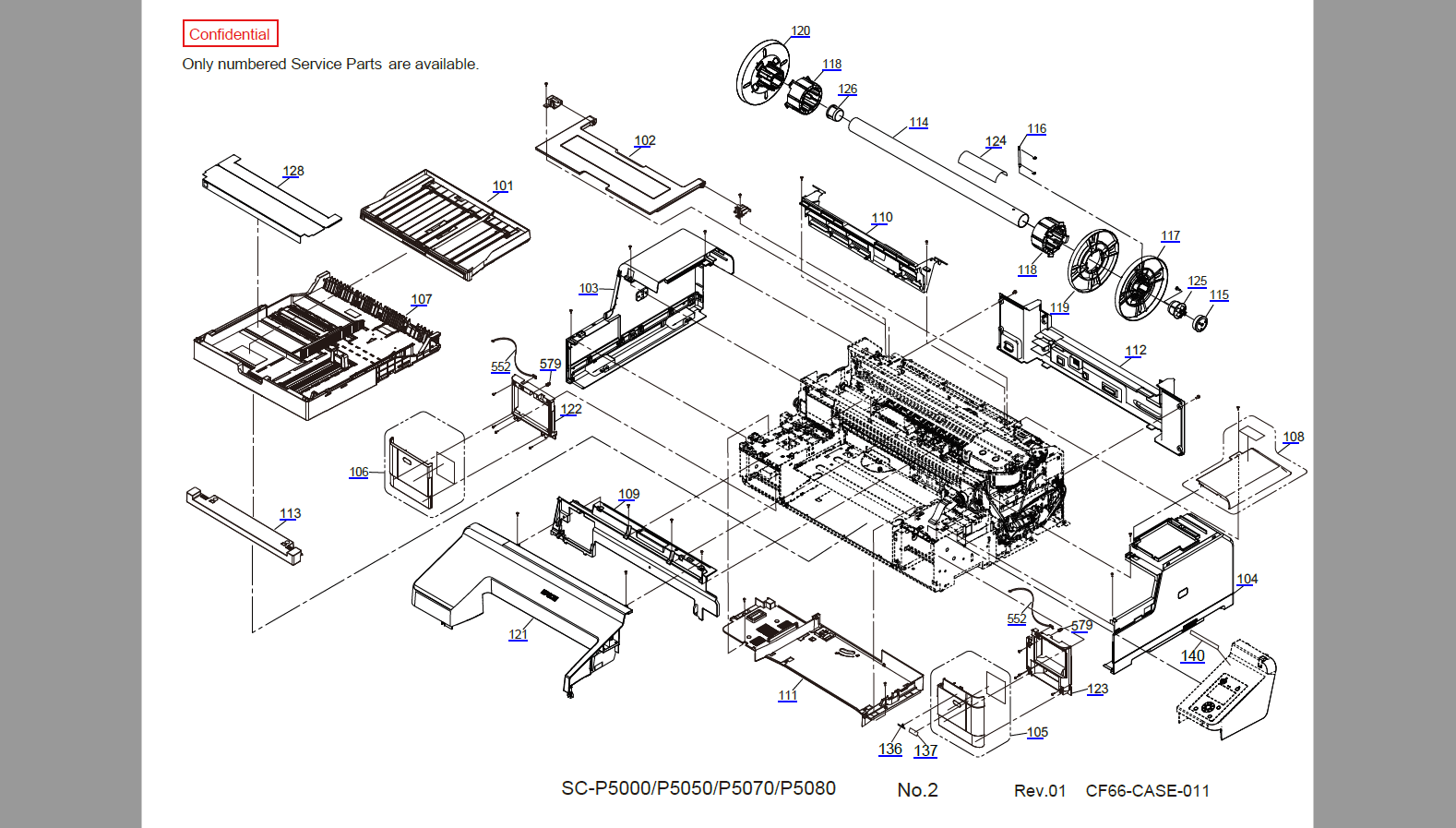

ModelArticleReferenceDescription
SURECOLOR SC-P50001541305101STACKER,UNIT ESL,ASP
SURECOLOR SC-P50001715070102COVER,PRINTER,UNIT,ASP
SURECOLOR SC-P50001715071103HOUSING,SIDE,LEFT UNIT,ASP
SURECOLOR SC-P50001715072104HOUSING,SIDE,RIGHT UNIT,ASP
SURECOLOR SC-P50001715063105COVER,IC,RIGHT UNIT ESL,ASP
SURECOLOR SC-P50001715064106COVER,IC,LEFT UNIT ESL,ASP
SURECOLOR SC-P50001715074107TRAY,CASSETTE UNIT,ASP
SURECOLOR SC-P50001715081108COVER,MAINTENANCE,B,ASP
SURECOLOR SC-P50001715080109HOUSING,FRONT,UPPER,B,ASP
SURECOLOR SC-P50001715075110HOUSING,REAR,UPPER,B,ASP
SURECOLOR SC-P50001695523111HOUSING,FRONT,MIDDLE,B
SURECOLOR SC-P50001695521112HOUSING,REAR,LOWER,B
SURECOLOR SC-P50001545206113HOUSING,FRONT,LOWER,ASSY,ASP
SURECOLOR SC-P50001527994114SHAFT,SCROLLER
SURECOLOR SC-P50001527996115CAP,SHAFT,SCROLLER,RIGHT
SURECOLOR SC-P50001717808116SHAFT,STOPPER,L,B
SURECOLOR SC-P50001104330117FLANGE,RIGHT
SURECOLOR SC-P50001104332118ADAPTER
SURECOLOR SC-P50001264198119SPACER,A2
SURECOLOR SC-P50001412711120FLANGE,LEFT
SURECOLOR SC-P50001715073121COVER,FRONT UNIT,ASP
SURECOLOR SC-P50001524502122GUIDE,IC,LEFT
SURECOLOR SC-P50001720352123GUIDE,IC,RIGHT,C
SURECOLOR SC-P50001525382124LABEL,SPINDLE
SURECOLOR SC-P50001527995125CAP,SHAFT,SCROLLER
SURECOLOR SC-P50001527997126CAP,SHAFT,SCROLLER,LEFT
SURECOLOR SC-P50001715079128COVER ASSY.,CASSETTE,ASP
SURECOLOR SC-P50001682129136LABEL,PRECISIONCORE,B
SURECOLOR SC-P50001660329137LABEL,ULTRA CHROME INK,HDX
SURECOLOR SC-P50001700892138LABEL,COVER,ROLL,B
SURECOLOR SC-P50001700079140LABEL,MODEL NAME
SURECOLOR SC-P50002178448200BOARD ASSY.,MAIN
SURECOLOR SC-P50002178454201BOARD ASSY.,MAIN
SURECOLOR SC-P50002133878202BOARD ASSY.,SUB
SURECOLOR SC-P50002142261203FFC,AID
SURECOLOR SC-P50002133877204BOARD ASSY.,SUB
SURECOLOR SC-P50002130943205HARNESS
SURECOLOR SC-P50002130946206HARNESS
SURECOLOR SC-P50002130947207HARNESS
SURECOLOR SC-P50002130948208HARNESS
SURECOLOR SC-P50002142336209HARNESS
SURECOLOR SC-P50002145683210BOARD ASSY.,SUB
SURECOLOR SC-P50002130999211HARNESS
SURECOLOR SC-P50002131616212FAN
SURECOLOR SC-P50002149749300BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-P50002091965301HARNESS
SURECOLOR SC-P50002120026302FAN ASSY.
SURECOLOR SC-P50002155018303HARNESS,NW,POWER SUPPLY
SURECOLOR SC-P50002130944304HARNESS
SURECOLOR SC-P50001541300501FRAME,PAPER GUIDE,UPPER,UNIT ESL,ASP
SURECOLOR SC-P50001728285502FRAME ASSY.,APG,UNIT .B,ESL,ASP
SURECOLOR SC-P50002182572503MOTOR ASSY.,ASF,SUB
SURECOLOR SC-P50001710725504CARRIAGE,UNIT.A,ESL,ASP
SURECOLOR SC-P50001541326505Harness Motor CR Assy ASP
SURECOLOR SC-P50001728286506FRAME,GUIDE,CUTTER,UNIT.B, ESL,ASP
SURECOLOR SC-P50002184208507MOTOR ASSY.,ASF,B
SURECOLOR SC-P50002131342508HARNESS,MOTOR,CUTTER
SURECOLOR SC-P50002131343509HARNESS,DETECTOR,CUTTER
SURECOLOR SC-P50001714127510DECOMPRESSION,PUMP,UNIT,E.ASP
SURECOLOR SC-P50001715060511HOLDER,IC,LEFT,UNIT,CF66,ASP
SURECOLOR SC-P50001715061512HOLDER,IC,RIGHT,UNIT,CF66,ASP
SURECOLOR SC-P50001728284513PUMP,UNIT,H.ASP
SURECOLOR SC-P50001715078515HOLDER,ANTISTATIC CLOTH,ASP
SURECOLOR SC-P50001700000516CAP,HEAD,LARGE ASSY.A,ASP
SURECOLOR SC-P50001715062517SELECTOR,UNIT CF66 ESL,ASP
SURECOLOR SC-P50001741903518TUBE ASSY.B, ASP
SURECOLOR SC-P50001715076519PANEL UNIT.,B,ASP
SURECOLOR SC-P50001715067520PAPER GUIDE,DRIVEN,ROLL UNIT ESL,ASP
SURECOLOR SC-P50001696209524HOLDER ROLLER,RETARD ASSY.,C ASP
SURECOLOR SC-P50001715077525PAPER GUIDE,MANUAL,UNIT,ASP
SURECOLOR SC-P50001715065526PAPER GUIDE,MIDDLE UNIT ESL,ASP
SURECOLOR SC-P50001715066527PAPER SUPPORT,MANUAL,UNIT ESL,ASP
SURECOLOR SC-P50001541335528SHAFT,LEVER,PICK UP ASSY ASP
SURECOLOR SC-P50001734864529ROLL UNIT,A,ASP
SURECOLOR SC-P50001541336530SCALE,PF,ASP
SURECOLOR SC-P50002133325531BOARD ASSY.,ENCODER,PF
SURECOLOR SC-P50002142258532HARNESS,ENCODER,PF
SURECOLOR SC-P50002130383533HARNESS,MOTOR,APG
SURECOLOR SC-P50002130369534HARNESS,SCALE
SURECOLOR SC-P50002142313535FFC,MAINTENANCE TANK
SURECOLOR SC-P50001480177536BOARD ASSY.,ENCODER
SURECOLOR SC-P50002183502537BOARD ASSY.,INK MARK,D
SURECOLOR SC-P50002143464538PHOTO INTERRUPTER
SURECOLOR SC-P50002130023539HARNESS,DETECTOR,PAPER GUIDE,MIDDLE
SURECOLOR SC-P50002130088540CABLE,RELAY,FAN
SURECOLOR SC-P50002130095541CABLE,DETECTOR,COVER,FRONT
SURECOLOR SC-P50002130096542HARNESS,RELAY,SUB B
SURECOLOR SC-P50002130097543HARNESS,RELAY,SUB B,B
SURECOLOR SC-P50002130098544HARNESS,RELAY,SUB C
SURECOLOR SC-P50002130099545CABLE,DETECTOR,COVER,PRINTER
SURECOLOR SC-P50002130100546CABLE,RELAY,SPM
SURECOLOR SC-P50002130113547HARNESS,MOTOR,ASF
SURECOLOR SC-P50002130114548HARNESS,MOTOR,ASF,SUB
SURECOLOR SC-P50002130121549MOTOR ASSY.,PF
SURECOLOR SC-P50002130374550MOTOR ASSY.,CR
SURECOLOR SC-P50002130992551FERRITE CORE,28R0756-200
SURECOLOR SC-P50002130086552COVER,SW
SURECOLOR SC-P5000F198060553PRINT HEAD,I0J40V-6
SURECOLOR SC-P50002130118554HARNESS,MOTOR,EDGE GUIDE
SURECOLOR SC-P50002130106555HARNESS,DETECTOR,EDGE GUIDE
SURECOLOR SC-P50002130127556HARNESS,DETECTOR,PAPER THICKNESS
SURECOLOR SC-P50002130128557HARNESS,DETECTOR,PAPER THICKNESS,B
SURECOLOR SC-P50002130022558HARNESS,PE,PAPER GUIDE,REAR
SURECOLOR SC-P50002121499559BOARD ASSY.,ENCODER,SC
SURECOLOR SC-P50002130122560MOTOR ASSY.,RELEASE,DRIVEN
SURECOLOR SC-P50002130124561HARNESS,DETECTOR,RELEASE,DRIVEN
SURECOLOR SC-P50002130130562HARNESS,ENCODER,RELEASE,DRIVEN
SURECOLOR SC-P50001111835563DETECTOR,PAPER END
SURECOLOR SC-P50001296960564SHAFT,MOUNT PLATE,CR-3C
SURECOLOR SC-P50001524421565POROUS PAD,PAPER GUIDE,FRONT,RIGHT
SURECOLOR SC-P50001524422566POROUS PAD,PAPER GUIDE,FRONT,RIGHT,C
SURECOLOR SC-P50001524423567POROUS PAD,PAPER GUIDE,FRONT,LEFT
SURECOLOR SC-P50001524424568POROUS PAD,PAPER GUIDE,FRONT,LEFT,B
SURECOLOR SC-P50001524453569POROUS PAD,PAPER GUIDE,FRONT,RIGHT,B
SURECOLOR SC-P50002090717570LEAF SENSOR
SURECOLOR SC-P50002130115571HARNESS,DETECTOR,PICK UP
SURECOLOR SC-P50002130116572HARNESS,DETECTOR,RETARD
SURECOLOR SC-P50002130117573HARNESS,DETECTOR,ROLLER,ASSIST
SURECOLOR SC-P50002130108574HARNESS,DETECTOR,PE,CASSETTE
SURECOLOR SC-P50002130107575HARNESS,DETECTOR,CASSETTE
SURECOLOR SC-P50002130089576CABLE,DETECTOR,ROLL
SURECOLOR SC-P50002130090577CABLE,DETECTOR,INK EJECT
SURECOLOR SC-P50001524428578POROUS PAD,TANK,INK EJECT,SUPPORT
SURECOLOR SC-P50001043027579MIN SIDE LOCK#091Y
SURECOLOR SC-P50002130091580HARNESS,TANK,INK EJECT
SURECOLOR SC-P50002090566581CONNECTOR,CSIC
SURECOLOR SC-P50001524703582TIMING BELT,PF
SURECOLOR SC-P50001525754583SEAL RUBBER,JOINT
SURECOLOR SC-P50001525755584SEAL RUBBER,JOINT,B
SURECOLOR SC-P50001525877585SCALE,CR
SURECOLOR SC-P50001525855586CLAMP,TUBE
SURECOLOR SC-P50001697781587HOLDER,SCROLLER,RIGHT UNIT.A,ESL ASP
SURECOLOR SC-P50001617069588HOLDER,WIPER&WIPER CLEANER ASSY,B.ASP
SURECOLOR SC-P50001555405589BUSHING SET.,ASP
SURECOLOR SC-P50001524658590SPUR GEAR,54
SURECOLOR SC-P50001525847591OIL PAD
SURECOLOR SC-P50001525843592HOLDER,OIL PAD
SURECOLOR SC-P50002133876593BOARD ASSY.,SUB
SURECOLOR SC-P50001524562595LEVER,PICK UP
SURECOLOR SC-P50002109393596BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-P50001524635597COVER,DETECTOR,PE,CASSETTE
SURECOLOR SC-P50002142310598HARNESS,RELAY,HEAD,LEFT
SURECOLOR SC-P50002142311599HARNESS,RELAY,HEAD,RIGHT
SURECOLOR SC-P50001703729600TORSION SPRING,7.04,GROUND SDOTT
SURECOLOR SC-P50001696675601GROUNDING,PLATE,PF
SURECOLOR SC-P50001537913NON FIGCLEANING CARTRIDGE,200,J40C
SURECOLOR SC-P50001730769NON FIGCLEANING STICK,KIT,ASP
SURECOLOR SC-P50001080614NON FIGGREASE G-26 (40GR)(B702600001)
SURECOLOR SC-P50001480655NON FIGGREASE G-71(BLUE)
SURECOLOR SC-P50001516265NON FIGGREASE,G-84
SURECOLOR SC-P50001733906NON FIGINK CART.BOXED,C,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733915NON FIGINK CART.BOXED,GR,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733909NON FIGINK CART.BOXED,LC,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733911NON FIGINK CART.BOXED,LK,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733913NON FIGINK CART.BOXED,LLK,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733912NON FIGINK CART.BOXED,MK,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733914NON FIGINK CART.BOXED,OR,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733905NON FIGINK CART.BOXED,PK,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733916NON FIGINK CART.BOXED,V,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733910NON FIGINK CART.BOXED,VLM,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733907NON FIGINK CART.BOXED,VM,PIG'T,G230C,200,AS
SURECOLOR SC-P50001733908NON FIGINK CART.BOXED,Y,PIG'T,G230C,200,AS
SURECOLOR SC-P50001476228NON FIGJETRAS JP-D300S
SURECOLOR SC-P50001521154NON FIGOIL,O-17 SDOTT.COM
SURECOLOR SC-P50001424364NON FIGP-THICK SENSOR POSITION JIG
SURECOLOR SC-P50001282355NON FIGPAPER THICKNESS POSITION TOOL
SURECOLOR SC-P50001543007NON FIGPG HEIGHT ADJUSTMENT JIG 1.55
SURECOLOR SC-P50001507506NON FIGPG HEIGHT ADJUSTMENT JIG 1.65
SURECOLOR SC-P50001507277NON FIGPG HEIGHT ADJUSTMENT JIG 1.75
SURECOLOR SC-P50001640645NON FIGSONIC TENSION METER U508
