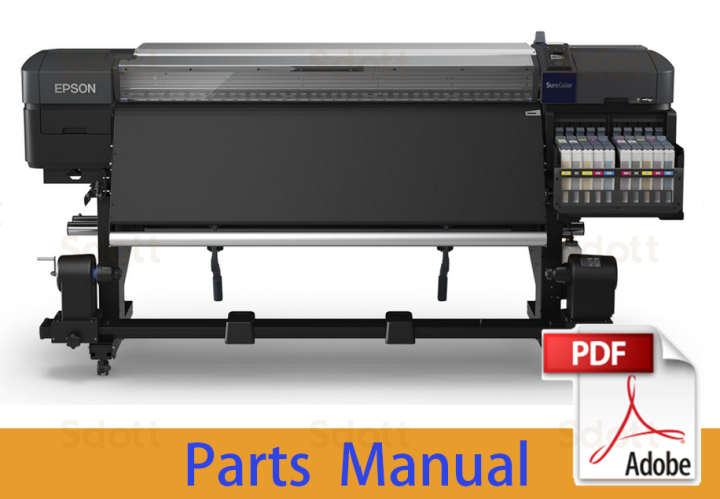

main product photo

EPSON SureColor F9400H F9430H F9440H F9450H F9460H F9470H F9480H Parts Manual

In stock
SKU
EP-F9400H-PM
$1.00
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

After payment, download link email will be sent to your emailbox
$1.00
More Information
Manual Name EPSON SureColor F9400H F9430H F9440H F9450H F9460H F9470H F9480H Parts Manual
Format PDF
PDF Archive 15.7M
Pages 11
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON SureColor F9400H F9430H F9440H F9450H F9460H F9470H Series

EPSON SureColor F9400H F9430H F9440H F9450H F9460H F9470H F9480H Parts Manual



****** The following content is not included in the PDF manual, please use it online ******



SURECOLOR SC-F9400H17404491SCREW KIT ASSY CG44,ASP
SURECOLOR SC-F9400H17516502ADJUSTER ASSY.,STAND
SURECOLOR SC-F9400H16548183CASER,6043STNO
SURECOLOR SC-F9400H16548194CASER,6043STYS
SURECOLOR SC-F9400H17351628STAND LEFT ASSY CG44,ASP
SURECOLOR SC-F9400H17351639STAND RIGHT ASSY CG44,ASP
SURECOLOR SC-F9400H165482010ADJUSTER,D-B3 10X75FR

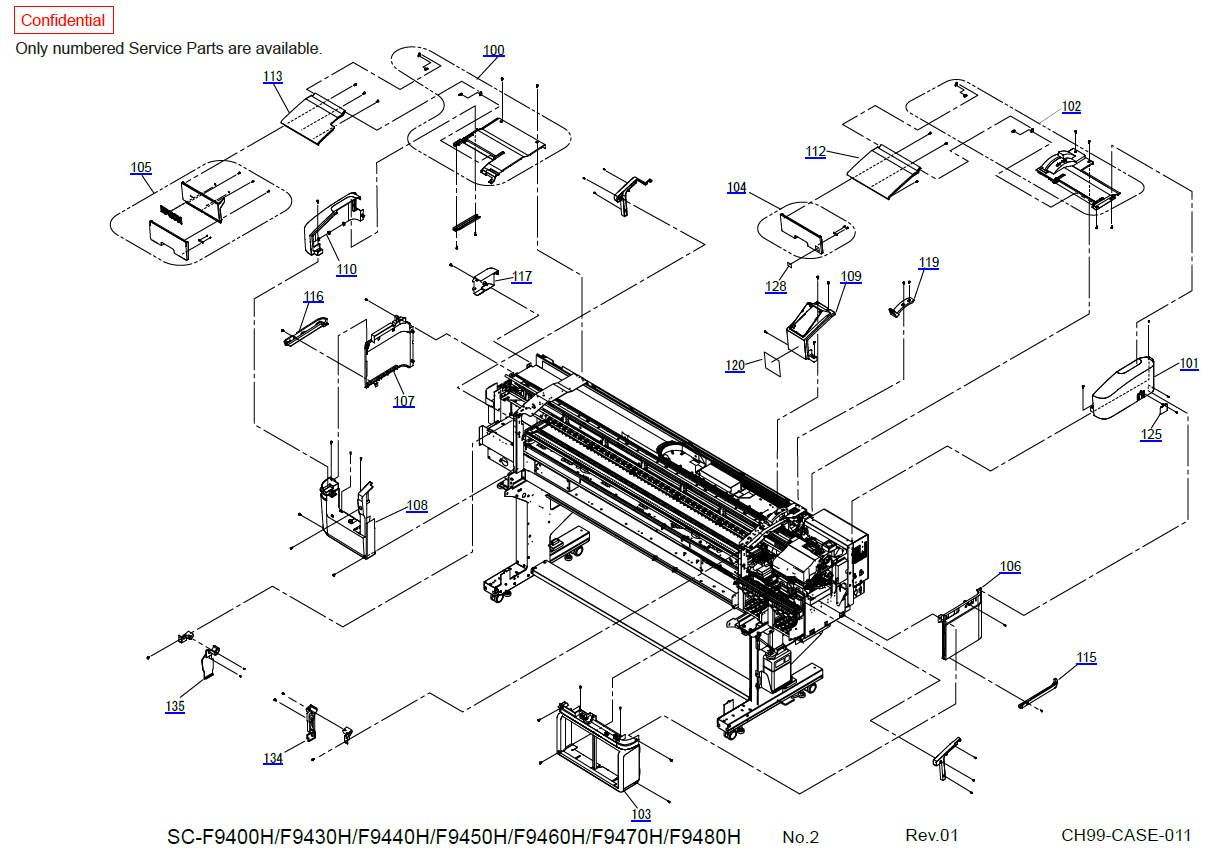

SURECOLOR SC-F9400H1824286100COVER TOP LEFT ASSY ESL,ASP
SURECOLOR SC-F9400H1869872100COVER TOP LEFT ASSY ESL,ASP
SURECOLOR SC-F9400H1805526101COVER,SIDE,RIGHT,UPPER,MR
SURECOLOR SC-F9400H1824288102COVER TOP RIGHT ASSY,ASP
SURECOLOR SC-F9400H1869873102COVER TOP RIGHT ASSY,ASP
SURECOLOR SC-F9400H1824298103COVER,FRONT,RIGHT,64, ASSY ESL,ASP
SURECOLOR SC-F9400H1824289104COVER,MAINTENANCE,RIGHT,ASSY,ASP
SURECOLOR SC-F9400H1824287105COVER,MAINTENANCE,LEFT,ASSY,ASP
SURECOLOR SC-F9400H1824301106COVER SIDE RIGHT DOWN ASSY ESL,ASP
SURECOLOR SC-F9400H1824300107COVER,SIDE,LEFT,LOWER ASSY ESL,ASP
SURECOLOR SC-F9400H1824299108COVER,FRONT,LEFT,64, ASSY ESL,ASP
SURECOLOR SC-F9400H1805524109COVER,TOP,PANEL,MR
SURECOLOR SC-F9400H173195911STAY STAND SUB ASSY,ASP
SURECOLOR SC-F9400H1770933110COVER,SIDE,LEFT,UPPER,D
SURECOLOR SC-F9400H1805527112COVER,MAINTENANCE,MR
SURECOLOR SC-F9400H1805523113COVER,MAINTENANCE,HEAD,MR
SURECOLOR SC-F9400H1577202115HOUSING,BASE,SUPPORT,RIGHT,B
SURECOLOR SC-F9400H1577204116HOUSING,BASE,SUPPORT,LEFT,B
SURECOLOR SC-F9400H1805522117CAP,COVER,TUBE,MR
SURECOLOR SC-F9400H1552177119KNOB,LEVER
SURECOLOR SC-F9400H171950112STAY,STAND,FRONT
SURECOLOR SC-F9400H1818644120LABEL,MODEL NAME
SURECOLOR SC-F9400H1770923125CAP,CR,ADJUST,D
SURECOLOR SC-F9400H1682129128LABEL,PRECISIONCORE,B
SURECOLOR SC-F9400H1731541129LABEL,PERIODIC MAINTENANCE
SURECOLOR SC-F9400H1805534131COVER,PRINTER,PROTECT,RIGHT,MR
SURECOLOR SC-F9400H1805531132COVER,PRINTER,PROTECT,LEFT,MR
SURECOLOR SC-F9400H1824296133COVER PRINTER ASSY ESLASP
SURECOLOR SC-F9400H1805535134COVER,SUB,RIGHT,MR
SURECOLOR SC-F9400H1805533135COVER,SUB,LEFT,MR
SURECOLOR SC-F9400H1709780136LABEL,WARNING,CHILD GUARD
SURECOLOR SC-F9400H171524615ACCESSORY KIT.A,ASP
SURECOLOR SC-F9400H172181716STOPPER,INK EJECT BOTTLE,B
SURECOLOR SC-F9400H167300218LUBRICATION KIT CE30 ASP
SURECOLOR SC-F9400H2203955200BOARD ASSY.,MAIN
SURECOLOR SC-F9400H2138619201HARNESS
SURECOLOR SC-F9400H2130945202HARNESS
SURECOLOR SC-F9400H2130944203HARNESS
SURECOLOR SC-F9400H2142891204BOARD ASSY.,MAIN
SURECOLOR SC-F9400H2149216205BOARD ASSY.,SUB
SURECOLOR SC-F9400H2181305206HARNESS
SURECOLOR SC-F9400H2179826207HARNESS
SURECOLOR SC-F9400H2138605208HARNESS
SURECOLOR SC-F9400H175373921TRAY AND TWEEZERS KIT ASP
SURECOLOR SC-F9400H2188975210BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F9400H2138596211HARNESS
SURECOLOR SC-F9400H2138598212HARNESS
SURECOLOR SC-F9400H2138614213HARNESS
SURECOLOR SC-F9400H2138618214HARNESS
SURECOLOR SC-F9400H2180921217BOARD ASSY.,SUB 6645F,CF79 ASP
SURECOLOR SC-F9400H2142879218BOARD ASSY.,SUB
SURECOLOR SC-F9400H2139319219FAN SET. DC (PROPELLER TYPE)
SURECOLOR SC-F9400H2174036220BOARD ASSY.,PANEL
SURECOLOR SC-F9400H2143596222HARNESS
SURECOLOR SC-F9400H2188983223BOARD ASSY.,POWER SUPPLY
SURECOLOR SC-F9400H2143594224HARNESS
SURECOLOR SC-F9400H2149057225BOARD ASSY.,SUB 6703B,ASP STANDARD
SURECOLOR SC-F9400H2169990227FAN SET. DC(PROPELLER TYPE)
SURECOLOR SC-F9400H2170609231HARNESS,RELAY,SUB-J
SURECOLOR SC-F9400H2175354233BOARD ASSY.,SUB
SURECOLOR SC-F9400H2170614234HARNESS,RELAY,1

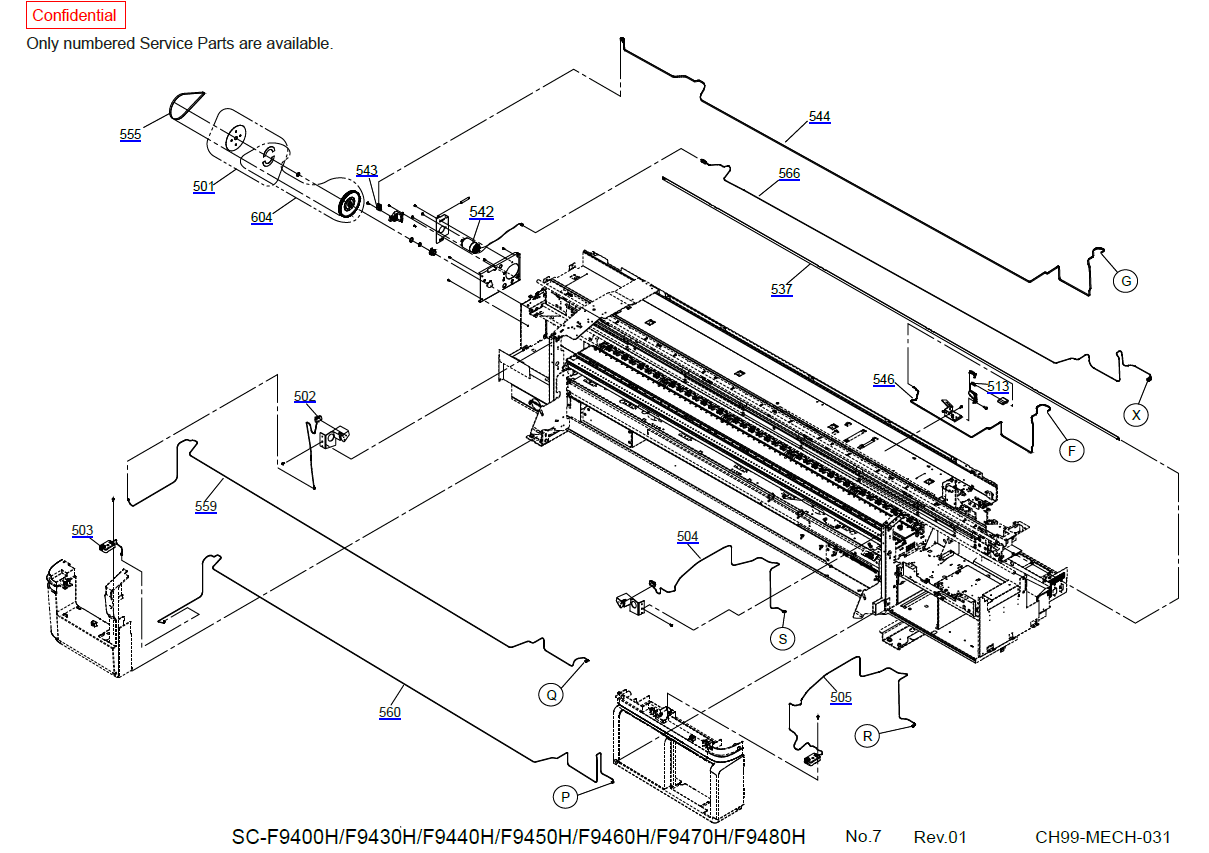

SURECOLOR SC-F9400H1680677501SCALE,PF ASSY ESL,ASP
SURECOLOR SC-F9400H2171014502CABLE,FRONT,COVER,LEFT
SURECOLOR SC-F9400H1673176503FULL,MAINTENANCE OPEN ASSY.CF06,ESL,ASP
SURECOLOR SC-F9400H2171016504CABLE,FRONT,COVER,RIGHT
SURECOLOR SC-F9400H1673177505INK LOCK,MAINTENANCE,ASSY.CF06,ESL,ASP
SURECOLOR SC-F9400H1783875506CARRIGE ASSY B ESL CF79,ASP
SURECOLOR SC-F9400H1834960506CARRIGE ASSY B ESL CF79,ASP
SURECOLOR SC-F9400H1480133507PULLEY,DRIVEN
SURECOLOR SC-F9400H1480177508BOARD ASSY.,ENCODER
SURECOLOR SC-F9400H2208696508BOARD ASSY.,ENCODER
SURECOLOR SC-F9400H1662705509BELT,CR
SURECOLOR SC-F9400H2143464510PHOTO INTERRUPTER

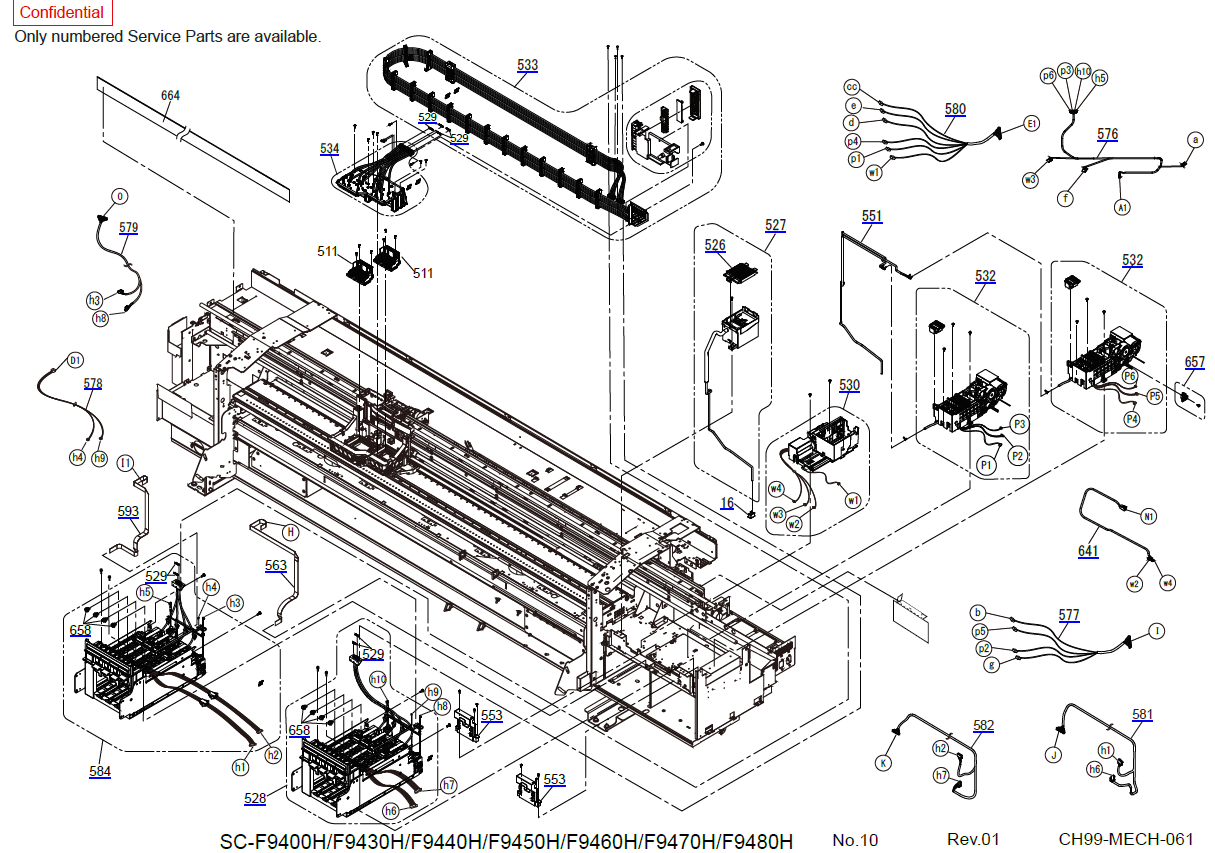

SURECOLOR SC-F9400HFA48000511LFP PRINT HEAD,MKR
SURECOLOR SC-F9400H2183502512BOARD ASSY.,INK MARK,D
SURECOLOR SC-F9400H2109393513BOARD ASSY.,DETECTOR,PW,B
SURECOLOR SC-F9400H2158133514HARNESS,CR,ENCODER
SURECOLOR SC-F9400H2142289515HARNESS,IMS
SURECOLOR SC-F9400H2158134516HARNESS,PW
SURECOLOR SC-F9400H2171011517CABLE,SENSOR,PG
SURECOLOR SC-F9400H2174252518BOARD ASSY.,SUB
SURECOLOR SC-F9400H1680697519OIL PAD ASSY ESL.,ASP
SURECOLOR SC-F9400H1710362520FRAME APG ASSY .A,ESL,ASP
SURECOLOR SC-F9400H1824295521COVER HEATER TOP REAR ASSY ESL
SURECOLOR SC-F9400H1809586522LABEL,SET,PRE HEATER,2L
SURECOLOR SC-F9400H1824294523AFTER HEATER ASSY ESL
SURECOLOR SC-F9400H1809585524LABEL,SET,AFTER HEATER,2L
SURECOLOR SC-F9400H1824297525PANEL ASSY ESL,ASP
SURECOLOR SC-F9400H1684361526POROUS PAD,FLASHING BOX.,ASSY ESL,ASP
SURECOLOR SC-F9400H1731956527FLASHING BOX ASSY CF79 ESL AND PAD,ASP
SURECOLOR SC-F9400H1824290528IH ASSY.,L CH99,ASP
SURECOLOR SC-F9400H1863574528IH ASSY.,R CH99,ASP
SURECOLOR SC-F9400H1575095529SEAL RUBBER,JOINT.,ASP
SURECOLOR SC-F9400H1764639530CLOTH WIPER CARRIAGE ASSY .A, ESL,ASP
SURECOLOR SC-F9400H1834256532PUMP,CAP ASSY,A CH99[1824302]
SURECOLOR SC-F9400H1860433532PUMP,CAP ASSY,A CH99[1824302]
SURECOLOR SC-F9400H1824293533TUBE ASSY CH99,ASP
SURECOLOR SC-F9400H1863575533TUBE ASSY CH99,ASP
SURECOLOR SC-F9400H1824292534DUCT,CR ASSY CH99,ASP
SURECOLOR SC-F9400H1851513534DUCT,CR ASSY CH99,ASP
SURECOLOR SC-F9400H1863576534DUCT,CR ASSY CH99,ASP
SURECOLOR SC-F9400H1574106535HARNESS,HEAD ASSY,ASP
SURECOLOR SC-F9400H1574107536HARNESS,HEAD ASSY,C,ASP
SURECOLOR SC-F9400H1662703537SCALE,CR
SURECOLOR SC-F9400H1680708538FAN ASSY ESL,ASP
SURECOLOR SC-F9400H1559726540SEAL,IMS
SURECOLOR SC-F9400H2169091542MOTOR ASSY.,PF
SURECOLOR SC-F9400H2170578543BOARD ASSY.,ENCODER,PF
SURECOLOR SC-F9400H2170930544HARNESS,PF,ENCORDER
SURECOLOR SC-F9400H2170931546HARNESS,SENSOR,PE
SURECOLOR SC-F9400H2170576547MOTOR,ASSY.,CR
SURECOLOR SC-F9400H2211420547MOTOR,ASSY.,CR
SURECOLOR SC-F9400H2182572548MOTOR ASSY.,ASF,SUB
SURECOLOR SC-F9400H2139286549CABLE,MOTOR,APG
SURECOLOR SC-F9400H1673000550FAN SET.DC,ASSY ASP
SURECOLOR SC-F9400H1735174551TUBE,INK EJECT ASSY CG44 ESL,ASP
SURECOLOR SC-F9400H1559635552COVER,CR
SURECOLOR SC-F9400H1559650553SPACER,CR,B
SURECOLOR SC-F9400H1709897554SHEET,GUIDE RAIL,TUBE,LOWER,B
SURECOLOR SC-F9400H1664858555TIMING BELT,PF
SURECOLOR SC-F9400H1824303556MEDIA EDGE PLATE ASSY ESL
SURECOLOR SC-F9400H2139279559CABLE,RELAY,FRONT,COVER,LEFT
SURECOLOR SC-F9400H2174478560CABLE,RELAY,MAINTENANCE COVER,LEFT
SURECOLOR SC-F9400H2158128561HARNESS,PANEL
SURECOLOR SC-F9400H2158148562HARNESS
SURECOLOR SC-F9400H2158129563HARNESS,CRCM1
SURECOLOR SC-F9400H2139289564CABLE,SENSOR,CR
SURECOLOR SC-F9400H2158139565HARNESS,CR
SURECOLOR SC-F9400H2139297566CABLE,RELAY,MOTOR,PF
SURECOLOR SC-F9400H2171010567CABLE,SENSOR,MANUAL RELEASE
SURECOLOR SC-F9400H2171009568CABLE,RELAY,FAN
SURECOLOR SC-F9400H2139304569CABLE,RELAY,FAN,B
SURECOLOR SC-F9400H1722157570PIPE,GUIDE,REEL
SURECOLOR SC-F9400H2170935572CABLE,RELAY,HEATER,B
SURECOLOR SC-F9400H2170934575CABLE,RELAY,THERMISTOR
SURECOLOR SC-F9400H2170595576HARNESS,RELAY,MOTOR,11
SURECOLOR SC-F9400H2170597577HARNESS,RELAY,ENCODER,21
SURECOLOR SC-F9400H2143600578HARNESS
SURECOLOR SC-F9400H2143601579HARNESS
SURECOLOR SC-F9400H2170599580HARNESS,RELAY,SENSOR,3
SURECOLOR SC-F9400H2143603581HARNESS
SURECOLOR SC-F9400H2143604582HARNESS
SURECOLOR SC-F9400H1863573584IH ASSY.,L CH99,ASP
SURECOLOR SC-F9400H1824291584IH ASSY.,R CH99,ASP
SURECOLOR SC-F9400H1585151586HARNESS,HEAD,ASSY.,S ESL ASP
SURECOLOR SC-F9400H1585152587HARNESS,HEAD,ASSY.,S-C ESL ASP
SURECOLOR SC-F9400H2158130593HARNESS,CRCM2
SURECOLOR SC-F9400H1602678598SHEET,PROTECT,INK,B
SURECOLOR SC-F9400H1680676604PULLEY,ROLLER,PF ASSY ESL,ASP
SURECOLOR SC-F9400H1685414615SUB SHAFT,SLIDER ASSY ,ASP
SURECOLOR SC-F9400H2169089617FAN ASSY.,CR
SURECOLOR SC-F9400H2153099618HARNESS
SURECOLOR SC-F9400H2169335622HARNESS,RELAY,CR MOTOR COOLING FAN
SURECOLOR SC-F9400H2169336623HARNESS,RELAY,CR MOTOR
SURECOLOR SC-F9400H1662819629ANTISTATIC CLOTH,EJ
SURECOLOR SC-F9400H2170923630CABLE,SENSOR,NIP
SURECOLOR SC-F9400H2150441631MOTOR ASSY.,WIPER
SURECOLOR SC-F9400H2170924632CABLE,MOTOR,NIP
SURECOLOR SC-F9400H2175356633BOARD ASSY.,SUB
SURECOLOR SC-F9400H2170604634HARNESS,RELAY,2
SURECOLOR SC-F9400H2170933637CABLE,HEATER,SENSOR,RELAY
SURECOLOR SC-F9400H2170932638CABLE,HEATER,SENSOR
SURECOLOR SC-F9400H2170598641HARNESS,RELAY,ENCODER,3
SURECOLOR SC-F9400H1662767642FASTEN PLATE,ROLLER,DRIVEN
SURECOLOR SC-F9400H2170602644HARNESS,RELAY,AC,1
SURECOLOR SC-F9400H2170603645HARNESS,RELAY,SUB
SURECOLOR SC-F9400H2170610648HARNESS,RELAY,AC,2
SURECOLOR SC-F9400H1708279649ROLLER,DRIVEN
SURECOLOR SC-F9400H1746803650COVER,HEAD,CR ASSY A CF79,ASP
SURECOLOR SC-F9400H1845879650COVER,HEAD,CR ASSY A CF79,ASP
SURECOLOR SC-F9400H1690512652COIL SPRING ASSY ESL,ASP
SURECOLOR SC-F9400H1748038654SHEET,PROTECTION,IMS,B
SURECOLOR SC-F9400H1843036654SHEET,PROTECTION,IMS,B
SURECOLOR SC-F9400H1662773655HOLDER,PAPER GUIDE,FRONT
SURECOLOR SC-F9400H1662783656FASTEN PLATE,PAPER GUIDE,FRONT
SURECOLOR SC-F9400H1680696657GUIDE DRIVER,FR,IS,MAIN ASSY,ASP
SURECOLOR SC-F9400H2150699658LEAF SENSOR,P599
SURECOLOR SC-F9400H1750841671PULLEY,DRIVEN ASSY ESL,ASP
SURECOLOR SC-F9400H1662736672SHAFT,ROLLER,DRIVEN
