EPSON SureColor F7100 F7170 F7180 Parts Manual
In stock
SKU
EP-F7100-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F7100 F7170 F7180 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 14.1M |
| Pages | 11 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F7100 F7170 |
EPSON SureColor F7100 F7170 F7180 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

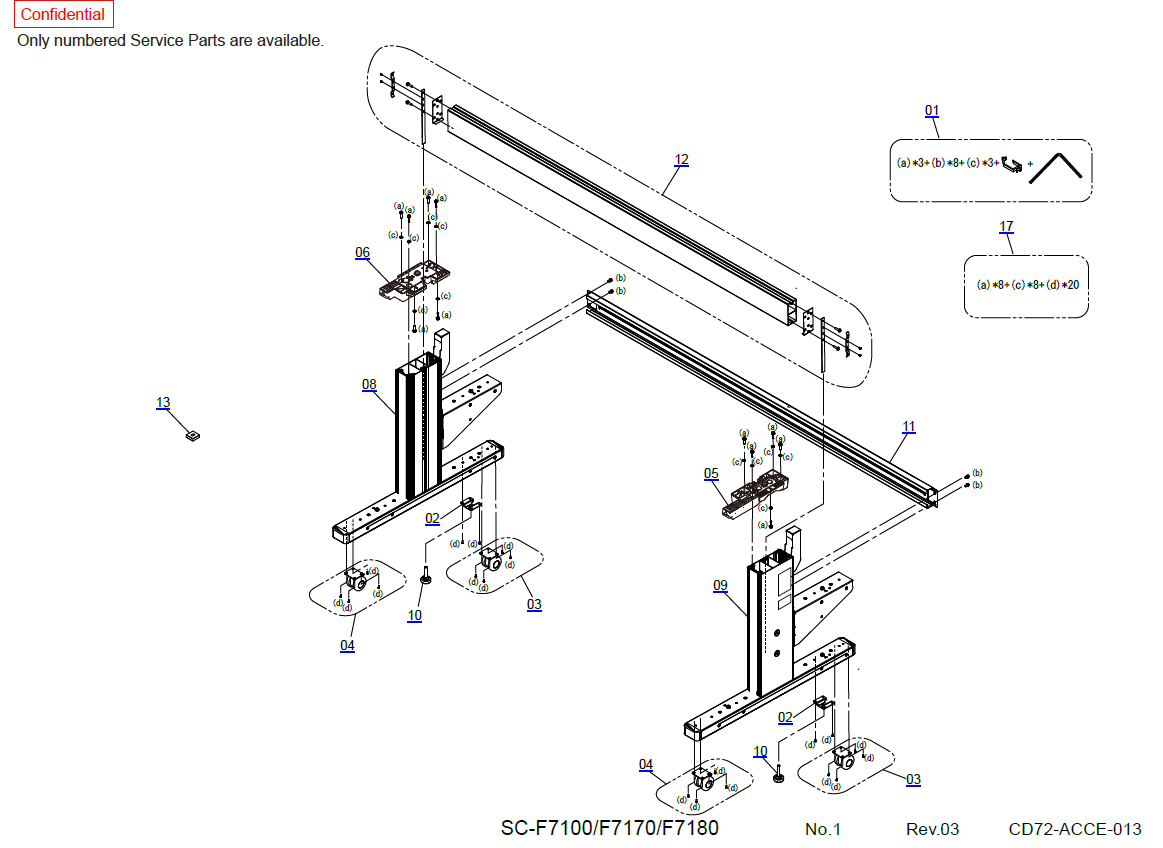

| SURECOLOR SC-F7100 | 1574108 | 1 | SCREW ASSY,ASP |
| SURECOLOR SC-F7100 | 1559573 | 2 | ADJUSTER ASSY. |
| SURECOLOR SC-F7100 | 1714641 | 3 | CASTER,KIT,P60HG,ASP |
| SURECOLOR SC-F7100 | 1714642 | 4 | CASTER,KIT,P60HGS,ASP |
| SURECOLOR SC-F7100 | 1623340 | 5 | STAND,TOP,RIGHT,B ASSY ESL ASP |
| SURECOLOR SC-F7100 | 1623342 | 6 | STAND,TOP,LEFT,B ASSY ESL ASP |
| SURECOLOR SC-F7100 | 1668935 | 8 | STAND,LEFT ASSY ESL A ASP |
| SURECOLOR SC-F7100 | 1668938 | 9 | STAND,RIGHT ASSY.B,ST A ASP |
| SURECOLOR SC-F7100 | 1560661 | 10 | ADJUSTER,KC-280-4-EP-UL |
| SURECOLOR SC-F7100 | 1668939 | 100 | COVER,TOP,LEFT,ASSY,A ASP |
| SURECOLOR SC-F7100 | 1552189 | 101 | COVER,SIDE,RIGHT,UPPER |
| SURECOLOR SC-F7100 | 1668940 | 102 | COVER,TOP,RIGHT,ASSY,A ASP |
| SURECOLOR SC-F7100 | 1666833 | 103 | COVER,FRONT,RIGHT,64, ASSY,ST C ASP |
| SURECOLOR SC-F7100 | 1666840 | 104 | COVER,MAINTENANCE,RIGHT,ASSY,ST A ASP |
| SURECOLOR SC-F7100 | 1666834 | 105 | COVER,MAINTENANCE,LEFT, ASSY.,ST A ASP |
| SURECOLOR SC-F7100 | 1672536 | 106 | COVER,SIDE,RIGHT,LOWER ASP |
| SURECOLOR SC-F7100 | 1552193 | 107 | COVER,SIDE,LEFT,LOWER |
| SURECOLOR SC-F7100 | 1599145 | 108 | COVER FRONT LEFT ASSY.,ST ASP |
| SURECOLOR SC-F7100 | 1552188 | 109 | COVER,TOP,PANEL |
| SURECOLOR SC-F7100 | 1559802 | 11 | STAY,STAND,SUB,64 |
| SURECOLOR SC-F7100 | 1552192 | 110 | COVER,SIDE,LEFT,UPPER |
| SURECOLOR SC-F7100 | 1552909 | 111 | COVER,IH |
| SURECOLOR SC-F7100 | 1552912 | 112 | COVER,MAINTENANCE |
| SURECOLOR SC-F7100 | 1552914 | 113 | COVER,MAINTENANCE,HEAD |
| SURECOLOR SC-F7100 | 1559808 | 114 | COVER,PRINTER,SUPPORT,64 |
| SURECOLOR SC-F7100 | 1552191 | 115 | HOUSING,BASE,SUPPORT,RIGHT |
| SURECOLOR SC-F7100 | 1552194 | 116 | HOUSING,BASE,SUPPORT,LEFT |
| SURECOLOR SC-F7100 | 1552916 | 117 | CAP,COVER,TUBE |
| SURECOLOR SC-F7100 | 1552177 | 119 | KNOB,LEVER |
| SURECOLOR SC-F7100 | 1589757 | 12 | STAY,STAND,64,ASP |
| SURECOLOR SC-F7100 | 1591688 | 121 | LABEL,PERIODIC MAINTENANCE |
| SURECOLOR SC-F7100 | 1560601 | 125 | CAP,CR,ADJUST |
| SURECOLOR SC-F7100 | 1620120 | 128 | LABEL,PRECISIONCORE |
| SURECOLOR SC-F7100 | 1606878 | 13 | STOPPER |
| SURECOLOR SC-F7100 | 1552910 | 131 | COVER,PRINTER,PROTECT,RIGHT |
| SURECOLOR SC-F7100 | 1552911 | 132 | COVER,PRINTER,PROTECT,LEFT |
| SURECOLOR SC-F7100 | 1656712 | 15 | ACCESSORY KIT.A, ASP |
| SURECOLOR SC-F7100 | 1612935 | 17 | SCREW KIT ASSY,ASP |
| SURECOLOR SC-F7100 | 1637028 | 18 | SHEET ADJUST ASSY ESL ASP |
| SURECOLOR SC-F7100 | 1748665 | 19 | LABEL,CAUTION,EMERGENCY MESSAGE,G |
| SURECOLOR SC-F7100 | 2152835 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F7100 | 2138619 | 201 | HARNESS |
| SURECOLOR SC-F7100 | 2130945 | 202 | HARNESS |
| SURECOLOR SC-F7100 | 2130944 | 203 | HARNESS |
| SURECOLOR SC-F7100 | 2142891 | 204 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F7100 | 2142883 | 205 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7100 | 2181305 | 206 | HARNESS |
| SURECOLOR SC-F7100 | 2138604 | 207 | HARNESS |
| SURECOLOR SC-F7100 | 2138605 | 208 | HARNESS |
| SURECOLOR SC-F7100 | 2188973 | 210 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F7100 | 2138596 | 211 | HARNESS |
| SURECOLOR SC-F7100 | 2138598 | 212 | HARNESS |
| SURECOLOR SC-F7100 | 2138614 | 213 | HARNESS |
| SURECOLOR SC-F7100 | 2138618 | 214 | HARNESS |
| SURECOLOR SC-F7100 | 2138620 | 215 | HARNESS |
| SURECOLOR SC-F7100 | 2138622 | 216 | HARNESS |
| SURECOLOR SC-F7100 | 2152837 | 217 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7100 | 2142879 | 218 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7100 | 2139319 | 219 | FAN SET. DC (PROPELLER TYPE) |
| SURECOLOR SC-F7100 | 2142892 | 220 | BOARD ASSY.,PANEL |
| SURECOLOR SC-F7100 | 1601087 | 500 | ROLLER ASSY.,DRIVEN,ST ASP |
| SURECOLOR SC-F7100 | 1574089 | 501 | SCALE,PF ASSY,ASP |
| SURECOLOR SC-F7100 | 1574090 | 502 | PRINTER,COVER,OPEN ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1574111 | 503 | FULL,MAINTENANCE OPEN ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1574091 | 504 | INK LOCK,P COVER, HOME,ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1574112 | 505 | INK LOCK,MAINTENANCE, HOME,ASSY ESL,ASP |

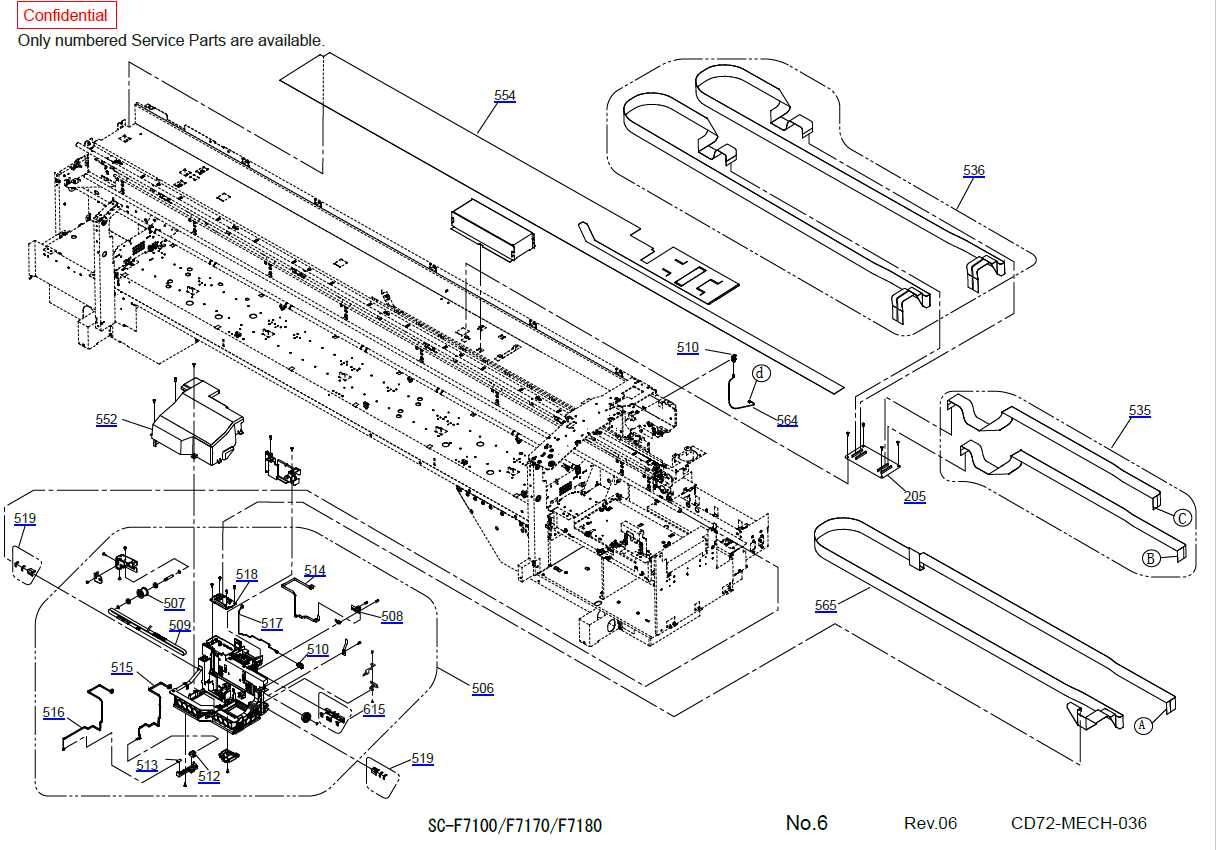

| SURECOLOR SC-F7100 | 1716178 | 506 | CARRIAGE ASSY.F.,ESL,ASP |
| SURECOLOR SC-F7100 | 1834963 | 506 | CARRIAGE ASSY.F.,ESL,ASP |
| SURECOLOR SC-F7100 | 1859866 | 506 | CARRIAGE ASSY.F.,ESL,ASP |
| SURECOLOR SC-F7100 | 1480133 | 507 | PULLEY,DRIVEN |
| SURECOLOR SC-F7100 | 1480177 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F7100 | 2208696 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F7100 | 1559657 | 509 | BELT,CR |
| SURECOLOR SC-F7100 | 2143464 | 510 | PHOTO INTERRUPTER |
| SURECOLOR SC-F7100 | FA12100 | 511 | PRINT HEAD,ID7560-10 |
| SURECOLOR SC-F7100 | 2183502 | 512 | BOARD ASSY.,INK MARK,D |
| SURECOLOR SC-F7100 | 2109393 | 513 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F7100 | 2158133 | 514 | HARNESS,CR,ENCODER |
| SURECOLOR SC-F7100 | 2142289 | 515 | HARNESS,IMS |
| SURECOLOR SC-F7100 | 2158134 | 516 | HARNESS,PW |
| SURECOLOR SC-F7100 | 2139290 | 517 | CABLE,SENSOR,PG |
| SURECOLOR SC-F7100 | 2147857 | 518 | BOARD ASSY.,SUB |
| SURECOLOR SC-F7100 | 1574110 | 519 | OIL PAD,ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1693344 | 520 | APG,ASSY.A,ESL,ASP |
| SURECOLOR SC-F7100 | 1720475 | 521 | PAPER GUIDE,REAR ASSY.ESL ASP |
| SURECOLOR SC-F7100 | 1672993 | 523 | COVER,HEATER,TOP,FRONT,B ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1562881 | 524 | LABEL,SET,AFTER HEATER |
| SURECOLOR SC-F7100 | 1712207 | 525 | PANEL ASSY.A,ESL,ASP |

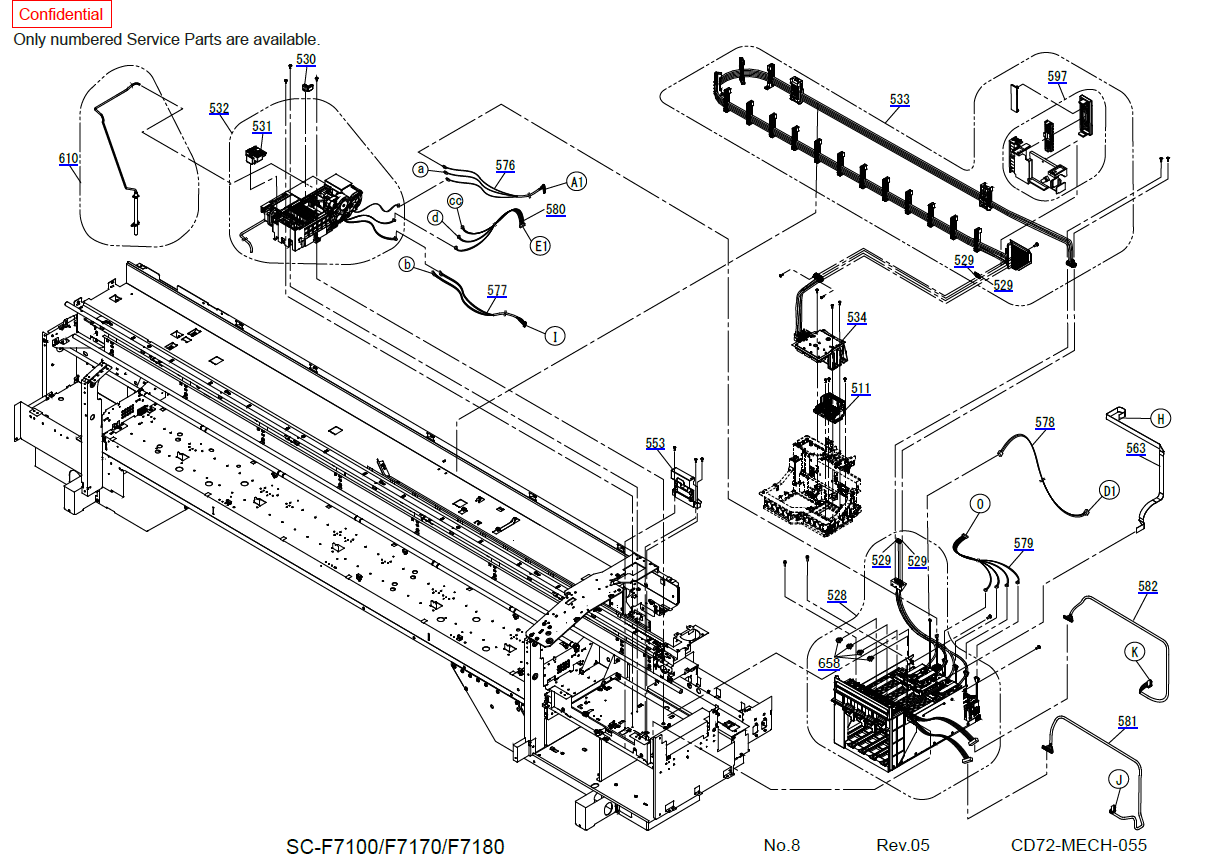

| SURECOLOR SC-F7100 | 1828628 | 528 | HOLDER IC ASSY.,C,ST,A,ASP |
| SURECOLOR SC-F7100 | 1575095 | 529 | SEAL RUBBER,JOINT.,ASP |
| SURECOLOR SC-F7100 | 1574117 | 530 | WIPER.,ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1574118 | 531 | POROUS PAD, CLEANER,WIPER.,ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1613445 | 531 | POROUS PAD,WIPER,CLEANER B,ASP |
| SURECOLOR SC-F7100 | 1834249 | 532 | PUMP,CAP,ASSY ,H ESL,ASP |
| SURECOLOR SC-F7100 | 1603576 | 533 | TUBE,INK SUPPLY.,ASSY.,B,ST,ASP |
| SURECOLOR SC-F7100 | 1863734 | 533 | TUBE,INK SUPPLY.,ASSY.,B,ST,ASP |
| SURECOLOR SC-F7100 | 1691911 | 534 | DUCT,CR.A,ASSY CF06,ASP |
| SURECOLOR SC-F7100 | 1863725 | 534 | DUCT,CR.A,ASSY CF06,ASP |
| SURECOLOR SC-F7100 | 1574106 | 535 | HARNESS,HEAD ASSY,ASP |
| SURECOLOR SC-F7100 | 1574107 | 536 | HARNESS,HEAD ASSY,C,ASP |
| SURECOLOR SC-F7100 | 1574120 | 537 | SCALE,CR,ASP |
| SURECOLOR SC-F7100 | 2169088 | 538 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-F7100 | 1559726 | 540 | SEAL,IMS |
| SURECOLOR SC-F7100 | 1574125 | 542 | MOTOR ASSY.,PF,ASP |
| SURECOLOR SC-F7100 | 2133325 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F7100 | 2208679 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F7100 | 2210270 | 543 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F7100 | 2158131 | 544 | HARNESS,PF,ENCORDER |
| SURECOLOR SC-F7100 | 1589601 | 545 | PUSH RIVET,P6060W ASSY.B,ASP |
| SURECOLOR SC-F7100 | 2158132 | 546 | HARNESS,SENSOR,PE |
| SURECOLOR SC-F7100 | 2199477 | 547 | MOTOR ASSY.,CR |
| SURECOLOR SC-F7100 | 2182572 | 548 | MOTOR ASSY.,ASF,SUB |
| SURECOLOR SC-F7100 | 2139286 | 549 | CABLE,MOTOR,APG |
| SURECOLOR SC-F7100 | 1574109 | 550 | FAN SET.DC,ASP |
| SURECOLOR SC-F7100 | 1559635 | 552 | COVER,CR |
| SURECOLOR SC-F7100 | 1559650 | 553 | SPACER,CR,B |
| SURECOLOR SC-F7100 | 1559681 | 554 | SHEET,GUIDE RAIL,TUBE,LOWER |
| SURECOLOR SC-F7100 | 1559690 | 555 | TIMING BELT,PF |
| SURECOLOR SC-F7100 | 2139279 | 559 | CABLE,RELAY,FRONT,COVER,LEFT |
| SURECOLOR SC-F7100 | 2174478 | 560 | CABLE,RELAY,MAINTENANCE COVER,LEFT |
| SURECOLOR SC-F7100 | 2158128 | 561 | HARNESS,PANEL |
| SURECOLOR SC-F7100 | 2158148 | 562 | HARNESS |
| SURECOLOR SC-F7100 | 2158129 | 563 | HARNESS,CRCM1 |
| SURECOLOR SC-F7100 | 2139289 | 564 | CABLE,SENSOR,CR |
| SURECOLOR SC-F7100 | 2158139 | 565 | HARNESS,CR |
| SURECOLOR SC-F7100 | 2139297 | 566 | CABLE,RELAY,MOTOR,PF |
| SURECOLOR SC-F7100 | 2139302 | 567 | CABLE,SENSOR,MANUAL RELEASE |
| SURECOLOR SC-F7100 | 2139303 | 568 | CABLE,RELAY,FAN |
| SURECOLOR SC-F7100 | 2139304 | 569 | CABLE,RELAY,FAN,B |
| SURECOLOR SC-F7100 | 2139308 | 572 | CABLE,RELAY,HEATER,B |
| SURECOLOR SC-F7100 | 2139311 | 575 | CABLE,RELAY,THERMISTOR,C |
| SURECOLOR SC-F7100 | 2138606 | 576 | HARNESS |
| SURECOLOR SC-F7100 | 2138607 | 577 | HARNESS |
| SURECOLOR SC-F7100 | 2138609 | 578 | HARNESS |
| SURECOLOR SC-F7100 | 2138610 | 579 | HARNESS |
| SURECOLOR SC-F7100 | 2138611 | 580 | HARNESS |
| SURECOLOR SC-F7100 | 2138612 | 581 | HARNESS |
| SURECOLOR SC-F7100 | 2138613 | 582 | HARNESS |
| SURECOLOR SC-F7100 | 1612934 | 597 | FASTEN PLATE,TUBE ASSY,B, ASP |
| SURECOLOR SC-F7100 | 1602678 | 598 | SHEET,PROTECT,INK,B |
| SURECOLOR SC-F7100 | 1551633 | 600 | CENTER SUPPORT,ROLLER,PF |
| SURECOLOR SC-F7100 | 1672983 | 604 | FRAME,HEATER,RIGHT,FRONT ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1672984 | 605 | FRAME,HEATER,LEFT,FRONT ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1635436 | 608 | FRAME,HEATER,ADJUST,LEFT ASSY ASP |
| SURECOLOR SC-F7100 | 1635435 | 609 | FRAME,HEATER,ADJUST,RIGHT ASSY ASP |
| SURECOLOR SC-F7100 | 1634496 | 610 | TUBE,INK EJECT ASSY ASP |
| SURECOLOR SC-F7100 | 1693393 | 615 | SLIDER,CR,B |
| SURECOLOR SC-F7100 | 1082364 | 616 | SPRING PIN(B130103516) |
| SURECOLOR SC-F7100 | 1669242 | 619 | PULLEY,ROLLER,PF ASSY ESL,ASP |
| SURECOLOR SC-F7100 | 1559706 | 624 | CAM,RELEASE |
| SURECOLOR SC-F7100 | 2150699 | 658 | LEAF SENSOR,P599 |
