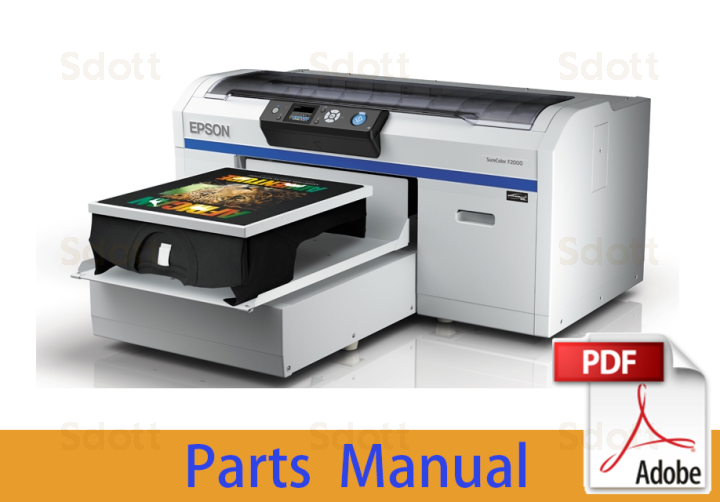

EPSON SureColor F2100 2130 2140 2150 2160 2180 Parts Manual
In stock
SKU
EP-F2100-PM
$1.30
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F2100 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.13M |
| Pages | 8 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F2100 Series |
****** The following content is not included in the PDF manual, please use it online ******

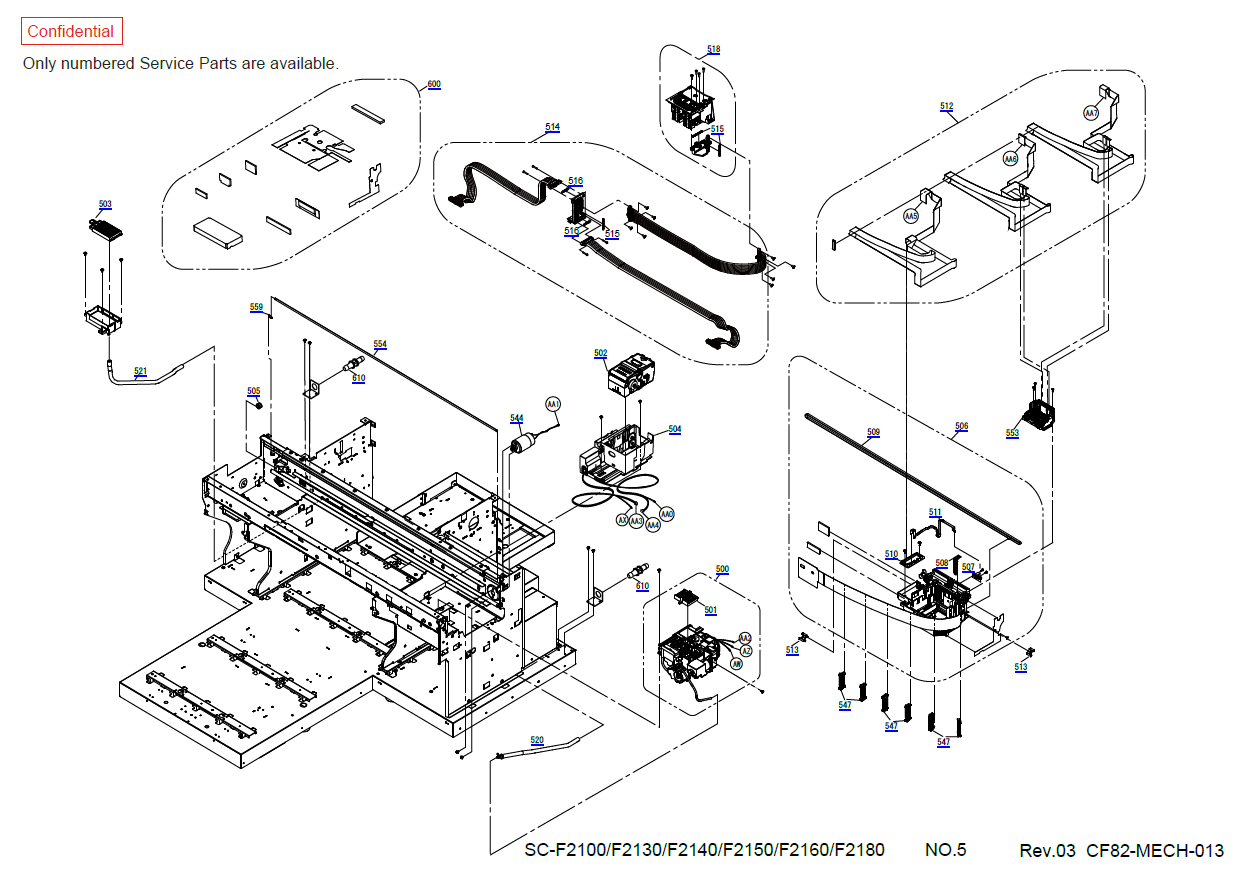

| SURECOLOR SC-F2100 | 1617503 | 1 | TWEEZERS,BOS | ||||
| SURECOLOR SC-F2100 | 1775671 | 1 | TWEEZERS,BOS | ||||
| SURECOLOR SC-F2100 | 1748917 | 5 | WASTE ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1639524 | 6 | HOLDER BOTTLE ASSY ASP | ||||
| SURECOLOR SC-F2100 | 1517825 | 8 | LOCKING CLAMP | ||||
| SURECOLOR SC-F2100 | 1748666 | 9 | LABEL,CAUTION,EMERGENCY MESSAGE,H | ||||
| SURECOLOR SC-F2100 | 1737316 | 10 | HOOK,FRAME,TRAY | ||||
| SURECOLOR SC-F2100 | 1748898 | 100 | COVER SIDE RIGHT ASSY.,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1748899 | 101 | COVER SIDE LEFT ASSY.,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1748920 | 102 | COVER TOP ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748900 | 103 | COVER,IC,LEFT,B,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1748901 | 104 | COVER,IC,RIGHT,B,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1769010 | 105 | COVER,PRINTER,B ASSY.,A,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1806043 | 105 | COVER,PRINTER,B ASSY.,A,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1737308 | 106 | DECORATION PLATE,HOUSING,B | ||||
| SURECOLOR SC-F2100 | 1737309 | 107 | CAP,HOUSING,B | ||||
| SURECOLOR SC-F2100 | 1737305 | 108 | HOLDER,IC,LEFT,B | ||||
| SURECOLOR SC-F2100 | 1737303 | 109 | HOLDER,IC,RIGHT | ||||
| SURECOLOR SC-F2100 | 1737292 | 111 | COVER,FRONT,B | ||||
| SURECOLOR SC-F2100 | 1731760 | 112 | LABEL,MODEL,NAME | ||||
| SURECOLOR SC-F2100 | 1709780 | 113 | LABEL,WARNING,CHILD GUARD | ||||
| SURECOLOR SC-F2100 | 1682129 | 115 | LABEL,PRECISIONCORE,B | ||||
| SURECOLOR SC-F2100 | 2186467 | 200 | BOARD ASSY.,MAIN | ||||
| SURECOLOR SC-F2100 | 2186482 | 201 | HARNESS, POWER SUPPLY, INLET | ||||
| SURECOLOR SC-F2100 | 2186483 | 203 | HARNESS, DC CABLE | ||||
| SURECOLOR SC-F2100 | 2135483 | 204 | BOARD ASSY.,MAIN | ||||
| SURECOLOR SC-F2100 | 2187864 | 205 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-F2100 | 2170808 | 206 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170798 | 207 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148295 | 208 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170805 | 209 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2186478 | 210 | Harness,CRCM | ||||
| SURECOLOR SC-F2100 | 2170800 | 211 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170796 | 212 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2186481 | 213 | Harness,PANEL | ||||
| SURECOLOR SC-F2100 | 2148296 | 214 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2130944 | 215 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2130945 | 216 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170791 | 217 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170790 | 218 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170809 | 219 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2186477 | 220 | HARNESS, Sensor Home1 | ||||
| SURECOLOR SC-F2100 | 2170792 | 221 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2170806 | 222 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148303 | 223 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148304 | 224 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148305 | 225 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148306 | 226 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148307 | 227 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2186479 | 228 | Harness,Relay,SUB-B 2 | ||||
| SURECOLOR SC-F2100 | 2186480 | 229 | Harness,Relay,SUB-B | ||||
| SURECOLOR SC-F2100 | 2170811 | 230 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2148312 | 231 | HARNESS | ||||
| SURECOLOR SC-F2100 | 2186475 | 245 | HARNESS,RELAY,SUB-B3 | ||||
| SURECOLOR SC-F2100 | 2186484 | 248 | HARNESS, Sensor, Press | ||||
| SURECOLOR SC-F2100 | 2186485 | 249 | HARNESS, Sensor Home2 | ||||
| SURECOLOR SC-F2100 | 2186488 | 250 | HARNESS, RELAY, MIST FAN | ||||
| SURECOLOR SC-F2100 | 2186487 | 251 | HARNESS, RELAY, COOLING FAN | ||||
| SURECOLOR SC-F2100 | 2186486 | 252 | HARNESS, UNIT, GOA | ||||
| SURECOLOR SC-F2100 | 2149749 | 300 | BOARD ASSY.,POWER SUPPLY | ||||
| SURECOLOR SC-F2100 | 1748907 | 500 | MAINTENANCE ASSY,CF82,ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1790748 | 500 | MAINTENANCE ASSY,CF82,ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1700000 | 501 | CAP,HEAD,LARGE ASSY.A,ASP | ||||
| SURECOLOR SC-F2100 | 1739537 | 502 | CLOTH WIPER CASSETTE ASSY B,ESL(1708313) | ||||
| SURECOLOR SC-F2100 | 1574116 | 503 | POROUS PAD,FLASH BOX,ASSY ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1764624 | 504 | CLOTH WIPER CARRIAGE ASSY.,C,ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1798380 | 504 | CLOTH WIPER CARRIAGE ASSY.,C,ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1619786 | 505 | PULLY DRIVEN CR ASSY ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748902 | 506 | CR ASSY.,CF82 ,ASP | ||||
| SURECOLOR SC-F2100 | 1480177 | 507 | BOARD ASSY.,ENCODER | ||||
| SURECOLOR SC-F2100 | 1525876 | 508 | HOLDER,GUIDE,TUBE | ||||
| SURECOLOR SC-F2100 | 1592542 | 509 | BELT,CR | ||||
| SURECOLOR SC-F2100 | 2187863 | 510 | BOARD ASSY.,SUB | ||||
| SURECOLOR SC-F2100 | 2142259 | 511 | HARNESS,ENCODER,CR | ||||
| SURECOLOR SC-F2100 | 1619803 | 512 | HARNESS ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1619787 | 513 | OIL PAD ASSY ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1619804 | 514 | TUBE,SUPPLY,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1525755 | 515 | SEAL RUBBER,JOINT,B | ||||
| SURECOLOR SC-F2100 | 1518317 | 516 | SEAL RUBBER,JOINT,ASP | ||||
| SURECOLOR SC-F2100 | 1748903 | 518 | DUCT,CR,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1768276 | 518 | DUCT,CR,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1794251 | 518 | DUCT,CR,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 1748908 | 520 | INK EJ HOME ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748909 | 521 | INK EJ FULL ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1619807 | 522 | SCALE,PF,ASSY,ASP | ||||
| SURECOLOR SC-F2100 | 2133325 | 523 | BOARD ASSY.,ENCODER,PF | ||||
| SURECOLOR SC-F2100 | 2148288 | 524 | HARNESS | ||||
| SURECOLOR SC-F2100 | 1748921 | 525 | FRAME ADJUST TRAY ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748904 | 526 | FRANGE PG ASSY.,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1737276 | 527 | FRAME ASSY.,TRAY,LOWER | ||||
| SURECOLOR SC-F2100 | 1748910 | 528 | BELLOWS ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748911 | 529 | PANEL ASSY.,A.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748912 | 530 | BUFFER ASSY HOME,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1575095 | 532 | SEAL RUBBER,JOINT.,ASP | ||||
| SURECOLOR SC-F2100 | 1767187 | 533 | BUFFER ASSY FULL.,C,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1770594 | 533 | BUFFER ASSY FULL.,C,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1798377 | 533 | BUFFER ASSY FULL.,C,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1748913 | 536 | FRAME SENSOR MEDIA ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748914 | 537 | INK HOLDER ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748916 | 538 | TABLE ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1480490 | 539 | BEARING,FLW686ZZ | ||||
| SURECOLOR SC-F2100 | 1480492 | 540 | POLY SLIDER,STW-FT60,T=0.25 | ||||
| SURECOLOR SC-F2100 | 1592561 | 541 | PULLY,DRIVEN,TF | ||||
| SURECOLOR SC-F2100 | 2186903 | 543 | FAN SET. DC(PROPELLER TYPE) | ||||
| SURECOLOR SC-F2100 | 2148994 | 544 | MOTOR ASSY.,CR | ||||
| SURECOLOR SC-F2100 | 1593910 | 545 | FRAME,STOPPER,TF | ||||
| SURECOLOR SC-F2100 | 2090717 | 546 | LEAF SENSOR | ||||
| SURECOLOR SC-F2100 | 1525855 | 547 | CLAMP,TUBE | ||||
| SURECOLOR SC-F2100 | 2131616 | 548 | FAN | ||||
| SURECOLOR SC-F2100 | 2149609 | 549 | MOTOR ASSY.,TF | ||||
| SURECOLOR SC-F2100 | 1657495 | 550 | TIMING BELT,PF | ||||
| SURECOLOR SC-F2100 | 2143464 | 551 | PHOTO INTERRUPTER | ||||
| SURECOLOR SC-F2100 | 1646112 | 552 | HEAVY DUTY CLAMPING HANDLE,490928 | ||||
| SURECOLOR SC-F2100 | FA12110 | 553 | LFP PRINT HEAD,ID7560-1 | ||||
| SURECOLOR SC-F2100 | 1592543 | 554 | SCALE,CR | ||||
| SURECOLOR SC-F2100 | 1737274 | 555 | LEVER,PG,CHANGE,05,17 | ||||
| SURECOLOR SC-F2100 | 2186902 | 556 | FAN SET. DC(PROPELLER TYPE) | ||||
| SURECOLOR SC-F2100 | 1748915 | 557 | INK HOLDER ASSY FULL,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1524391 | 558 | BUSHING,8 | ||||
| SURECOLOR SC-F2100 | 1525865 | 559 | EXTENSION SPRING,3.16 | ||||
| SURECOLOR SC-F2100 | 1748906 | 560 | FRAME TF BOTTOM ASSY.,CF82,ASP | ||||
| SURECOLOR SC-F2100 | 1592559 | 561 | BUSHING,SHAFT,DRIVE,TF,RIGHT | ||||
| SURECOLOR SC-F2100 | 2186844 | 562 | HARNESS,DETECTOR,AIR VENT | ||||
| SURECOLOR SC-F2100 | 1760280 | 563 | GOA CARTRIDGE ASSY.,A,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1770593 | 563 | GOA CARTRIDGE ASSY.,A,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1748918 | 564 | HOLDER GOA ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1770592 | 564 | HOLDER GOA ASSY.,CF82 ESL,ASP | ||||
| SURECOLOR SC-F2100 | 1738790 | 565 | LID,AIR VENT | ||||
| SURECOLOR SC-F2100 | 1635263 | 600 | PAD AND SHEET KIT ASP. | ||||
| SURECOLOR SC-F2100 | 1738760 | 610 | JOINT,VLI08086 | ||||
| SURECOLOR SC-F2100 | 4135368 | NON FIG | ENVELOPE,C | ||||
| SURECOLOR SC-F2100 | 1760287 | NON FIG | FRAME,AIR VENT,A,ASP | ||||
| SURECOLOR SC-F2100 | 1771038 | NON FIG | FRAME,AIR VENT,A,ASP | ||||
| SURECOLOR SC-F2100 | 1080614 | NON FIG | GREASE G-26 (40GR)(B702600001) | ||||
| SURECOLOR SC-F2100 | 1480655 | NON FIG | GREASE G-71(BLUE) | ||||
| SURECOLOR SC-F2100 | 1516265 | NON FIG | GREASE,G-84 | ||||
| SURECOLOR SC-F2100 | 1621893 | NON FIG | INK CART.BOXED,BK,PIG'T,14604,T730,250AS | ||||
| SURECOLOR SC-F2100 | 1621894 | NON FIG | INK CART.BOXED,C,PIG'T,14604,T730,250AS | ||||
| SURECOLOR SC-F2100 | 1621895 | NON FIG | INK CART.BOXED,M,PIG'T,14604,T730,250AS | ||||
| SURECOLOR SC-F2100 | 1621897 | NON FIG | INK CART.BOXED,WH,PIG'T,14604,T730,250AS | ||||
| SURECOLOR SC-F2100 | 1621896 | NON FIG | INK CART.BOXED,Y,PIG'T,14604,T730,250AS | ||||
| SURECOLOR SC-F2100 | 1615089 | NON FIG | JIG unit for parallelism | ||||
| SURECOLOR SC-F2100 | 1521154 | NON FIG | OIL,O-17 | ||||
| SURECOLOR SC-F2100 | 1640645 | NON FIG | SONIC TENSION METER U508 | ||||
