EPSON SureColor F10000 F10030 F10040 F10050 F10060 F10070 F10080 Parts Manual
In stock
SKU
EP-F10000-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F10000 F10030 F10040 F10050 F10060 F10070 F10080 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 15.4M |
| Pages | 10 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F10000 F10030 F10040 F10050 F10060 F10070 F10080 Series |

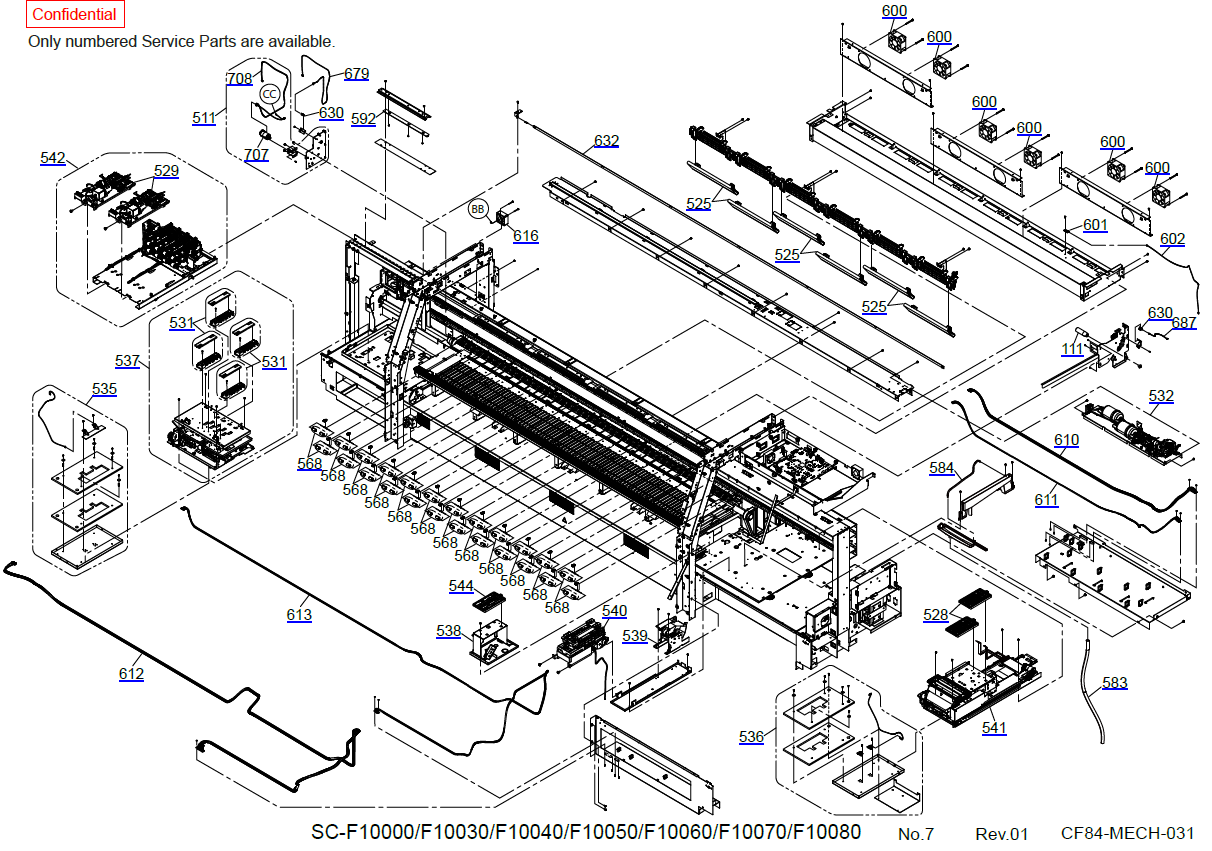

EPSON SureColor F10000 F10030 F10040 F10050 F10060 F10070 F10080 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| SURECOLOR SC-F10000 | 1804789 | 1 | FRAME ASSY., FIXED PLATE,CR,LEFT |
| SURECOLOR SC-F10000 | 1804790 | 2 | FRAME ASSY.,FIXED PLATE,CR,RIGHT |
| SURECOLOR SC-F10000 | 1560657 | 3 | H.S.C.BOLT.(S-P4)SCREW,6X20,F/ZB-3C |
| SURECOLOR SC-F10000 | 1836926 | 101 | COVER FRAME FRONT RIGHT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836931 | 105 | COVER LEFT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1854293 | 105 | COVER LEFT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1804350 | 111 | HANDLE,GTF-24-M8 |
| SURECOLOR SC-F10000 | 1796532 | 112 | DAMPER,COVER,PRINTER |
| SURECOLOR SC-F10000 | 1809124 | 120 | LABEL,MODEL NAME,F10000 |
| SURECOLOR SC-F10000 | 1709780 | 122 | LABEL,WARNING,CHILD GUARD |
| SURECOLOR SC-F10000 | 1723327 | 123 | LABEL,SET,PRE HEATER,B |
| SURECOLOR SC-F10000 | 1808384 | 124 | LABEL,FORKLIFT POSITION |
| SURECOLOR SC-F10000 | 1808375 | 125 | LABEL,CHANGE,INK CARTRIDGE |
| SURECOLOR SC-F10000 | 1622968 | 126 | LABEL,CAUTION,FINGER |
| SURECOLOR SC-F10000 | 1808383 | 127 | LABEL,CAP,CLEANING |
| SURECOLOR SC-F10000 | 1808366 | 128 | LABEL,CAUTION,COVER |
| SURECOLOR SC-F10000 | 1562876 | 129 | LABEL,CAUTION,HOT,A |
| SURECOLOR SC-F10000 | 1808365 | 130 | LABEL,CAUTION,HOT,B |
| SURECOLOR SC-F10000 | 1723326 | 131 | LABEL,SET,AFTER HEATER,B |
| SURECOLOR SC-F10000 | 1825666 | 133 | LABEL,PRECISIONCORE,E |
| SURECOLOR SC-F10000 | 1818069 | 134 | LABEL,ULTRA CHROME INK,DS,B |
| SURECOLOR SC-F10000 | 1836932 | 139 | COVER MENTE RIGHT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836962 | 140 | COVER MENTE LEFT UPPER ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1855619 | 140 | COVER MENTE LEFT UPPER ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1795057 | 144 | COVER,DRYINGFAN,TOP,FRONT |
| SURECOLOR SC-F10000 | 1795101 | 145 | PAPERGUIDE,PREHEATER,UPPER |
| SURECOLOR SC-F10000 | 1795010 | 146 | PAPERGUIDE,AFTERHEATER,UPPER |
| SURECOLOR SC-F10000 | 1795012 | 147 | PAPERGUIDE,AFTER HEATER,LOWER |
| SURECOLOR SC-F10000 | 1836930 | 148 | COVER RIGHT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1854292 | 148 | COVER RIGHT ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836929 | 149 | COVER PRINTER ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836928 | 150 | COVER FRAME FRONT LEFT ASSY ESL,ASP |

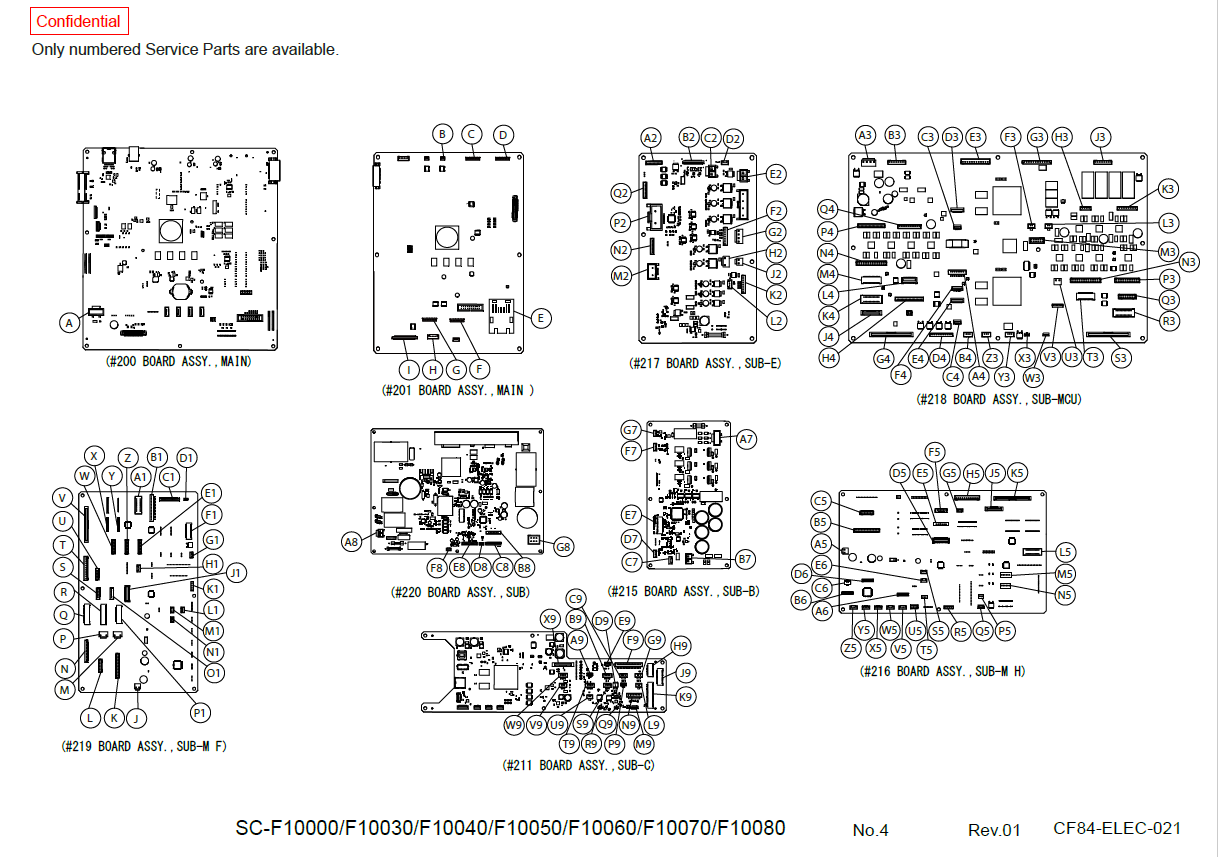

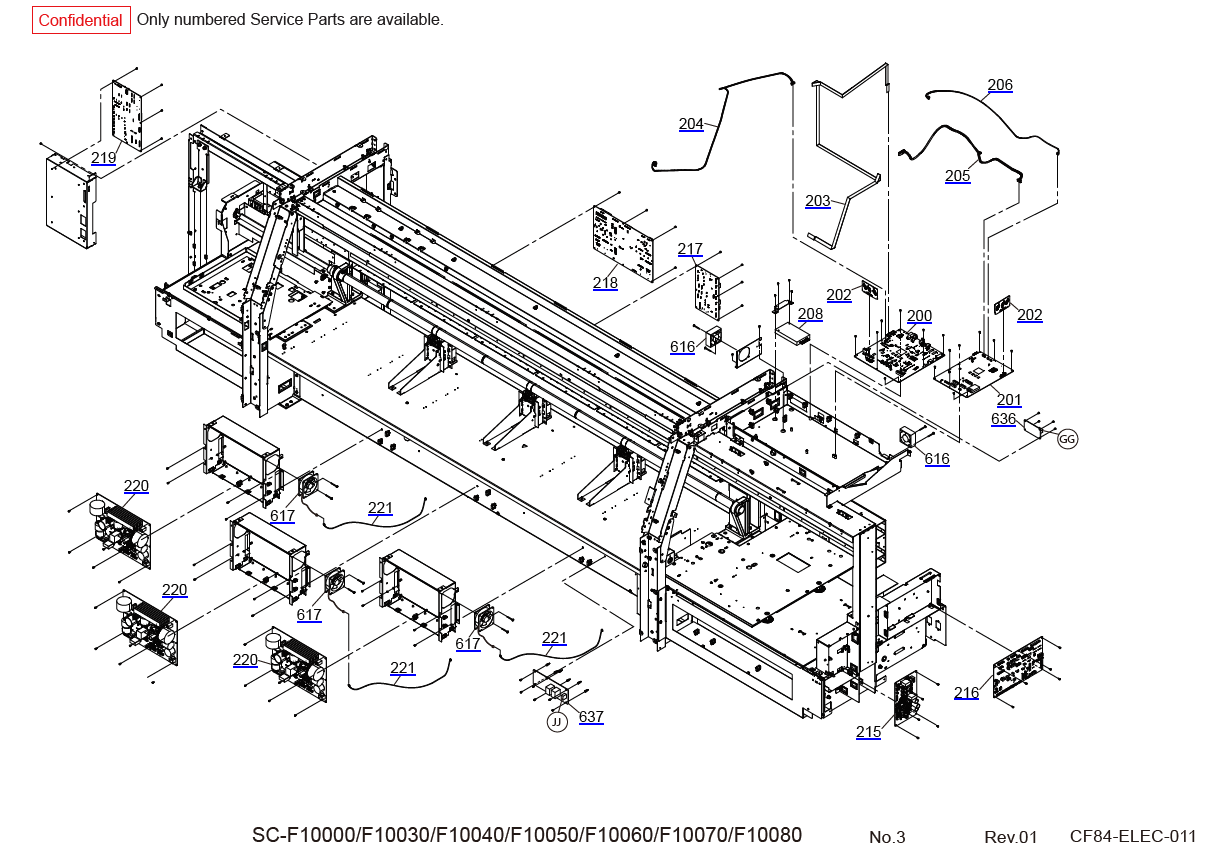

| SURECOLOR SC-F10000 | 2203603 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F10000 | 2211880 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F10000 | 2217624 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F10000 | 2203606 | 201 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F10000 | 2203658 | 202 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203717 | 203 | HARNESS, PNL, FFC |
| SURECOLOR SC-F10000 | 2203718 | 204 | HARNESS, RELAY, MAIN-PNL |
| SURECOLOR SC-F10000 | 2203816 | 205 | HARNESS, MAIN-B, IL |
| SURECOLOR SC-F10000 | 2203817 | 206 | HARNESS, RELAY, MAINBOX, COOLINGFAN1 |
| SURECOLOR SC-F10000 | 2203911 | 208 | SSD |
| SURECOLOR SC-F10000 | 2203609 | 209 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 1748666 | 21 | LABEL,CAUTION,EMERGENCY MESSAGE,H |
| SURECOLOR SC-F10000 | 2203612 | 210 | BOARD ASSY.,DRV |
| SURECOLOR SC-F10000 | 2203618 | 211 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203828 | 213 | HARNESS, RELAY, SUB-C, COOLINGFAN |
| SURECOLOR SC-F10000 | 2203636 | 215 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2213479 | 215 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203639 | 216 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203655 | 217 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203633 | 218 | BOARD ASSY.,MCU |
| SURECOLOR SC-F10000 | 2217625 | 218 | BOARD ASSY.,MCU |
| SURECOLOR SC-F10000 | 2203641 | 219 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203652 | 220 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203801 | 221 | HARNESS, RELAY, HEATER FAN2-2 |
| SURECOLOR SC-F10000 | 2207613 | 230 | ACDCPOOWER SUPPLY +24V |
| SURECOLOR SC-F10000 | 2207612 | 231 | ACDCPOOWER SUPPLY +42V |
| SURECOLOR SC-F10000 | 1841249 | 508 | SUPPLY TUBE ASSY, ASP |
| SURECOLOR SC-F10000 | 1856326 | 508 | SUPPLY TUBE ASSY, ASP |
| SURECOLOR SC-F10000 | 1859900 | 508 | SUPPLY TUBE ASSY, ASP |
| SURECOLOR SC-F10000 | 1871493 | 508 | SUPPLY TUBE ASSY, ASP |
| SURECOLOR SC-F10000 | 1836922 | 509 | SUB CR ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836923 | 511 | PF DRIVEN GEAR ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836924 | 512 | RGB ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1871635 | 512 | RGB ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1836925 | 513 | PANEL LCD UNIT ESL ASP |
| SURECOLOR SC-F10000 | 1836961 | 523 | PAPER GUIDE,AFTER HEATER,MIDDLE, ASSY,AS |
| SURECOLOR SC-F10000 | 1836963 | 524 | LEFT DAMPER ASSY,ASP |
| SURECOLOR SC-F10000 | 1836933 | 525 | CLOTH CATCHER ASSY ESL,ASP |
| SURECOLOR SC-F10000 | 1795774 | 527 | SHAFT ASSY.,DRIVE,CR |
| SURECOLOR SC-F10000 | 1836950 | 528 | FLASHING PAD ASSY,B,ESL,ASP |
| SURECOLOR SC-F10000 | 1859885 | 528 | FLASHING PAD ASSY,B,ESL,ASP |
| SURECOLOR SC-F10000 | 1863111 | 528 | FLASHING PAD ASSY,B,ESL,ASP |
| SURECOLOR SC-F10000 | 1836948 | 529 | PRESSURE / DECOMPRESSION PUMP ASP |
| SURECOLOR SC-F10000 | 1871597 | 529 | PRESSURE / DECOMPRESSION PUMP ASP |
| SURECOLOR SC-F10000 | 1836964 | 530 | STAY,ROLL,ASSY ASP |
| SURECOLOR SC-F10000 | 1836942 | 531 | KEEP CAP ASSY..,SUB,ESL,ASP |
| SURECOLOR SC-F10000 | 1836936 | 532 | PRESSURE CL ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1871596 | 532 | PRESSURE CL ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836937 | 533 | ONCR ASSY.,4C,ESL,ASP |
| SURECOLOR SC-F10000 | 1865636 | 533 | ONCR ASSY.,4C,ESL,ASP |
| SURECOLOR SC-F10000 | 1880431 | 533 | ONCR ASSY.,4C,ESL,ASP |
| SURECOLOR SC-F10000 | 1836938 | 534 | FILTER ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1865637 | 534 | FILTER ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836939 | 535 | INK SENSOR ASSY.,C,ESL,ASP |
| SURECOLOR SC-F10000 | 1836940 | 536 | INK SENSOR ASSY.,B,ESL,ASP |
| SURECOLOR SC-F10000 | 1836941 | 537 | KEEP CAP ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836943 | 538 | BASE FLASHING PAD ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836944 | 539 | PUMP CAP DRIVE ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1859884 | 539 | PUMP CAP DRIVE ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836945 | 540 | PUMP CAP CASSETTE ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1863030 | 540 | PUMP CAP CASSETTE ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836946 | 541 | CLOTH WIPER CR ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1852133 | 541 | CLOTH WIPER CR ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836947 | 542 | SUPPLY PUMP ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1859883 | 542 | SUPPLY PUMP ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1871595 | 542 | SUPPLY PUMP ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1770593 | 543 | GOA CARTRIDGE ASSY.,B,CF82 ESL,ASP |
| SURECOLOR SC-F10000 | 1836949 | 544 | FLASHING PAD ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1859886 | 544 | FLASHING PAD ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1863110 | 544 | FLASHING PAD ASSY.,ESL,ASP |
| SURECOLOR SC-F10000 | 1836960 | 548 | B TO B ASSY,ASP |
| SURECOLOR SC-F10000 | 1796292 | 549 | BELT,MOTOR,CR |
| SURECOLOR SC-F10000 | 2182573 | 550 | MOTOR ASSY.,REWIND |
| SURECOLOR SC-F10000 | 2201989 | 551 | HARNESS,MOTOR,APG |
| SURECOLOR SC-F10000 | 2202153 | 552 | MOTOR ASSY,CR |
| SURECOLOR SC-F10000 | 2201626 | 554 | HARNESS,THERMISTOR |
| SURECOLOR SC-F10000 | 2203649 | 555 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203830 | 556 | HARNESS, AH, SUB-S RELAY |
| SURECOLOR SC-F10000 | 2109393 | 557 | BOARD ASSY.,DETECTOR,PW,B |
| SURECOLOR SC-F10000 | 2206490 | 558 | FFC,RELAY,PE,B |
| SURECOLOR SC-F10000 | 2206630 | 559 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2207002 | 560 | HARNESS,RELAY,PE,FFC |
| SURECOLOR SC-F10000 | 1748665 | 561 | LABEL,CAUTION,EMERGENCY MESSAGE,G |
| SURECOLOR SC-F10000 | 1808368 | 562 | LABEL,CAUTION,INK EJECT TANK |
| SURECOLOR SC-F10000 | 2150699 | 563 | LEAF SENSOR,P599 |
| SURECOLOR SC-F10000 | 2203256 | 564 | HARNESS,INK EJECT |
| SURECOLOR SC-F10000 | 1795092 | 566 | BOARD ASSY.,ENCODER,CR |
| SURECOLOR SC-F10000 | 2201985 | 567 | FFC,ENCODER,CR |
| SURECOLOR SC-F10000 | 1836965 | 568 | ROLLER,DRIVEN,SET,ASP |
| SURECOLOR SC-F10000 | 2202040 | 569 | MOTOR ASSY.,PF |
| SURECOLOR SC-F10000 | 2170578 | 570 | BOARD ASSY.,ENCODER,PF |
| SURECOLOR SC-F10000 | 2202041 | 571 | FFC,ENCODER,PF |
| SURECOLOR SC-F10000 | 1805068 | 583 | TUBE,INK EJECT,INK |
| SURECOLOR SC-F10000 | 1854204 | 583 | TUBE,INK EJECT,INK |
| SURECOLOR SC-F10000 | 1805067 | 584 | TUBE,INK COLLECT,INK |
| SURECOLOR SC-F10000 | 2133208 | 586 | MICRO DOOR SWITCH,D3DC-3 |
| SURECOLOR SC-F10000 | 2203315 | 587 | HARNESS,COVER,PRINTER,SENSOR,F |
| SURECOLOR SC-F10000 | 2203314 | 590 | HARNESS,COVER,PRINTER,SENSOR,H |
| SURECOLOR SC-F10000 | 2175354 | 591 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203664 | 592 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2203772 | 593 | HARNESS, RELAY, SUB-R 2 |
| SURECOLOR SC-F10000 | 2203813 | 594 | HARNESS, RELAY, SUB-R |
| SURECOLOR SC-F10000 | 2203707 | 595 | HARNESS SET,AC,1 |
| SURECOLOR SC-F10000 | 2203764 | 596 | HARNESS SET,POWER,FULL,1 |
| SURECOLOR SC-F10000 | 2203793 | 597 | HARNESS SET,POWER,FULL,5 |
| SURECOLOR SC-F10000 | 2152327 | 600 | FAN ASSY.,DRYING |
| SURECOLOR SC-F10000 | 2176012 | 601 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-F10000 | 2201628 | 602 | HARNESS,HUMIDITY-SENSOR |
| SURECOLOR SC-F10000 | 1795477 | 608 | COVER,RELEASE,LEVER,PF |
| SURECOLOR SC-F10000 | 2204863 | 609 | INDICATOR LIGHT, ASSY |
| SURECOLOR SC-F10000 | 2203712 | 610 | HARNESS, RELAY, ROLL_ENC |
| SURECOLOR SC-F10000 | 2208316 | 611 | HARNESS, RELAY, ROLL_MOTOR3 |
| SURECOLOR SC-F10000 | 2203713 | 612 | HARNESS, RELAY, REEL_ENC |
| SURECOLOR SC-F10000 | 2208317 | 613 | HARNESS, RELAY, REEL_MOTOR3 |
| SURECOLOR SC-F10000 | 2139052 | 614 | FAN ASSY.,ABSORPTION |
| SURECOLOR SC-F10000 | 2203867 | 616 | FAN,COOLING,06025SS-24Q-AL-DE |
| SURECOLOR SC-F10000 | 2203868 | 617 | FAN,COOLING,08025SS-24Q-AL-D5 |
| SURECOLOR SC-F10000 | 2204154 | 620 | HARNESS,HEAD F4 |
| SURECOLOR SC-F10000 | 2218384 | 620 | HARNESS,HEAD F4 |
| SURECOLOR SC-F10000 | 2204158 | 621 | HARNESS,HEAD S4 |
| SURECOLOR SC-F10000 | 2204155 | 622 | HARNESS,HEAD F5 |
| SURECOLOR SC-F10000 | 2218385 | 622 | HARNESS,HEAD F5 |
| SURECOLOR SC-F10000 | 2204159 | 623 | HARNESS,HEAD S5 |
| SURECOLOR SC-F10000 | 2204156 | 624 | HARNESS,HEAD F6 |
| SURECOLOR SC-F10000 | 2218386 | 624 | HARNESS,HEAD F6 |
| SURECOLOR SC-F10000 | 2204160 | 625 | HARNESS,HEAD S6 |
| SURECOLOR SC-F10000 | 2204157 | 626 | HARNESS,HEAD F7 |
| SURECOLOR SC-F10000 | 2218387 | 626 | HARNESS,HEAD F7 |
| SURECOLOR SC-F10000 | 2204161 | 627 | HARNESS,HEAD S7 |
| SURECOLOR SC-F10000 | 1795777 | 628 | SHAFT ASSY.,DRIVEN,CR |
| SURECOLOR SC-F10000 | 2210109 | 629 | Parts for Electrical Control Unit |
| SURECOLOR SC-F10000 | 2143464 | 630 | PHOTO INTERRUPTER |
| SURECOLOR SC-F10000 | 1796291 | 631 | BELT,CR |
| SURECOLOR SC-F10000 | 1796270 | 632 | SCALE,CR |
| SURECOLOR SC-F10000 | 1804354 | 633 | TIMING BELT,HTBN500S2M-100 |
| SURECOLOR SC-F10000 | 1836966 | 634 | SCALE,PF,ASSY,ASP |
| SURECOLOR SC-F10000 | FA49012 | 635 | PRINT HEAD,VAR ASP STANDARD |
| SURECOLOR SC-F10000 | FA49010 | 635 | PRINT HEAD,VAR |
| SURECOLOR SC-F10000 | 2200757 | 636 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 2206671 | 637 | BOARD ASSY.,SUB |
| SURECOLOR SC-F10000 | 1836967 | 638 | GAS SPRING,ASSY,ASP |
| SURECOLOR SC-F10000 | 1803616 | 640 | CASTER,HG-65GNB |
| SURECOLOR SC-F10000 | 2203796 | 641 | HARNESS SET,POWER,FULL,6 |
| SURECOLOR SC-F10000 | 2203752 | 642 | HARNESS SET,POWER,HOME,7 |
| SURECOLOR SC-F10000 | 2203788 | 643 | HARNESS SET,SIGNAL,FULL,10 |
| SURECOLOR SC-F10000 | 2203767 | 644 | HARNESS SET,SIGNAL,FULL,4 |
| SURECOLOR SC-F10000 | 2203776 | 645 | HARNESS SET,SIGNAL,FULL,8 |
| SURECOLOR SC-F10000 | 2203781 | 646 | HARNESS SET,SIGNAL,FULL,9 |
| SURECOLOR SC-F10000 | 2203758 | 647 | HARNESS SET,SIGNAL,HOME,10 |
| SURECOLOR SC-F10000 | 2203719 | 648 | HARNESS SET,SIGNAL,HOME,3 |
| SURECOLOR SC-F10000 | 2203723 | 649 | HARNESS SET,SIGNAL,HOME,4 |
| SURECOLOR SC-F10000 | 2203733 | 650 | HARNESS SET,SIGNAL,HOME,5 |
| SURECOLOR SC-F10000 | 2203740 | 651 | HARNESS SET,SIGNAL,HOME,7 |
| SURECOLOR SC-F10000 | 2203744 | 652 | HARNESS SET,SIGNAL,HOME,8 |
| SURECOLOR SC-F10000 | 2203791 | 653 | HARNESS, FULL, DRYFAN |
| SURECOLOR SC-F10000 | 2203792 | 654 | HARNESS, FULL, STIFFEN FAN |
| SURECOLOR SC-F10000 | 2203757 | 655 | HARNESS, HOME, CR COOLINGFAN |
| SURECOLOR SC-F10000 | 2203762 | 656 | HARNESS, HOME, PCB COOLINGFAN |
| SURECOLOR SC-F10000 | 2203738 | 657 | HARNESS, I/S FRONT HOME, ENCODER |
| SURECOLOR SC-F10000 | 2203750 | 658 | HARNESS, I/S FRONT HOME, MOTOR |
| SURECOLOR SC-F10000 | 2203763 | 659 | HARNESS, MCU, ADSORPTION FAN1 |
| SURECOLOR SC-F10000 | 2203711 | 660 | HARNESS, P/S, SUB-AC |
| SURECOLOR SC-F10000 | 2203774 | 661 | HARNESS, POWER CNT, MCU |
| SURECOLOR SC-F10000 | 2203775 | 662 | HARNESS, POWER, MCU |
| SURECOLOR SC-F10000 | 2203803 | 663 | HARNESS, RELAY ,SUB-X3 |
| SURECOLOR SC-F10000 | 2203804 | 664 | HARNESS, RELAY, PCB COOL |
| SURECOLOR SC-F10000 | 2203805 | 665 | HARNESS, RELAY, PCB COOL2 |
| SURECOLOR SC-F10000 | 2203773 | 666 | HARNESS, RELAY, SUB-X1 |
| SURECOLOR SC-F10000 | 2203802 | 667 | HARNESS, RELAY, SUB-X2 |
| SURECOLOR SC-F10000 | 2203715 | 668 | HARNESS, RELAY4, FULL FFC |
| SURECOLOR SC-F10000 | 2203714 | 669 | HARNESS, RELAY4, HOME FFC |
| SURECOLOR SC-F10000 | 2203722 | 670 | HARNESS, RELEY, CRMOTOR |
| SURECOLOR SC-F10000 | 2203819 | 671 | HARNESS, RGB, POWER |
| SURECOLOR SC-F10000 | 2203818 | 672 | HARNESS, RGB, USB |
| SURECOLOR SC-F10000 | 2201991 | 673 | HARNESS,DETECTOR,CR,L |
| SURECOLOR SC-F10000 | 2201992 | 674 | HARNESS,DETECTOR,CR,R |
| SURECOLOR SC-F10000 | 2201994 | 675 | HARNESS,ENCORDER,MOTOR,CR |
| SURECOLOR SC-F10000 | 2201639 | 676 | HARNESS,KOH,AFTER HEATER |
| SURECOLOR SC-F10000 | 2213990 | 676 | HARNESS,KOH,AFTER HEATER |
| SURECOLOR SC-F10000 | 2201632 | 677 | HARNESS,KOH,DOWNER |
| SURECOLOR SC-F10000 | 2213989 | 677 | HARNESS,KOH,DOWNER |
| SURECOLOR SC-F10000 | 2201631 | 678 | HARNESS,KOH,UPPER |
| SURECOLOR SC-F10000 | 2213988 | 678 | HARNESS,KOH,UPPER |
| SURECOLOR SC-F10000 | 2202043 | 679 | HARNESS,NIP,GENTEN SENSOR |
| SURECOLOR SC-F10000 | 2203821 | 680 | HARNESS, PUMP SELECTER, RELAY |
| SURECOLOR SC-F10000 | 2203822 | 681 | HARNESS, TEMP |
| SURECOLOR SC-F10000 | 2203823 | 682 | HARNESS, LEAK, SENS |
| SURECOLOR SC-F10000 | 2203824 | 683 | HARNESS, LEAK, SENS2 |
| SURECOLOR SC-F10000 | 2203825 | 684 | HARNESS, RELAY., OPEN VALVE |
| SURECOLOR SC-F10000 | 2207133 | 686 | HARNESS,RELAY, SUB- FL-X3 |
| SURECOLOR SC-F10000 | 2202044 | 687 | HARNESS,RLS,SENSOR |
| SURECOLOR SC-F10000 | 2201964 | 693 | HARNESS,LEAK SENSOR,CR |
| SURECOLOR SC-F10000 | 2202487 | 694 | HARNESS,OPEN,ONCR |
| SURECOLOR SC-F10000 | 1796533 | 695 | LEVER,LOCK |
| SURECOLOR SC-F10000 | 1831700 | 696 | KNOB ASSY.,LOCK |
| SURECOLOR SC-F10000 | 2203317 | 698 | HARNESS,COVER,MAINTENANCE,SENSOR,F |
| SURECOLOR SC-F10000 | 2203321 | 700 | HARNESS,COVER,MAINTENANCE,LOCK,SENSOR,F |
| SURECOLOR SC-F10000 | 2203316 | 701 | HARNESS,COVER,MAINTENANCE,SENSOR,H |
| SURECOLOR SC-F10000 | 2203320 | 702 | HARNESS,COVER,MAINTENANCE,LOCK,SENSOR,H |
| SURECOLOR SC-F10000 | 2203319 | 703 | HARNESS,COVER,PRINTER,LOCK,SENSOR,F |
| SURECOLOR SC-F10000 | 2203318 | 704 | HARNESS,COVER,PRINTER,LOCK,SENSOR,H |
| SURECOLOR SC-F10000 | 2150441 | 707 | MOTOR ASSY.,WIPER |
| SURECOLOR SC-F10000 | 2202042 | 708 | HARNESS,NIP,MOTOR,ENCODER |
| SURECOLOR SC-F10000 | 1836959 | 710 | FFC,CPAD,SENSOR ASSY,ASP |
| SURECOLOR SC-F10000 | 1836970 | 715 | PLATE ASSY.,COVER,CR,HOME,ASSY,ASP |
| SURECOLOR SC-F10000 | 1836971 | 716 | PLATE ASSY,COVER,CR,FULL,ASSY,ASP |
| SURECOLOR SC-F10000 | 2201990 | 717 | HARNESS,DETECT,APG |
Related Products
Check items to add to the cart or
Validate your login
