EPSON SureColor F1000 F1030 F1050 F1060 F1070 Parts Manual
In stock
SKU
EP-F1000-PM
$1.10
- Email with download link immediately
- Files without viruses
- HTML format service manual
- Allow high-definition printing
| Manual Name | EPSON SureColor F1000 F1030 F1050 F1060 F1070 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.79M |
| Pages | 8 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON SureColor F1000 F1050 F1070 |

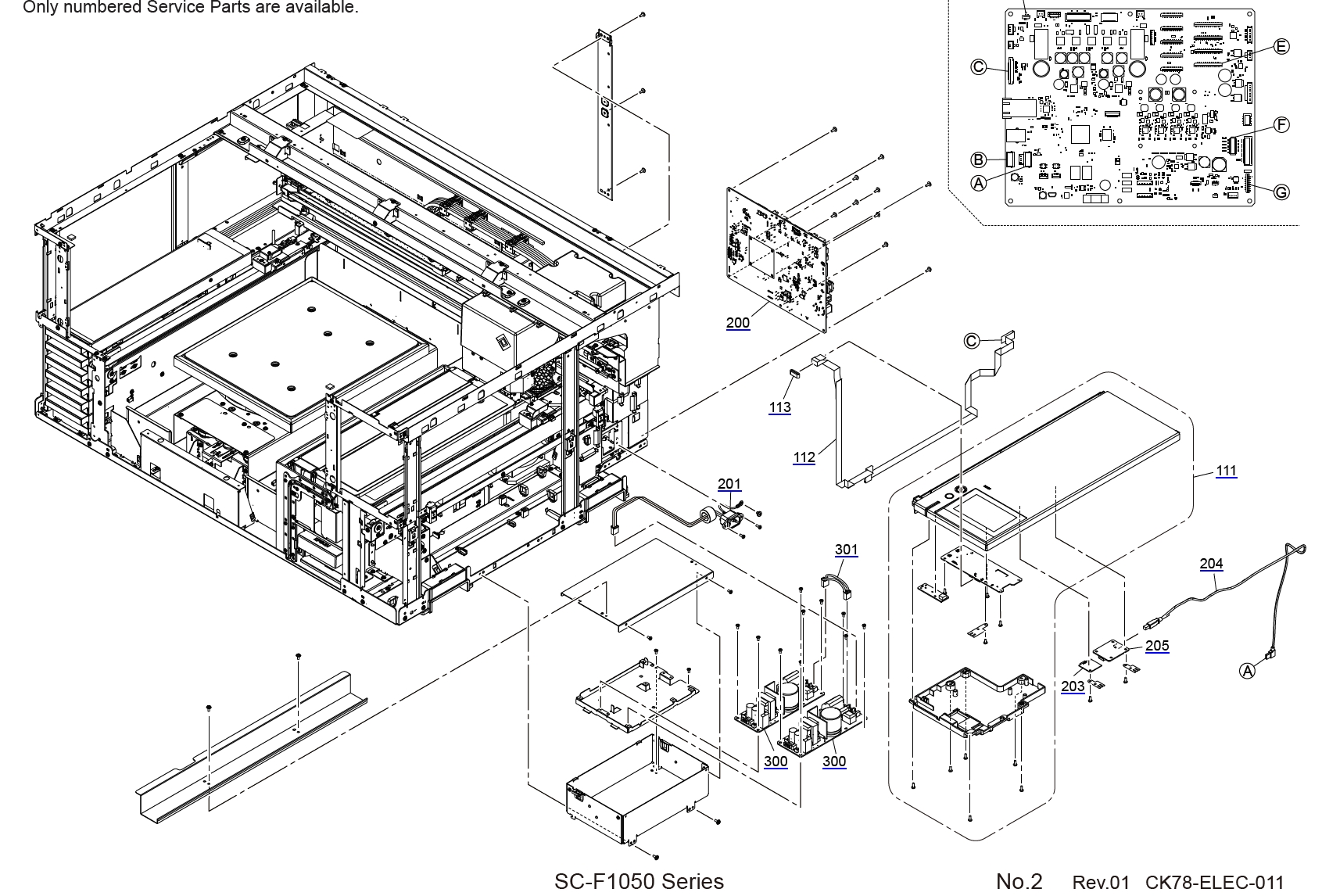

EPSON SureColor F1000 F1030 F1050 F1060 F1070
Parts Manual
| SURECOLOR SC-F1000 | 1930350 | 100 | COVER UPPER ASSY,CK78,ASP |
| SURECOLOR SC-F1000 | 1920195 | 101 | STAINLESS STEEL FLAT HINGE,LSB-65-S |
| SURECOLOR SC-F1000 | 1930353 | 102 | HOUSING RIGHT UPPER ASSY.,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 1930354 | 103 | HOUSING LEFT UPPER ASSY.,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 1930355 | 104 | HOUSING FRONT LOWER ASSY.,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 2150699 | 105 | LEAF SENSOR,P599 |
| SURECOLOR SC-F1000 | 2225547 | 106 | HARNESS,MAIN,USB |
| SURECOLOR SC-F1000 | 1921106 | 107 | HOUSING TOP FRONT LEFT ASSY.,CK78,EPPI |
| SURECOLOR SC-F1000 | 1921105 | 108 | HOUSING FRONT LEFT UPPER ASSY.,CK78,EPPI |
| SURECOLOR SC-F1000 | 1901867 | 109 | HOLDER,D3DC-3 |
| SURECOLOR SC-F1000 | 2221373 | 110 | MICRO DOOR SWITCH,D3DC-3N |
| SURECOLOR SC-F1000 | 1930356 | 111 | PANEL ASSY,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 2225689 | 112 | HARNESS,MAIN,PNL,FFC |
| SURECOLOR SC-F1000 | 2124870 | 113 | FERRITE CORE |
| SURECOLOR SC-F1000 | 1921107 | 114 | HOUSING FRONT RIGHT UPPER ASSY,CK78,EPPI |
| SURECOLOR SC-F1000 | 1901799 | 115 | HOUSING,TOP,REAR |
| SURECOLOR SC-F1000 | 1914205 | 116 | HOUSING,TOP,REAR,LEFT |
| SURECOLOR SC-F1000 | 1907776 | 117 | LABEL,MODEL NAME,F1000 |
| SURECOLOR SC-F1000 | 1901806 | 118 | HOUSING,RIGHT,LOWER |
| SURECOLOR SC-F1000 | 1930351 | 119 | GAS SPRING RIGHT ASSY,CK78,ASP |
| SURECOLOR SC-F1000 | 1930352 | 120 | GAS SPRING LEFT ASSY,CK78,ASP |
| SURECOLOR SC-F1000 | 2224550 | 200 | BOARD ASSY.,MAIN |
| SURECOLOR SC-F1000 | 2225541 | 201 | HARNESS,PSH1,AC INLET |
| SURECOLOR SC-F1000 | 2226044 | 203 | WIRELESS LAN USB MODULE |
| SURECOLOR SC-F1000 | 2225694 | 204 | HARNESS,MAIN,IF,USB |
| SURECOLOR SC-F1000 | 2206079 | 205 | BOARD ASSY.,INTERFACE |
| SURECOLOR SC-F1000 | 2210803 | 300 | BOARD ASSY.,POWER SUPPLY |
| SURECOLOR SC-F1000 | 2225542 | 301 | HARNESS,PSH1,PSH2 |
| SURECOLOR SC-F1000 | 2143464 | 500 | PHOTO INTERRUPTER |
| SURECOLOR SC-F1000 | 1901762 | 501 | COVER,CARRIAGE,MAIN,FRONT |
| SURECOLOR SC-F1000 | 1929984 | 502 | ONCR ASSY.,CK78,ESL,ASP |
| SURECOLOR SC-F1000 | FB08001 | 503 | PRINT HEAD,OKI,ASP |
| SURECOLOR SC-F1000 | 1930357 | 504 | CABLE HEAD ASSY,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 1920270 | 505 | CARRIAGE ASSY,CK78,EPPI |
| SURECOLOR SC-F1000 | 1930358 | 506 | CABLE,HEAD,INTERMEDIATE P.C.B, CK78 ASP |
| SURECOLOR SC-F1000 | 2225693 | 507 | HARNESS,IF-H,CR ENC,FFC |
| SURECOLOR SC-F1000 | 2177061 | 508 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F1000 | 1923149 | 509 | MOTOR ASSY.,CR |
| SURECOLOR SC-F1000 | 1901725 | 510 | SCALE,CR |
| SURECOLOR SC-F1000 | 1730847 | 511 | CR PULLEY,IEI,,ASSY |
| SURECOLOR SC-F1000 | 1907631 | 512 | TIMING BELT,CR |
| SURECOLOR SC-F1000 | 1930359 | 513 | SHUTTER ASSY,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 1933359 | 514 | CLOTH WIPER,CARRIAGE ASSY.,CK78,IEI,ASP |
| SURECOLOR SC-F1000 | 1919130 | 515 | PUMP CAP ASSY.,CK78, IEI, ASP |
| SURECOLOR SC-F1000 | 2197925 | 517 | CONECTOR,CSIC |
| SURECOLOR SC-F1000 | 1919131 | 518 | KEEP CAP ASSY.,CK78, IEI, ASP |
| SURECOLOR SC-F1000 | 2225877 | 519 | HARNESS ASSY.,INK DETECT,IH |
| SURECOLOR SC-F1000 | 1904826 | 520 | SPACER,IS,MAIN |
| SURECOLOR SC-F1000 | 1904827 | 521 | SPACER,IS,MAIN,KEEP |
| SURECOLOR SC-F1000 | 1904839 | 522 | CASE,INK,DETECTION |
| SURECOLOR SC-F1000 | 1908537 | 523 | POROUS PAD,CASE,INK,BASE |
| SURECOLOR SC-F1000 | 1908538 | 524 | POROUS PAD,CASE,INK,PUMP |
| SURECOLOR SC-F1000 | 1929985 | 525 | DECOMPRESSION PUMP ASSY.,CK78,ESL,ASP |
| SURECOLOR SC-F1000 | 1929986 | 526 | SUPPLY TUBE ASSY.,CK78,ESL,ASP |
| SURECOLOR SC-F1000 | 1909427 | 527 | TRAY,INK PACK |
| SURECOLOR SC-F1000 | 1929987 | 528 | CIRCULATION PUMP ASSY.,CK78,ESL,ASP |
| SURECOLOR SC-F1000 | 1770593 | 529 | GOA CARTRIDGE ASSY.,B,CF82 ESL,ASP |
| SURECOLOR SC-F1000 | 1930361 | 530 | SLOT ASSY., CK78,WW ASP |
| SURECOLOR SC-F1000 | 2227886 | 531 | HARNESS,RELAY,IES |
| SURECOLOR SC-F1000 | 1920269 | 532 | ADJUST TRAY ASSY,CK78,EPPI |
| SURECOLOR SC-F1000 | 1936350 | 535 | COVER APG UNIT ASSY,CK78,EPPI ASP |
| SURECOLOR SC-F1000 | 1915417 | 536 | COVER,TRAY,RIGHT |
| SURECOLOR SC-F1000 | 1907636 | 539 | TIMING BELT,APG |
| SURECOLOR SC-F1000 | 2226474 | 540 | MOTOR,ASSY,APG |
| SURECOLOR SC-F1000 | 2226476 | 542 | DETECTOR ASSY,MEDIA |
| SURECOLOR SC-F1000 | 2176027 | 543 | DETECTOR,PIE310,FR |
| SURECOLOR SC-F1000 | 2176028 | 544 | DETECTOR,PID310D,EJ |
| SURECOLOR SC-F1000 | 2176012 | 545 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| SURECOLOR SC-F1000 | 1907662 | 546 | TIMING BELT,GA |
| SURECOLOR SC-F1000 | 2226480 | 547 | MOTOR ASSY,GA |
| SURECOLOR SC-F1000 | 2210270 | 548 | BOARD ASSY.,ENCODER |
| SURECOLOR SC-F1000 | 1913669 | 549 | SCALE,GA sdott-parts.com |
| SURECOLOR SC-F1000 | 1657495 | 551 | TIMING BELT,PF |
| SURECOLOR SC-F1000 | 2224822 | 552 | CABLE,RELAY,GA |
| SURECOLOR SC-F1000 | 1908544 | 553 | MOUNTING PLATE,HOLDER,FLUSHING BOX |
| SURECOLOR SC-F1000 | 1904828 | 554 | HOLDER,FLUSHING BOX |
| SURECOLOR SC-F1000 | 1908534 | 555 | POROUS PAD,FLUSHING BOX |
| SURECOLOR SC-F1000 | 1908643 | 556 | TUBE,INK EJECT,B |
| SURECOLOR SC-F1000 | 1609966 | 557 | H.S.C.BOLT.(S-P1)SCREW,3X6,F/ZN-3C |
