EPSON Stylus Pro 7890 7908 Parts Manual
In stock
SKU
EP-7890-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON Stylus Pro 7890 7908 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 5.93M |
| Pages | 9 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson Stylus Pro 7890 7908 Series EPSON Stylus Pro 7890 7908 Parts Manual |
****** The following content is not included in the PDF manual, please use it online ******

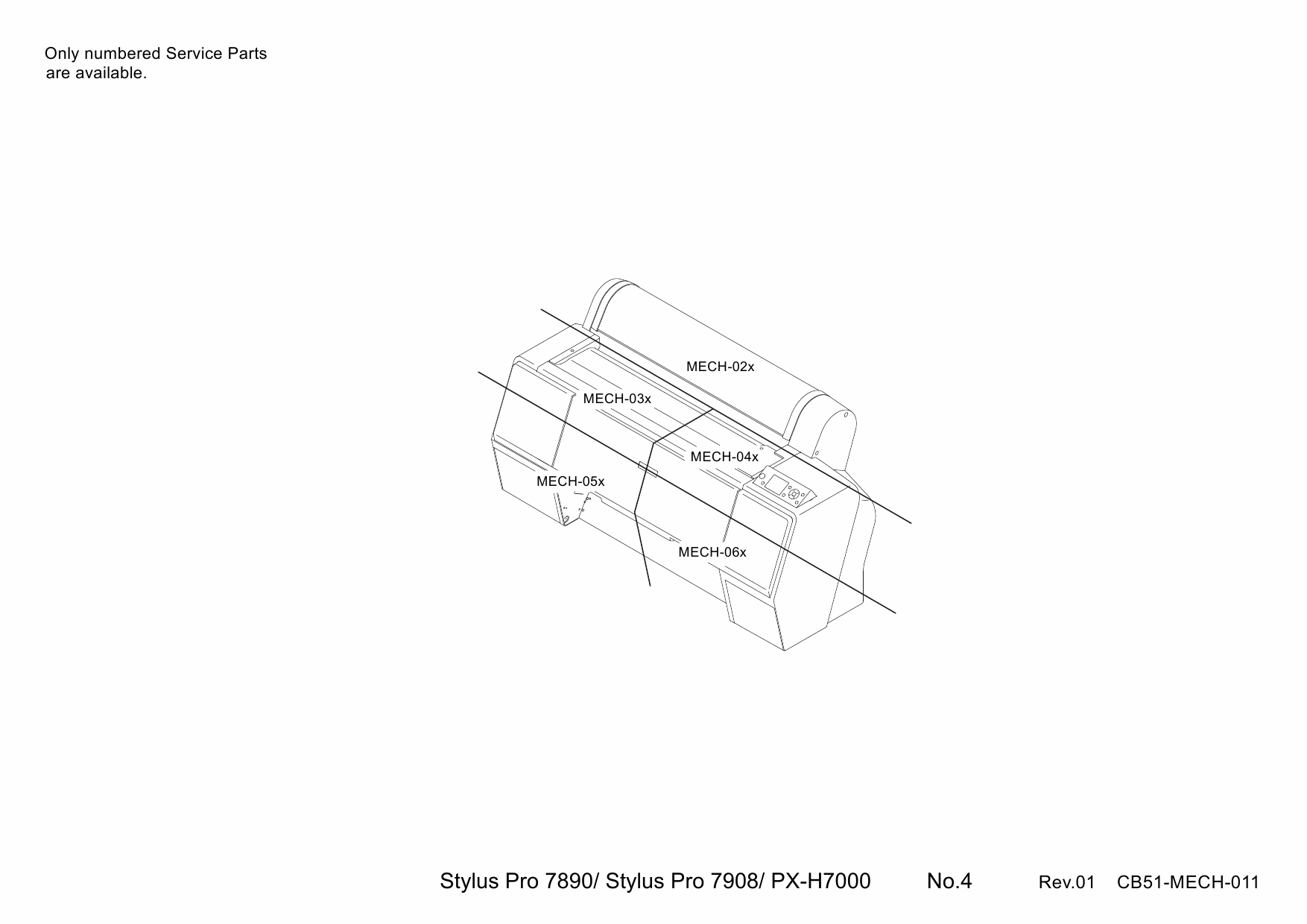

| STYLUS PRO 7890 | 1507323 | 1 | PIPE,BASKET,CENTER,24,ASP | ||||
| STYLUS PRO 7890 | 1507324 | 2 | ARM,BASKET,24,ASP | ||||
| STYLUS PRO 7890 | 1507321 | 3 | BASKET ASSY.,24,ASP | ||||
| STYLUS PRO 7890 | 1507815 | 5 | PAPER GUIDE BOTTOM,ASP | ||||
| STYLUS PRO 7890 | 1507307 | 6 | BOX,MANUAL,ASP | ||||
| STYLUS PRO 7890 | 1520204 | 7 | STAND RIGHT UNIT,B,ASP | ||||
| STYLUS PRO 7890 | 1520205 | 8 | STAND LEFT UNIT,B,ASP | ||||
| STYLUS PRO 7890 | 1520220 | 9 | STAY STAND ASSY.,B,24,ASP | ||||
| STYLUS PRO 7890 | 1504195 | 10 | SHAFT,BASKET,ASSY,ASP | ||||
| STYLUS PRO 7890 | 1504176 | 100 | SHAFT,COVER,IC,LEFT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504177 | 101 | SHAFT,COVER,IC,RIGHT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1479991 | 102 | STOPPER,COVER,FRONT | ||||
| STYLUS PRO 7890 | 1479983 | 103 | GROUNDING PLATE,ROLL | ||||
| STYLUS PRO 7890 | 1504186 | 104 | COVER,FRONT,RIGHT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504187 | 105 | COVER,FRONT,LEFT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504256 | 107 | COVER ROLL ASSY.,24,ASP | ||||
| STYLUS PRO 7890 | 1554917 | 107 | COVER ROLL ASSY.,24,ASP | ||||
| STYLUS PRO 7890 | 1541857 | 108 | COVER,IC,RIGHT,UNIT,8C,ESL,ASP | ||||
| STYLUS PRO 7890 | 1541858 | 109 | COVER,IC,LEFT,UNIT,8C,ESL,ASP | ||||
| STYLUS PRO 7890 | 1499705 | 11 | CASTER,P-60-HT | ||||
| STYLUS PRO 7890 | 1496118 | 110 | LABEL,ROLL PAPER SET,PAPER GUIDE LOWER | ||||
| STYLUS PRO 7890 | 1507319 | 111 | COVER,FRONT,24,ASP | ||||
| STYLUS PRO 7890 | 1476652 | 112 | LOGO PLATE,86.5X21.6 | ||||
| STYLUS PRO 7890 | 1480012 | 113 | CATCH,STRIKER | ||||
| STYLUS PRO 7890 | 1480009 | 114 | STRIKER,SENSOR | ||||
| STYLUS PRO 7890 | 1507312 | 115 | COVER,FRONT,RIGHT,ASP | ||||
| STYLUS PRO 7890 | 1507313 | 116 | COVER,FRONT,LEFT,ASP | ||||
| STYLUS PRO 7890 | 1507311 | 117 | COVER,REAR,LEFT,ASP | ||||
| STYLUS PRO 7890 | 1479986 | 118 | COVER,SIDE,ROLL,LEFT | ||||
| STYLUS PRO 7890 | 1479985 | 119 | COVER,SIDE,ROLL,RIGHT | ||||
| STYLUS PRO 7890 | 1499706 | 12 | CASTER,P-60-HTS | ||||
| STYLUS PRO 7890 | 1479988 | 120 | COVER,TOP,BASE,SUPPORT,RIGHT | ||||
| STYLUS PRO 7890 | 1507305 | 121 | COVER,ROLL,SUPPORT,RIGHT,ASP | ||||
| STYLUS PRO 7890 | 1507304 | 122 | COVER,ROLL,SUPPORT,LEFT.,ASP | ||||
| STYLUS PRO 7890 | 1479982 | 122 | COVER,ROLL,SUPPORT,LEFT.,ASP | ||||
| STYLUS PRO 7890 | 1535261 | 125 | LABEL,MODEL NAME,V | ||||
| STYLUS PRO 7890 | 1507308 | 13 | JOINT,PIPE,BASKET,FRONT,ASP | ||||
| STYLUS PRO 7890 | 1480035 | 135 | COVER,MAINTENANCE,BOX | ||||
| STYLUS PRO 7890 | 1475434 | 137 | LABEL,ULTRA CHROME INK,K3VM,B | ||||
| STYLUS PRO 7890 | 1480107 | 139 | HANDLE | ||||
| STYLUS PRO 7890 | 1507309 | 14 | PIPE,BASKET,FRONT,SIDE,ASP | ||||
| STYLUS PRO 7890 | 1516909 | 140 | COVER,TOP,BASE,24,ASP | ||||
| STYLUS PRO 7890 | 1507322 | 15 | PIPE,BASKET,UPPER,24,ASP | ||||
| STYLUS PRO 7890 | 1481598 | 18 | HOLDER,PIPE,BASKET,FRONT | ||||
| STYLUS PRO 7890 | 1481599 | 19 | HOLDER,PIPE,BASKET,REAR | ||||
| STYLUS PRO 7890 | 5120516 | 20 | PAD,CR,B | ||||

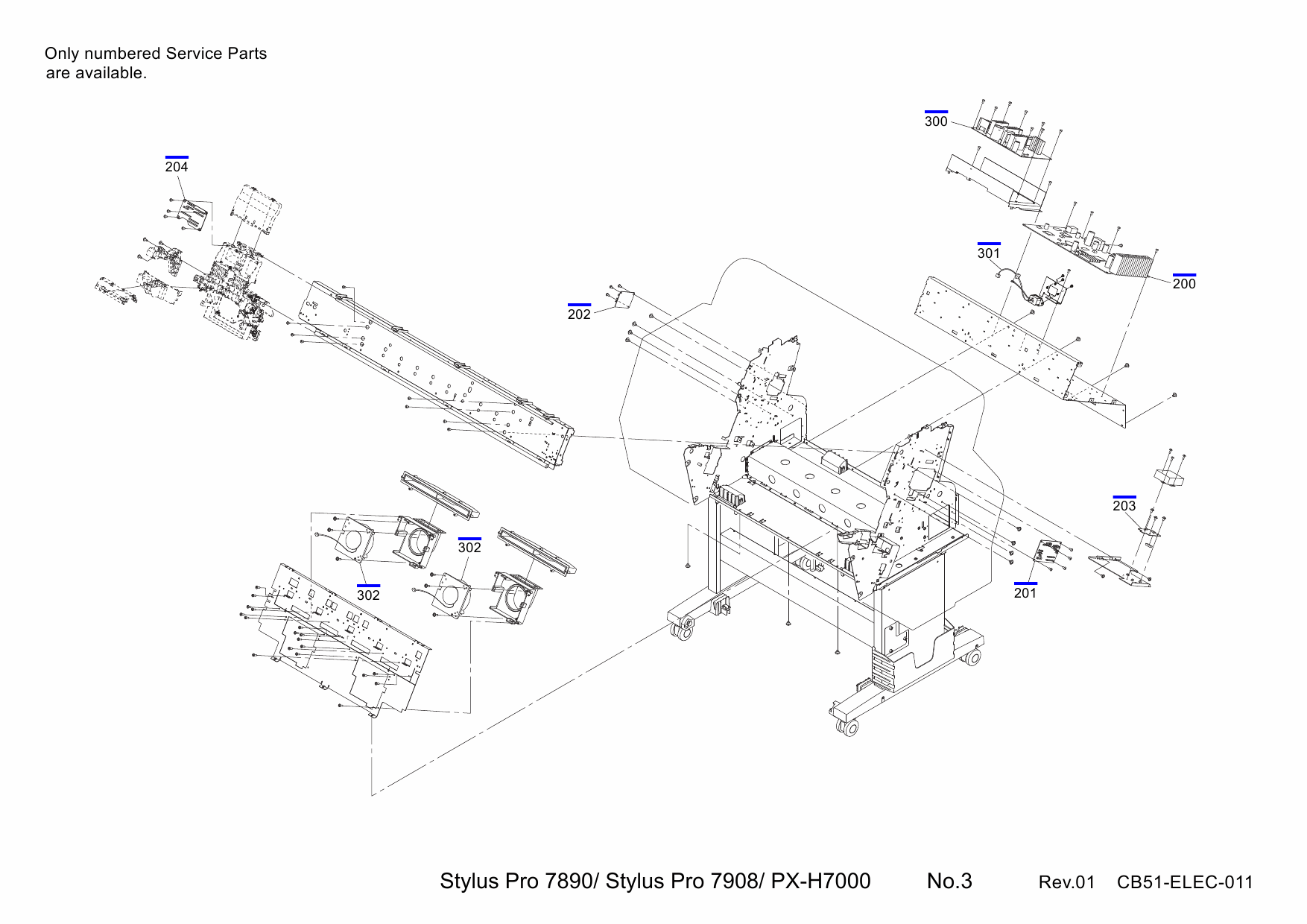

| STYLUS PRO 7890 | 2144297 | 200 | BOARD ASSY.,MAIN | ||||
| STYLUS PRO 7890 | 2135432 | 200 | Replace: 2144297 | ||||
| STYLUS PRO 7890 | 2124763 | 201 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 7890 | 2124764 | 202 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 7890 | 2145686 | 203 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 7890 | 2135467 | 203 | Replace: 2145686 | ||||
| STYLUS PRO 7890 | 2126128 | 204 | BOARD ASSY.,SUB | ||||
| STYLUS PRO 7890 | 1480306 | 21 | MOUNTING PLATE,PAPER GUIDE,BOTTOM | ||||
| STYLUS PRO 7890 | 1514763 | 22 | SCREW ASSY.,ASP | ||||
| STYLUS PRO 7890 | 1522855 | 24 | STAND,UNIT,24,K,ESL,ASP | ||||
| STYLUS PRO 7890 | 1539605 | 300 | POWER SUPPLY UNIT,C,ASP | ||||
| STYLUS PRO 7890 | 1546291 | 301 | HARNESS,S.ASP | ||||
| STYLUS PRO 7890 | 1507303 | 302 | Replace: 2120026 | ||||
| STYLUS PRO 7890 | 2120026 | 302 | FAN ASSY.,ASP | ||||

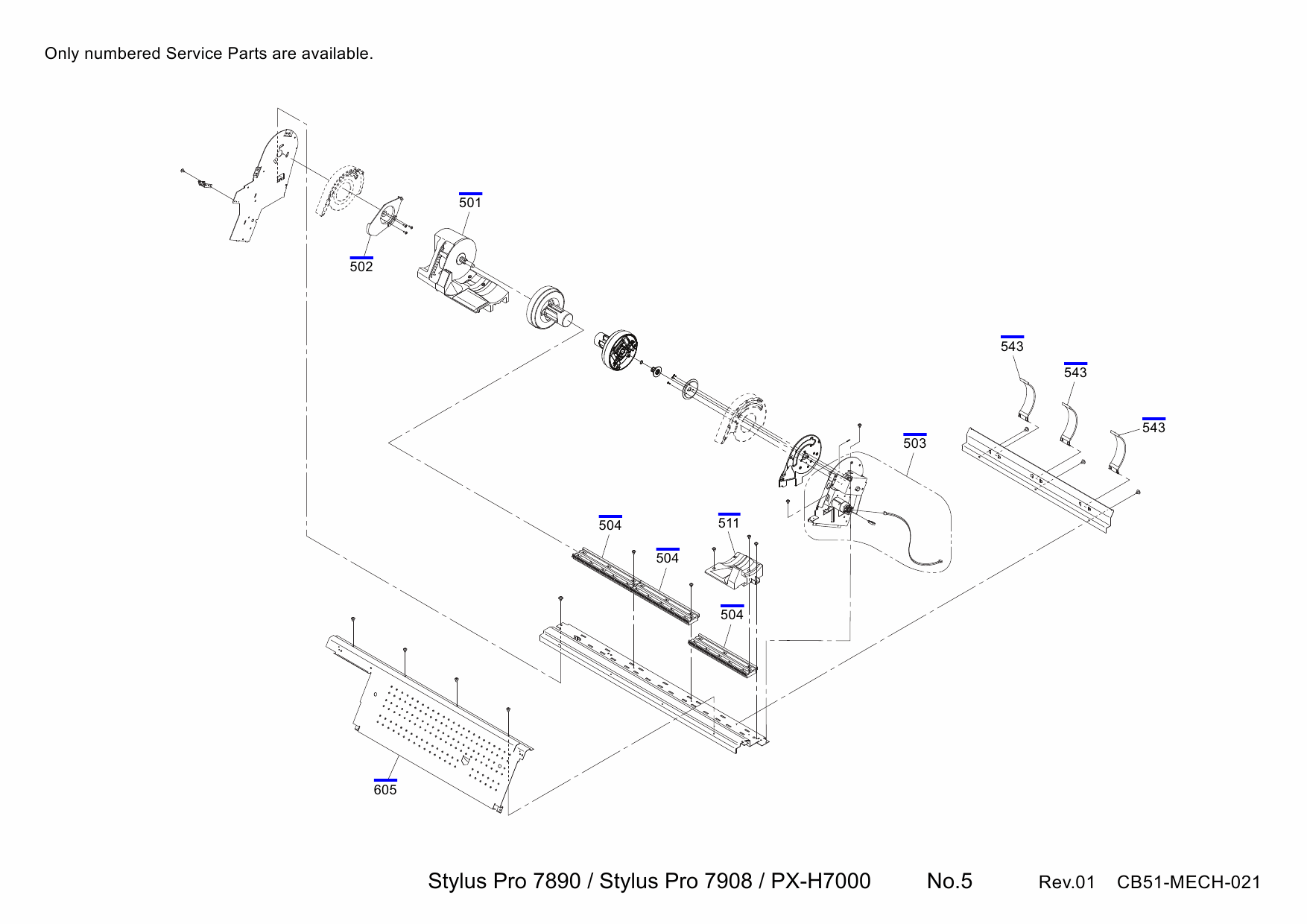

| STYLUS PRO 7890 | 1513123 | 501 | GUIDE ROLL PAPER,L,UNIT,B,ESL,ASP | ||||
| STYLUS PRO 7890 | 1507818 | 502 | MOUNTING PLATE COVER ROLL PAPER LEFT,ASP | ||||
| STYLUS PRO 7890 | 1504202 | 503 | REWIND,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1507816 | 504 | Replace: 1480327 | ||||
| STYLUS PRO 7890 | 1480327 | 504 | RAIL GUIDE ROLL PAPER,ASP | ||||
| STYLUS PRO 7890 | 1504214 | 505 | SENSOR,PE.,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 2090532 | 506 | PHOTO INTERUPTER,TLP1243(C8) | ||||
| STYLUS PRO 7890 | 1541863 | 507 | CABLE,DETECTOR,HP,CR,ASP | ||||
| STYLUS PRO 7890 | 1504175 | 508 | DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504178 | 509 | PANEL,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1521058 | 510 | Replace: 2142271 | ||||
| STYLUS PRO 7890 | 2142271 | 510 | HARNESS,PANEL,C.,ASP | ||||
| STYLUS PRO 7890 | 1504198 | 511 | GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504255 | 512 | Replace: 1587842 | ||||
| STYLUS PRO 7890 | 1587842 | 512 | PULLEY,DRIVEN,UNIT,24,ESL,ASP | ||||
| STYLUS PRO 7890 | 1550669 | 513 | SCALE,CR,24,C,ASP | ||||
| STYLUS PRO 7890 | 1518708 | 514 | MOTOR ASSY.,CR.,ASP | ||||
| STYLUS PRO 7890 | 1550864 | 515 | HOLDER,ASSY.,IC,RIGHT,B,8C,ESL ASP | ||||
| STYLUS PRO 7890 | 1550865 | 516 | HOLDER,ASSY.,IC,LEFT,B,8C,ESL ASP | ||||
| STYLUS PRO 7890 | 1504180 | 517 | PLUNGER,ASSY,ASP | ||||
| STYLUS PRO 7890 | 1521059 | 518 | Replace: 2142270 | ||||
| STYLUS PRO 7890 | 1508466 | 519 | HARNESS,RELAY,HEAD,LEFT,24,ASP | ||||
| STYLUS PRO 7890 | 2142266 | 519 | HARNESS,RELAY,HEAD,LEFT,24,ASP | ||||
| STYLUS PRO 7890 | 1552319 | 520 | CR,UNIT,B,ASP | ||||
| STYLUS PRO 7890 | 2084550 | 521 | BOARD ASSY.,INK MARK | ||||
| STYLUS PRO 7890 | 1480170 | 522 | COVER,CR,MAIN | ||||
| STYLUS PRO 7890 | F191010 | 523 | PRINT HEAD | ||||
| STYLUS PRO 7890 | 1541866 | 524 | Replace: 2142248 | ||||
| STYLUS PRO 7890 | 1521061 | 525 | HARNESS,HEAD,B,B,ASSY.,ASP | ||||
| STYLUS PRO 7890 | 1543056 | 526 | SELECTOR,UNIT,D,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504184 | 528 | SENSOR,COVER,FRONT,RIGHT,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504251 | 529 | SENSOR,COVER,FRONT,LEFT,UNIT,24,ESL,ASP | ||||
| STYLUS PRO 7890 | 1531123 | 530 | CLAMP,TUBE | ||||
| STYLUS PRO 7890 | 1507820 | 531 | HOLDER TUBE,ASP | ||||
| STYLUS PRO 7890 | 1521062 | 532 | Replace: 2142267 | ||||
| STYLUS PRO 7890 | 1521063 | 533 | Replace: 2142275 | ||||
| STYLUS PRO 7890 | 2142275 | 533 | HARNESS,CR,B.,ASP | ||||
| STYLUS PRO 7890 | 1521064 | 534 | Replace: 2142269 | ||||
| STYLUS PRO 7890 | 1504182 | 535 | TUBE ASSY.,SUPPLY,INK,B,ASP | ||||
| STYLUS PRO 7890 | 1504250 | 536 | TUBE ASSY.,SPPLY,INK,A,24,ASP | ||||
| STYLUS PRO 7890 | 1504191 | 537 | HOLDER,WHEEL,EJ,LOWER,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504192 | 538 | COVER,CUTTER,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1520272 | 539 | CATCH,B | ||||
| STYLUS PRO 7890 | 1504188 | 540 | PAPER,EJECTION,ROLLER,PE,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1546627 | 541 | FRAME,RAIL,CUTTER,UNIT,B,24,ESL,ASP | ||||
| STYLUS PRO 7890 | 1556260 | 542 | WIRING SADDLE | ||||
| STYLUS PRO 7890 | 1498876 | 543 | GUIDE,COVER,ROLL PAPER,SUPPORT | ||||
| STYLUS PRO 7890 | 1485681 | 544 | CLUMP,TUBE,DUCT | ||||
| STYLUS PRO 7890 | 1480298 | 545 | CLIP,DUCT,INK EJECT,LARGE | ||||
| STYLUS PRO 7890 | 1480299 | 546 | CLIP,DUCT,INK EJECT,SMALL | ||||
| STYLUS PRO 7890 | 1467289 | 547 | POROUS PAD,PLATEN | ||||
| STYLUS PRO 7890 | 1546294 | 548 | CABLE,FAN,RIGHT.S,ASP | ||||
| STYLUS PRO 7890 | 1546296 | 549 | CABLE,FAN,MIDDLE.S,ASP | ||||
| STYLUS PRO 7890 | 1541864 | 550 | HARNESS,MAINTENCANCE TANK,RIGHT,ASP | ||||
| STYLUS PRO 7890 | 1504215 | 551 | PUMP ASSY.,PRESSURIZING,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1507310 | 552 | TUBE,PRESSURIZING,RIGHT,ASP | ||||
| STYLUS PRO 7890 | 1507519 | 553 | TUBE,PRESSURIZING,LEFT,24,ASP | ||||
| STYLUS PRO 7890 | 1220013 | 554 | LEAF SPRING,LOCK | ||||
| STYLUS PRO 7890 | 1504201 | 555 | EJECT,GUIDE,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1554898 | 556 | POROUS PAD ASSY.,INK EJECT,PXMT2,B,ASP | ||||
| STYLUS PRO 7890 | 1505036 | 557 | MOTOR ASSY., RELEASE, ASP | ||||
| STYLUS PRO 7890 | 1546299 | 558 | CABLE,MOTOR,RELEASE,24.S,ASP | ||||
| STYLUS PRO 7890 | 1546297 | 559 | HARNESS.S,ASP | ||||
| STYLUS PRO 7890 | 1504210 | 560 | APG,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1541862 | 561 | CABLE,MOTOR,APG,ASP | ||||
| STYLUS PRO 7890 | 1521066 | 562 | HARNESS,RELAY,SUB,B,UPPER,C.,ASP | ||||
| STYLUS PRO 7890 | 1521067 | 563 | HARNESS,RELAY,SUB,B,LOWER,C.,ASP | ||||
| STYLUS PRO 7890 | 1546300 | 564 | HARNESS.S,ASP | ||||
| STYLUS PRO 7890 | 1521670 | 565 | HARNESS,RELAY,SUB,C,24,C.,ASP | ||||
| STYLUS PRO 7890 | 1541865 | 566 | HARNESS,RELAY,AID,ASP | ||||
| STYLUS PRO 7890 | 2142249 | 566 | HARNESS,RELAY,AID,ASP | ||||
| STYLUS PRO 7890 | 1569556 | 567 | Replace: 1616686 | ||||
| STYLUS PRO 7890 | 1546054 | 567 | PUMP,CAP,ASSY.A,B,ESL,ASP | ||||
| STYLUS PRO 7890 | 1616686 | 567 | PUMP,CAP,ASSY.A,B,ESL,ASP | ||||
| STYLUS PRO 7890 | 1504179 | 568 | WIPER,ASSY,ASP | ||||
| STYLUS PRO 7890 | 1546301 | 569 | HARNESS.S,ASP | ||||
| STYLUS PRO 7890 | 1546303 | 570 | CABLE,SENSOR,RELEASE.S,ASP | ||||
| STYLUS PRO 7890 | 1507314 | 571 | COMBINATION GEAR,29,59.2,ASP | ||||
| STYLUS PRO 7890 | 1507315 | 572 | COMBINATION GEAR,23.2,48.8,ASP | ||||
| STYLUS PRO 7890 | 1507316 | 573 | COMBINATION GEAR,18.4,37.6,ASP | ||||
| STYLUS PRO 7890 | 1507317 | 574 | COMBINATION GEAR,26,12.8,ASP | ||||
| STYLUS PRO 7890 | 1507318 | 575 | SPUR GEAR,43,ASP | ||||
| STYLUS PRO 7890 | 1507819 | 576 | PROTECTION PLATE FFC,ASP | ||||
| STYLUS PRO 7890 | 1003995 | 577 | EDGE SADDLE | ||||
| STYLUS PRO 7890 | 1507817 | 578 | PULLEY PF,ASP | ||||
| STYLUS PRO 7890 | 1518709 | 579 | MOTOR ASSY.,PF.,ASP | ||||
| STYLUS PRO 7890 | 1546292 | 580 | CABLE,GROUNDING,PF,S.ASP | ||||
| STYLUS PRO 7890 | 1438992 | 581 | BOARD ASSY.,ENCODER,PF | ||||
| STYLUS PRO 7890 | 1521070 | 582 | HARNESS,ENCODER,PF,C.,ASP | ||||
| STYLUS PRO 7890 | 1504181 | 583 | SCALE,PF,UNIT,ESL,ASP | ||||
| STYLUS PRO 7890 | 1480212 | 584 | TIMING BELT,PF | ||||
| STYLUS PRO 7890 | 1234048 | 586 | FLAT CLAMP,FCR-15 V0 | ||||
| STYLUS PRO 7890 | 1283663 | 590 | E-RING,3,F/UC-3C | ||||
| STYLUS PRO 7890 | 1081715 | 591 | PALALLEL PIN,1.5 | ||||
| STYLUS PRO 7890 | 1480173 | 592 | HOLDER,SPRING,APG | ||||
| STYLUS PRO 7890 | 2103859 | 593 | DETECTOR,PW | ||||
| STYLUS PRO 7890 | 1480177 | 595 | BOARD ASSY.,ENCODER | ||||
| STYLUS PRO 7890 | 1518317 | 596 | SEAL RUBBER,JOINT,ASP | ||||
| STYLUS PRO 7890 | 1520273 | 597 | CATCH,SUPPORT | ||||
| STYLUS PRO 7890 | 1504252 | 601 | HOLDER,WHEEL,EJ,LOWER,24,ASSY,ASP | ||||
| STYLUS PRO 7890 | 1526840 | 603 | OIL PAD,MAIN SHAFT,CR,ASSY.,ASP | ||||
| STYLUS PRO 7890 | 1528412 | 605 | FRAME,PAPER GUIDE,UPPER,24,ASP | ||||
| STYLUS PRO 7890 | 1481479 | 606 | COVER,CSIC,RIGHT | ||||
| STYLUS PRO 7890 | 1541854 | 607 | HOLDER,CSIC,RIGHT,ASSY.,ASP | ||||
| STYLUS PRO 7890 | 1541855 | 608 | HOLDER,CSIC,LEFT,ASSY.,ASP | ||||
| STYLUS PRO 7890 | 1551039 | 620 | SPACER,LEVER,ADJUST,PG | ||||
| STYLUS PRO 7890 | 1506370 | NON FIG | INK CART.BOXED,C,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506375 | NON FIG | INK CART.BOXED,LBK,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506373 | NON FIG | INK CART.BOXED,LC,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506377 | NON FIG | INK CART.BOXED,LLBK,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506376 | NON FIG | INK CART.BOXED,MBK,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506369 | NON FIG | INK CART.BOXED,PBK,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506374 | NON FIG | INK CART.BOXED,VLM,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506371 | NON FIG | INK CART.BOXED,VM,PIG'T,G65C,110,AS,BU | ||||
| STYLUS PRO 7890 | 1506372 | NON FIG | INK CART.BOXED,Y,PIG'T,G65C,110,AS,BU | ||||
Validate your login
