EPSON Pro 7700 7710 PX-F8000 Parts Manual
In stock
SKU
EP-7700-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON Pro 7700 7710 PX-F8000 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.4 MB |
| Pages | 9 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON Pro 7700 Series |
EPSON Pro 7700 7710 PX-F8000 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

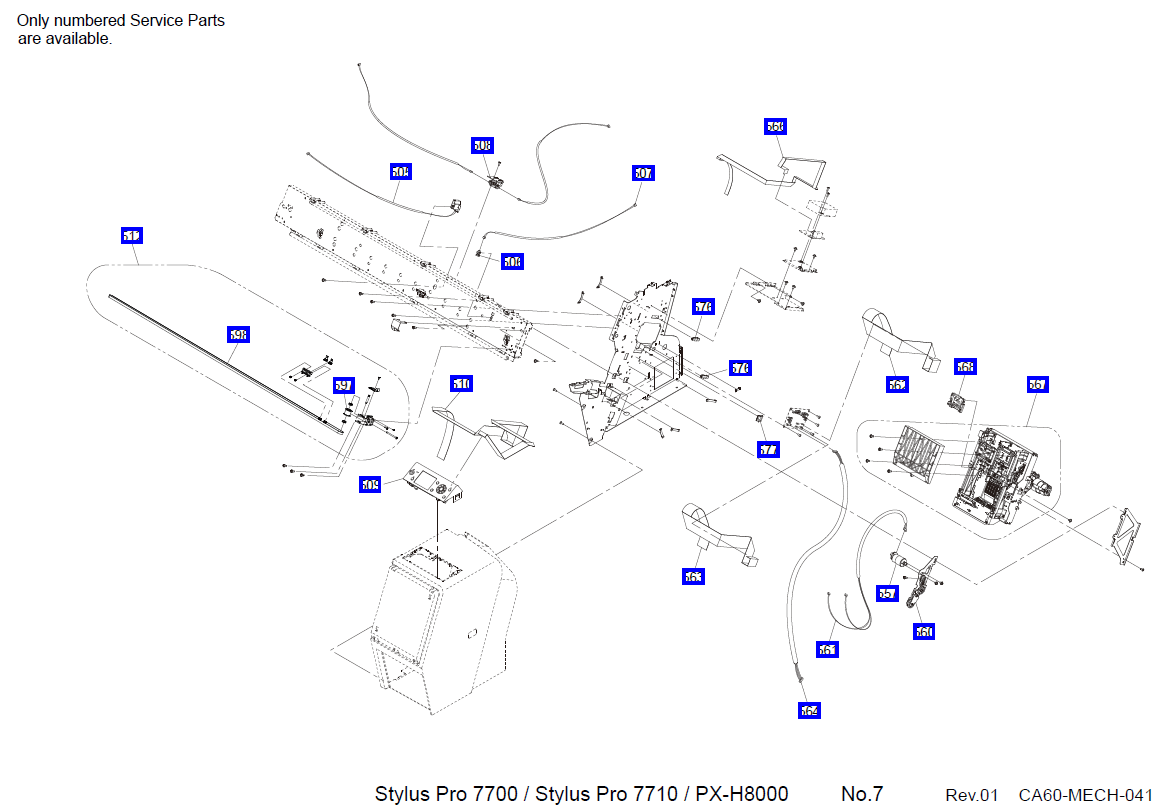

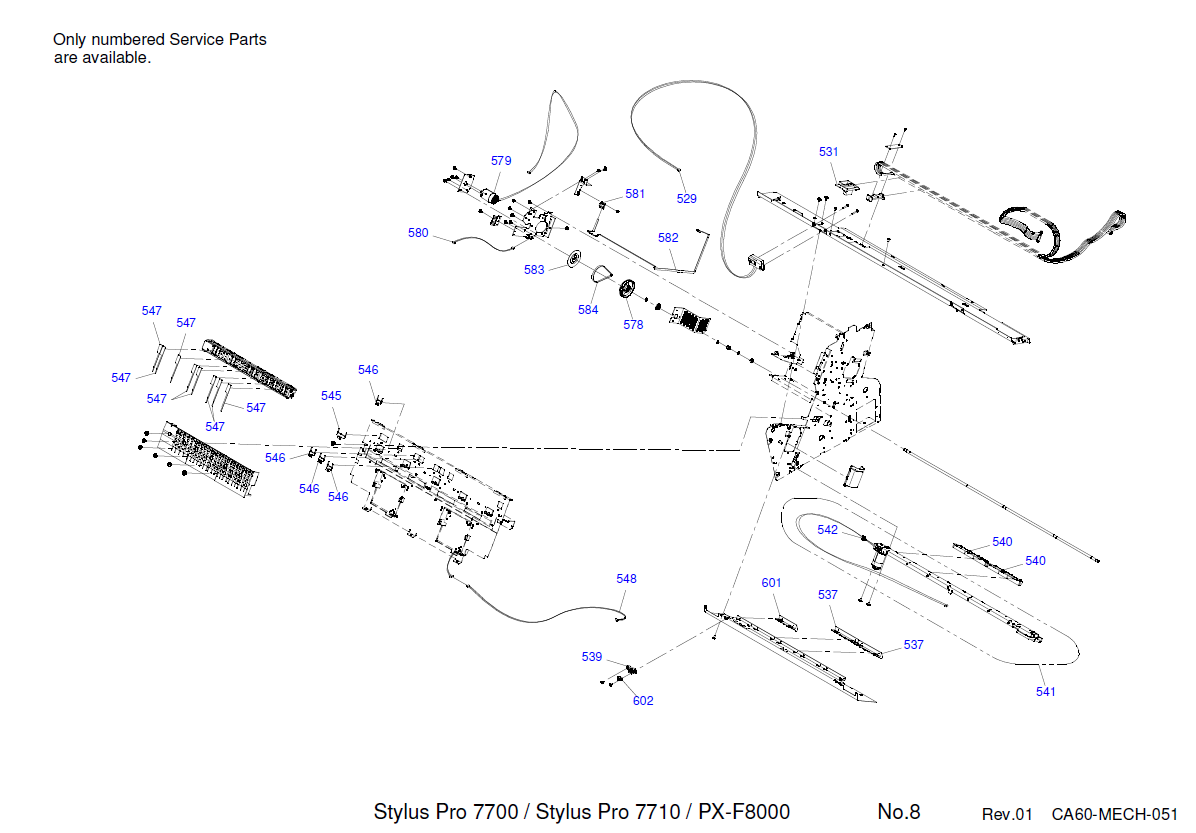

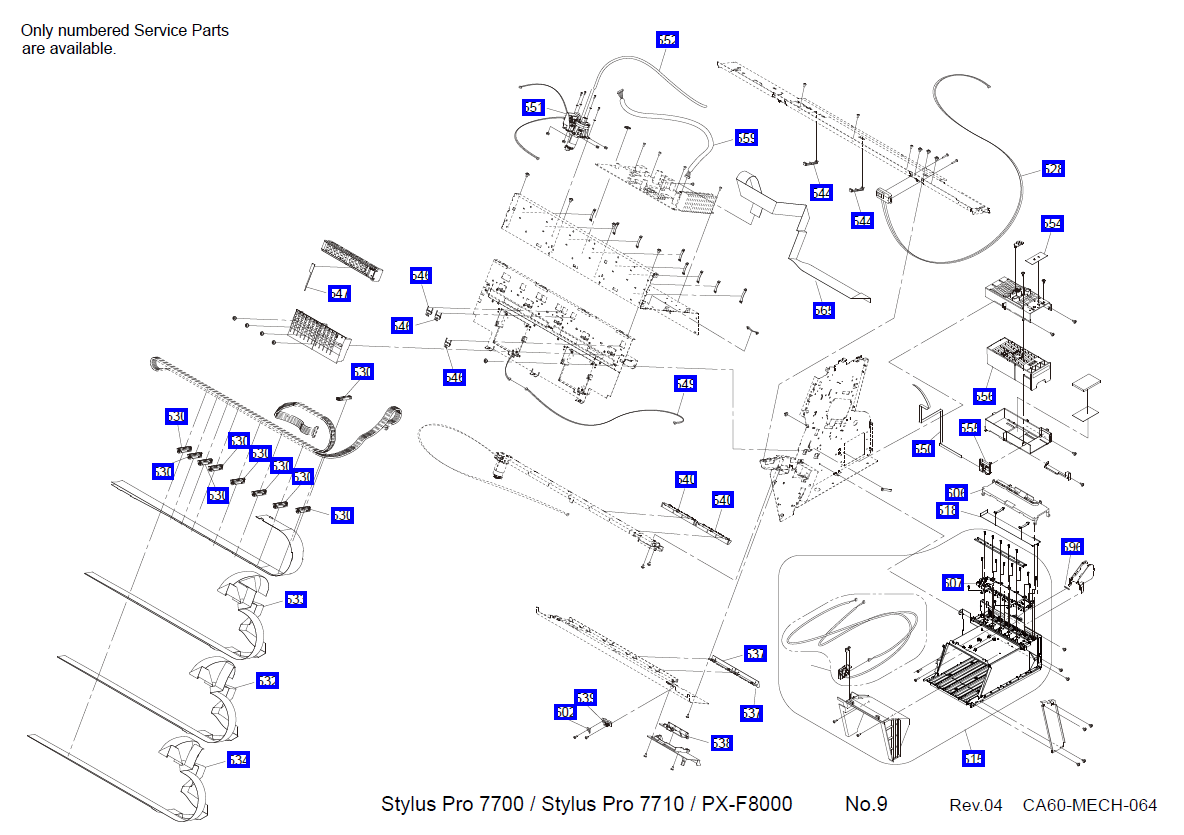

| STYLUS PRO 7700 | 1507323 | 1 | PIPE,BASKET,CENTER,24,ASP |
| STYLUS PRO 7700 | 1507324 | 2 | ARM,BASKET,24,ASP |
| STYLUS PRO 7700 | 1507321 | 3 | BASKET ASSY.,24,ASP |
| STYLUS PRO 7700 | 2120141 | 4 | POWER CABLE |
| STYLUS PRO 7700 | 1507815 | 5 | Ersetzt durch: 1802416 |
| STYLUS PRO 7700 | 1507307 | 6 | BOX,MANUAL,ASP |
| STYLUS PRO 7700 | 1695473 | 7 | STAND RIGHT UNIT,C,ASP |
| STYLUS PRO 7700 | 1695474 | 8 | STAND LEFT UNIT,C,ASP |
| STYLUS PRO 7700 | 1686967 | 9 | STAY STAND ASSY.,24,ASP |
| STYLUS PRO 7700 | 1705824 | 10 | SHAFT,BASKET,ASSY,A ASP. |
| STYLUS PRO 7700 | 1504177 | 101 | SHAFT,COVER,IC,RIGHT,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1479991 | 102 | STOPPER,COVER,FRONT |
| STYLUS PRO 7700 | 1479983 | 103 | GROUNDING PLATE,ROLL |
| STYLUS PRO 7700 | 1504186 | 104 | COVER,FRONT,RIGHT,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1504187 | 105 | COVER,FRONT,LEFT,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1554917 | 107 | COVER ROLL ASSY.,24,B,ASP |
| STYLUS PRO 7700 | 1520213 | 108 | COVER,IC,RIGHT,UNIT,K,ESL,ASP |
| STYLUS PRO 7700 | 1510993 | 109 | COVER,IC,LEFT,5C |
| STYLUS PRO 7700 | 1499705 | 11 | CASTER,P-60-HT |
| STYLUS PRO 7700 | 1496118 | 110 | LABEL,ROLL PAPER SET,PAPER GUIDE LOWER |
| STYLUS PRO 7700 | 1507319 | 111 | COVER,FRONT,24,ASP |
| STYLUS PRO 7700 | 1476652 | 112 | LOGO PLATE,86.5X21.6 |
| STYLUS PRO 7700 | 1480012 | 113 | CATCH,STRIKER |
| STYLUS PRO 7700 | 1480009 | 114 | STRIKER,SENSOR |
| STYLUS PRO 7700 | 1507312 | 115 | COVER,FRONT,RIGHT,ASP |
| STYLUS PRO 7700 | 1507313 | 116 | COVER,FRONT,LEFT,ASP |
| STYLUS PRO 7700 | 1507311 | 117 | COVER,REAR,LEFT,ASP |
| STYLUS PRO 7700 | 1479986 | 118 | COVER,SIDE,ROLL,LEFT |
| STYLUS PRO 7700 | 1479985 | 119 | COVER,SIDE,ROLL,RIGHT |
| STYLUS PRO 7700 | 1499706 | 12 | CASTER,P-60-HTS |
| STYLUS PRO 7700 | 1479988 | 120 | COVER,TOP,BASE,SUPPORT,RIGHT |
| STYLUS PRO 7700 | 1507305 | 121 | COVER,ROLL,SUPPORT,RIGHT,ASP |
| STYLUS PRO 7700 | 1479982 | 122 | COVER,ROLL,SUPPORT,LEFT |
| STYLUS PRO 7700 | 1507308 | 13 | JOINT,PIPE,BASKET,FRONT,ASP |
| STYLUS PRO 7700 | 1480035 | 135 | COVER,MAINTENANCE,BOX |
| STYLUS PRO 7700 | 1480107 | 139 | HANDLE |
| STYLUS PRO 7700 | 1507309 | 14 | PIPE,BASKET,FRONT,SIDE,ASP |
| STYLUS PRO 7700 | 1516909 | 140 | COVER,TOP,BASE,24,ASP |
| STYLUS PRO 7700 | 1507322 | 15 | PIPE,BASKET,UPPER,24,ASP |
| STYLUS PRO 7700 | 1673119 | 160 | PROUS PAD,IH |
| STYLUS PRO 7700 | 1481598 | 18 | HOLDER,PIPE,BASKET,FRONT |
| STYLUS PRO 7700 | 1481599 | 19 | HOLDER,PIPE,BASKET,REAR |
| STYLUS PRO 7700 | 5120516 | 20 | PAD,CR,B |
| STYLUS PRO 7700 | 2144291 | 200 | BOARD ASSY.,MAIN |
| STYLUS PRO 7700 | 2124763 | 201 | BOARD ASSY.,SUB |
| STYLUS PRO 7700 | 2124764 | 202 | BOARD ASSY.,SUB |
| STYLUS PRO 7700 | 1589427 | 203 | AID ASSY.,B,ASP |
| STYLUS PRO 7700 | 2126128 | 204 | BOARD ASSY.,SUB |
| STYLUS PRO 7700 | 1480306 | 21 | MOUNTING PLATE,PAPER GUIDE,BOTTOM |
| STYLUS PRO 7700 | 1514763 | 22 | SCREW ASSY.,ASP |
| STYLUS PRO 7700 | 1686968 | 24 | Ersetzt durch: 1695469 |
| STYLUS PRO 7700 | 1539605 | 300 | POWER SUPPLY UNIT,C,ASP |
| STYLUS PRO 7700 | 1546291 | 301 | HARNESS,S.ASP |
| STYLUS PRO 7700 | 2120026 | 302 | FAN ASSY. |
| STYLUS PRO 7700 | 1716011 | 501 | GUIDE ROLL PAPER,L,UNIT,D,ESL,ASP |
| STYLUS PRO 7700 | 1507818 | 502 | MOUNTING PLATE COVER ROLL PAPER LEFT,ASP |
| STYLUS PRO 7700 | 1720411 | 503 | REWIND,UNIT,C,ESL,ASP |
| STYLUS PRO 7700 | 1480327 | 504 | RAIL,GUIDE,ROLL PAPER |
| STYLUS PRO 7700 | 1504214 | 505 | SENSOR,PE.,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 2143464 | 506 | PHOTO INTERRUPTER |
| STYLUS PRO 7700 | 1541863 | 507 | CABLE,DETECTOR,HP,CR,ASP |
| STYLUS PRO 7700 | 1504175 | 508 | DETECTOR,PAPER THICKNESS,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1566919 | 509 | PANEL,UNIT,K,B,ESL,ASP |
| STYLUS PRO 7700 | 2142271 | 510 | HARNESS,PANEL |
| STYLUS PRO 7700 | 1504198 | 511 | GUIDE,ROLL,PAPER,RIGHT,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1705616 | 512 | PULLEY,DRIVEN,UNIT,24,C,ESL,ASP |
| STYLUS PRO 7700 | 1550669 | 513 | SCALE,CR,24,C,ASP |
| STYLUS PRO 7700 | 1518708 | 514 | MOTOR ASSY.,CR.,ASP |
| STYLUS PRO 7700 | 1702234 | 515 | HOLDER,ASSY.,IC,RIGHT,K,D,ESL,ASP |
| STYLUS PRO 7700 | 1504180 | 517 | PLUNGER,ASSY,ASP |
| STYLUS PRO 7700 | 2142270 | 518 | HARNESS,RELAY,HEAD,RIGHT |
| STYLUS PRO 7700 | 1705590 | 520 | CR,UNIT,K,C,ESL,ASP |
| STYLUS PRO 7700 | 2171913 | 521 | Ersetzt durch: 2183502 |
| STYLUS PRO 7700 | 1480170 | 522 | COVER,CR,MAIN |
| STYLUS PRO 7700 | F191140 | 523 | PRINT HEAD,IA0220-14 |
| STYLUS PRO 7700 | F191141 | 523 | PRINT HEAD,IA0220-14,ASP |
| STYLUS PRO 7700 | 2142248 | 524 | HARNESS,HEAD,A |
| STYLUS PRO 7700 | 1521061 | 525 | HARNESS,HEAD,B,B,ASSY.,ASP |
| STYLUS PRO 7700 | 1543216 | 526 | SELECTOR,UNIT,K-C,ESL,ASP |
| STYLUS PRO 7700 | 1504184 | 528 | SENSOR,COVER,FRONT,RIGHT,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1504251 | 529 | SENSOR,COVER,FRONT,LEFT,UNIT,24,ESL,ASP |
| STYLUS PRO 7700 | 1531123 | 530 | CLAMP,TUBE |
| STYLUS PRO 7700 | 1507820 | 531 | HOLDER TUBE,ASP |
| STYLUS PRO 7700 | 2142267 | 532 | HARNESS,DRV,RIGHT,UPPER |
| STYLUS PRO 7700 | 2142275 | 533 | HARNESS,CR |
| STYLUS PRO 7700 | 2142269 | 534 | HARNESS,DRV,RIGHT,LOWER |
| STYLUS PRO 7700 | 1504182 | 535 | TUBE ASSY.,SUPPLY,INK,B,ASP |
| STYLUS PRO 7700 | 1504191 | 537 | HOLDER,WHEEL,EJ,LOWER,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1504192 | 538 | COVER,CUTTER,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1520272 | 539 | CATCH,B |
| STYLUS PRO 7700 | 1504188 | 540 | PAPER,EJECTION,ROLLER,PE,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1720413 | 541 | FRAME,RAIL,CUTTER,UNIT,D,24,ESL,ASP |
| STYLUS PRO 7700 | 1498876 | 543 | GUIDE,COVER,ROLL PAPER,SUPPORT |
| STYLUS PRO 7700 | 1485681 | 544 | CLUMP,TUBE,DUCT |
| STYLUS PRO 7700 | 1480298 | 545 | CLIP,DUCT,INK EJECT,LARGE |
| STYLUS PRO 7700 | 1480299 | 546 | CLIP,DUCT,INK EJECT,SMALL |
| STYLUS PRO 7700 | 1467289 | 547 | POROUS PAD,PLATEN |
| STYLUS PRO 7700 | 1541864 | 550 | HARNESS,MAINTENCANCE TANK,RIGHT,ASP |
| STYLUS PRO 7700 | 1720433 | 551 | PUMP ASSY.,PRESSURIZING,UNIT,B,ESL,ASP |
| STYLUS PRO 7700 | 1507310 | 552 | TUBE,PRESSURIZING,RIGHT,ASP |
| STYLUS PRO 7700 | 1220013 | 554 | LEAF SPRING,LOCK |
| STYLUS PRO 7700 | 1705827 | 555 | EJECT,GUIDE,UNIT,ESL,A,ASP |
| STYLUS PRO 7700 | 1554899 | 556 | POROUS PAD ASSY.,INK EJECT,PXMT3,B,ASP |
| STYLUS PRO 7700 | 1720434 | 557 | MOTOR ASSY.,RELEASE,A,ASP |
| STYLUS PRO 7700 | 1546299 | 558 | CABLE,MOTOR,RELEASE,24.S,ASP |
| STYLUS PRO 7700 | 1755691 | 560 | APG,UNIT,B,ESL,ASP |
| STYLUS PRO 7700 | 1541862 | 561 | CABLE,MOTOR,APG,ASP |
| STYLUS PRO 7700 | 2142250 | 562 | HARNESS,RELAY,SUB,B,UPPER |
| STYLUS PRO 7700 | 1521067 | 563 | HARNESS,RELAY,SUB,B,LOWER,C.,ASP |
| STYLUS PRO 7700 | 2142254 | 565 | HARNESS,RELAY,SUB,C,24 |
| STYLUS PRO 7700 | 2142249 | 566 | HARNESS,RELAY,AID |
| STYLUS PRO 7700 | 1735798 | 567 | PUMP,CAP,ASSY,K,H,ESL,ASP |
| STYLUS PRO 7700 | 1616679 | 568 | WIPER,ASSY A,ASP |
| STYLUS PRO 7700 | 1546303 | 570 | CABLE,SENSOR,RELEASE.S,ASP |
| STYLUS PRO 7700 | 1480240 | 571 | COMBINATION GEAR,29,59.2 |
| STYLUS PRO 7700 | 1480241 | 572 | COMBINATION GEAR,23.2,48.8 |
| STYLUS PRO 7700 | 1480242 | 573 | COMBINATION GEAR,18.4,37.6 |
| STYLUS PRO 7700 | 1481278 | 574 | COMBINATION GEAR,26,12.8 |
| STYLUS PRO 7700 | 1480239 | 575 | SPUR GEAR,43 |
| STYLUS PRO 7700 | 1507819 | 576 | PROTECTION PLATE FFC,ASP |
| STYLUS PRO 7700 | 1507817 | 578 | PULLEY PF,ASP |
| STYLUS PRO 7700 | 1518709 | 579 | MOTOR ASSY.,PF.,ASP |
| STYLUS PRO 7700 | 2133325 | 581 | BOARD ASSY.,ENCODER,PF |
| STYLUS PRO 7700 | 2208679 | 581 | BOARD ASSY.,ENCODER,PF |
| STYLUS PRO 7700 | 2210270 | 581 | BOARD ASSY.,ENCODER,PF |
| STYLUS PRO 7700 | 1521070 | 582 | HARNESS,ENCODER,PF,C.,ASP |
| STYLUS PRO 7700 | 1504181 | 583 | SCALE,PF,UNIT,ESL,ASP |
| STYLUS PRO 7700 | 1480212 | 584 | Ersetzt durch: 1657495 |
| STYLUS PRO 7700 | 1283663 | 590 | E-RING,3,F/UC-3C |
| STYLUS PRO 7700 | 2103859 | 593 | DETECTOR,PW |
| STYLUS PRO 7700 | 1480177 | 595 | BOARD ASSY.,ENCODER |
| STYLUS PRO 7700 | 2208696 | 595 | BOARD ASSY.,ENCODER |
| STYLUS PRO 7700 | 1518317 | 596 | SEAL RUBBER,JOINT,ASP |
| STYLUS PRO 7700 | 1480133 | 597 | PULLEY,DRIVEN |
| STYLUS PRO 7700 | 1585849 | 598 | BELT,CR,24,C |
| STYLUS PRO 7700 | 1504252 | 601 | HOLDER,WHEEL,EJ,LOWER,24,ASSY,ASP |
| STYLUS PRO 7700 | 1520273 | 602 | CATCH,SUPPORT |
| STYLUS PRO 7700 | 1611382 | 603 | OIL PAD,MAIN SHAFT,CR,ASSY A.,ASP |
| STYLUS PRO 7700 | 1528412 | 605 | FRAME,PAPER GUIDE,UPPER,24,ASP |
| STYLUS PRO 7700 | 1481479 | 606 | COVER,CSIC,RIGHT |
| STYLUS PRO 7700 | 1541464 | 607 | HOLDER,CSIC,RIGHT,ASSY.,ASP |
| STYLUS PRO 7700 | 1480340 | 610 | ATTACHMENT,GUIDE,ROLL PAPER,LEFT |
| STYLUS PRO 7700 | 1551039 | 620 | SPACER,LEVER,ADJUST,PG |
| STYLUS PRO 7700 | 1537878 | 621 | GUIDE PLATE ASSY.,TUBE |
| STYLUS PRO 7700 | 1480135 | 630 | SUPPORT,HOLDER,PULLEY |
| STYLUS PRO 7700 | 1708477 | 720 | FLANGE,UNIT,LL,ESL,ASP |
