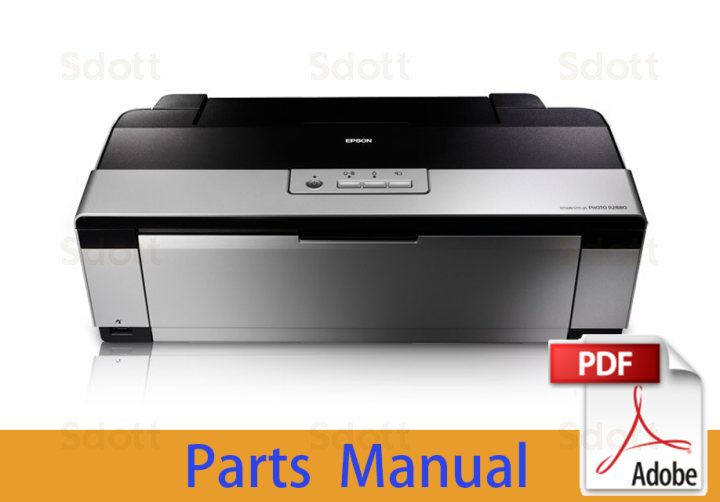

EPSON StylusPhoto R2880 Parts Manual
In stock
SKU
EP-R2880-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON StylusPhoto R2880 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.4M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON StylusPhoto R2880 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description |
| STYLUS PHOTO R2880 | 1304557 | 8 | ADAPTER,CDR |
| STYLUS PHOTO R2880 | 1274011 | 10 | ROLL PAPER ASSY.,LEFT,B,ASP |
| STYLUS PHOTO R2880 | 1490918 | 100 | Replace: 1552105 |
| STYLUS PHOTO R2880 | 1552105 | 100 | HOUSING UPPER SUB ASSY D,ESL,ASP |
| STYLUS PHOTO R2880 | 1490919 | 101 | PANEL SUB ASSY,ESL,ASP |
| STYLUS PHOTO R2880 | 1474832 | 102 | DECORATION PLATE,LEFT,B |
| STYLUS PHOTO R2880 | 1490877 | 103 | HOUSING,LOWER,B |
| STYLUS PHOTO R2880 | 1490912 | 104 | HOUSING CD-R ASSY., ESL ASP |
| STYLUS PHOTO R2880 | 1487085 | 105 | LABEL,INSTRUCTION,B |
| STYLUS PHOTO R2880 | 1474830 | 107 | DECORATION PLATE,RIGHT,B |
| STYLUS PHOTO R2880 | 1477653 | 108 | PAPER SUPPORT SUB ASSY ,B, ESL ASP |
| STYLUS PHOTO R2880 | 1465174 | 109 | HOUSING,REAR |
| STYLUS PHOTO R2880 | 1274012 | 11 | Replace: 1552098 |
| STYLUS PHOTO R2880 | 1552098 | 11 | ROLL PAPER ASSY.,RIGHT,B,ASP |
| STYLUS PHOTO R2880 | 2117204 | 114 | HARNESS |
| STYLUS PHOTO R2880 | 1488607 | 12 | TRAY CDR ASSY,ESL |
| STYLUS PHOTO R2880 | 1295992 | 123 | SHEET,LED |
| STYLUS PHOTO R2880 | 1490911 | 126 | COVER,PRINTER,ASSY B.,ASP |
| STYLUS PHOTO R2880 | 1470311 | 127 | LABEL,CAUTION,CDR,B |
| STYLUS PHOTO R2880 | 1480570 | 130 | DECORATION PLATE,FRONT,RIGHT |
| STYLUS PHOTO R2880 | 1480571 | 131 | DECORATION PLATE,FRONT,LEFT |
| STYLUS PHOTO R2880 | 1477648 | 132 | HOLDER PICTBRIDGE ASSY ESL ASP |
| STYLUS PHOTO R2880 | 1490921 | 133 | Replace: 1550328 |
| STYLUS PHOTO R2880 | 1550328 | 133 | STACKER ASSY ESL,ASP |
| STYLUS PHOTO R2880 | 1477664 | 134 | HOUSING UPPER SUPPORT SUB ASSY,ESL ASP |
| STYLUS PHOTO R2880 | 2113395 | 135 | HIGH VOLTAGE MODULE |
| STYLUS PHOTO R2880 | 1108107 | 136 | FOOT |
| STYLUS PHOTO R2880 | 2117267 | 137 | HARNESS,ELECTRODE |
| STYLUS PHOTO R2880 | 2117206 | 138 | HARNESS |
| STYLUS PHOTO R2880 | 1293641 | 139 | TUBE,INK EJECT,LEFT,F |
| STYLUS PHOTO R2880 | 1293642 | 140 | TUBE,INK EJECT,RIGHT,F |
| STYLUS PHOTO R2880 | 1466312 | 141 | HOLDER,TUBE,INK EJECT,B |
| STYLUS PHOTO R2880 | 1488749 | 147 | LABEL,GENUINE INK,T096/EURO |
| STYLUS PHOTO R2880 | 1477645 | 17 | PAPER SUPPORT ASSY ,ESL ASP |
| STYLUS PHOTO R2880 | 1405761 | 18 | Replace: 1529123 |
| STYLUS PHOTO R2880 | 1529123 | 18 | LABEL,CAUTION,CUT PAPER GUIDE,B |
| STYLUS PHOTO R2880 | 2124567 | 200 | BOARD ASSY.,MAIN |
| 6338D,ASP CA16 STANDARD | |||
| STYLUS PHOTO R2880 | 2117127 | 300 | BOARD ASSY.,POWER SUPPLY |
| STYLUS PHOTO R2880 | 2145870 | 350 | BOARD ASSY.,PANEL |
| STYLUS PHOTO R2880 | 2117132 | 350 | Replace: 2145870 |
| STYLUS PHOTO R2880 | 2122242 | 360 | Replace: 2134504 |
| STYLUS PHOTO R2880 | 2107708 | 400 | POWER CABLE |
| STYLUS PHOTO R2880 | 2107706 | 402 | POWER CABLE |
| STYLUS PHOTO R2880 | 2122310 | 500 | Replace: 2137618 |
| STYLUS PHOTO R2880 | 2137618 | 500 | Replace: 2142346 |
| STYLUS PHOTO R2880 | 2142346 | 500 | PRINTER MECHANISM, ESL ASP |
| STYLUS PHOTO R2880 | 2162277 | 500 | PRINTER MECHANISM, ESL ASP |
| STYLUS PHOTO R2880 | 1486633 | 501 | CARRIDGE SUB ASSY,ESL ASP |
| STYLUS PHOTO R2880 | 1490914 | 502 | Replace: 1550326 |
| STYLUS PHOTO R2880 | 1550326 | 502 | HOLDER CSIC ASSY,ESL ASP |
| STYLUS PHOTO R2880 | 1292771 | 503 | HOLDER,DETECTOR,PW |
| STYLUS PHOTO R2880 | 2109392 | 504 | Replace: 2109393 |
| STYLUS PHOTO R2880 | 2117265 | 505 | BOARD ASSY.,ENCODER,CR |
| STYLUS PHOTO R2880 | 2084550 | 506 | BOARD ASSY.,INK MARK |
| STYLUS PHOTO R2880 | 1262695 | 507 | HOLDER,BOARD ASSY.,ENCORDER,PF |
| STYLUS PHOTO R2880 | 2117268 | 508 | BOARD ASSY.,ENCODER,PF |
| STYLUS PHOTO R2880 | 1477656 | 509 | COVER IC ASSY ,ESL ASP |
| STYLUS PHOTO R2880 | 1292785 | 511 | SHAFT,CR,GUIDE |
| STYLUS PHOTO R2880 | 1443407 | 512 | SCALE,CR,B |
| STYLUS PHOTO R2880 | 1233669 | 513 | TORSION SPRING,24.7 |
| STYLUS PHOTO R2880 | 2112637 | 514 | MOTOR ASSY.,CR |
| STYLUS PHOTO R2880 | 2090524 | 515 | CABLE,HEAD,B |
| STYLUS PHOTO R2880 | 2090523 | 516 | CABLE,HEAD |
| STYLUS PHOTO R2880 | 2020393 | 517 | DETECTOR,LEAF,B2 |
| STYLUS PHOTO R2880 | 2117269 | 518 | HARNESS,DETECTOR,CD-R |
| STYLUS PHOTO R2880 | 2140447 | 518 | HARNESS,DETECTOR,CD-R |
| STYLUS PHOTO R2880 | 1303977 | 519 | AUTO PG ASSY.,ASP |
| STYLUS PHOTO R2880 | 1490922 | 520 | TRAY PASTE BOARD BASE SUB ASSY,ESL ASP |
| STYLUS PHOTO R2880 | 1477655 | 521 | INK SYSTEM ASSY ,ESL,ASP |
| STYLUS PHOTO R2880 | 1486634 | 522 | Replace: 1543994 |
| STYLUS PHOTO R2880 | 1292591 | 523 | TORSION SPRING,PAPER GUIDE,UPPER |
| STYLUS PHOTO R2880 | 2119427 | 524 | MOTOR ASSY.,PF,B |
| STYLUS PHOTO R2880 | 1421928 | 525 | FRAME PAPER EJ SUB ASSY.,B,ASP,ESL |
| STYLUS PHOTO R2880 | 1303962 | 526 | ROLLER,PF ASSY.,ASP |
| STYLUS PHOTO R2880 | 1496909 | 528 | Replace: 1552107 |
| STYLUS PHOTO R2880 | 1552107 | 528 | PAPER GUIDE FRONT&ROLLER EJ ASSY,ESL ASP |
| STYLUS PHOTO R2880 | 1303974 | 529 | HOLDER RELEASE SUB ASSY.,ASP |
| STYLUS PHOTO R2880 | 1530857 | 529 | HOLDER RELEASE SUB ASSY.,ASP |
| STYLUS PHOTO R2880 | 1303976 | 532 | Replace: 1530584 |
| STYLUS PHOTO R2880 | 1303980 | 534 | RELEASE CD-R,LEFT ASSY.,ASP |
| STYLUS PHOTO R2880 | 1306294 | 535 | RELEASE CD-R,RIGHT ASSY ASP, ESL |
| STYLUS PHOTO R2880 | 1477660 | 536 | POROUS PAD,PAPER GUIDE,LEFT,ASP |
| STYLUS PHOTO R2880 | 1552101 | 536 | POROUS PAD,PAPER GUIDE,LEFT,ASP |
| STYLUS PHOTO R2880 | 1477661 | 538 | Replace: 1552100 |
| STYLUS PHOTO R2880 | 1552100 | 538 | Replace: 1569061 |
| STYLUS PHOTO R2880 | 1569061 | 538 | POROUS PAD,PAPER GUIDE,FRONT,ASP |
| STYLUS PHOTO R2880 | 1466359 | 539 | Replace: 1513177 |
| STYLUS PHOTO R2880 | 1513177 | 539 | POROUS PAD,PAPER GUIDE,INK EJECT,UPPER |
| STYLUS PHOTO R2880 | 2090534 | 541 | HARNESS,ENCORDER,PF |
| STYLUS PHOTO R2880 | 2090522 | 542 | HARNESS,BOARD ASSY.,RELAY |
| STYLUS PHOTO R2880 | 1552099 | 545 | CLEANER,HEAD,C,ASP |
| STYLUS PHOTO R2880 | 1275979 | 545 | Replace: 1552099 |
| STYLUS PHOTO R2880 | 2090528 | 549 | CABLE,DETECTOR,8 |
| STYLUS PHOTO R2880 | 1303975 | 550 | FRAG RELEASE ASSY.,ASP |
| STYLUS PHOTO R2880 | 2119426 | 553 | HARNESS,MOTOR,B |
| STYLUS PHOTO R2880 | 1262736 | 554 | CAM,RELEASE,LOCK,PAPER EJECT |
| STYLUS PHOTO R2880 | 1466360 | 560 | Replace: 1513178 |
| STYLUS PHOTO R2880 | 1513178 | 560 | POROUS PAD,PAPER GUIDE,INK EJECT,LEFT |
| STYLUS PHOTO R2880 | 1466361 | 561 | Replace: 1513179 |
| STYLUS PHOTO R2880 | 1513179 | 561 | POROUS PAD,PAPER GUIDE,INK EJECT,RIGHT |
| STYLUS PHOTO R2880 | 1466365 | 562 | POROUS PAD,GUIDE,INK EJECT,LEFT |
| STYLUS PHOTO R2880 | 1466362 | 563 | POROUS PAD,GUIDE,INK EJECT |
| STYLUS PHOTO R2880 | 1480573 | 564 | GUIDE,IC,Q |
| STYLUS PHOTO R2880 | 1466355 | 565 | TRAY,POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R2880 | 1513176 | 565 | TRAY,POROUS PAD,PAPER GUIDE,FRONT |
| STYLUS PHOTO R2880 | 1292845 | 567 | PAPER GUIDE,REAR |
| STYLUS PHOTO R2880 | 1405577 | 568 | COVER,CDR,LEFT,B |
| STYLUS PHOTO R2880 | 1302147 | 569 | COVER,CDR,RIGHT |
| STYLUS PHOTO R2880 | 1466344 | 570 | COVER,CABLE,HEAD |
| STYLUS PHOTO R2880 | 1292892 | 571 | TIMING BELT,CR |
| STYLUS PHOTO R2880 | 1262897 | 572 | TIMING BELT,PF |
| STYLUS PHOTO R2880 | 1466342 | 573 | HINGE,COVER,CARTRIDGE |
| STYLUS PHOTO R2880 | F186010 | 700 | PRINT HEAD |
| STYLUS PHOTO R2880 | 1490913 | 701 | ASF ASSY,ESL,ASP |
| STYLUS PHOTO R2880 | 2090539 | 702 | MOTOR,ASSY.,ASF |
| STYLUS PHOTO R2880 | 1292847 | 703 | PAPER GUIDE,MANUAL |
| STYLUS PHOTO R2880 | 1214680 | 719 | POROUS PAD,INK EJECT,H |
| STYLUS PHOTO R2880 | 1218027 | 720 | POROUS PAD,CABLE,HEAD |
| STYLUS PHOTO R2880 | 1487083 | 721 | LABEL,INK POSITION,B |
| STYLUS PHOTO R2880 | 1436642 | 724 | CLAMP,TUBE |
| STYLUS PHOTO R2880 | 1481196 | 730 | POROUS PAD,INK EJECT,LEFT,LOWER |
| STYLUS PHOTO R2880 | 1481197 | 731 | POROUS PAD,INK EJECT,LEFT,UPPER |
| STYLUS PHOTO R2880 | 1481198 | 732 | POROUS PAD,INK EJECT,RIGHT,LOWER |
| STYLUS PHOTO R2880 | 1481199 | 733 | POROUS PAD,INK EJECT,RIGHT,UPPER |
| STYLUS PHOTO R2880 | 1492494 | 734 | POROUS PAD,INK EJECT,IS,LEFT,B |
| STYLUS PHOTO R2880 | 1492495 | 735 | POROUS PAD,INK EJECT,IS,LOWER,FB,B |
| STYLUS PHOTO R2880 | 1492496 | 736 | POROUS PAD,INK EJECT,IS,LOWER,LEFT,B |
| STYLUS PHOTO R2880 | 1492497 | 737 | POROUS PAD,INK EJECT,TUBE,FA,B |
| STYLUS PHOTO R2880 | 1492498 | 738 | POROUS PAD,INK EJECT,TUBE,FB,B |
| STYLUS PHOTO R2880 | 1483949 | 739 | POROUS PAD,INK EJECT,THIS SIDE |
| STYLUS PHOTO R2880 | 1487687 | NON FIG | INK CART.UNBOXED,C-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487690 | NON FIG | INK CART.UNBOXED,LC-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487692 | NON FIG | INK CART.UNBOXED,LK-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487694 | NON FIG | INK CART.UNBOXED,LLK-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487693 | NON FIG | INK CART.UNBOXED,MK-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487686 | NON FIG | INK CART.UNBOXED,PK-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487691 | NON FIG | INK CART.UNBOXED,VLM-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487688 | NON FIG | INK CART.UNBOXED,VM-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 1487689 | NON FIG | INK CART.UNBOXED,Y-S,PIG'T,J23C,AS |
| STYLUS PHOTO R2880 | 4113315 | NON FIG | SETTING UP MANUAL |
| STYLUS PHOTO R2880 | 4113316 | NON FIG | SETTING UP MANUAL |
| STYLUS PHOTO R2880 | 4113317 | NON FIG | SETTING UP MANUAL SDOTT |
| STYLUS PHOTO R2880 | 4113318 | NON FIG | SETTING UP MANUAL |
| STYLUS PHOTO R2880 | 3103366 | NON FIG | SOFTWARE CD,EURO |
