EPSON L800/L801 Parts Manual
In stock
SKU
EP-L800-PM
$1.30
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L800/L801 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.31M |
| Pages | 6 |
| Type | SERVICE or PARTS MANUAL |

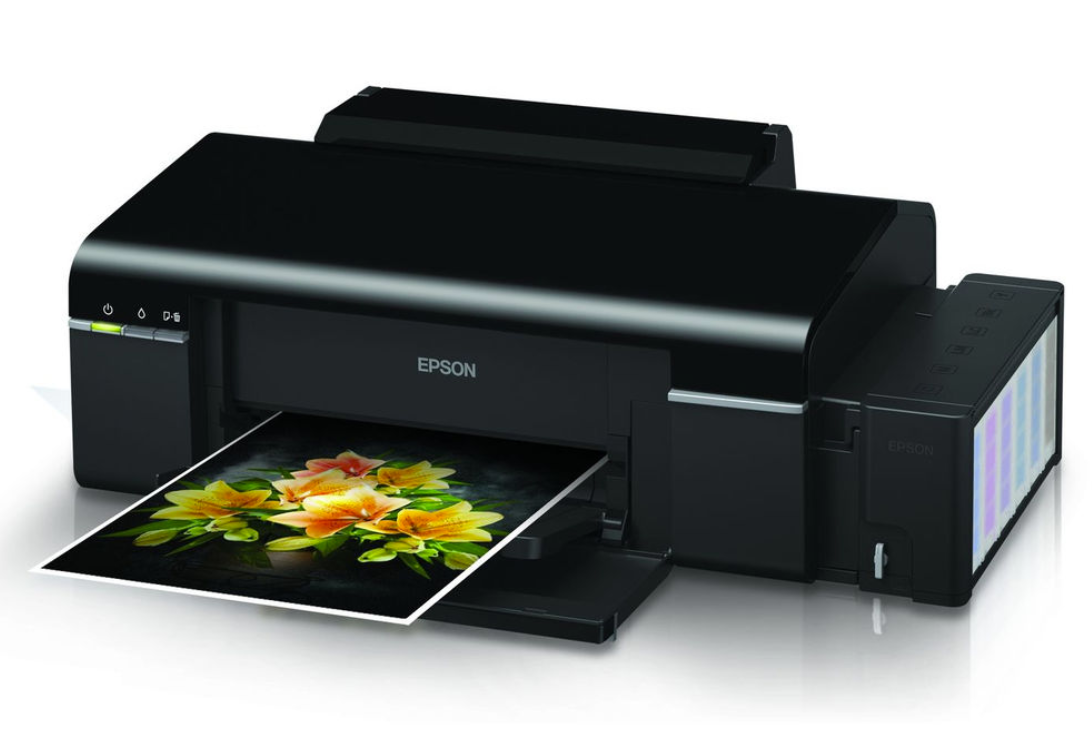

| Compatible Model | EPSON L800/L801 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Model | Article | Reference | Description |
| l800 | 1516753 | 1 | TRAY CDR ASSY.,CA45,ASP |
| l800 | 1552784 | 100 | HOUSING LOWER ASSY.,CB57,ASP,EPPI |
| l800 | 1677399 | 100 | HOUSING LOWER ASSY.,CB57,ASP,EPPI |
| l800 | 1521980 | 103 | FOOT,B |
| l800 | 1463694 | 106 | GUIDE,STACKER,LEFT |
| l800 | 1463725 | 107 | GUIDE,STACKER,RIGHT |
| l800 | 1465134 | 111 | STACKER SUPPORT ASSY,C691,EPPI |
| l800 | 1552563 | 112 | COVER PRINTER ASSY.,CB57,EPPI |
| l800 | 1557676 | 113 | PAPER SUPPORT ASSY,CB57,EPPI |
| l800 | 1547233 | 114 | COVER,CASE |
| l800 | 1545374 | 115 | HOUSING,UPPER |
| l800 | 2090717 | 124 | LEAF SENSOR |
| l800 | 2124467 | 126 | HARNESS |
| l800 | 2121250 | 127 | HARNESS,DETECTOR,CASE,OPEN,B |
| l800 | 1505727 | 128 | HOLDER,OPEN,SENSOR |
| l800 | 1463533 | 130 | COVER,INK,TUBE |
| l800 | 1561563 | 133 | COVER STACKER ASSY.,C,CA45,EPPI |
| l800 | 1557962 | 135 | HOUSING,RIGHT,C |
| l800 | 1474303 | 139 | LABEL,CDR |
| l800 | 1506410 | 140 | HOUSING PANEL ASSY.,CA45,EPPI |
| l800 | 1505725 | 141 | DECORATION BELT,RIGHT |
| l800 | 1557963 | 142 | HOUSING,LEFT,C |
| l800 | 1505729 | 143 | DECORATION BELT,LEFT |
| l800 | 2154015 | 200 | BOARD ASSY.,MAIN |
| l800 | 2174808 | 200 | BOARD ASSY.,MAIN |
| l800 | 2143579 | 200 | Ersetzt durch: 2154015 |
| l800 | 2116495 | 201 | BOARD ASSY.,PANEL |
| l800 | 2173131 | 201 | BOARD ASSY.,PANEL |
| l800 | 2144008 | 202 | INSULATION SPACER TR |
| l800 | 1465151 | 300 | POWER SUPPLY ASSY,C691,PSE,EPPI |
| l800 | 2121764 | 400 | POWER CABLE |
| l800 | 2137356 | 500 | Ersetzt durch: 2151622 |
| l800 | 2151622 | 500 | PRINTER MECHANISM,ASP |
| l800 | 1552782 | 501 | PAPER GUIDE FRONT ASSY.,CB57,ASP,EPPI |
| l800 | 1463787 | 503 | POROUS PAD,PAPER GUIDE,FRONT |
| l800 | 1473045 | 504 | Ersetzt durch: 1560326 |
| l800 | 1560326 | 504 | FRAME EJ ASSY,C691,ASP,EPPI |
| l800 | 1410323 | 505 | TORSION SPRING,FRAME,EJ,LEFT |
| l800 | 1410043 | 506 | TORSION SPRING,FRAME,EJ |
| l800 | 1410051 | 507 | LEVER,PE |
| l800 | 1447953 | 508 | TORSION SPRING,LEVER,PE |
| l800 | 2126943 | 509 | MOTOR,ASSY.,PF |
| l800 | 1465137 | 511 | PAPER GUIDE UPPER ASSY,C691,EPPI |
| l800 | 1481233 | 512 | HOLDER,APG |
| l800 | 1465029 | 513 | SPUR GEAR,28.8 |
| l800 | 1416886 | 514 | COMPRESSION SPRING,2.25 |
| l800 | 1409938 | 515 | SPUR GEAR,12.8 |
| l800 | 1468745 | 516 | SPUR GEAR,33.6,B |
| l800 | 1409943 | 517 | COMPRESSION SPRING,0.97 |
| l800 | 1409945 | 518 | COMBINATION GEAR,12.8,27 |
| l800 | 1409946 | 519 | COMBINATION GEAR,14,22 |
| l800 | 1409999 | 520 | SCALE,CR |
| l800 | 2116693 | 521 | MOTOR ASSY.,CR |
| l800 | 1467981 | 522 | PULLEY,DRIVEN,B |
| l800 | 1262438 | 523 | SHAFT,PULLEY,DRIVEN |
| l800 | 1510062 | 524 | HOLDER,PULLY,DRIVEN,B |
| l800 | 1444296 | 525 | GROUNDING WIRE,PFEJ |
| l800 | 1552783 | 526 | INK SYSTEM ASSY,CB57,ASP,EPPI |
| l800 | 1409580 | 527 | EXTENSION SPRING,0.8 |
| l800 | 1481010 | 528 | LOCK,CR |
| l800 | 1474961 | 529 | COMPRESSION SPRING,0.98 |
| l800 | 1551276 | 530 | TIMING BELT,CR |
| l800 | 1409935 | 531 | SHAFT,GUIDE,CR |
| l800 | 1552781 | 532 | CARRIAGE ASSY,CB57,ASP,EPPI |
| l800 | 1550842 | 533 | CABLE HEAD ASSY.,CB57,EPPI |
| l800 | 2121202 | 534 | HARNESS,DETECTOR,GUIDE,CDR,B |
| l800 | 2020393 | 536 | DETECTOR,LEAF,B2 |
| l800 | 1424204 | 576 | SHEET,MIST |
| l800 | 1424205 | 577 | SHEET,MIST,B |
| l800 | 1426444 | 578 | SHEET,MIST,FRAME MAIN |
| l800 | 1426445 | 579 | SHEET,MIST,PAPER GUIDE,UPPER |
| l800 | 1483950 | 580 | SHEET,MIST,LD |
| l800 | 1483951 | 581 | SHEET,MIST,LD,B |
| l800 | 2090532 | 600 | PHOTO INTERUPTER,TLP1243(C8) |
| l800 | F180040 | 700 | PRINT HEAD |
| l800 | 1262694 | 701 | SCALE,PF |
| l800 | 1212722 | 702 | DOUBLE SIDED TAPE,D21 |
| l800 | 2116697 | 703 | CABLE,ENCODER,PF |
| l800 | 2116736 | 704 | BOARD ASSY.,ENCODER,PF |
| l800 | 1438752 | 705 | SPUR GEAR,26.5 |
| l800 | 1609430 | 707 | ASF ASSY.,CB57,EPPI |
| l800 | 1552931 | 707 | Ersetzt durch: 1609430 |
| l800 | 1473588 | 708 | GUIDE,ROLLER,LD |
| l800 | 1295162 | 709 | TORSION SPRING,137.7 |
| l800 | 1075955 | 710 | Ersetzt durch: 1640813 |
| l800 | 1637796 | 710 | ROLLER,LD,B |
| l800 | 1640813 | 710 | ROLLER,LD,B |
| l800 | 1447353 | 711 | HOLDER ROLLER RETARD ASSY.,M,C653,EPPI |
| l800 | 1409638 | 712 | COMBINATION GEAR,16.8,32.8 |
| l800 | 1474785 | 713 | LEVER,CHANGE,B |
| l800 | 1467962 | 714 | SPUR,GEAR,16,B |
| l800 | 1250632 | 715 | COMPRESSION SPRING,2.36 |
| l800 | 1469197 | 717 | TRAY,POROUS PAD,ASSY.,B |
| l800 | 1431481 | 718 | HOLDER,CONNECTOR,CSIC |
| l800 | 1558435 | 719 | LABEL,INITIAL SETUP,C |
| l800 | 1431483 | 721 | COVER,CABLE,HEAD,INNER |
| l800 | 1431482 | 722 | COVER,CABLE,HEAD |
| l800 | 1499173 | 725 | POROUS PAD,HOUSING,LOWER |
| l800 | 1499152 | 726 | POROUS PAD INK,EJ,CAP,LOWER,B |
| l800 | 1466932 | 730 | SHAFT ROLLER,LD ASSY,C691,EPPI |
| l800 | 1564919 | 731 | TANK,SUPPLY,INK,MAGENTA,ASSY,D |
| l800 | 1564921 | 732 | TANK,SUPPLY,INK,YELLOW,ASSY,D |
| l800 | 1615833 | 732 | TANK,SUPPLY,INK,YELLOW,ASSY,D |
| l800 | 1564922 | 733 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| l800 | 1620878 | 733 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| l800 | 1615834 | 733 | TANK,SUPPLY,INK,CYAN,ASSY,D |
| l800 | 1564920 | 734 | TANK,SUPPLY,INK,BLACK,ASSY,D |
| l800 | 1615832 | 734 | TANK,SUPPLY,INK,BLACK,ASSY,D |
| l800 | 1564923 | 735 | TANK,SUPPLY,INK,L.CYAN,ASSY,B |
| l800 | 1615835 | 735 | TANK,SUPPLY,INK,L.CYAN,ASSY,B |
| l800 | 1564924 | 736 | TANK,SUPPLY,INK,L. MAGENTA,ASSY[155197] |
| l800 | 1615836 | 736 | TANK,SUPPLY,INK,L. MAGENTA,ASSY[155197] |
| l800 | 1597513 | 737 | CAP,TANK |
| l800 | 1538416 | 737 | Ersetzt durch: 1597513 |
| l800 | 1545377 | 738 | COVER,LEFT |
| l800 | 1545378 | 739 | COVER,RIGHT |
| l800 | 1545379 | 740 | COVER,TOP |
| l800 | 1545380 | 741 | COVER,BOTTOM |
| l800 | 1566791 | 742 | VALVE ASSY,ASP,B,CB57,ASP,EPPI |
| l800 | 1641731 | 742 | VALVE ASSY,ASP,B,CB57,ASP,EPPI |
| l800 | 1564366 | 743 | LEVER VALVE,B |
| l800 | 1552786 | 744 | TUBE,SUPPLY,INK ADAPTER ASSY,CB57,ASP |
| l800 | 1639369 | 744 | TUBE,SUPPLY,INK ADAPTER ASSY,CB57,ASP |
| l800 | 1624320 | 745 | ADAPTER,ASSY,B |
| l800 | 1548351 | 745 | Ersetzt durch: 1624320 |
| l800 | 1545382 | 746 | JOINT,TUBE |
| l800 | 1547231 | 747 | GUIDE,TUBE |
| l800 | 1551274 | 748 | SHEET,GUIDE,TUBE |
| l800 | 1551275 | 749 | SHEET,GUIDE,TUBE,SUB |
| l800 | 1547234 | 750 | COVER,ADAPTOR |
| l800 | 1547235 | 751 | HOLDER,TUBE |
| l800 | 1552175 | 752 | SHEET,SCALE,PF |
| l800 | 1551073 | 753 | COVER,JOINT,6C |
| l800 | 1551272 | 754 | POROUS PAD,COVER,CASE |
| l800 | 1551273 | 755 | POROUS PAD,TUBE |
| l800 | 1552174 | 756 | COVER,SCALE,PF,INNER |
| l800 | 1563755 | 757 | HOLDER,TUBE,VALVE,FRONT,D |
| l800 | 1563749 | 758 | HOLDER,TUBE,VALVE,REAR,D |
| l800 | 1559375 | 760 | LABEL,VALVE POSITION,C |
| l800 | 1558162 | 761 | LABEL,GENUINE INK,T673/CISMEA |
| l800 | 1556135 | 762 | CAP,AIR RELEASE HOLE |
| l800 | 1564668 | NON FIG | INK BOTTLE BOXED,BK,DYE,7580,70,CIS,AS |
| l800 | 1564669 | NON FIG | INK BOTTLE BOXED,C,DYE,7580,70,CIS,AS |
| l800 | 1564672 | NON FIG | INK BOTTLE BOXED,LC,DYE,7580,70,CIS,AS |
| l800 | 1564673 | NON FIG | INK BOTTLE BOXED,LM,DYE,7580,70,CIS,AS |
| l800 | 1564670 | NON FIG | INK BOTTLE BOXED,M,DYE,7580,70,CIS,AS |
| l800 | 1564671 | NON FIG | INK BOTTLE BOXED,Y,DYE,7580,70,CIS,AS |
| l800 | 1453980 | NON FIG | PFP BASE SCALE |
| l800 | 4120755 | NON FIG | SETTING UP MANUAL |
| l800 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| l800 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| l800 | 3107675 | NON FIG | SOFTWARE DISC,EURO |
| l800 | 1575865 | NON-FIG | GREASE G-77 |
