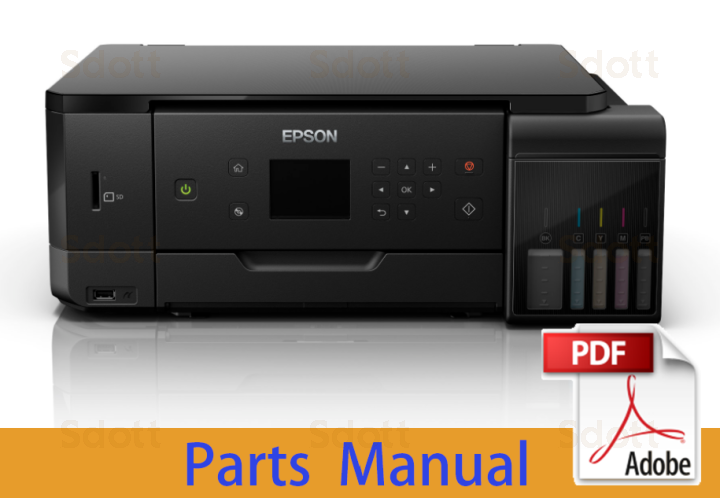

EPSON L7160 ET-7700 EW-M770T EW-M770TW Parts Manual
In stock
SKU
EP-L7160-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L7160 ET-7700 EW-M770T EW-M770TW Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.01M |
| Pages | 7 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L7100 Series Epson ET-7700 Series |
EPSON L7160 ET-7700 EW-M770T EW-M770TW Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******
| Article | Reference | Description |
| 1710028 | 100 | HOUSING,FRONT,TOP |
| 1713921 | 101 | HOUSING,LOWER,LEFT,,ASSY,IEI |
| 1734147 | 102 | HOUSING,UPPER,ASSY,EEB,ASP |
| 1726024 | 104 | HOUSING,FRONT,LEFT,B |
| 1710762 | 105 | HOUSING,FRONT,LOWER,LEFT |
| 1720553 | 106 | FRAME,BASE,LEFT,ASSY,ASP,IEI |
| 1732046 | 107 | FRAME,BASE,RIGHT,CG15.,ASSY,ASP |
| 1720554 | 109 | PANEL UNIT.,CG15,ASP |
| 1720552 | 117 | COVER,MAINT,BOX,ASSY,ASP |
| 1713920 | 200 | FRAME,BASE,LEFT,ASSY.,IEI |
| 2159109 | 205 | HARNESS MAIN-SUBB,2159109-01 |
| 2159099 | 206 | BOARD ASSY.,SUB |
| 1743592 | 207 | HOUSING,FRONT,LEFT,B.,ASSY,IEI |
| 1832034 | 207 | HOUSING,FRONT,LEFT,B.,ASSY,IEI |
| 2159107 | 208 | HARNESS MAIN-SUB,2159107-01 |
| 2180247 | 209 | BOARD ASSY.,SUB |
| 2192160 | 210 | WIRELESS LAN USB MODULE |
| 2183047 | 211 | HARNESS MAIN-STG,2183047-01 |
| 2194872 | 300 | BOARD ASSY.,POWER SUPPLY 7057B,CG15 STANDARD |
| 1572503 | 501 | FOOT |
| 1632058 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| 1629883 | 515 | STACKER,MAIN |
| 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY |
| 1571813 | 517 | SLIDER,TRANSMISSION,LEFT |
| 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| 1713903 | 520 | HOLDER,STAR WHEEL.,ASSY,IEI |
| 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| 1571772 | 522 | TORSION SPRING,5.1 |
| 1662106 | 523 | PAPER GUIDE,FRONT,,CE78,ASSY,IEI |
| 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| 1611329 | 526 | SCALE,CR,B |
| 1713900 | 530 | HEAD,FFC.,ASSY,IEI |
| 1638191 | 533 | ENCODER,PF,E ASSY |
| 1577835 | 534 | HOLDER,CAM ASSY |
| 1612525 | 535 | PAPER GUIDE,UPPER,INNER,B,ASSY |
| 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E |
| 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B |
| 1577828 | 542 | FRAME,PICKUP UNIT |
| 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY |
| 1607398 | 547 | SPUR GEAR,14.4,B |
| 1607397 | 548 | SPUR GEAR,17.6,B |
| 1612529 | 549 | DUAL ONE WAY CLUTCH,B,ASSY |
| 1607392 | 550 | COMPRESSION SPRING,0.57 |
| 1572152 | 551 | SHAFT,DRIVE,PICKUP |
| 2180650 | 552 | CABLE,ENCODER |
| 1572125 | 559 | COVER,PE,FRAME,BANK |
| 2142440 | 560 | MOTOR ASSY.,CR |
| 1662104 | 561 | HOLDER,FRICTION CLUTCH,CE78,ASSY,IEI |
| 1792028 | 562 | CARRIAGE ASSY,B,.CG15,IEI |
| 1576559 | 563 | CENTER SUPPORT,EJ |
| 1572235 | 564 | TIMING BELT,CR |
| 2109393 | 565 | BOARD ASSY.,DETECTOR,PW,B |
| 2154774 | 569 | BOARD ASSY.,SENSOR |
| 2154772 | 570 | BOARD ASSY.,SENSOR |
| 2144456 | 571 | CABLE,DETECTOR,PW,B |
| 1710054 | 575 | COVER,SHAFT,APG |
| 1572184 | 583 | SPURGEAR,16,CASSETTE,PHOTO |
| 1571812 | 584 | SPUR GEAR,19.2 |
| 1577864 | 701 | COVER,MSF ASSY |
| 1720482 | 702 | FRAME,MSF.,CG15,ASSY,IEI |
| 1713917 | 703 | DUPLEX,UNIT,IEI |
| 1710045 | 704 | HINGE,ASSY,SC |
| 1710046 | 705 | HOLDER,HINGE |
| 1710047 | 706 | HINGE |
| 1720484 | 707 | CASSETTE,PHOTO.,CG15., ASSY,IEI |
| 1735347 | 708 | TRAY,BD |
| 1720565 | 709 | CASSETTE CDR,ASSY,A.,IEI,ASP |
| 1710172 | 710 | SEAL,ADAPTER |
| 1714003 | 711 | ADAPTER,CHIMNEY,ASSY,IEI |
| 1714004 | 712 | AIR CHAMBER,SUPPLY,INK,50,ASSY,IEI |
| 1714005 | 713 | AIR CHAMBER,SUPPLY,INK,100,ASSY,IEI |
| 2143464 | 714 | PHOTO INTERRUPTER |
| 1749779 | 715 | KEYSLOT,CG15,B.,ASSY,IEI,ASP |
| 1710178 | 716 | POROUS PAD,TANK,UPPER |
| 1713902 | 717 | TANK UNIT 100,IEI |
| 1713904 | 718 | TANK UNIT 50,IEI |
| 2180703 | 719 | CABLE,CSIC,INK EJECT |
| 2090566 | 720 | CONNECTOR,CSIC |
| 1791993 | 721 | TUBE ADAPTER,CG15.,B,ASSY,IEI |
| 1713295 | 722 | TUBE,AIR CHAMBER,L |
| 1713296 | 723 | TUBE,AIR CHAMBER,S |
| 1724108 | 724 | HOUSING TANK.,ASSY,ASP |
| 1436642 | 725 | CLAMP,TUBE |
| 1719003 | 726 | INK,SYSTEM,,CG15,ASSY |
| 1710071 | 727 | SHEET,GUIDE,TUBE |
| 1734148 | 728 | COVER,TANK,ASSY,EEB,ASP |
| 5144319 | 729 | PAD,CR |
| 2183071 | 800 | SCANNER UNIT,.CG15,IEI,ASP |
| 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC |
| 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| 1724849 | 805 | COVER,DOCUMENT,ASSY,IEI,ASP |
| 1589095 | 806 | COVER,HOUSING,UPPER,SC,CA |
| 1588364 | 807 | CAP,COVER,HOUSING,UPPER,SC |
