EPSON L395 ET-2600 Parts Manual
In stock
SKU
EP-L395-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L395 ET-2600 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.53M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L300 Series Epson ET-2600 Series |
****** The following content is not included in the PDF manual, please use it online ******

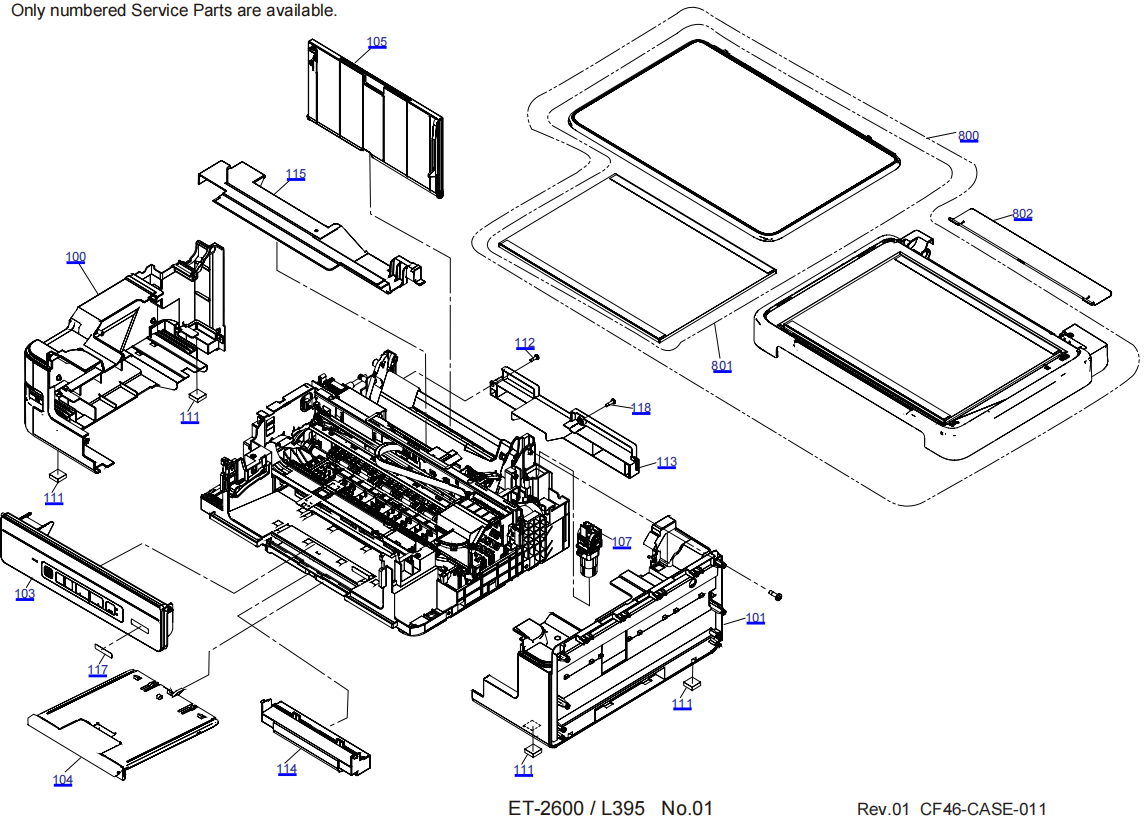

| Article | Reference | Description |
| 1696661 | 100 | HOUSING,LEFT |
| 1696653 | 101 | HOUSING,RIGHT |
| 1710751 | 103 | PANEL ASSY.,Q,CF46,EPPI |
| 1569304 | 104 | STACKER ASSY.,CC05,EPPI |
| 1569308 | 105 | PAPER SUPPORT ASSY.,CC05,EPPI |
| 1585092 | 107 | HINGE,ASSEMBLY,B |
| 1598326 | 111 | FOOT |
| 1283697 | 112 | C.B.P-TITE SCREW,3X10,F/ZB-3C |
| 1696655 | 113 | HOUSING,REAR,BOTTOM |
| 1696656 | 114 | HOUSING,FRONT,BOTTOM |
| 1696660 | 115 | COVER,REAR |
| 1700327 | 117 | LABEL,MODEL,NAME,ET-2600 |
| 1283698 | 118 | C.B.P-TITE SCREW,3X12 F/ZB-3C |
| 2188917 | 200 | BOARD ASSY.,MAIN |
| 2179218 | 300 | POWER SUPPLY UNIT |
| 2192160 | 351 | WIRELESS LAN USB MODULE |
| 2161626 | 354 | HARNESS |
| 1572338 | 501 | LEVER,DETECTOR,PE,HD |
| 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| 1575162 | 507 | HOLDER RETURD ASSY.,CC29,EPPI |
| 1576550 | 508 | FRAME PUMP ASSY,,CC03,EPPI |
| 1569314 | 510 | SHAFT ROLLER LD ASSY.,CC05,EPPI |
| 1593349 | 511 | SCALE,CR |
| 1610666 | 513 | CAP ASSY.,CC86,EPPI,ASP |
| 1572339 | 514 | PAPER GUIDE,FRONT,HD |
| 2176501 | 515 | MOTOR ASSY,CR |
| 1712211 | 517 | CR ASSY.,CF46,EPPI,ASP |
| 2145558 | 518 | CABLE,HEAD,F2 |
| 2142475 | 519 | CABLE,ENCORDER,F2,CISS |
| 1548518 | 521 | SCALE,PF |
| 1572337 | 523 | TIMING BELT,CR,3.5 |
| 1548528 | 527 | CLUTCH |
| 1548529 | 528 | SPUR GEAR,37.2 |
| 1548530 | 529 | EXTENSION SPRING,0.137 |
| 1548494 | 530 | EXTENSION SPRING,0.067 |
| 1569029 | 531 | POROUS PAD,CAP,LOWER,2 |
| 2145563 | 539 | CABLE,ENCODER,PF |
| 1598289 | 544 | HOPPER ASSY.,CC87,EPPI |
| 1572346 | 545 | LEVER,LOCK,SLIDER,CISS |
| 1576982 | 547 | HOLDER STARWHEEL ASSY.,CC26,EPPI |
| 1627961 | 548 | TRAY POROUS PAD ASSY.,CISS,EPPI |
| 1549886 | 549 | EXTENSION SPRING,3.128 |
| 1549888 | 550 | EXTENSION SPRING,0.32 |
| 1696652 | 551 | GUIDE,TUBE,SUPPLY,INK |
| FA04040 | 700 | Ersetzt durch: FA04060 |
| 1591209 | 701 | HOLDER,BOARD,CISS |
| 1698674 | 704 | CAP,TANK |
| 1567193 | 706 | COVER,CABLE,HEAD,F2 |
| 1715042 | 708 | TANK,SUPPLY,INK ASSY.,CF47,EPPI,ASP |
| 1758358 | 709 | ADAPTER,ASSY,CE55,EPPI |
| 1538442 | 710 | JOINT,TUBE |
| 1696658 | 714 | HOUSING,TANK,LOWER |
| 1712212 | 715 | HOUSING TANK UPPER,ASSY.,CF46,EPPI,ASP |
| 1703298 | 721 | TUBE SUPPLY INK ASSY.,CF47,EPPI |
| 1588413 | 725 | TUBE ADAPTER ASSY.,ASP |
| 1696659 | 726 | COVER,TANK |
| 1757253 | 734 | TANK ASSY.,CF47,EPPI |
| 1543355 | 735 | GUIDE PLATE,TUBE,SUPPORT |
| 1572347 | 736 | GUIDE,TUBE |
| 1700318 | 738 | LABEL,GENUINE,INK,EUR |
| 1700320 | 739 | LABEL,COLOR,INFORMATION |
| 2179285 | 800 | SCANNER UNIT,CF46,EPPI |
| 1703275 | 801 | COVER DOCUMENT ASSY.,B,CF47,EPPI |
| 1691112 | 802 | COVER,ASF |
