EPSON L15180 ET-16680 Parts Manual
In stock
SKU
EP-L15180-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L15180 ET-16680 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.31M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON L15180 EPSON ET-16680 |
EPSON L15180 ET-16680 Parts Manual
****** The following content is not included in the PDF manual, please use it online ******
| 5157027 | 10 | PAD,SCANNER,COVER,D |
| 1768250 | 100 | HOUSING,LEFT |
| 1848890 | 101 | HOUSING,RIGHT,D |
| 1862429 | 102 | PANEL UNIT,CH7141S,IEI,ASP |
| 1800423 | 103 | DECORATION PLATE,CISS |
| 1768254 | 104 | COVER,TANK |
| 1800424 | 105 | DECORATION PLATE,COVER,TANK |
| 1827731 | 106 | COVER,PAPER SUPPORT,RASF,B,ASSY,IEI,ASP |
| 1798438 | 107 | HOUSING,UPPER,B |
| 1768029 | 108 | TORSION SPRING,33.41 |
| 1845726 | 109 | LABEL,PrecisionCore,F2 |
| 5157439 | 11 | PAD,SC,120x10x3T |
| 1803704 | 110 | LABEL,TRANSFER,W |
| 1775273 | 111 | LABEL,Caution,Right,EEB WE,B |
| 1817259 | 112 | POROUS PAD,HOUSING,RIGHT |

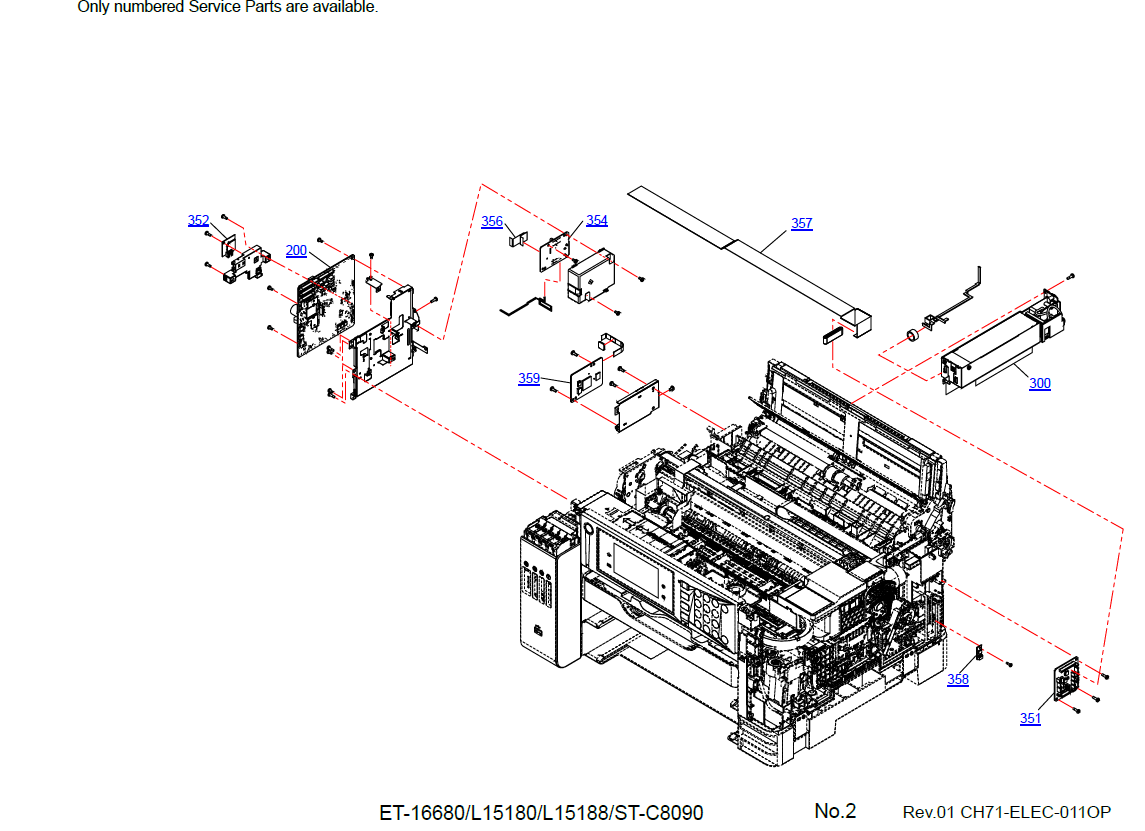

| 2214123 | 200 | BOARD ASSY.,MAIN |
| 2217786 | 200 | BOARD ASSY.,MAIN |
| 2219422 | 200 | BOARD ASSY.,MAIN |
| 1802306 | 300 | POWER SUPPLY,ASSY,CH67,B.,IEI |
| 2196054 | 351 | BOARD ASSY.,SUB |
| 2207228 | 352 | WIRELESS LAN USB MODULE |
| 2195932 | 354 | BOARD ASSY.,INTERFACE |
| 2198236 | 356 | FFC,Main-Fax(10pin) |
| 2198233 | 357 | FFC,MAIN-SUB,29 Pin |
| 2176012 | 358 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| 2211103 | 359 | BOARD ASSY.,MAIN |
| 1768577 | 501 | SCALE,CR |
| 1768579 | 502 | TORSION SPRING,15.66 |
| 2198121 | 503 | MOTOR ASSY.,CR |
| 1857579 | 504 | CARRIAGE,ASSY,CH71,A: IEI |
| 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| 1768590 | 507 | TORSION SPRING,142.52 |
| 1768592 | 508 | COMPRESSION SPRING,9.83 |
| 1845646 | 509 | HOUSING,FRONT,D |
| 1829637 | 510 | SPEAKER,ASSY,CH71.,IEI |
| 1802309 | 511 | GUIDE,RASF,UPPER,ASSY,IEI |
| 1824006 | 512 | SCALE,PF,IEI,ASP |
| 1768589 | 514 | TORSION SPRING,154.73 |
| 2198112 | 516 | CABLE,ENCODER,PF |
| 1768538 | 518 | POROUS PAD,PAPER GUIDE,LOWER |
| 1834810 | 519 | POROUS PAD,PAPER GUIDE,LOWER,B2 |
| 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C |
| 1808392 | 521 | PAPER GUIDE,FRONT,ASSY,CH71,IEI |
| 1808191 | 522 | HOLDER,STAR WHEEL,EJ1,CH71,ASSY.,IEI |
| 1810103 | 523 | HOLDER,STAR WHEEL,EJ2,CH71,ASSY.,IEI |
| 1768567 | 524 | TORSION SPRING,8.81 |
| 2205102 | 525 | MOTOR ASSY.,PF,B |
| 1522628 | 526 | EXTENSION SPRING,11.11 |
| 1768542 | 527 | EXTENSION SPRING,6.25 |
| 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI |
| 1829639 | 529 | PAPER GUIDE UPPER ASSY, SIDE,CH71.,IEI |
| 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI |
| 1802407 | 532 | FRAME,SEPARATE,ASSY,IEI |
| 2205104 | 533 | MOTOR ASSY.,ASF,B |
| 2147998 | 534 | BOARD ASSY.,SUB |
| 2198048 | 535 | CABLE,ENCODER,ASF |
| 1768052 | 536 | COMPRESSION SPRING,41.6 |
| 1108107 | 539 | FOOT |
| 1856142 | 540 | FRAME,BASE,2nd,ASSY,B,IEI,ASP |
| 1821090 | 541 | ONEWAY CLUTCH ASSY,2ND.,IEI |
| 1768576 | 542 | TIMING BELT,CR |
| 1802310 | 543 | APG,ASSY,IEI |
| 1881756 | 543 | APG,ASSY,IEI |
| 1813534 | 544 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1814233 | 545 | POROUS PAD,PAPER GUIDE,LOWER,E |
| 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI |
| 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI |
| 1834813 | 550 | SHEET,20x18 |
| 1834812 | 552 | DOUBLE SIDED TAPE,15x65 |
| 2198108 | 553 | MOTOR ASSY.,EJ |
| 1768064 | 554 | TORSION SPRING,103.52 |
| 1768063 | 555 | LEVER,ESCAPE,PICK UP |
| 1802410 | 556 | PICK UP,ASSY,IEI |
| 2150699 | 557 | LEAF SENSOR,P599 |
| 1522680 | 558 | TIMMING BELT,PF |
| 1522660 | 559 | CAP,DETECTOR,PW |
| 2197079 | 560 | PHOTO INTERRUPTER,ASF |
| 1768189 | 561 | SPUR GEAR,24 |
| 1881528 | 561 | SPUR GEAR,24 |
| 2198110 | 562 | HARNESS,DETECTOR,PE |
| 2198039 | 563 | DETECTOR ASSY.,CASSETTE,1ST |
| 2198040 | 564 | DETECTOR ASSY.,CASSETTE,2ND |
| 1768564 | 565 | TIMING BELT,EJ |
| FA32041 | 700 | PRINT HEAD,IF475V-4,ASP ORDER TO SEC WITH MOQ=12PCS, |
| 1802305 | 701 | STACKER ASSY (WHITE),B,IEI |
| 1827727 | 702 | CASSETTE ASSY 1ST BIN (WHITE),B,IEI,ASP |
| 1798415 | 703 | COVER,CASSETTE,B |
| 1827729 | 704 | CASSETTE ASSY 2ND BIN (WHITE),B,IEI,ASP |
| 1783865 | 705 | COVER,LD,SUB |
| 1829665 | 706 | PAPER SUPPORT,RASF,ASSY,CH71,B,IEI |
| 1802364 | 707 | DUPLEX UNIT (ASF) (WHITE),B,IEI |
| 1841341 | 708 | RASF,ASSY,D.,IEI,ASP |
| 1768007 | 709 | EXTENSION SPRING,5.529 |
| 1827713 | 710 | KEY SLOT,C,ASSY,IEI,ASP |
| 1824313 | 711 | POROUS PAD,TANK,UPPER |
| 1858183 | 712 | I/S TANK UNIT,CH71,IEI,A,ASP |
| 2199020 | 713 | CABLE,CSIC |
| 2197925 | 714 | CONECTOR,CSIC |
| 1772632 | 715 | JOINT,MAINTENANCE BOX |
| 2198240 | 716 | Harness,Host USB |
| 1768251 | 717 | HOUSING,CISS |
| 1860201 | 717 | HOUSING,CISS |
| 1857578 | 718 | CABLE,HEAD,ASSY,CH71,A:ASP |
| 1854107 | 719 | VALVE ASSY,CH71.B,IE |
| 1748879 | 720 | POROUS PAD,CR,B |
| 1768569 | 721 | HOLDER,ADAPTER |
| 1805439 | 722 | LABEL,INSTRUCTION,VALVE |
| 1768571 | 723 | COVER,CR |
| 1802408 | 724 | STACKER,DRIVE,ASSY,CH67,IEI |
| 1436642 | 725 | CLAMP,TUBE |
| 1827711 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP |
| 1872663 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP |
| 1808238 | 727 | ADAPTOR,ASSY,BK,CH71.,IEI |
| 1803724 | 730 | COVER,INK EJECT,D |
| 1775081 | 731 | POROUS PAD,CAP,LOWER |
| 1710162 | 732 | CAP,TANK |
| 1775092 | 733 | HINGE,CAP,TANK |
| 1814497 | 734 | LABEL,INK POSITION,KMYC,EEB WE |
| 1796247 | 735 | SHEET,GUIDE,TUBE |
| 1775164 | 736 | SHEET,COVER,TUBE |
| 1827720 | 737 | TUBE,SUPPLY,INK,u4,ASSY,IEI,ASP |
| 1817260 | 738 | POROUS PAD,IS,REAR |
| 1817266 | 739 | GUIDE,POROUS PAD,FRAME,IS |
| 1817272 | 742 | POROUS PAD,HEAD,u4,B |
| 1853308 | 743 | SHEET,PROTECTION,TUBE VALVE |
| 1827725 | 800 | SCANNER UNIT,B,CH67.,ASP |
| 1768156 | 801 | HINGE ASSY.,SC |
| 1768149 | 802 | HOLDER,HARNESS,SC |
| 1768150 | 803 | COVER,HARNESS,SC |
| 1841555 | 900 | ADF UNIT,CH71,B.,IEI,ASP |
| 1900297 | 900 | ADF UNIT,CH71,B.,IEI,ASP |
| 1910489 | 900 | ADF UNIT,CH71,B.,IEI,ASP |
| 1768122 | 901 | MAT,COVER,DOCUMENT |
| 1821028 | 902 | LD ASSY, ADF,IEI |
| 1841548 | 903 | DOCUMENT,SUPPORT,ADF,ASSY,D.,IEI,ASP |
| 1805999 | 904 | LABEL,INSTRUCTION,ADF,W |
| 1802319 | 905 | PAPER GUIDE,UPPER,ADF,ASSY,B,CH67.,IEI |
| 1815806 | 906 | LABEL,TRANSPORTATION LOCK |
| 1829633 | 907 | PAD ADF,ASSY,CH71.,IEI |
| 1524343 | 908 | COMPRESSION SPRING,2.25 |
| 1768121 | 909 | HINGE ASSY.,ADF |
| 1883821 | 909 | HINGE ASSY.,ADF |
| 1894400 | 909 | HINGE ASSY.,ADF |
| 1851900 | 910 | LABEL,INK,CONDENSE,EEB WE,ASP |
