EPSON L15150 L15158 ET-16600 PX-M6711FT Parts Manual
In stock
SKU
EP-L15150-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L15150 L15158 ET-16600 PX-M6711FT Parts Manual |
|---|---|
| Format | |
| PDF Archive | 9.42M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L15100 Series Epson ET-16600 Series |
****** The following content is not included in the PDF manual, please use it online ******

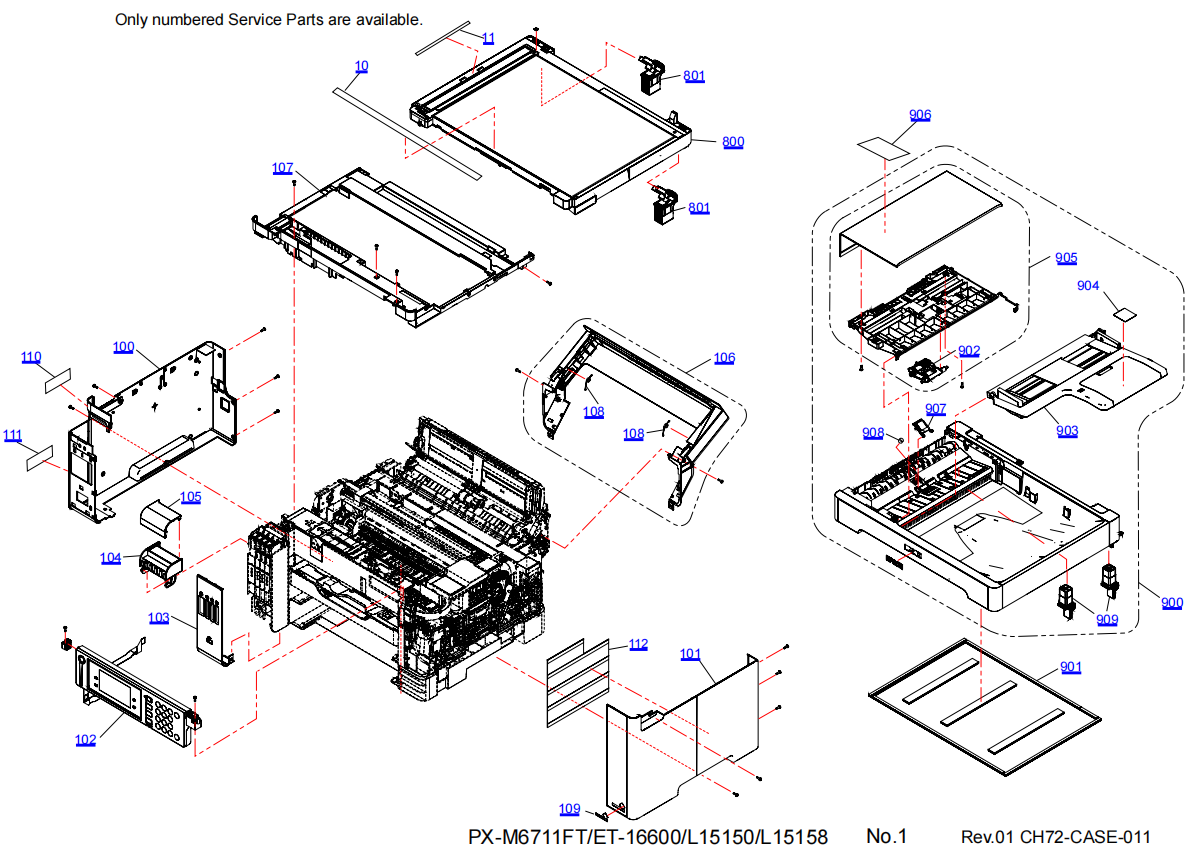

| Article | Reference | Description | |
| 5157027 | 10 | PAD,SCANNER,COVER,D | |
| 1800888 | 100 | HOUSING,LEFT | |
| 1789945 | 101 | HOUSING,RIGHT | |
| 1848887 | 101 | HOUSING,RIGHT | |
| 1830846 | 102 | PANEL UNIT,CH71,D,IEI,ASP | |
| 1800423 | 103 | DECORATION PLATE,CISS | |
| 1800892 | 104 | COVER,TANK,B | |
| 1800424 | 105 | DECORATION PLATE,COVER,TANK | |
| 1827732 | 106 | COVER,PAPER SUPPORT,RASF,IEI,ASP | |
| 1768214 | 107 | HOUSING,UPPER | |
| 1768029 | 108 | TORSION SPRING,33.41 | |
| 1682129 | 109 | LABEL,PRECISIONCORE,B | |
| 5157439 | 11 | PAD,SC,120x10x3T | |
| 1803703 | 110 | LABEL,TRANSFER,BK | |
| 1746899 | 111 | LABEL,Caution,Right,EEB WE | |
| 1817259 | 112 | POROUS PAD,HOUSING,RIGHT | |
| 2196050 | 200 | BOARD ASSY.,MAIN | |
| 2209963 | 200 | BOARD ASSY.,MAIN | |
| 2211054 | 200 | BOARD ASSY.,MAIN | |
| 1802306 | 300 | POWER SUPPLY,ASSY,CH67,B.,IEI | |
| 2196054 | 351 | BOARD ASSY.,SUB | |
| 2194158 | 352 | WIRELESS LAN USB MODULE | |
| 2195932 | 354 | BOARD ASSY.,INTERFACE | |
| 2198236 | 356 | FFC,Main-Fax(10pin) | |
| 2198233 | 357 | FFC,MAIN-SUB,29 Pin | |
| 2176012 | 358 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F | |
| 1768577 | 501 | SCALE,CR | |
| 1768579 | 502 | TORSION SPRING,15.66 | |
| 2198121 | 503 | MOTOR ASSY.,CR | |
| 1808391 | 504 | CARRIAGE,ASSY,CH71,IEI | |
| 1857579 | 504 | CARRIAGE,ASSY,CH71,IEI | |
| 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B | |
| 1768590 | 507 | TORSION SPRING,142.52 | |
| 1768592 | 508 | COMPRESSION SPRING,9.83 | |
| 1768221 | 509 | HOUSING,FRONT | |
| 1829637 | 510 | SPEAKER,ASSY,CH71.,IEI | |
| 1802309 | 511 | GUIDE,RASF,UPPER,ASSY,IEI | |
| 1720135 | 512 | SCALE,PF,ASP | |
| 1768589 | 514 | TORSION SPRING,154.73 | |
| 2198112 | 516 | CABLE,ENCODER,PF | |
| 1768538 | 518 | POROUS PAD,PAPER GUIDE,LOWER | |
| 1768561 | 519 | POROUS PAD,PAPER GUIDE,LOWER,B | |
| 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C | |
| 1808392 | 521 | PAPER GUIDE,FRONT,ASSY,CH71,IEI | |
| 1808191 | 522 | HOLDER,STAR WHEEL,EJ1,CH71,ASSY.,IEI | |
| 1810103 | 523 | HOLDER,STAR WHEEL,EJ2,CH71,ASSY.,IEI | |
| 1768567 | 524 | TORSION SPRING,8.81 | |
| 2205102 | 525 | MOTOR ASSY.,PF,B | |
| 1522628 | 526 | EXTENSION SPRING,11.11 | |
| 1768542 | 527 | EXTENSION SPRING,6.25 | |
| 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI | |
| 1829639 | 529 | PAPER GUIDE UPPER ASSY, SIDE,CH71.,IEI | |
| 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI | |
| 1802407 | 532 | FRAME,SEPARATE,ASSY,IEI | |
| 2205104 | 533 | MOTOR ASSY.,ASF,B | |
| 2147998 | 534 | BOARD ASSY.,SUB | |
| 2198048 | 535 | CABLE,ENCODER,ASF | |
| 1768052 | 536 | COMPRESSION SPRING,41.6 | |
| 1108107 | 539 | FOOT | |
| 1802308 | 540 | FRAME,BASE,2nd,ASSY,IEI | |
| 1856143 | 540 | FRAME,BASE,2ND,ASSY,IEI | |
| 1768576 | 542 | TIMING BELT,CR | |
| 1802310 | 543 | APG,ASSY,IEI | |
| 1881756 | 543 | APG,ASSY,IEI | |
| 1813534 | 544 | POROUS PAD,PAPER GUIDE,LOWER,D | |
| 1814233 | 545 | POROUS PAD,PAPER GUIDE,LOWER,E | |
| 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI | |
| 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI | |
| 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI | |
| FA32031 | 700 | PRINT HEAD,IF475V-3,ASP ORDER TO SEC WITH MOQ=12PCS, S | |
| FA32041 | 700 | PRINT HEAD,IF475V-3,ASP ORDER TO SEC WITH MOQ=12PCS, S | |
| 1801903 | 701 | STACKER ASSY (BK),IEI | |
| 1827728 | 702 | CASSETTE ASSY 1ST BIN (BK),IEI,ASP | |
| 1768048 | 703 | COVER,CASSETTE | |
| 1827730 | 704 | CASSETTE ASSY 2ND BIN (BK),IEI,ASP | |
| 1783865 | 705 | COVER,LD,SUB | |
| 1829666 | 706 | PAPER SUPPORT,RASF,ASSY,CH71.,IEI | |
| 1801905 | 707 | DUPLEX UNIT (ASF) (BK),IEI | |
| 1827724 | 708 | RASF,ASSY.,IEI,ASP | |
| 1768007 | 709 | EXTENSION SPRING,5.529 | |
| 1827713 | 710 | KEY SLOT,C,ASSY,IEI,ASP | |
| 1824313 | 711 | POROUS PAD,TANK,UPPER | |
| 1827733 | 712 | I/S TANK UNIT,CH71,IEI,ASP | |
| 1858183 | 712 | I/S TANK UNIT,CH71,IEI,ASP | |
| 2199020 | 713 | CABLE,CSIC | |
| 2197925 | 714 | CONECTOR,CSIC | |
| 1772632 | 715 | JOINT,MAINTENANCE BOX | |
| 2198240 | 716 | Harness,Host USB | |
| 1800889 | 717 | HOUSING,CISS,B | |
| 1860200 | 717 | HOUSING,CISS,B | |
| 1808240 | 719 | VALVE ASSY,CH71.,IEI | |
| 1803049 | 720 | POROUS PAD,CR | |
| 1768569 | 721 | HOLDER,ADAPTER | |
| 1805439 | 722 | LABEL,INSTRUCTION,VALVE | |
| 1768571 | 723 | COVER,CR | |
| 1802408 | 724 | STACKER,DRIVE,ASSY,CH67,IEI | |
| 1436642 | 725 | CLAMP,TUBE | |
| 1827711 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP | |
| 1872663 | 726 | I/S MAINTENANCE UNIT,CH71,IEI,ASP | |
| 1808238 | 727 | ADAPTOR,ASSY,BK,CH71.,IEI | |
| 2150699 | 729 | LEAF SENSOR,P599 | |
| 1803722 | 730 | COVER,INK EJECT,C | |
| 1775081 | 731 | POROUS PAD,CAP,LOWER | |
| 1710162 | 732 | CAP,TANK | |
| 1775092 | 733 | HINGE,CAP,TANK | |
| 1814497 | 734 | LABEL,INK POSITION,KMYC,EEB WE | |
| 1796247 | 735 | SHEET,GUIDE,TUBE | |
| 1775164 | 736 | SHEET,COVER,TUBE | |
| 1827720 | 737 | TUBE,SUPPLY,INK,u4,ASSY,IEI,ASP | |
| 1817260 | 738 | POROUS PAD,IS,REAR | |
| 1817266 | 739 | GUIDE,POROUS PAD,FRAME,IS | |
| 1827726 | 800 | SCANNER UNIT,CH67.,ASP | |
| 1768156 | 801 | HINGE ASSY.,SC | |
| 1839416 | 900 | ADF UNIT,CH67,C.,IEI,ASP | |
| 1841557 | 900 | ADF UNIT,CH67,C.,IEI,ASP | |
| 1768122 | 901 | MAT,COVER,DOCUMENT | |
| 1821028 | 902 | LD ASSY, ADF,IEI | |
| 1827722 | 903 | DOCUMENT,SUPPORT,ADF,ASSY,,IEI,ASP | |
| 1841549 | 903 | DOCUMENT,SUPPORT,ADF,ASSY,,IEI,ASP | |
| 1803702 | 904 | LABEL,INSTRUCTION,ADF | |
| 1802320 | 905 | PAPER GUIDE,UPPER,ADF,ASSY,CH67.,IEI | |
| 1815806 | 906 | LABEL,TRANSPORTATION LOCK | |
| 1829633 | 907 | PAD ADF,ASSY,CH71.,IEI | |
| 1524343 | 908 | COMPRESSION SPRING,2.25 | |
| 1768121 | 909 | HINGE ASSY.,ADF | |
