EPSON XP-850 EP-905F Parts Manual
In stock
SKU
EP-XP850-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-850 EP-905F Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.90M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-800 Series |
****** The following content is not included in the PDF manual, please use it online ******

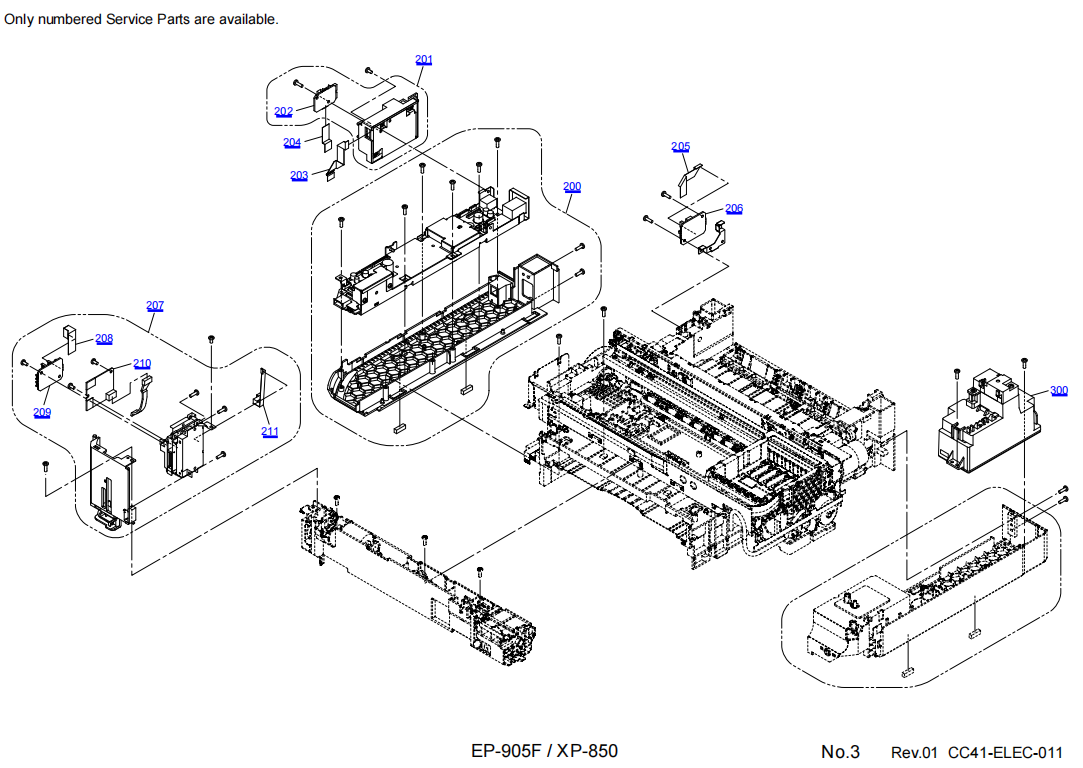

| Article | Reference | Description |
| 1577782 | 100 | HOUSING,FRONT,TOP ASSY |
| 1577783 | 101 | HOUSING,LOWER,LEFT ASSY |
| 1589862 | 102 | HOUSING,UPPER,EAI,ASSY,ASP |
| 1577781 | 103 | COVER,CARD SLOT ASSY |
| 1574076 | 104 | HOUSING,FRONT,LEFT |
| 1574066 | 105 | HOUSING,FRONT,LOWER,LEFT |
| 1589861 | 106 | FRAME,BASE,LEFT ASSY,ASP |
| 1637506 | 106 | FRAME,BASE,LEFT ASSY,ASP |
| 1599819 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| 1733187 | 107 | FRAME,BASE,RIGHT,D, ASSY,ASP |
| 1579745 | 108 | HOUSING,FRONT,RIGHT,B,ASSY |
| 1577744 | 109 | Ersetzt durch: 1638273 |
| 1638273 | 109 | PANEL,ASSY 3.5 INCH |
| 1605711 | 110 | FRAME,PANEL,B,ASSY |
| 1575820 | 111 | GROUNDING SPRING,MOTOR,PANEL |
| 1575821 | 112 | COMPRESSION SPRING,LOCK,PANEL,2.49 |
| 1590456 | 113 | HOUSING,FRONT,LOWER,RIGHT,H,ASSY,ASP |
| 1575720 | 114 | COVER,REAR,LEFT,ADF |
| 1575719 | 115 | COVER,REAR,RIGHT,ADF |
| 1597934 | 200 | Ersetzt durch: 1625022 |
| 1625022 | 200 | MAIN BOARD UNIT,CC41,D,IEI |
| 1577786 | 201 | Ersetzt durch: 1630282 |
| 1630282 | 201 | FAX ASSY |
| 2142550 | 202 | BOARD ASSY.,SUB |
| 2142557 | 203 | HARNESS |
| 2142560 | 204 | HARNESS |
| 2142559 | 205 | HARNESS |
| 2142546 | 206 | BOARD ASSY.,SUB |
| 1577777 | 207 | HOUSING,FRONT,LEFT ASSY |
| 2142558 | 208 | HARNESS |
| 2142543 | 209 | BOARD ASSY.,SUB |
| 2152527 | 210 | WIRELESS LAN USB MODULE |
| 2167573 | 210 | WIRELESS LAN USB MODULE |
| 2142556 | 211 | HARNESS |
| 2140850 | 212 | CR CONTACT MODULE |
| 2154774 | 213 | BOARD ASSY.,DETECTOR,PW |
| 2142432 | 213 | Ersetzt durch: 2154774 |
| 2142420 | 214 | BOARD ASSY.,DETECTOR,PE,FRONT |
| 2142529 | 300 | BOARD ASSY.,POWER SUPPLY |
| 2107708 | 400 | POWER CABLE |
| 1594420 | 402 | GUIDE,CAP,V2,764C,ASSY |
| 1572503 | 501 | FOOT |
| 1575721 | 502 | HINGE,ASSY.,ADF |
| 1577825 | 503 | PAPER GUIDE,FRAME,BANK ASSY |
| 1605721 | 504 | DUPLEX,UNIT,,D,IEI |
| 1577864 | 505 | COVER,MSF ASSY |
| 1577863 | 506 | FRAME,MSF ASSY |
| 1577779 | 507 | Ersetzt durch: 1611102 |
| 1611102 | 507 | TRAY,POROUS PAD,INK EJECT ASSY |
| 1595474 | 508 | INK,SYSTEM,,B,ASSY |
| 1436642 | 509 | CLAMP,TUBE |
| 1573556 | 510 | POROUS PAD,INK EJECT,IS,LOWER |
| 1581610 | 511 | CASSETTE,PHOTO,,C,ASSY |
| 1581608 | 512 | CASSETTE,REAR,MAIN,,C,ASSY |
| 1646851 | 512 | CASSETTE,REAR,MAIN,,C,ASSY |
| 1572170 | 513 | COVER,CASSETTE |
| 1572245 | 514 | TRAY,CDR |
| 1598416 | 515 | STACKER,MAIN,,C,ASSY |
| 1577837 | 516 | SHAFT,STACKER,DRIVE ASSY |
| 1571813 | 517 | SLIDER,TRANSMISSION,LEFT |
| 1585940 | 518 | NUT PLATE,FRAME,MAIN |
| 1572243 | 519 | TORSION SPRING,25.39,LEFT |
| 1598888 | 520 | HOLDER,STAR WHEEL,,B,ASSY |
| 1572244 | 521 | TORSION SPRING,44.24,RIGHT |
| 1571772 | 522 | TORSION SPRING,5.1 |
| 1598415 | 523 | PAPER GUIDE,FRONT,,B,ASSY |
| 1572509 | 524 | COVER,CLIP |
| 1571762 | 525 | POROUS PAD,PAPER GUIDE,LOWER |
| 1572237 | 526 | SCALE,CR |
| 1572225 | 528 | COVER,CR,FRONT |
| 1577896 | 529 | CONNECTOR,CSIC ASSY |
| 1589856 | 530 | CABLE HEAD,ASSY,ASP |
| 1575904 | 531 | GUIDE,IC,B |
| 1590457 | 532 | COVER,FFC ASSY,B,ASP |
| 1577832 | 533 | ENCODER,PF,C ASSY |
| 1577835 | 534 | HOLDER,CAM ASSY |
| 1577850 | 535 | PAPER GUIDE,UPPER,INNER ASSY |
| 1577851 | 536 | PAPER GUIDE,UPPER,OUTER ASSY |
| 1571769 | 537 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1571764 | 538 | POROUS PAD,PAPER GUIDE,LOWER,C |
| 1577469 | 539 | POROUS PAD,PAPER GUIDE,LOWER,E |
| 1571773 | 540 | STOPPER,POROUS PAD |
| 1571763 | 541 | POROUS PAD,PAPER GUIDE,LOWER,B |
| 1577828 | 542 | FRAME,PICKUP UNIT |
| 1577369 | 543 | COMPRESSION SPRING,0.084 |
| 1577824 | 544 | HOLDER,DETECTOR,CASSETTE,PHOTO ASSY |
| 2143464 | 545 | PHOTO INTERRUPTER |
| 2148213 | 800 | SCANNER UNIT,CC45,IEI,ASP |
| 1575744 | 803 | HOUSING,LOWER,REAR,LEFT,SC |
| 1575745 | 804 | HOUSING,LOWER,REAR,RIGHT,SC |
| 2148211 | 900 | ADF UNIT,CC45,IEI,ASP |
| 1577795 | 901 | COVER,ADF ASSY |
| 1575713 | 902 | COVER,REAR,ADF |
| 1589871 | 903 | COVER,DOCUMENT,SUPPORT,ADF,ASSY,ASP |
| 1575711 | 904 | COVER,STACKER,ADF |
| 1577803 | 905 | PAD,ADF ASSY |
| 1577821 | 906 | DOCUMENT,SUPPORT,ADF ASSY |
| 1575715 | 907 | BASE,ADF |
| 1575716 | 908 | STACKER,SUB,ADF |
| 1575714 | 909 | COVER,RIGHT,ADF |
| 1575718 | 910 | GUIDE,HINGE |
| 1575709 | 911 | COVER,FRONT,ADF |
| 1577794 | 912 | Ersetzt durch: 1611191 |
| 1611191 | 912 | MOUNTING PLATE,MAT ASSY |
