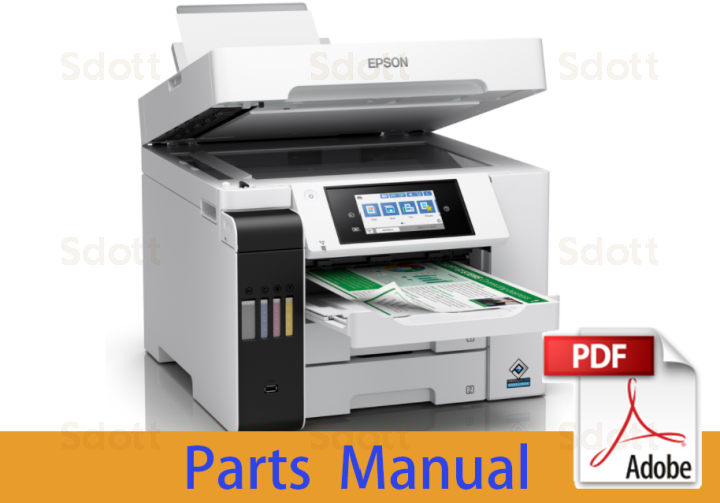

EPSON L6550 L6558 ET-5800 Parts Manual
In stock
SKU
EP-L6550-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON L6550 L6558 ET-5800 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 7.54M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson L6500 Series Epson ET-5800 Series |
EPSON L6550 L6558 ET-5800 Parts Manual
***** The following content is not included in the PDF manual *****
***** Please refer to the details ONLINE ******

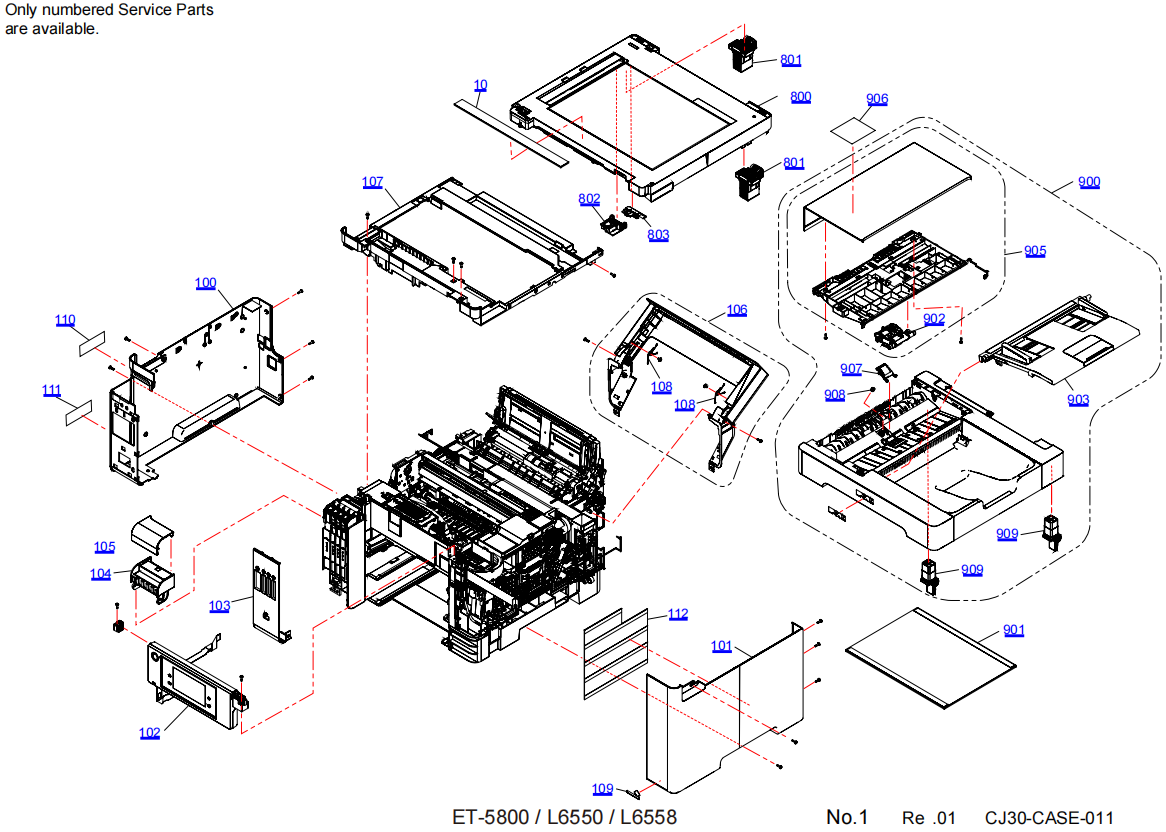

| Article | Reference | Description |
| 5157027 | 10 | PAD,SCANNER,COVER,D |
| 1800888 | 100 | HOUSING,LEFT |
| 1789945 | 101 | HOUSING,RIGHT |
| 1848887 | 101 | HOUSING,RIGHT |
| 1833287 | 102 | PANEL ASSY,CJ30.A,IEI,A |
| 1768252 | 103 | DECORATION PLATE,CISS |
| 1800892 | 104 | COVER,TANK,B |
| 1768253 | 105 | DECORATION PLATE,COVER,TANK |
| 1833303 | 106 | COVER,PAPER,SUPPORT,ASSY,CJ29.,IEI,ASP |
| 1811423 | 107 | HOUSING,UPPER |
| 1768029 | 108 | TORSION SPRING,33.41 |
| 1682129 | 109 | LABEL,PRECISIONCORE,B |
| 1803703 | 110 | LABEL,TRANSFER,BK |
| 1746899 | 111 | LABEL,Caution,Right,EEB WE |
| 1817259 | 112 | POROUS PAD,HOUSING,RIGHT |
| 2204344 | 200 | BOARD ASSY.,MAIN |
| 2210014 | 200 | BOARD ASSY.,MAIN |
| 2211500 | 200 | BOARD ASSY.,MAIN |
| 1802306 | 300 | POWER SUPPLY,ASSY,CH67,B.,IEI |
| 2196053 | 351 | BOARD ASSY.,SUB |
| 2194158 | 352 | WIRELESS LAN USB MODULE |
| 2195932 | 354 | BOARD ASSY.,INTERFACE |
| 2198236 | 356 | FFC,Main-Fax(10pin) |
| 2204349 | 357 | HARNESS |
| 1811603 | 501 | SCALE,CR |
| 1768579 | 502 | TORSION SPRING,15.66 |
| 2204902 | 503 | MOTOR,ASSY.,CR |
| 1821587 | 504 | CARRIAGE ASSY,CJ30.,IEI |
| 2109393 | 505 | BOARD ASSY.,DETECTOR,PW,B |
| 1768590 | 507 | TORSION SPRING,142.52 |
| 1768592 | 508 | COMPRESSION SPRING,9.83 |
| 1811424 | 509 | HOUSING,FRONT |
| 1821085 | 510 | SPEAKER ASSY.,IEI |
| 1866015 | 510 | SPEAKER ASSY.,IEI |
| 1821081 | 511 | GUIDE REAR ASF ASSY.,IEI |
| 1720135 | 512 | SCALE,PF,ASP |
| 1768589 | 514 | TORSION SPRING,154.73 |
| 2198112 | 516 | CABLE,ENCODER,PF |
| 1811596 | 518 | POROUS PAD,PAPER GUIDE,LOWER,2 |
| 1811595 | 519 | POROUS PAD,PAPER GUIDE,LOWER,1 |
| 1768562 | 520 | POROUS PAD,PAPER GUIDE,LOWER:C |
| 1821582 | 521 | PAPER GUIDE FRONT ASSY.CJ30,IEI |
| 1821103 | 522 | EJ1 STARWHEEL ASSY.,IEI |
| 1821102 | 523 | EJ2 STARWHEEL ASSY.,IEI |
| 1768567 | 524 | TORSION SPRING,8.81 |
| 2205102 | 525 | MOTOR ASSY.,PF,B |
| 1522628 | 526 | EXTENSION SPRING,11.11 |
| 1768542 | 527 | EXTENSION SPRING,6.25 |
| 1829640 | 528 | LEVER PE,ASSY,CH71.,IEI |
| 1829638 | 530 | PAPER GUIDE UPPER ASSY, CENTER,CH71.,IEI |
| 1821113 | 532 | FRAME SEPARATE ASSY.,IEI |
| 2204886 | 533 | MOTOR,ASSY.,ASF |
| 2147998 | 534 | BOARD ASSY.,SUB |
| 2198048 | 535 | CABLE,ENCODER,ASF |
| 1768052 | 536 | COMPRESSION SPRING,41.6 |
| 1108107 | 539 | FOOT |
| 1821090 | 541 | ONEWAY CLUTCH ASSY,2ND.,IEI |
| 1813213 | 542 | TIMING BELT,CR |
| 1821086 | 543 | APG DRIVE ASSY.,IEI |
| 1881742 | 543 | APG DRIVE ASSY.,IEI |
| 1829636 | 547 | STOPPER,PAPER,CASSETTE,ASSY,CH71,IEI |
| 1709362 | 548 | SHAFT GEAR ROLLER,PICK UP ASSY.,IEI |
| 1829634 | 549 | HOLDER,CAM,ASSY,CH71.,IEI |
| 1811597 | 551 | POROUS PAD,PAPER GUIDE,LOWER,3 |
| 1826658 | 701 | STACKER,ASSY,CJ29.B,IEI |
| 1833296 | 702 | CASSETTE,ASSY,CJ29.,IEI,ASP |
| 1833299 | 704 | CASSETTE 2ND,ASSY,CH29.,IEI,ASP |
| 1811393 | 705 | COVER,LD,SUB |
| 1831347 | 706 | PAPER SUPPORT,RASF,ASSY,CJ30.,IEI |
| 1820997 | 707 | DUPLEX,ASSY,CJ29.,IEI |
| 1768007 | 709 | EXTENSION SPRING,5.529 |
| 1827716 | 710 | KEY SLOT,F,ASSY,IEI,ASP |
| 1824313 | 711 | POROUS PAD,TANK,UPPER |
| 1827733 | 712 | I/S TANK UNIT,CH71,IEI,ASP |
| 1858183 | 712 | I/S TANK UNIT,CH71,IEI,ASP |
| 2205926 | 713 | CABLE,CSIC |
| 2197925 | 714 | CONECTOR,CSIC |
| 1772632 | 715 | JOINT,MAINTENANCE BOX |
| 2198240 | 716 | Harness,Host USB |
| 1800889 | 717 | HOUSING,CISS,B |
| 1860200 | 717 | HOUSING,CISS,B |
| 1825652 | 718 | CABLE HEAD ASSY.CJ30,IEI |
| 1821529 | 719 | VALVE ASSY,CJ30.,IEI |
| 1824262 | 721 | HOLDER,ADAPTER,CH72,ASSY.,IEI |
| 1805439 | 722 | LABEL,INSTRUCTION,VALVE |
| 1802518 | 723 | COVER,CR |
| 1821078 | 724 | STACKER DRIVE ASSY.,IEI |
| 1436642 | 725 | CLAMP,TUBE |
| 1833290 | 726 | I/S Maintenance Unit CJ30,IEI,ASP |
| 1872589 | 726 | I/S MAINTENANCE UNIT CJ30,IEI,ASP |
| 1808238 | 727 | ADAPTOR,ASSY,BK,CH71.,IEI |
| 1808239 | 728 | ADAPTOR,ASSY,YMC,CH71.,IEI |
| 2150699 | 729 | LEAF SENSOR,P599 |
| 1768219 | 730 | COVER,INK EJECT |
| 1775081 | 731 | POROUS PAD,CAP,LOWER |
| 1710162 | 732 | CAP,TANK |
| 1775092 | 733 | HINGE,CAP,TANK |
| 1814501 | 734 | LABEL,INK POSITION,KCMY,EEB WE |
| 1811605 | 735 | SHEET,GUIDE,TUBE,u2 |
| 1775164 | 736 | SHEET,COVER,TUBE |
| 1833301 | 737 | TUBE,SUPPLY,INK,u2,CUT,ASP |
| 1817260 | 738 | POROUS PAD,IS,REAR |
| 1817266 | 739 | GUIDE,POROUS PAD,FRAME,IS |
| 1817262 | 740 | POROUS PAD,CR,REAR,u2 |
| 1818437 | 741 | POROUS PAD,CR,REAR,u2,E |
| 1817270 | 742 | POROUS PAD,HEAD,u2,C |
| 1833275 | 800 | SCANNER UNIT CJ29,,IEI,ASP |
| 1811611 | 801 | HINGE,ASSY.,SC |
| 1768149 | 802 | HOLDER,HARNESS,SC |
| 1768150 | 803 | COVER,HARNESS,SC |
| 1833279 | 900 | ADF UNIT,CJ29,IEI,ASP |
| 1841435 | 900 | ADF UNIT,CJ29,IEI,ASP |
| 1811610 | 901 | MAT,COVER,DOCUMENT |
| 1821028 | 902 | LD ASSY, ADF,IEI |
| 1833281 | 903 | DOCUMENT SUPPORT ASSY,IEI,ASP |
| 1841429 | 903 | DOCUMENT SUPPORT ASSY,IEI,ASP |
| 1821027 | 905 | COVER ADF ASSY,IEI |
| 1815806 | 906 | LABEL,TRANSPORTATION LOCK |
| 1829633 | 907 | PAD ADF,ASSY,CH71.,IEI |
| 1524343 | 908 | COMPRESSION SPRING,2.25 |
| 1768121 | 909 | HINGE ASSY.,ADF |
