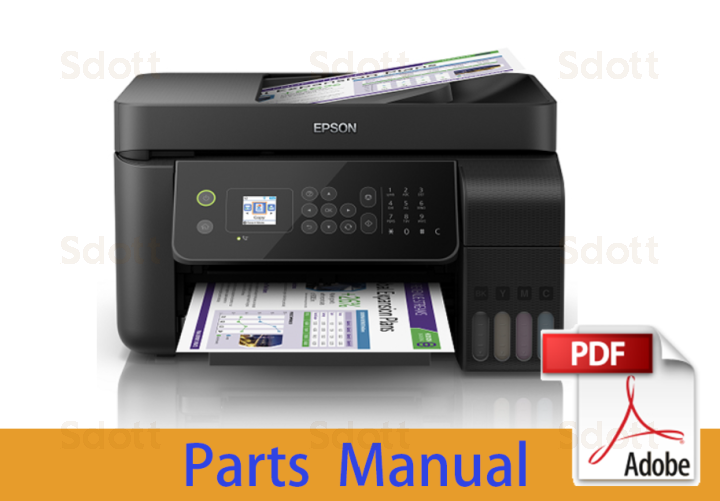

EPSON L5190 L5198 ET-4700 Parts Manual

In stock
SKU
EP-L5190-PM
$1.10
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.10
More Information
Manual Name EPSON L5190 L5198 ET-4700 Parts Manual
Format PDF
PDF Archive 2.67M
Pages 5
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson L5100 Series
Epson ET-4700 Series




****** The following content is not included in the PDF manual, please use it online ******

Article Reference Description
1752866 100 HOUSING,LEFT
1746175 101 COVER,INK EJECT
1746170 102 HOUSING,RIGHT
1746172 104 HOUSING,FRONT,RIGHT
1746174 105 COVER,TANK
1756598 106 HOPPER ASSY.,CG86,EPPI,ASP
1746165 107 PARER SUPPORT
1749776 108 STACKER ASSY.,CG86,EPPI
1758376 109 COVER FRONT ASSY,CG85,EPPI
1863380 109 COVER FRONT ASSY,CG85,EPPI
1758830 110 LABEL,Model Name,ET-4700
1806216 111 PANEL ASSY C,CG85,EPPI
1851782 111 PANEL ASSY C,CG85,EPPI
1809973 112 SHEET PANEL C ASSY.CG85,ASP,EPPI
1856604 112 SHEET PANEL C ASSY.CG85,ASP,EPPI
2202395 200 BOARD ASSY.,MAIN[220431]
2195631 300 BOARD ASSY.,POWER SUPPLY
2194159 350 WIRELESS LAN USB MODULE
2207229 350 WIRELESS LAN USB MODULE
1797195 351 FAX ASSY C..,CG19,EPPI
1756593 501 INK SYSTEM ASSY.,CG86,EPPI,ASP
1749775 502 SHAFT LD ASSY.,CG86,EPPI
1813628 502 SHAFT LD ASSY.,CG86,EPPI
1756597 503 LEVER,DETECTOR,PE,CG86,EPPI,ASP
1763608 504 PAPER GUIDE UPPER CENTER ASSY.,CG89,EPPI
1865783 504 PAPER GUIDE UPPER CENTER ASSY.,CG89,EPPI
1763610 505 PAPER GUIDE UPPER RIGHT ASSY.,CG89,EPPI
1763609 506 PAPER GUIDE UPPER LEFT ASSY.,CG89,EPPI
2189475 507 MOTOR,ASSY,CR
1756596 508 CARRIAGE ASSY.,CG86,EPPI,ASP
2189473 509 CABLE,ENCODER,CR
2189474 510 CABLE,HEAD,CR
2189470 511 MOTOR,ASSY,PF
1741749 512 CLUTCH
1718070 513 HOLDER,CLUTCH
1718063 514 EXTENSION SPRING,0.137
1718065 521 SPUR GEAR,CLUTCH,45.6
1835996 521 SPUR GEAR,CLUTCH,45.6
1749771 543 LEVER CHANGE ASSY.,CG86,EPPI
FA04040 700 Ersetzt durch: FA04060
1749772 701 MAINTENANCE BOX ASSY.,CG86,EPPI
1830528 701 MAINTENANCE BOX ASSY.,CG86,EPPI
1748804 702 TANK SUPPLY INK ASSY.,CG86,EPPI
1746677 703 POROUS PAD,TANK,UPPER
1746151 704 PIN,POROUS PAD
1746666 705 POROUS PAD,PAPERGUIDE,FRONT
1710162 706 CAP,TANK
1746005 707 HINGE,CAP,TANK
1758384 708 ADAPTER BK ASSY.,CG89,EPPI
1758383 709 ADAPTER ASSY CL,CG89,EPPI
1746667 710 SHEET,GUIDE,TUBE
1746669 711 SCALE,CR,180
2181518 712 BOARD ASSY.,ENCODER
1571785 713 SCALE,PF,B
1548480 714 EXTENSION SPRING,1.41
1767062 715 HOLDER RETARD ASSY.,CG89,EPPI
1746681 716 TUBE,SUPPLY,INK
1746668 717 SHEET,GUIDE,TUBE,SUPPORT
1718074 718 EXTENSION SPRING,0.023
1765463 719 LEVER,AP SENSOR.,ASSY CG85,EPPI,ASP
2164868 720 PHOTO INTERRUPTER
1760358 729 POROUS PAD,CR,F2
2196889 800 SCANNER ADF UNIT.,CG85,EPPI,ASP
2217978 800 SCANNER ADF UNIT.,CG85,EPPI,ASP
2218899 800 SCANNER ADF UNIT.,CG85,EPPI,ASP
1694135 801 MAT,COVER,DOCUMENT
1746910 804 LABEL,INK,Position,EEB WE
1791112 900 ADF ASSY.,CG85,EPPI,ASP
1752863 902 DOCUMENT,SUPPORT,ADF
1758380 903 COVER ADF ASSY,CG85,EPPI
1724257 907 PAD ADF ASSY.,CG19,EPPI
