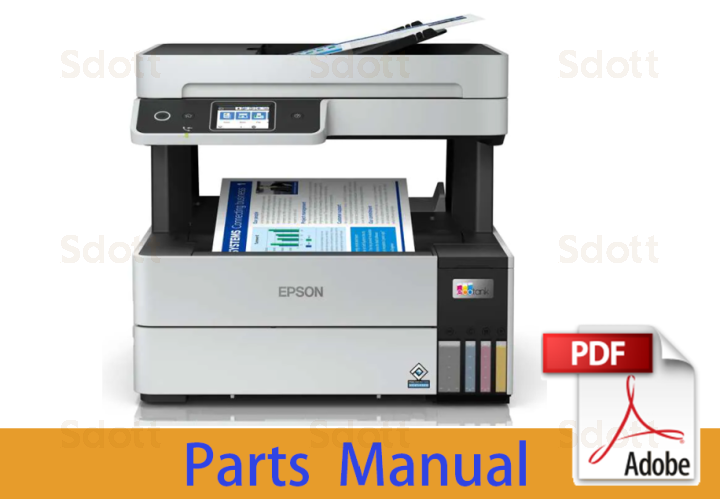

EPSON L6490 L6498 ET-5170 Parts Manual

In stock
SKU
EP-L6490-PM
$1.10
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format service manual
  • Allow high-definition printing

Share it:

Links
$1.10
More Information
Manual Name EPSON L6490 L6498 ET-5170 Parts Manual
Format PDF
PDF Archive 3.47M
Pages 5
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson L6490
Epson ET-5170

EPSON L6490 L6498 ET-5170

Parts Manual



****** The following content is not included in the PDF manual, please use it online ******

ArticleReferenceDescription

1851097100COVER,CASSETTE ASSY.,CJ88,EPPI,ASP
1851085101OUTER GUIDE ASSY.,CJ88,EPPI,ASP
1842666103HOUSING,RIGHT
1757230104HOUSING,LEFT
1851086105COVER,TANK, ASSY.,CJ88,EPPI,ASP
1750280106COVER,STAND
1751638107COVER,INK EJECT
1750350108COVER,SIDE,SC
1851087109HOUSING FRONT RIGHT ASSY.,CJ88,EPPI,ASP
1844772115LABEL,Model,Ink,EEB WE
1844766116LABEL,CAUTION,EUR
1844760117LABEL,Model Name,ET-5170
1851090118LABEL,INK,CONDENSE,EUR,EPPI,ASP
1750275119HOUSING,FRONT,LEFT
1845725120LABEL,PrecisionCore,F1
1842665121HOUSING,TOP
1848970122STACKER FD ASSY.,CJ88,EPPI
2210727200BOARD ASSY.,MAIN
2214840200BOARD ASSY.,MAIN
2215424200BOARD ASSY.,MAIN 7176J,CJ88 STANDARD
2216873200BOARD ASSY.,MAIN 7176J,CJ88 STANDARD
2217438200BOARD ASSY.,MAIN
1821595300BOARD ASSY,POWERSUPPLY CJ18,PSH,EPPI,ASP
2207229350WIRELESS LAN USB MODULE
1839997351FAX ASSY,CJ60,EPPI
2190501352BOARD ASSY.,SUB
1767046501PICK UP ASSY.,CG20,EPPI
1801803502ASF BANK ASSY.,CG27,EPPI
1855675503HOLDER STARWHEEL M1 MONO ASSY,CJ88,EPPI
1761881504CASSETTE ASSY.,CG27,EPPI,ASP
1861358504CASSETTE ASSY.,CG27,EPPI,ASP
1762184505PAPER EJECT ROLLERGUIDE ASSYCG27,EPPIASP
2182527506MOTOR ASSY.,CR
1851082507CARRIAGE,M1 PG ASSY.,CJ88,EPPI,ASP
2181521508BOARD ASSY.,SNS
2182523509CABLE,ENCORDER,CR
2186560510CABLE,HEAD
1759427511DETECTOR PE ASSY,CG22,EPPI
1755461512PGU CENTER ASSY.,CG27,EPPI
1865779512PGU CENTER ASSY.,CG27,EPPI
1755454513PGU LEFT ASSY.,CG27,EPPI
1755453514PGU RIGHT ASSY.,CG27,EPPI
1548480515EXTENSION SPRING,1.41
1755464516HOLDER EDGE GUIDE,MSF ASSY.,CG27,EPPI
1810238517ADAPTER ASSY BK,CH96,EPPI
1848969518INNER GUIDE ASSY.,CJ88,EPPI
2181519519BOARD ASSY.,ENCODER
1717912520GORUNDING PLATE,HEAD,CR
1810239522ADAPTER ASSY CL,CH96,EPPI
2190861531CABLE,ENCODER,PF
1832107534ROLLER,EJ ASSY,EPPI,ASP
1750286552COVER,CABLE,HEAD
1750304701SCALE,PF
1851098702DUPLEX ASSY.,CJ88,EPPI,ASP
1750924703SCALE,CR
1755468706AP SENSOR ASSY.,CG27,EPPI
1849167709TUBE SUPPLY INK ASSY.,CJ88,EPPI
1761878710IS M1 MONO ASSY.,CG27,EPPI,ASP
1810196711TANK ASSY BK,CH96,EPPI
1842674712GUIDE,TUBE,SUPPLY,INK
1540008713DOUBLE SIDE TAPE,D21,B
1843667714SHEET,GUIDE,TUBE
1843668715SHEET,GUIDE,TUBE,SUPPORT
2192472716HARNESS
1851100718KEYSLOT,PA ASSY.,CJ88,EPPI,ASP
1851099720HOLDER,SENSOR ASSY.,CJ88,EPPI,ASP
2190872721CABLE,CSIC,ENK EJECT
1741765723HOLDER,CONNECTOR,CSIC,IS
2184967726CONNECTOR,CSIC
1842663727PRESSING PLATE,TUBE
1760357729POROUS PAD,CR,u1
1810197732TANK ASSY CL,CH96,EPPI
1720078733POROUS PAD,TANK,UPPER
2190505734HARNESS
2211806800SCANNER ADF UNIT .,CJ88,EPPI,ASP
2214582800SCANNER ADF UNIT .,CJ88,EPPI,ASP
1694135801MAT,COVER,DOCUMENT
1791108900ADF ASSY.,CG93,EPPI,ASP
1757249901COVER,DOCUMENT SUPPORT,ADF
1757245902DOCUMENT SUPPORT,ADF
1762146903COVER ADF ASSY,CG93,EPPI
1724257907PAD ADF ASSY.,CG19,EPPI
1740240908COMPRESSION SPRING,1.45
