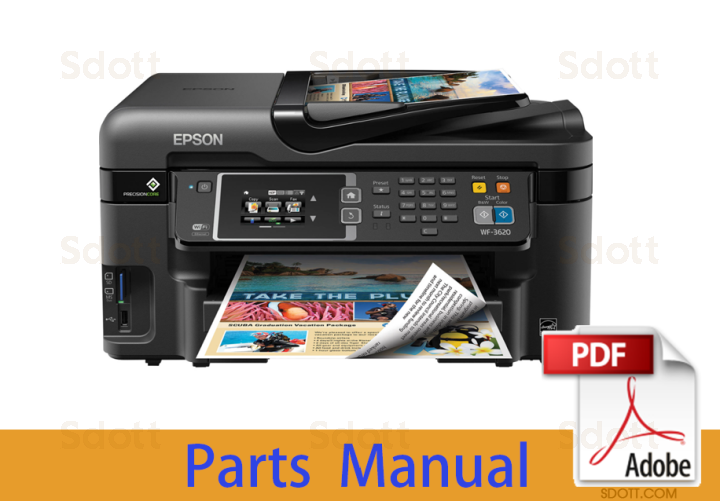

EPSON WF-3620 WF-3621 PX-M740F Parts Manual

In stock
SKU
EP-WF3620-PM
$1.10
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.10
More Information
Manual Name EPSON WF-3620 WF-3621 PX-M740F Parts Manual
Format PDF
PDF Archive 2.26M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-3600 Series




****** The following content is not included in the PDF manual, please use it online ******

Article Reference Description
1604038 100 HOUSING,UPPER
1636786 101 PANEL ASSY.,D,SEC
1797847 101 PANEL ASSY.,D,SEC
1607743 102 HOUSING,LEFT,ASSY,SEC
1797824 102 HOUSING,LEFT,ASSY,SEC
1575304 104 HOUSING,RIGHT
1520075 105 HINGE ASSEMBLY
1604040 106 COVER,USB
2169419 200 BOARD ASSY.,MAIN
2176602 200 BOARD ASSY.,MAIN
2188552 200 BOARD ASSY.,MAIN
2150658 200 Ersetzt durch: 2169419
2152573 201 BOARD ASSY.,INTERFACE
2152527 202 WIRELESS LAN USB MODULE
2167573 202 WIRELESS LAN USB MODULE
2150665 300 BOARD ASSY.,POWER SUPPLY
2128430 400 POWER CABLE
2166343 500 PRINTER MECHANISM,CD19,E,ASP
1608560 503 POROUS PAD,PAPER GUIDE,LOWER
1528839 504 PICK UP ASSY.,IEI
1607570 506 HOLDER,CAM,ASSY.,SEC
1604017 507 STOPPER,HOLDER,IDLE,ROLLER,PF
1585388 508 STACKER ASSY.,SEC
1585386 509 MSF ASSY.,SEC
1607579 515 HOLDER,STAR,WHEEL,ASSY.,SEC
1797822 515 HOLDER,STAR,WHEEL,ASSY.,SEC
1607629 701 HOLDER,BOARD,ASSY.,SEC
1797810 701 HOLDER,BOARD,ASSY.,SEC
1607753 703 DUPLEX ASSY,CD19,,SEC
1604764 704 SCALE,CR
1606498 705 EXTENSION SPRING,2.03
1588123 706 CASSETTE ASSY.,CC33,ASP
1600253 707 COVER,CARTRIDGE
2129450 708 BOARD ASSY.,ENCORDER,PF
2188536 708 BOARD ASSY.,ENCORDER,PF
2143968 710 BOARD ASSY.,SUB
2090717 711 LEAF SENSOR
1607596 715 Ersetzt durch: 1656832
1656832 715 INK SYSTEM,ASSY,,SEC
1436642 716 CLAMP,TUBE
1618274 800 SCANNER,UNIT,CD19,ASP
2151667 801 CIS MODULE
2155521 802 MOTOR,ASSY.,SC
1659875 900 ADF,UNIT,CD19,ASP
1822568 900 ADF,UNIT,CD19,ASP
1618276 900 Ersetzt durch: 1659875
1607748 901 DOCUMENT,SUPPORT,ADF,ASSY,,SEC
1797829 901 DOCUMENT,SUPPORT,ADF,ASSY,,SEC
1613692 902 COVER,ADF,ASSY,,SEC
1797830 902 COVER,ADF,ASSY,,SEC
1604036 903 COVER,REAR,ADF
1555114 904 PAD,ADF ASSY.,SEC
1580566 905 ADF LD,ASSY.,SEC
1575342 906 COVER,FRONT,ADF
1550947 907 MAT,COVER,DOCUMENT
