Canon imagePROGRAF PRO-6100 PRO-561 Parts Manual

In stock
SKU
CA-PRO6100-PM
$1.00
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.00
More Information
Manual Name Canon imagePROGRAF PRO-6100 PRO-561 Parts Manual
Format PDF
PDF Archive 18.0M
Pages 39
Version 01
Brand CANON
Parts Code PC-19005-01
Reference 2019.9 - 2021.10
Type SERVICE or PARTS MANUAL
Compatible Model CANON imagePROGRAF PRO-6100
CANON imagePROGRAF PRO-521 PRO-541 PRO-561

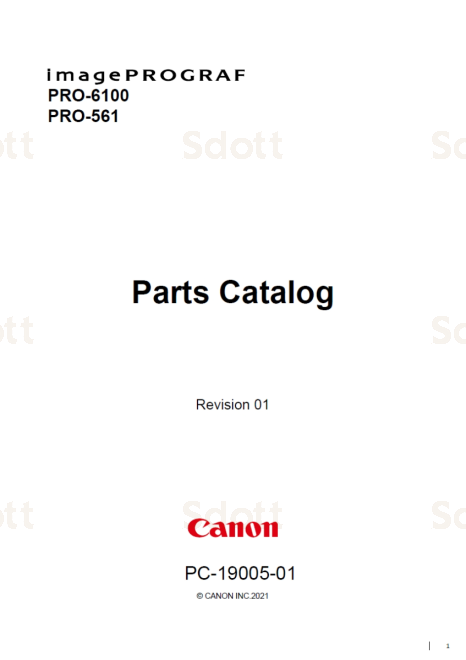

Canon imagePROGRAF PRO-6100 PRO-561

Parts Manual

CONTENTS

FIGURE 1 Printer & Accessories… ……………………………………………………………… 8
FIGURE 2 Top Covers & Side Covers… …………………………………………………………10
FIGURE 3 Front Covers & Rear Covers…………………………………………………………12
FIGURE 4 Electrical Parts……………………………………………………………………………14
FIGURE 5 Ink Tank Unit & Purge Unit… ………………………………………………………16
FIGURE 6 Carriage, Tube Unit & Film Strip……………………………………………………18
FIGURE 7 Pinch Roller, Release Lever & Mist Fan…………………………………………20
FIGURE 8 Roll Covers…………………………………………………………………………………22
FIGURE 9 Cutter & Access Cover Lock Unit…………………………………………………24
FIGURE 10 Platen & Feed Roller… ………………………………………………………………26
FIGURE 11 Upper Roll Unit, Suction Fan & Waste Ink Unt……………………………28
FIGURE 12 Stand Unit… ……………………………………………………………………………30
FIGURE 13 Tool…………………………………………………………………………………………32
FIGURE R1 Lower Roll Unit (Right)………………………………………………………………34
FIGURE R2 Lower Roll Unit (Left)… ……………………………………………………………36
FIGURE R3 Lower Roll Unit (Main)………………………………………………………………38

Canon imagePROGRAF PRO-6100 PRO-561 Parts Manual
