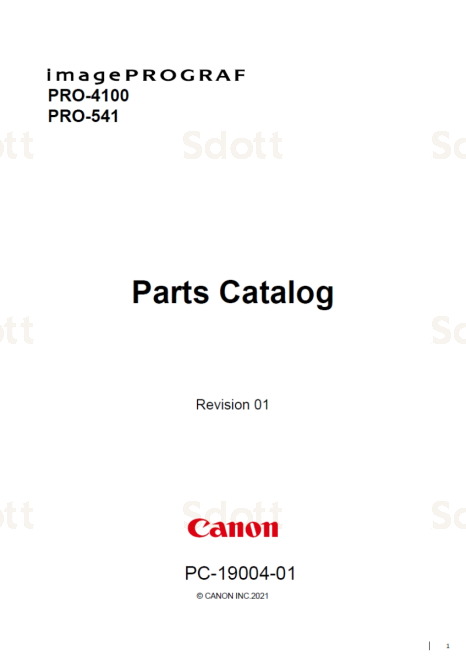

Canon imagePROGRAF PRO-4100 PRO-541 Parts Manual

In stock
SKU
CA-PRO4100-PM
$1.00
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.00
More Information
Manual Name Canon imagePROGRAF PRO-4100 PRO-541 Parts Manual
Format PDF
PDF Archive 15.8M
Pages 39
Version 01
Brand CANON
Parts Code PC-19004-01
Reference 2019.9 - 2021.1
Type SERVICE or PARTS MANUAL
Compatible Model CANON imagePROGRAF PRO-4100
CANON imagePROGRAF PRO-521 PRO-541 PRO-561

Canon imagePROGRAF PRO-4100 PRO-541

Parts Manual

CONTENTS

FIGURE 1 Printer & Accessories… ……………………………………………………………… 8
FIGURE 2 Top Covers & Side Covers… …………………………………………………………10
FIGURE 3 Front Covers & Rear Covers…………………………………………………………12
FIGURE 4 Electrical Parts……………………………………………………………………………14
FIGURE 5 Ink Tank Unit & Purge Unit… ………………………………………………………16
FIGURE 6 Carriage, Tube Unit & Film Strip…………………………………………………18
FIGURE 7 Pinch Roller, Release Lever & Mist Fan………………………………………20
FIGURE 8 Roll Covers…………………………………………………………………………………22
FIGURE 9 Cutter & Access Cover Lock Unit…………………………………………………24
FIGURE 10 Platen & Feed Roller… ……………………………………………………………26
FIGURE 11 Upper Roll Unit, Suction Fan & Waste Ink Unt…………………………28
FIGURE 12 Stand Unit… ……………………………………………………………………………30
FIGURE 13 Tool…………………………………………………………………………………………32
FIGURE R1 Lower Roll Unit (Right)……………………………………………………………34
FIGURE R2 Lower Roll Unit (Left)… …………………………………………………………36
FIGURE R3 Lower Roll Unit (Main)……………………………………………………………38
