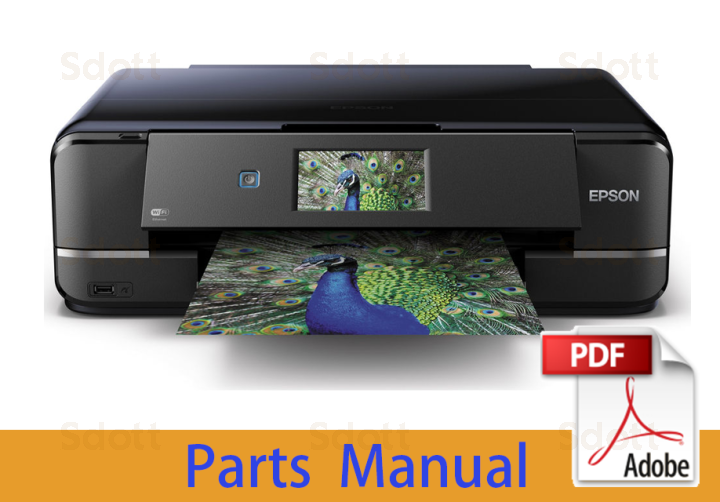

EPSON XP-950 Parts Manual

In stock
SKU
EP-XP950-PM
$1.20
  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing
Links
$1.20
More Information
Manual Name EPSON XP-950 Parts Manual
Format PDF
PDF Archive 4.57M
Pages 5
Type SERVICE or PARTS MANUAL
Compatible Model EPSON XP-950 Series




****** The following content is not included in the PDF manual, please use it online ******

Model Article Reference Description
EXPRESSION PHOTO XP-950 1607450 100 HOUSING,FRONT,TOP ASSY
EXPRESSION PHOTO XP-950 1599741 101 HOUSING,LEFT
EXPRESSION PHOTO XP-950 1620072 102 HOUSING,UPPER.,ASSY,ASP
EXPRESSION PHOTO XP-950 1599736 103 HOUSING,FRONT,LEFT
EXPRESSION PHOTO XP-950 1640577 104 COVER,CARDSLOT,ASSY,ASP
EXPRESSION PHOTO XP-950 1640582 105 HOUSING,FRONT,LOWER,LEFT,ASSY,ASP
EXPRESSION PHOTO XP-950 1625278 106 HOUSING,LOWER,LEFT,ASSY,ASP
EXPRESSION PHOTO XP-950 1625280 107 HOUSING,LOWER,RIGHT,ASSY,ASP
EXPRESSION PHOTO XP-950 1640579 108 HOUSING,FRONT,RIGHT,ASSY,ASP
EXPRESSION PHOTO XP-950 1607464 109 PANEL,ASSY 3.5 INCH,CD28
EXPRESSION PHOTO XP-950 1708275 109 PANEL,ASSY 3.5 INCH,CD28
EXPRESSION PHOTO XP-950 1616145 110 FRAME,PANEL,ASSY
EXPRESSION PHOTO XP-950 1575821 112 COMPRESSION SPRING,LOCK,PANEL,2.49
EXPRESSION PHOTO XP-950 1640576 113 HOUSING,FRONT,LOWER,RIGHT,C,ASP
EXPRESSION PHOTO XP-950 1619120 200 MAIN BOARD ASSY,CD28,D,IEI
EXPRESSION PHOTO XP-950 2142559 205 HARNESS
EXPRESSION PHOTO XP-950 2151133 206 BOARD ASSY.,SUB
EXPRESSION PHOTO XP-950 1619871 207 HOUSING,FRONT,LEFT,C,ASSY
EXPRESSION PHOTO XP-950 2142558 208 HARNESS
EXPRESSION PHOTO XP-950 2152621 209 BOARD ASSY.,SUB
EXPRESSION PHOTO XP-950 2152527 210 WIRELESS LAN USB MODULE
EXPRESSION PHOTO XP-950 2167573 210 WIRELESS LAN USB MODULE
EXPRESSION PHOTO XP-950 2142556 211 HARNESS
EXPRESSION PHOTO XP-950 2140850 212 CR CONTACT MODULE
EXPRESSION PHOTO XP-950 2154774 213 BOARD ASSY.,SENSOR
EXPRESSION PHOTO XP-950 2154772 214 BOARD ASSY.,SENSOR
EXPRESSION PHOTO XP-950 2153642 300 BOARD ASSY.,POWER SUPPLY
EXPRESSION PHOTO XP-950 1572503 501 FOOT
EXPRESSION PHOTO XP-950 1603890 502 HINGE,ASSEMBLY,SC
EXPRESSION PHOTO XP-950 1647304 503 PAPER GUIDE,FRAME,BANK ,B,ASSY,IEI
EXPRESSION PHOTO XP-950 1647235 504 DUPLEX,UNIT,C,IEI
EXPRESSION PHOTO XP-950 1607455 506 FRAME,MSF ASSY
EXPRESSION PHOTO XP-950 1607470 507 TRAY,POROUS PAD,INK EJECT ASSY
EXPRESSION PHOTO XP-950 1595474 508 INK,SYSTEM,,B,ASSY
EXPRESSION PHOTO XP-950 1436642 509 CLAMP,TUBE
EXPRESSION PHOTO XP-950 1573556 510 POROUS PAD,INK EJECT,IS,LOWER
EXPRESSION PHOTO XP-950 1632557 511 CASSETTE,PHOTO ASSY
EXPRESSION PHOTO XP-950 1640584 512 CASSETTE,REAR,MAIN,,B,ASSY,ASP
EXPRESSION PHOTO XP-950 1640585 513 COVER,CASSETTE,ASSY,ASP
EXPRESSION PHOTO XP-950 1572245 514 TRAY,CDR
EXPRESSION PHOTO XP-950 1599093 515 STACKER,MAIN
EXPRESSION PHOTO XP-950 1607382 516 SHAFT,STACKER,DRIVE ASSY
EXPRESSION PHOTO XP-950 1571813 517 SLIDER,TRANSMISSION,LEFT
EXPRESSION PHOTO XP-950 1607378 520 HOLDER,STAR WHEEL ASSY
EXPRESSION PHOTO XP-950 1607379 523 PAPER GUIDE,FRONT ASSY
EXPRESSION PHOTO XP-950 1607102 524 COVER,CLIP,B
EXPRESSION PHOTO XP-950 1599120 526 SCALE,CR
EXPRESSION PHOTO XP-950 1572225 528 COVER,CR,FRONT
EXPRESSION PHOTO XP-950 1611081 529 CONNECTOR,CSIC,B,ASSY
EXPRESSION PHOTO XP-950 1620077 530 CABLE HEAD,ASSY,ASP
EXPRESSION PHOTO XP-950 1611532 531 GUIDE,IC,D
EXPRESSION PHOTO XP-950 1590457 532 COVER,FFC ASSY,B,ASP
EXPRESSION PHOTO XP-950 1638191 533 ENCODER,PF,E ASSY
EXPRESSION PHOTO XP-950 1607383 534 HOLDER,CAM ASSY
EXPRESSION PHOTO XP-950 1612525 535 PAPER GUIDE,UPPER,INNER,B,ASSY
EXPRESSION PHOTO XP-950 1577851 536 PAPER GUIDE,UPPER,OUTER ASSY
EXPRESSION PHOTO XP-950 1607391 542 FRAME,PICKUP UNIT
EXPRESSION PHOTO XP-950 1607387 544 HOLDER,DETECTOR,CASSETTE,PHOTO ASSY
EXPRESSION PHOTO XP-950 2143464 545 PHOTO INTERRUPTER
EXPRESSION PHOTO XP-950 1607398 547 SPUR GEAR,14.4,B
EXPRESSION PHOTO XP-950 1607397 548 SPUR GEAR,17.6,B
EXPRESSION PHOTO XP-950 1617509 550 POROUS PAD,PAPER GUIDE,LOWER,RIGHT
EXPRESSION PHOTO XP-950 1617510 551 POROUS PAD,PAPER GUIDE,LOWER,LEFT
EXPRESSION PHOTO XP-950 1603889 552 HINGE
EXPRESSION PHOTO XP-950 1603888 553 HOLDER,HINGE
EXPRESSION PHOTO XP-950 1612529 556 DUAL ONE WAY CLUTCH,B,ASSY
EXPRESSION PHOTO XP-950 1607392 557 COMPRESSION SPRING,0.57
EXPRESSION PHOTO XP-950 1599077 558 SHAFT,ROLLER,PICK UP ASSY
EXPRESSION PHOTO XP-950 1572125 559 COVER,PE,FRAME,BANK
EXPRESSION PHOTO XP-950 1631872 563 CENTER,SUPPORT,EJ
EXPRESSION PHOTO XP-950 FA09060 700 PRINT HEAD,ID284V-6
EXPRESSION PHOTO XP-950 5130574 701 PAD,SHEET,CR
EXPRESSION PHOTO XP-950 5130846 702 PAD,CR,B
EXPRESSION PHOTO XP-950 5133612 703 PAD,HOLDER,STAR WHEEL
EXPRESSION PHOTO XP-950 2163611 800 SCANNER UNIT,,D,CD28,IEI,ASP
EXPRESSION PHOTO XP-950 1607449 803 HOUSING,LOWER,SC ASSY
EXPRESSION PHOTO XP-950 1607443 805 COVER,DOCUMENT,SC ASSY
EXPRESSION PHOTO XP-950 1607444 806 HOUSING,UPPER,SC ASSY
EXPRESSION PHOTO XP-950 1631878 NON FIG GARD,FRAME,MAIN
EXPRESSION PHOTO XP-950 1033657 NON FIG GREASE G-45
EXPRESSION PHOTO XP-950 1480655 NON FIG GREASE G-71(BLUE)
EXPRESSION PHOTO XP-950 1409258 NON FIG GREASE G-72
EXPRESSION PHOTO XP-950 1409257 NON FIG GREASE G-74
EXPRESSION PHOTO XP-950 1635441 NON FIG GREASE, G-97
EXPRESSION PHOTO XP-950 1561125 NON FIG GREASE,G-94
EXPRESSION PHOTO XP-950 1590700 NON FIG GREASE,G-96 (40g)
EXPRESSION PHOTO XP-950 1462531 NON FIG I/P,DPIC009BSP,110,PRINTING
EXPRESSION PHOTO XP-950 1280612 NON FIG INK HOLDER
EXPRESSION PHOTO XP-950 1453980 NON FIG PFP BASE SCALE
EXPRESSION PHOTO XP-950 2107708 NON FIG POWER CABLE
EXPRESSION PHOTO XP-950 1455600 NON FIG SHEET ,CD,DUMMY, TEST
EXPRESSION PHOTO XP-950 6022798 NON FIG SHIPPING CLEANING LIQUID,CR02,18KG
EXPRESSION PHOTO XP-950 6022805 NON FIG SHIPPING CLEANING LIQUID,CR02,1KG
EXPRESSION PHOTO XP-950 1032813 NON FIG STRONG TAPE NO.388 BLUE
EXPRESSION PHOTO XP-950 1645668 NONFIG INK CART.UNBOXED,BK,DYE,764CD,EC,242,AS P0601,
EXPRESSION PHOTO XP-950 1645669 NONFIG INK CART.UNBOXED,C,DYE,764CD,EC,242,AS P0601,
EXPRESSION PHOTO XP-950 1645677 NONFIG INK CART.UNBOXED,LC,DYE,764CD,EC,242,AS P0601,
EXPRESSION PHOTO XP-950 1645678 NONFIG INK CART.UNBOXED,LM,DYE,764CD,EC,242,AS P0601,
EXPRESSION PHOTO XP-950 1645670 NONFIG INK CART.UNBOXED,M,DYE,764CD,EC,242,AS P0601,
EXPRESSION PHOTO XP-950 1645672 NONFIG INK CART.UNBOXED,Y,DYE,764CD,EC,242,AS P0601,
