EPSON XP-332/XP-335 Parts Manual
In stock
SKU
EP-XP332-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-332/XP-335 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.69M |
| Pages | 3 |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON XP-332/XP-335 Series |

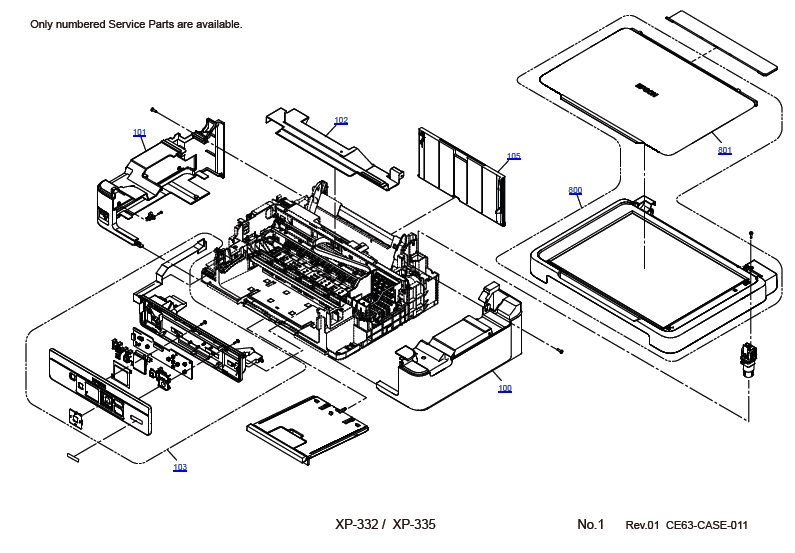

| Model | Article | Reference | Description |
| EXPRESSION HOME XP-332 | 1548586 | 100 | HOUSING,RIGHT |
| EXPRESSION HOME XP-332 | 1628565 | 101 | HOUSING,LEFT |
| EXPRESSION HOME XP-332 | 1628562 | 102 | COVER,REAR |
| EXPRESSION HOME XP-332 | 1675612 | 103 | PANEL UNIT,C |
| EXPRESSION HOME XP-332 | 1550815 | 105 | PAPER SUPPORT ASSY |
| EXPRESSION HOME XP-332 | 2168519 | 200 | BOARD ASSY.,MAIN |
| EXPRESSION HOME XP-332 | 2188878 | 200 | BOARD ASSY.,MAIN |
| EXPRESSION HOME XP-332 | 2171395 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-332 | 2172190 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-332 | 2181974 | 202 | WIRELESS LAN USB MODULE |
| EXPRESSION HOME XP-332 | 2168523 | 203 | BOARD ASSY.,STORAGE |
| EXPRESSION HOME XP-332 | 2140467 | 204 | CR CONTACT MODULE |
| EXPRESSION HOME XP-332 | 2139742 | 205 | CONNECTOR,CSIC |
| EXPRESSION HOME XP-332 | 2147874 | 300 | POWER SUPPLY UNIT |
| EXPRESSION HOME XP-332 | 1548493 | 501 | LEVER,DETECTORPE |
| EXPRESSION HOME XP-332 | 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| EXPRESSION HOME XP-332 | 1646107 | 506 | POROUS PAD,PAPER GUIDE,LOWER,D |
| EXPRESSION HOME XP-332 | 1550797 | 507 | HOLDER RETURD ASSY |
| EXPRESSION HOME XP-332 | 1586471 | 508 | FRAME PUMP ASSY.,B,IEI |
| EXPRESSION HOME XP-332 | 1573559 | 510 | SHAFT,ROLLER,LD,ASSY,IEI |
| EXPRESSION HOME XP-332 | 1593349 | 511 | SCALE,CR |
| EXPRESSION HOME XP-332 | 1620231 | 513 | CAP ASSY. |
| EXPRESSION HOME XP-332 | 1569499 | 514 | PGF ASSY |
| EXPRESSION HOME XP-332 | 1548481 | 515 | MOTOR ASSY,CR |
| EXPRESSION HOME XP-332 | 1607877 | 517 | CR ASSY.,B,METCO,ASP |
| EXPRESSION HOME XP-332 | 2150122 | 518 | CABLE,HEAD,F2,35 |
| EXPRESSION HOME XP-332 | 2149815 | 519 | CABLE,CSIC,F2 |
| EXPRESSION HOME XP-332 | 1548518 | 521 | SCALE,PF |
| EXPRESSION HOME XP-332 | 2141062 | 525 | CABLE,PIS |
| EXPRESSION HOME XP-332 | 2150454 | 526 | BOARD ASSY.,SUB |
| EXPRESSION HOME XP-332 | 1548528 | 527 | CLUTCH |
| EXPRESSION HOME XP-332 | 1548529 | 528 | SPUR GEAR,37.2 |
| EXPRESSION HOME XP-332 | 1548530 | 529 | EXTENSION SPRING,0.137 |
| EXPRESSION HOME XP-332 | 1548494 | 531 | EXTENSION SPRING,0.067 |
| EXPRESSION HOME XP-332 | 1628558 | 535 | LEVER,DETECTOR,AP |
| EXPRESSION HOME XP-332 | 1628560 | 536 | EXTENSION SPRING,0.04 |
| EXPRESSION HOME XP-332 | 1628559 | 538 | ROLLER,LEVER,DETECTOR,AP SDOTT.com |
| EXPRESSION HOME XP-332 | 2157770 | 540 | BOARD ASSY.,SNS |
| EXPRESSION HOME XP-332 | 1628555 | 543 | HOLDER,LEVER,DETECTOR,AP |
| EXPRESSION HOME XP-332 | FA04000 | 700 | PRINT HEAD,ID1510 |
| EXPRESSION HOME XP-332 | 1567191 | 701 | HOLDER,BOARD |
| EXPRESSION HOME XP-332 | 1638405 | 703 | TRAY POROUS PAD ASSY.,CD87 |
| EXPRESSION HOME XP-332 | 1569226 | 705 | LABEL,INK POSITION |
| EXPRESSION HOME XP-332 | 1595846 | 706 | COVER,CABLE,HEAD,F2 |
| EXPRESSION HOME XP-332 | 2172071 | 800 | SCANNER UNIT,CE63,METCO,ASP |
| EXPRESSION HOME XP-332 | 2175212 | 800 | SCANNER UNIT,CE63,METCO,ASP |
| EXPRESSION HOME XP-332 | 1620372 | 801 | COVER DOCUMENT,B ASSY. |
| EXPRESSION HOME XP-332 | 1033657 | NON FIG | GREASE G-45 |
| EXPRESSION HOME XP-332 | 1480655 | NON FIG | GREASE G-71(BLUE) |
| EXPRESSION HOME XP-332 | 1590700 | NON FIG | GREASE,G-96 (40g) |
| EXPRESSION HOME XP-332 | 1462531 | NON FIG | I/P,DPIC009BSP,110,PRINTING |
| EXPRESSION HOME XP-332 | 1672729 | NON FIG | INK CART.UNBOXED,BK,PIG'T,2710NEEC298AS |
| EXPRESSION HOME XP-332 | 1672730 | NON FIG | INK CART.UNBOXED,C,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-332 | 1672731 | NON FIG | INK CART.UNBOXED,M,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-332 | 1672732 | NON FIG | INK CART.UNBOXED,Y,DYE,2710NEEC298AS |
| EXPRESSION HOME XP-332 | 2150401 | NON FIG | POWER CABLE |
| EXPRESSION HOME XP-332 | 6104714 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,18kg |
| EXPRESSION HOME XP-332 | 6104713 | NON FIG | SHIPPING CLEANING LIQUID,CR06A,1kg |
| EXPRESSION HOME XP-332 | 1640645 | NON FIG | SONIC TENSION METER U508 |
