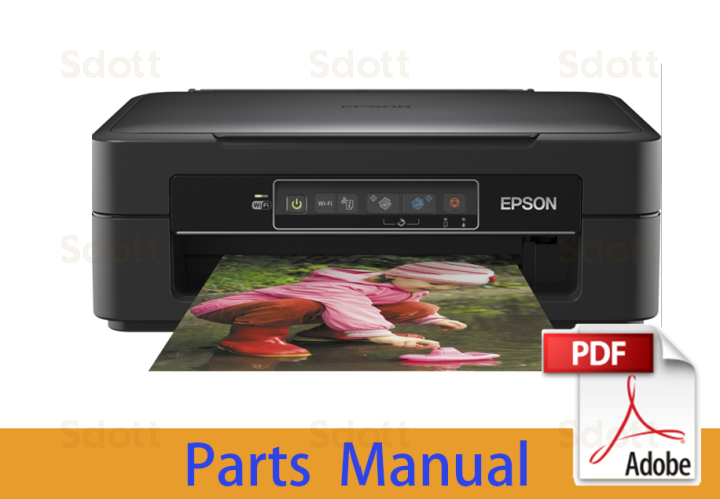

EPSON XP-243 XP-245 XP-247 Parts Manual
In stock
SKU
EP-XP243-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON XP-243 XP-245 XP-247 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.84M |
| Pages | 3 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson XP-200 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1789030 | 100 | HOUSING,RIGHT ASSY.,CF32,METCO,ASP |
| 1568270 | 101 | HOUSING,LEFT |
| 1577162 | 102 | COVER,REAR,ICON |
| 1789013 | 103 | PANEL ASSY,CE64,METCO,ASP |
| 1789015 | 105 | PAPER SUPPORT ASSY.,CC05,METCO,ASP |
| 1610790 | 107 | STAND,SC,B |
| 1576993 | 108 | TORSION SPRING,25.37 |
| 2189387 | 200 | BOARD ASSY.,MAIN |
| 2192160 | 202 | WIRELESS LAN USB MODULE |
| 2140467 | 204 | CR CONTACT MODULE |
| 2139742 | 205 | CONNECTOR,CSIC |
| 2179218 | 300 | POWER SUPPLY UNIT |
| 1548493 | 501 | LEVER,DETECTORPE |
| 2158910 | 505 | BOARD ASSY.,ENCORDER,PF,B |
| 1646107 | 506 | POROUS PAD,PAPER GUIDE,LOWER,D |
| 1789017 | 507 | HOLDER RETURD ASSY.,CC05,METCO,ASP |
| 1789019 | 508 | FRAME PUMP ASSY,,CC03,METCO,ASP |
| 1789020 | 510 | SHAFT ROLLER LD ASSY.,CC05,METCO,ASP |
| 1593349 | 511 | SCALE,CR |
| 1789021 | 513 | CAP ASSY.,CC86,METCO,ASP |
| 1789023 | 514 | PAPER GUIDE FRONT ASSY.,CE56,METCO,ASP |
| 2175802 | 515 | MOTOR,ASSY.,CR |
| 1789025 | 517 | CR ASSY.,F2,B,,CF32,METCO,ASP |
| 2150122 | 518 | CABLE,HEAD,F2,35 |
| 2149815 | 519 | CABLE,CSIC,F2 |
| 2150124 | 519 | CABLE,CSIC,F2 |
| 1548518 | 521 | SCALE,PF |
| 2145562 | 525 | CABLE,PIS |
| 2150454 | 526 | BOARD ASSY.,SUB |
| 1548528 | 527 | CLUTCH |
| 1548529 | 528 | SPUR GEAR,37.2 |
| 1548530 | 529 | EXTENSION SPRING,0.137 |
| 1548494 | 531 | EXTENSION SPRING,0.067 |
| 1548561 | 533 | LEVER,LOCK,SLIDER |
| FA04040 | 700 | Ersetzt durch: FA04060 |
| 1567191 | 701 | HOLDER,BOARD |
| 1789027 | 703 | TRAY POROUSPAD,ASSY.,CD91,METCO,ASP |
| 1569226 | 705 | LABEL,INK POSITION |
| 1595846 | 706 | COVER,CABLE,HEAD,F2 |
| 1789034 | 800 | SCANNER UNIT.,CF32,METCO,ASP |
| 1789037 | 801 | COVER DOCUMENT ASSY.,CF32,METCO,ASP |
