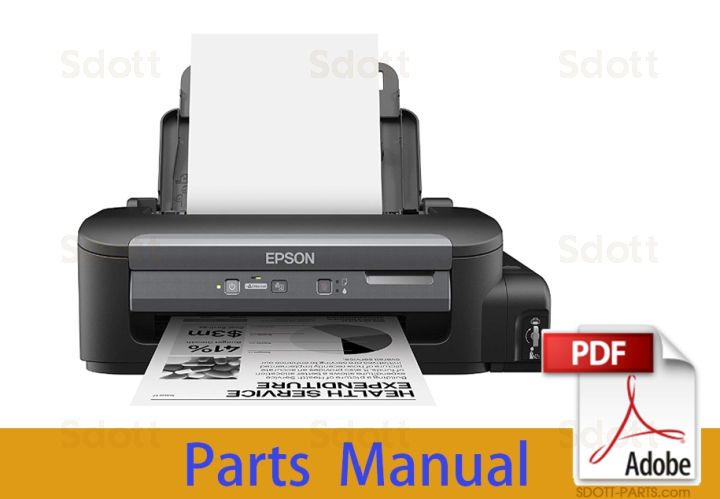

main product photo

EPSON WORKFORCE WF-M105 Parts Manual

In stock
SKU
EP-M105-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • HTML format service manual
  • Allow high-definition printing

Share it:

After payment, download link email will be sent to your emailbox
$1.20
More Information
Manual Name EPSON WORKFORCE WF-M105 Parts Manual
Format PDF
PDF Archive 3.24M
Pages 5
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model EPSON WorkForce WF-M100 Series WF-M105

EPSON WORKFORCE WF-M105

Parts Manual







*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******



WORKFORCE M1051586048100HOUSING,UPPER
WORKFORCE M1051579330101COVER,PRINTER
WORKFORCE M1051590475102COVER,PRINTER,SUPPORT,C
WORKFORCE M1051799804104STACKER ASSY.CC40,C,IEI
WORKFORCE M1051579320105PAPER SUPPORT
WORKFORCE M1051579322106PAPER SUPPORT,SUB
WORKFORCE M1051581134107RAIL,STACKER,RIGHT
WORKFORCE M1051581141108RAIL,STACKER,LEFT
WORKFORCE M1051684385110PANEL ASSY,CC85.,SEC
WORKFORCE M1051799908110PANEL ASSY.,CC85,B,IEI
WORKFORCE M1051586053111HOUSING,PANEL
WORKFORCE M1052193706113HARNESS
WORKFORCE M1051586049122COVER,RIGHT
WORKFORCE M1052189127201BOARD ASSY.,MAIN
WORKFORCE M1052171673202WIRELESS LAN USB MODULE
WORKFORCE M1052193662300BOADR ASSY.,POWER SUPPLY
WORKFORCE M1052121764400POWER CABLE
WORKFORCE M1051572338501LEVER,DETECTOR,PE,HD
WORKFORCE M1051548500502ROLLER,EJ
WORKFORCE M1051548501503SPUR GEAR,31.2
WORKFORCE M1051548502504MOTOR ASSY.,PF
WORKFORCE M1052147998505BOARD ASSY.,SUB
WORKFORCE M1051584704507HOLDER RETARD ASSY.,SEC
WORKFORCE M1051799734507HOLDER RETARD ASSY.,SEC
WORKFORCE M1051597297508FRAME PUMP ASSY,B,SEC
WORKFORCE M1051799731508FRAME PUMP ASSY,B,SEC
WORKFORCE M1051799884509HOLDER STARWHEEL ASSY,CC83.,IEI
WORKFORCE M1051573559510SHAFT,ROLLER,LD,ASSY,IEI
WORKFORCE M1051603525511SCALE,CR,B
WORKFORCE M1051548480512EXTENSION SPRING,1.41
WORKFORCE M1051577546513CAP ASSY.,IEI
WORKFORCE M1052142590515MOTOR ASSY,CR
WORKFORCE M1051550812516PGU ASSY
WORKFORCE M1051799885517CR ASSY,CC83.,IEI
WORKFORCE M1051799886518FFC CR ASSY,CC83.,IEI
WORKFORCE M1051549887520LEVER,PAPER BACK
WORKFORCE M1051548518521SCALE,PF
WORKFORCE M1051799735522ROLLER PF ASSY.IEI
WORKFORCE M1051572545523TIMING BELT, CR
WORKFORCE M1051548528527CLUTCH
WORKFORCE M1051881357527CLUTCH SDOTT
WORKFORCE M1051548529528SPUR GEAR,37.2
WORKFORCE M1051881358528SPUR GEAR,37.2
WORKFORCE M1051548530529EXTENSION SPRING,0.137
WORKFORCE M1051548494530EXTENSION SPRING,0.067
WORKFORCE M1051572561531POROUSPAD,IS,LOWER
WORKFORCE M1051572544532SHEET,SCALE,PF
WORKFORCE M1051579317541COVER,MOTER,PF
WORKFORCE M1051548476701HOLDER,BOARD
WORKFORCE M1051799808702HOPPER ASSY.CC40,IEI
WORKFORCE M1051799792703TRAY POROUSPAD,ASSY.,B,IEI
WORKFORCE M1051584650704CAP,TANK
WORKFORCE M1051799879706TANK,SUPPLY,ASSY.,CC83,B,IEI
WORKFORCE M1051797900709ADAPTER,ASSY.,CC83,IEI
WORKFORCE M1051586029710JOINT,TUBE
WORKFORCE M1051586042716HOUSING,TANK
WORKFORCE M1051564366717LEVER VALVE,B
WORKFORCE M1051590446718LABEL,VALVE,POSITION
WORKFORCE M1051799878721VALVE,TANK,ASSY.,CC83,IEI
WORKFORCE M1051586032723GUIDE PLATE,TUBE
WORKFORCE M1051586033724GUIDE PLATE,TUBE,SUPPORT
WORKFORCE M1051584660725TUBE,ADPTER
WORKFORCE M1051586045726COVER,TANK
WORKFORCE M1051495647727COMPRESSION SPRING,3.43
WORKFORCE M1051586028728COVER,CR SDOTT
WORKFORCE M1051590704729LABEL,VALVE,POSITION,EXPLANATION,C
WORKFORCE M1051593820730LABEL,INK INSTRUCTION,T774/EURO
WORKFORCE M1051590708731LABEL,SETUP,INSTRUCTION,C
WORKFORCE M1051590138733POROUS PAD,TANK,SIDE
WORKFORCE M1051596457734POROUS PAD,TANK,UPPER
