EPSON WorkForce WF-C869R WF-C869Ra Parts Manual

In stock
SKU
EP-WFC869R-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name Epson WorkForce WF-C869R WF-C869Ra Parts Manual
Format PDF
PDF Archive 11.3M
Pages 7
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-C869R WF-C869Ra Series

Epson WorkForce WF-C869R WF-C869Ra Parts Manual

SDOTT.com



*****   The following content is not included in the PDF manual   *****

*****   Please refer to the details ONLINE   ******

1702128101HOUSING,FRONT,ASSY.CF34,IEI
1735656102PANEL UNIT,CF34,B,ASP
1737217104COVER,FRONT,ASSY.,CF34,ASP
1743977104COVER,FRONT,ASSY.,CF34,ASP
1750640104COVER,FRONT,ASSY.,CF34,ASP
1752823104COVER,FRONT,ASSY.,CF34,ASP
1716974105STACKER,ASSY.,CF34,ASP
1696910106HOUSING,FRONT,RIGHT,UPPER
1702082107PAPER SUPPORT,MIDDLE,ASSY.CF34,IEI
1804744107PAPER SUPPORT,MIDDLE,ASSY.CF34,IEI
1701082109GUIDE,PAPER SUPPORT,B
1696914110HOUSING,REAR,UPPER
1716952112COVER,CONNECTOR,MFP,ASP
1737219113COVER,REAR,ASF,ASSY.,ASP
1743979113COVER,REAR,ASF,ASSY.,ASP
1752822113COVER,REAR,ASF,ASSY.,ASP
2154862118HARNESS,GROUND,PANEL
1716966120COVER,OPENABLE,IS,CL,ASSY.,CF35,ASP
1716967121COVER,OPENABLE,IS,BK,ASSY.,CF35,ASP
1702913122HOUSING.IS,CL,ASSY.,B,ASP
1696968123GUIDE,HINDGE
1633399124LINK,COVER,IS
1702914125HOUSING.IS,BK,ASSY.,B,ASP
1696965131COVER,INNER,IS,BK
1696959132COVER,BASE,IS,BK
1696957133COVER,BASE,IS,CL
1696904134HOUSING,FRONT,MIDDLE
1696908135HOUSING,FRONT,LEFT
1696909136HOUSING,FRONT,RIGHT
1696912137DECORATION,LEFT,SC
1696951138DECORATION,RIGHT,SC
1696967139COVER,INNER,SUB,IS,BK
1737225140HOUSING,REAR ASSY.,B,ASP
1743975140HOUSING,REAR ASSY.,B,ASP
1671404141LABEL,PACK,TRANSFER,D
1696964143COVER,INNER,IS,CL
1704230144STAY SC ASSY CF34,IEI
1713645145LABEL,ACCESS,POINT,A
1713070146LABEL,CAUTION,USB
1713647147LABEL,ACCESS,POINT,D1
1740347200BOARD ASSY.,MAIN,CF34,B,ASP
2177050201BOARD ASSY.,INTERFACE 7023A,STANDARD_ringer
2201389201BOARD ASSY.,INTERFACE
2172423203CR CONTACT MODULE
2181974204WIRELESS LAN USB MODULE
2192160204WIRELESS LAN USB MODULE
2121674205HARNESS
2177044206BOARD ASSY.,SUB
2172424207CR CONTACT MODULE
2187575208FLASH MEMORY
2188697208FLASH MEMORY
2190955208FLASH MEMORY
2185538209BOARD ASSY.,MAIN 7016B,STANDARD
2191571209BOARD ASSY.,MAIN 7016B,STANDARD
2186848210BOARD ASSY.,PROG 7026B,CF34 STANDARD
2188682210BOARD ASSY.,PROG 7026B,CF34 STANDARD
2189680210BOARD ASSY.,PROG 7026B,CF34 STANDARD
2193036210BOARD ASSY.,PROG 7026B,CF34 STANDARD
2201338210BOARD ASSY.,PROG
2175295211HARNESS
2175296212HARNESS
2175297213HARNESS
2175298214HARNESS
2175299215HARNESS
2183464216BOARD ASSY.,SUB
2177048217BOARD ASSY.,SUB
2186809219HARNESS
2186810220HARNESS
2175290221HARNESS
2175287222HARNESS
2175292223HARNESS
2193694223HARNESS
2179051226CABLE,CRCM,BK
2193982226CABLE,CRCM,BK
2179052227CABLE,CRCM,YMC
2179407300BOARD ASSY.,POWER SUPPLY
1617403501PW SHUTTER,ASSY.,SEC
1617400502MOTOR,APG,ASSY.,SEC
1617406503DRIVE APG,ASSY.,SEC
1617335504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1767608504BOARD ASSY.,ENCODER,PF,ASSY.,SEC
1608786505TIMING BELT,PF
1702648506DRIVE,PF ASSY.,IEI
1716953507DRIVE ASF,ASSY.,ASP
1702024508IS DECOMP PUMP,ASSY.,IEI

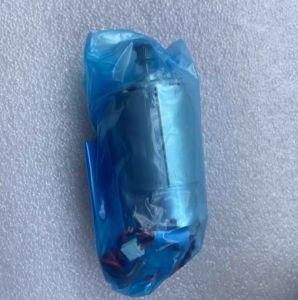

2177769509MOTOR ASSY.,CR
1716951510CABLE,CSIC,INK EJECT,ASP
1670405511HOLDER,STARWHEEL ASSY.B,SEC

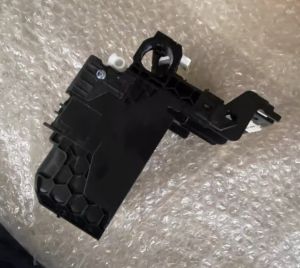

1702433512CARRIAGE,ASSY.CF34,IEI
1872664512CARRIAGE,ASSY.CF34,IEI
2162797513SCALE,CR,ASSY.,ASP
1608899515LEVER,BLOCK,COVER,REAR,ASF
1716961517INK SYSTEM,ASSY.,CF34,ASP
1608790519STOPPER,TENSION,PF
2143464520PHOTO INTERRUPTER
2109393521BOARD ASSY.,DETECTOR,PW,B
1614492524POROUS PAD,CR
1653940525SUPPLY,ROLLER,ASSY.,C,SEC
1682249526LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B
1702384527PAPER GUIDE,DUPLEX, ASSY,CF34,IEI
1859890527PAPER GUIDE,DUPLEX, ASSY,CF34,IEI
1608693529TIMING BELT,CR
1702394530MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY
1859873530MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY
2131049531ENCODER,ADF,B
1696873532LEVER,PAPER DETECT,MIDDLE
1614832533SHOULDER BOLT,3X4,RASF
1731530534MOUNTING PLATE,SOLENOID,ASSY.,ASP
1874653534MOUNTING PLATE,SOLENOID,ASSY.,ASP
17008965354 LINES SWITCH,HS12
1703396536COMPRESSION SPRING,2.7,RETARD
1697063537TUBE ASSY,SUPPLY,YMC
2179053539CABLE,CSIC,BK
2193984539CABLE,CSIC,BK
2179056540CABLE,CSIC,C
2179055541CABLE,CSIC,M
2179054542CABLE,CSIC,Y
2178538543HARNESS,GROUNDING,SOLENOID
2178539544HARNESS,DETECTOR,IS,CL
2178540545HARNESS,DETECTOR,IS,BK
2176012547SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
1702411548LIFT DRIVE ASSY,CF34,IEI
1617356549PAPER GUIDE,UPPER,LEFT.,ASSY,,IEI
1720452549PAPER GUIDE,UPPER,LEFT.,ASSY,,IEI
1617344550PAPER GUIDE,UPPER,CENTER ASSY,,IEI
1617342551PAPER GUIDE,UPPER,RIGHT.,ASSY,,IEI
1720450551PAPER GUIDE,UPPER,RIGHT.,ASSY,,IEI
1522509552PAD,LEVER,PE
1696881553HOLDER,DETECTOR,PAPER LENGTH
1696882554LEVER,DETECTOR,PAPER LENGTH
1633293556PORUS PAD , HOLDER
FA30001700PRINT HEAD,IF476V,ASP OEDER TO SEC WITH MOQ=12PCS´?î
FA30002700PRINT HEAD,IF476V,ASP OEDER TO SEC WITH MOQ=12PCS´?î
FA30011700PRINT HEAD,IF476V,ASP OEDER TO SEC WITH MOQ=12PCS´?î
FA30021700PRINT HEAD,IF476V,ASP OEDER TO SEC WITH MOQ=12PCS´?î
FA30031700PRINT HEAD,IF476V,ASP OEDER TO SEC WITH MOQ=12PCS´?î
1716954701REAR,ASF,ASSY.,CF34,ASP
1746625701REAR,ASF,ASSY.,CF34,ASP
1614447702SHEET,GUIDE,ROOLER,RASF
1617440705LEVER,CLUTCH,ASSY.,SEC
1617439706CLUTCH,LD,ASSY.,SEC
1607033707SEAL,JOINT,HEAD
1766374707SEAL,JOINT,HEAD
2150699708LEAF SENSOR,P599
1720961710CABLE,HEAD ASSY.,ASP
2091058711BOARD ASSY.,PE
1702642712USB HOST ASSY,CF34.,IEI
1716956715CASSETTE,ASSY.,ASP
1716962718DUP ASSY.,ASP
1752821718DUP ASSY.,ASP
1600316719BELT,STOPPER,MSF
1736074720INK SUPPLY,ASSY.,CF34,C,ASP
1701851722HOLDER,RETARD,CASSETTE,ASSY.,IEI
1706322730NEEDLE,INK ASSY.,IEI, BK
1706323731NEEDLE,INK ASSY.,IEI, CY
1706324732NEEDLE,INK ASSY.,IEI, M
1702091733NEEDLE,INK ASSY.,IEI, Y
1702123737HOLDER,SLIDER,INK PACK,CY,B.ASSY.,IEI
1702125738HOLDER,SLIDER,INK PACK,MA,A,ASSY.,IEI
1702327739HOLDER,SLIDER,INK PACK,YE,A,ASSY.,IEI
1702120740HOLDER,SLIDER,INK PACK,BK,B,ASSY,IEI
1702273742CSIC.,ASSY.CF34,IEI
1716957750CASSETTE,ASSY.,B,ASP
1737220751COVER,REAR ,OPT ASSY.:B,IEI
1610795752BAND,COVER,REAR,OPT
1610901755SPUR GEAR,30,LIFT,OPT
1610850756ROLLER ASSY,VERTICAL,OPT
1716975757FRAME ASSY.,RIGHT,OPT ASSY.,ASP
1610858759LEVER,DETECTOR,PAPER GUIDE,REAR,OPT
1633338760FOOT
1701491763LABEL,PAPER SIZE,CASSETTE
1701492764LABEL,PAPER SIZE,OPT
1653941765SUPPLY,ROLLER,ASSY.OPT,SEC
1615762766LABEL,CASSETTE POSITION
2154530767DRAWER CONECTOR 1-1612256-4
2154529768DRAWER CONNECTOR 1-1612257-4
1610797769SPUR GEAR,43, OPT
1607106772C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C
1610855775SPUR GEAR,32,PICK UP,OPT
1713648776LABEL,ACCESS,POINT,E
1737224800SCN/ADF ASSY.,CF34,ASP BIJ
1766957800SCN/ADF ASSY.,CF34,ASP BIJ
1839758800SCN/ADF ASSY.,CF34,ASP BIJ
1737223901PAPER GUIDE,UPPER,ADF ASSY.,CF34,B,ASP
1716965902COVER,REAR,ADF,ASP
1701096903DECORATION,REAR,ADF,B
1716964904COVER,FRONT,ADF,ASP
1701095905DECORATION,FRONT,ADF,B
1716960906DOC,SUPPORT,ADF ASSY.,CF34,ASP
1701094907DOCUMENT,SUPPORT,LOWER,ADF,B
2156413908DOCUMENT GUIDE,LOWER,ADF ASSY,,SEC
2156412909PAD,ADF ASSY,,SEC
1675259910HINDGE ASSY.,RIGHT,B
1675258911HINDGE ASSY.,LEFT,B
1718499912MAT,COVER DOCUMENT
1737221914COVER,ASF,CF34,ASP
2156418915LD ASSY,,SEC
1615265916COVER,RIGHT,ADF
1609392917STOPER,DOCUMENT,ADF
1626349918LABEL,BLIND,PANEL,B
1713711919LABEL,FUNCTION,B
1697083921PRESSING PLATE,RIGHT,SC
2175300922HARNESS
2175301923HARNESS
1713649924LABEL,ACCESS,POINT,F
1713644925LABEL,EDGE GUIDE OPERATION
1713646926LABEL,ACCESS,POINT,B1
