EPSON WorkForce WF-C8690 C8690a Parts Manual
In stock
SKU
EP-WFC8690-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WorkForce WF-C8690 C8690a Parts Manual |
|---|---|
| Format | |
| PDF Archive | 8.58M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WorkForce WF-C8600 Series C8690 C8690a C8610 |
EPSON WorkForce WF-C8690 C8690a Parts Manual
****** The following content is not included in the PDF manual, please use it online ******

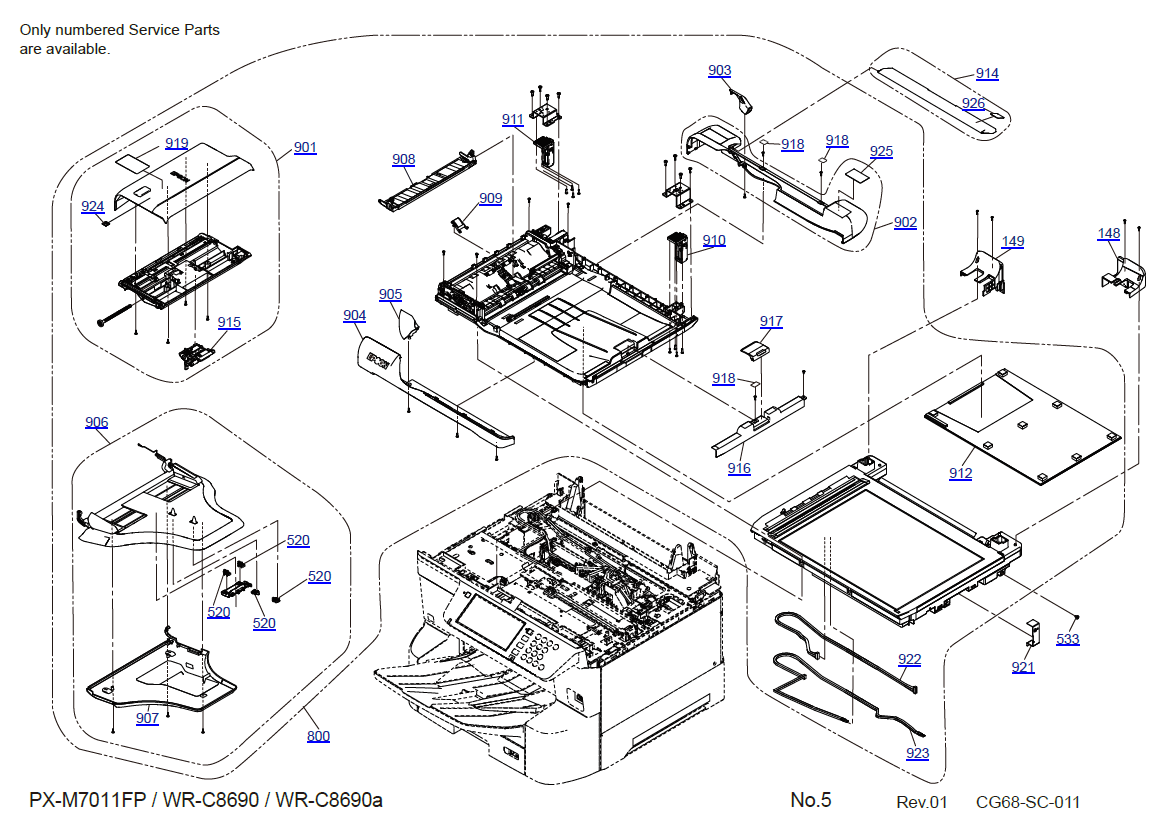

| WORKFORCE PRO WF-C8690 | 1745141 | 101 | HOUSING,FRONT,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1753647 | 102 | PANEL ASSY.,CG68,ASP |
| WORKFORCE PRO WF-C8690 | 1753662 | 104 | COVER,FRONT,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1716974 | 105 | STACKER,ASSY.,CF34,ASP |
| WORKFORCE PRO WF-C8690 | 1696910 | 106 | HOUSING,FRONT,RIGHT,UPPER |
| WORKFORCE PRO WF-C8690 | 1804744 | 107 | PAPER SUPPORT,MIDDLE,ASSY.CF34.,B,IEI |
| WORKFORCE PRO WF-C8690 | 1701082 | 109 | GUIDE,PAPER SUPPORT,B |
| WORKFORCE PRO WF-C8690 | 1696914 | 110 | HOUSING,REAR,UPPER |
| WORKFORCE PRO WF-C8690 | 1716952 | 112 | COVER,CONNECTOR,MFP,ASP |
| WORKFORCE PRO WF-C8690 | 1753663 | 113 | COVER,REAR,ASF,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1858701 | 113 | COVER,REAR,ASF,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 2154862 | 118 | HARNESS,GROUND,PANEL |
| WORKFORCE PRO WF-C8690 | 1696904 | 134 | HOUSING,FRONT,MIDDLE |
| WORKFORCE PRO WF-C8690 | 1696908 | 135 | HOUSING,FRONT,LEFT |
| WORKFORCE PRO WF-C8690 | 1696909 | 136 | HOUSING,FRONT,RIGHT |
| WORKFORCE PRO WF-C8690 | 1696912 | 137 | DECORATION,LEFT,SC |
| WORKFORCE PRO WF-C8690 | 1696951 | 138 | DECORATION,RIGHT,SC |
| WORKFORCE PRO WF-C8690 | 1743975 | 140 | HOUSING,REAR ASSY.,C,ASP |
| WORKFORCE PRO WF-C8690 | 1745134 | 144 | STAY SC ASSY CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1713645 | 145 | LABEL,ACCESS,POINT,A |
| WORKFORCE PRO WF-C8690 | 1713070 | 146 | LABEL,CAUTION,USB |
| WORKFORCE PRO WF-C8690 | 1713647 | 147 | LABEL,ACCESS,POINT,D1 |
| WORKFORCE PRO WF-C8690 | 1697086 | 148 | HOUSING,REAR,RIGHT,ADF |
| WORKFORCE PRO WF-C8690 | 1697085 | 149 | HOUSING,REAR,LEFT,ADF |
| WORKFORCE PRO WF-C8690 | 1745146 | 150 | HOUSING,LEFT ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1745147 | 151 | HOUSING,RIGHT ASSY.CG68,IEI |

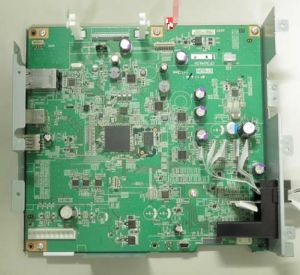

| WORKFORCE PRO WF-C8690 | 2192124 | 200 | BOARD ASSY.,MAIN,CG68,ASP |
| WORKFORCE PRO WF-C8690 | 2201389 | 201 | BOARD ASSY.,INTERFACE |
| WORKFORCE PRO WF-C8690 | 2172422 | 203 | CR CONTACT MODULE |
| WORKFORCE PRO WF-C8690 | 2194158 | 204 | WIRELESS LAN USB MODULE |
| WORKFORCE PRO WF-C8690 | 2177044 | 206 | BOARD ASSY.,SUB |
| WORKFORCE PRO WF-C8690 | 2192188 | 208 | MEMORY CARD |
| WORKFORCE PRO WF-C8690 | 2195250 | 209 | BOARD ASSY.,MAIN 7016D,CG68/CG70 STANDARD |
| WORKFORCE PRO WF-C8690 | 2202586 | 210 | BOARD ASSY.,PROG |
| WORKFORCE PRO WF-C8690 | 2175295 | 211 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175296 | 212 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175297 | 213 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175298 | 214 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175299 | 215 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2183464 | 216 | BOARD ASSY.,SUB |
| WORKFORCE PRO WF-C8690 | 2177048 | 217 | BOARD ASSY.,SUB |
| WORKFORCE PRO WF-C8690 | 2186809 | 219 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175289 | 220 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175290 | 221 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175287 | 222 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175292 | 223 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2193694 | 223 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2188114 | 226 | CABLE,CRCM,B |
| WORKFORCE PRO WF-C8690 | 2191175 | 300 | BOARD ASSY.,POWER SUPPLY |
| WORKFORCE PRO WF-C8690 | 1745189 | 501 | PW SHUTTER.,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1745190 | 502 | MOTOR,APG.,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1745187 | 503 | DRIVE APG.,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1767608 | 504 | BOARD ASSY.,ENCODER,PF,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1608786 | 505 | TIMING BELT,PF |

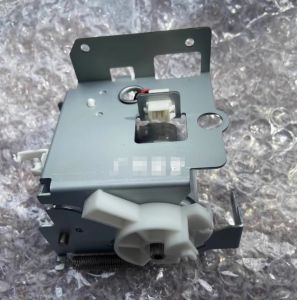

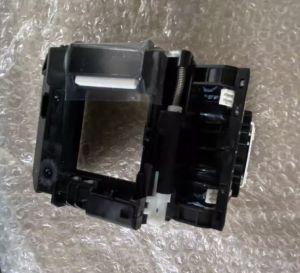

| WORKFORCE PRO WF-C8690 | 1702648 | 506 | DRIVE,PF ASSY.,IEI |
| WORKFORCE PRO WF-C8690 | 1753661 | 507 | DRIVE ASF,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1702024 | 508 | IS DECOMP PUMP,ASSY.,IEI |
| WORKFORCE PRO WF-C8690 | 2188022 | 509 | MOTOR ASSY.,CR |
| WORKFORCE PRO WF-C8690 | 1716951 | 510 | CABLE,CSIC,INK EJECT,ASP |
| WORKFORCE PRO WF-C8690 | 1745386 | 511 | HOLDER,STARWHEEL ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1745333 | 512 | CARRIAGE,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 2162797 | 513 | SCALE,CR,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1608899 | 515 | LEVER,BLOCK,COVER,REAR,ASF |

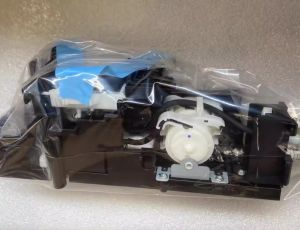

| WORKFORCE PRO WF-C8690 | 1753653 | 517 | INK SYSTEM,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1608790 | 519 | STOPPER,TENSION,PF |
| WORKFORCE PRO WF-C8690 | 2143464 | 520 | PHOTO INTERRUPTER |
| WORKFORCE PRO WF-C8690 | 2109393 | 521 | BOARD ASSY.,DETECTOR,PW,B |
| WORKFORCE PRO WF-C8690 | 1614492 | 524 | POROUS PAD,CR |
| WORKFORCE PRO WF-C8690 | 1653940 | 525 | SUPPLY,ROLLER,ASSY.,C,SEC |
| WORKFORCE PRO WF-C8690 | 1682249 | 526 | LEVER,DETECTOR,PAPER GUIDE,REAR,ASF,B |
| WORKFORCE PRO WF-C8690 | 1702384 | 527 | PAPER GUIDE,DUPLEX, ASSY,CF34,IEI |
| WORKFORCE PRO WF-C8690 | 1859890 | 527 | PAPER GUIDE,DUPLEX, ASSY,CF34,IEI |
| WORKFORCE PRO WF-C8690 | 1608693 | 529 | TIMING BELT,CR |
| WORKFORCE PRO WF-C8690 | 1702394 | 530 | MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY |
| WORKFORCE PRO WF-C8690 | 1859873 | 530 | MOUNTING PLATE,HOLDER,ROLLER,2ND ASSY |
| WORKFORCE PRO WF-C8690 | 2187886 | 531 | BOARD ASSY.,ENCODER |
| WORKFORCE PRO WF-C8690 | 1696873 | 532 | LEVER,PAPER DETECT,MIDDLE |
| WORKFORCE PRO WF-C8690 | 1614832 | 533 | SHOULDER BOLT,3X4,RASF |
| WORKFORCE PRO WF-C8690 | 1731530 | 534 | MOUNTING PLATE,SOLENOID,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1874653 | 534 | MOUNTING PLATE,SOLENOID,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1741305 | 535 | 4 LINE SWITCH |
| WORKFORCE PRO WF-C8690 | 1703396 | 536 | COMPRESSION SPRING,2.7,RETARD |
| WORKFORCE PRO WF-C8690 | 2178529 | 543 | HARNESS,GROUNDING,RASF |
| WORKFORCE PRO WF-C8690 | 2176012 | 547 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| WORKFORCE PRO WF-C8690 | 1745384 | 548 | LIFT DRIVE ASSY,CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1617356 | 549 | PAPER GUIDE,UPPER,LEFT.,ASSY,,IEI |
| WORKFORCE PRO WF-C8690 | 1745377 | 550 | PAPER GUIDE,UPPER,CENTER.,ASSY.CG68,IEI |
| WORKFORCE PRO WF-C8690 | 1617342 | 551 | PAPER GUIDE,UPPER,RIGHT.,ASSY,,IEI |
| WORKFORCE PRO WF-C8690 | 1522509 | 552 | PAD,LEVER,PE |
| WORKFORCE PRO WF-C8690 | 1696881 | 553 | HOLDER,DETECTOR,PAPER LENGTH |
| WORKFORCE PRO WF-C8690 | 1696882 | 554 | LEVER,DETECTOR,PAPER LENGTH |
| WORKFORCE PRO WF-C8690 | 1617343 | 557 | ROLLER,DRIVEN,PF,,IEI |
| WORKFORCE PRO WF-C8690 | 1720452 | 558 | PAPER GUIDE,UPPER,LEFT.,ASSY,CF34,B,IEI |
| WORKFORCE PRO WF-C8690 | 1720450 | 559 | PAPER GUIDE,UPPER,RIGHT.,ASSY,CF34,B,IEI |
| WORKFORCE PRO WF-C8690 | FA30011 | 700 | PRINT HEAD,IF476V-1,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| WORKFORCE PRO WF-C8690 | FA30021 | 700 | PRINT HEAD,IF476V-1,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| WORKFORCE PRO WF-C8690 | FA30031 | 700 | PRINT HEAD,IF476V-1,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| WORKFORCE PRO WF-C8690 | 1753654 | 701 | REAR,ASF,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1614447 | 702 | SHEET,GUIDE,ROOLER,RASF |
| WORKFORCE PRO WF-C8690 | 1617440 | 705 | LEVER,CLUTCH,ASSY.,SEC |
| WORKFORCE PRO WF-C8690 | 1617439 | 706 | CLUTCH,LD,ASSY.,SEC |
| WORKFORCE PRO WF-C8690 | 2150699 | 708 | LEAF SENSOR,P599 |
| WORKFORCE PRO WF-C8690 | 1720961 | 710 | CABLE,HEAD ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 2184123 | 711 | BOARD ASSY.,SENSOR |
| WORKFORCE PRO WF-C8690 | 1702642 | 712 | USB HOST ASSY,CF34.,IEI |
| WORKFORCE PRO WF-C8690 | 1753655 | 715 | CASSETTE,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1753656 | 718 | DUP ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1600316 | 719 | BELT,STOPPER,MSF |
| WORKFORCE PRO WF-C8690 | 1753658 | 720 | INK SUPPLY,ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1701851 | 722 | HOLDER,RETARD,CASSETTE,ASSY.,IEI |
| WORKFORCE PRO WF-C8690 | 1701491 | 763 | LABEL,PAPER SIZE,CASSETTE |
| WORKFORCE PRO WF-C8690 | 1615762 | 766 | LABEL,CASSETTE POSITION |
| WORKFORCE PRO WF-C8690 | 1696308 | 770 | SCREW MOUNT HEAD ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1607106 | 772 | C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C |
| WORKFORCE PRO WF-C8690 | 1765459 | 778 | MAGNET,VALVE,SUPPLY,B,ASP |
| WORKFORCE PRO WF-C8690 | 1716879 | 779 | SCREW,JOINT,HEAD |
| WORKFORCE PRO WF-C8690 | 1766955 | 800 | SCN/ADF ASSY.,B,ASP |
| WORKFORCE PRO WF-C8690 | 1829929 | 800 | SCN/ADF ASSY.,B,ASP |
| WORKFORCE PRO WF-C8690 | 1871496 | 800 | SCN/ADF ASSY.,B,ASP |
| WORKFORCE PRO WF-C8690 | 1753664 | 901 | PAPER GUIDE,UPPER,ADF ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1716965 | 902 | COVER,REAR,ADF,ASP |
| WORKFORCE PRO WF-C8690 | 1701096 | 903 | DECORATION,REAR,ADF,B |
| WORKFORCE PRO WF-C8690 | 1716964 | 904 | COVER,FRONT,ADF,ASP |
| WORKFORCE PRO WF-C8690 | 1701095 | 905 | DECORATION,FRONT,ADF,B |
| WORKFORCE PRO WF-C8690 | 1753660 | 906 | DOC,SUPPORT,ADF ASSY.,ASP |
| WORKFORCE PRO WF-C8690 | 1701094 | 907 | DOCUMENT,SUPPORT,LOWER,ADF,B |
| WORKFORCE PRO WF-C8690 | 1745399 | 908 | DOCUMENT GUIDE,LOWER,ADF ASSY.,IEI |
| WORKFORCE PRO WF-C8690 | 2156412 | 909 | PAD,ADF ASSY,,SEC |
| WORKFORCE PRO WF-C8690 | 1675259 | 910 | HINDGE ASSY.,RIGHT,B |
| WORKFORCE PRO WF-C8690 | 1675258 | 911 | HINDGE ASSY.,LEFT,B |
| WORKFORCE PRO WF-C8690 | 1718499 | 912 | MAT,COVER DOCUMENT |
| WORKFORCE PRO WF-C8690 | 1737221 | 914 | COVER,ASF,CF34,ASP |
| WORKFORCE PRO WF-C8690 | 2156418 | 915 | LD ASSY,,SEC |
| WORKFORCE PRO WF-C8690 | 1615265 | 916 | COVER,RIGHT,ADF |
| WORKFORCE PRO WF-C8690 | 1609392 | 917 | STOPER,DOCUMENT,ADF |
| WORKFORCE PRO WF-C8690 | 1626349 | 918 | LABEL,BLIND,PANEL,B |
| WORKFORCE PRO WF-C8690 | 1741897 | 919 | LABEL,FUNCTION |
| WORKFORCE PRO WF-C8690 | 1697083 | 921 | PRESSING PLATE,RIGHT,SC |
| WORKFORCE PRO WF-C8690 | 2175300 | 922 | HARNESS |
| WORKFORCE PRO WF-C8690 | 2175301 | 923 | HARNESS |
| WORKFORCE PRO WF-C8690 | 1713649 | 924 | LABEL,ACCESS,POINT,F |
| WORKFORCE PRO WF-C8690 | 1713644 | 925 | LABEL,EDGE GUIDE OPERATION |
| WORKFORCE PRO WF-C8690 | 1713646 | 926 | LABEL,ACCESS,POINT,B1 |
