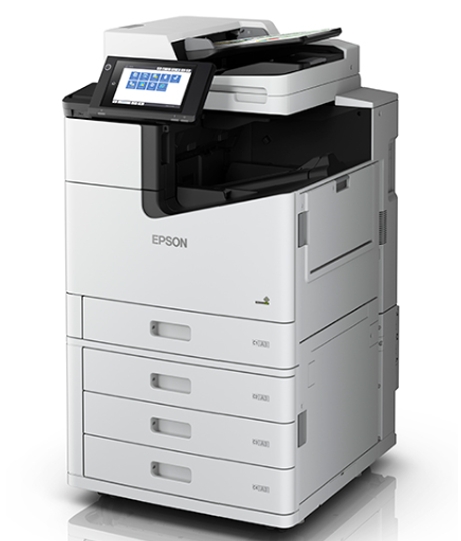

EPSON WorkForce WF-C20750 WF-C20750a WF-C20750c Parts Manual
In stock
SKU
EP-WFC20750-PM
$1.80
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON WorkForce WF-C8610 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 36.2M |
| Pages | 20 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WF-C20750 Series C20750a C20750c |

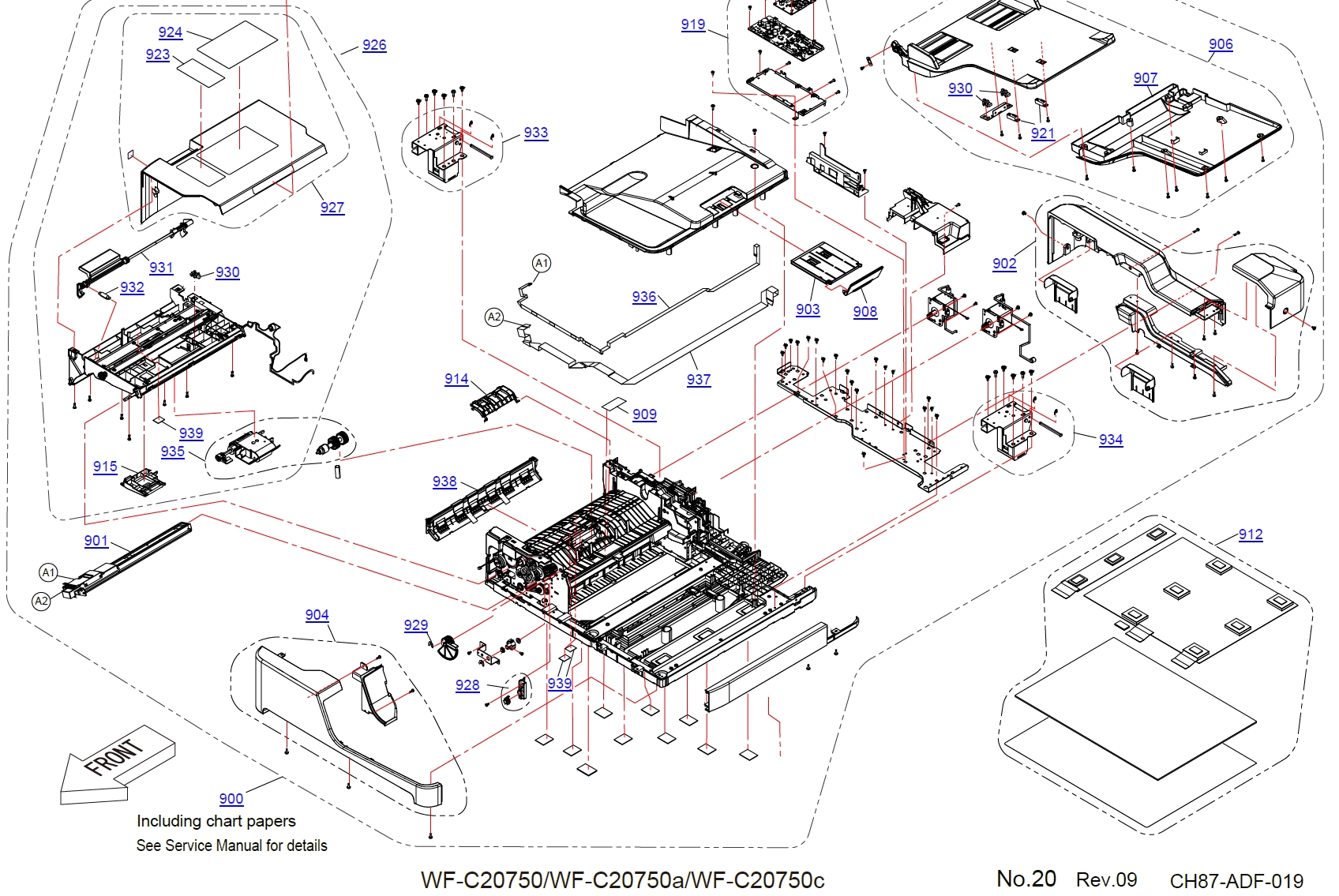

EPSON WorkForce WF-C20750 WF-C20750a WF-C20750c
Parts Manual
EPSON WorkForce WF-C20750 Series C20750a C20750c
****** The following content is not included in the PDF manual. Please refer to ONLINE ******
| WORKFORCE WF-C20750 | 1832138 | 101 | PANEL,UNIT,2.4GHz,G2,ASP |
| WORKFORCE WF-C20750 | 1832140 | 102 | HOLDER,WiFi,ASSY,B.,ASP |
| WORKFORCE WF-C20750 | 1806085 | 103 | COVER,INNER,NFC,B |
| WORKFORCE WF-C20750 | 1720310 | 104 | PCB USB HOST ASSY.,ASP |
| WORKFORCE WF-C20750 | 1692621 | 105 | HOUSING,STAY,PANEL,UPPER |
| WORKFORCE WF-C20750 | 1742265 | 106 | COVER,NFC,B |
| WORKFORCE WF-C20750 | 1832001 | 107 | GUIDE,TRAY,MAIN,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1699090 | 108 | GUIDE,TRAY,MAIN,REAR,ASSY. |
| WORKFORCE WF-C20750 | 1908307 | 108 | GUIDE,TRAY,MAIN,REAR,ASSY. |
| WORKFORCE WF-C20750 | 1699089 | 109 | COVER,CABLE,ASSY. |
| WORKFORCE WF-C20750 | 1895435 | 109 | COVER,CABLE,ASSY. |
| WORKFORCE WF-C20750 | 1906110 | 109 | COVER,CABLE,ASSY. |
| WORKFORCE WF-C20750 | 1692557 | 110 | COVER,UPPER |
| WORKFORCE WF-C20750 | 1800062 | 111 | HOUSING,REAR,LU |
| WORKFORCE WF-C20750 | 1905205 | 111 | HOUSING,REAR,LU |
| WORKFORCE WF-C20750 | 1692648 | 112 | DECORATION PLATE,RIGHT,LU |
| WORKFORCE WF-C20750 | 1905207 | 112 | DECORATION PLATE,RIGHT,LU |
| WORKFORCE WF-C20750 | 1700244 | 113 | COVER,OPT,RIGHT,LU |
| WORKFORCE WF-C20750 | 1905212 | 113 | COVER,OPT,RIGHT,LU |
| WORKFORCE WF-C20750 | 1692644 | 114 | HOUSING,RIGHT,LU |
| WORKFORCE WF-C20750 | 1905204 | 114 | HOUSING,RIGHT,LU |
| WORKFORCE WF-C20750 | 1700240 | 115 | COSMETIC PLATE,LOWER,LU |
| WORKFORCE WF-C20750 | 1905210 | 115 | COSMETIC PLATE,LOWER,LU |
| WORKFORCE WF-C20750 | 1692647 | 116 | DECORATION PLATE,UPPER,LU |
| WORKFORCE WF-C20750 | 1905206 | 116 | DECORATION PLATE,UPPER,LU |
| WORKFORCE WF-C20750 | 1702081 | 117 | HOUSING,FRONT,LU,ASSY. |
| WORKFORCE WF-C20750 | 1908303 | 117 | HOUSING,FRONT,LU,ASSY. |
| WORKFORCE WF-C20750 | 1832143 | 118 | HOUSING,LEFT,LU,B,ASSY,ASP |
| WORKFORCE WF-C20750 | 1913955 | 118 | HOUSING,LEFT,LU,B,ASSY,ASP |
| WORKFORCE WF-C20750 | 1700243 | 119 | COSMETIC PLATE,LEFT,LU |
| WORKFORCE WF-C20750 | 1905211 | 119 | COSMETIC PLATE,LEFT,LU |
| WORKFORCE WF-C20750 | 1832142 | 120 | HOUSING,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1913950 | 120 | HOUSING,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1841587 | 121 | COVER,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1857842 | 121 | COVER,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1862257 | 121 | COVER,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1913952 | 121 | COVER,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1923841 | 121 | COVER,FRONT,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1749202 | 122 | STICK,CLEANING,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1716139 | 123 | KLEMME,ASSY. SDOTT |
| WORKFORCE WF-C20750 | 1806091 | 124 | HINGE ASSY.,COVER,FRONT,RIGHT |
| WORKFORCE WF-C20750 | 1832145 | 125 | COVER,I/C,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1913951 | 125 | COVER,I/C,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1832141 | 126 | COVER,MENTE,BOX,ASSY,G2,ASP |
| WORKFORCE WF-C20750 | 1913954 | 126 | COVER,MENTE,BOX,ASSY,G2,ASP |
| WORKFORCE WF-C20750 | 1692552 | 127 | HOUSING,LEFT |
| WORKFORCE WF-C20750 | 1905195 | 127 | HOUSING,LEFT |
| WORKFORCE WF-C20750 | 1809411 | 128 | HOUSING,RIGHT,REAR,R,ASSY.,B |
| WORKFORCE WF-C20750 | 1905518 | 128 | HOUSING,RIGHT,REAR,R,ASSY.,B |
| WORKFORCE WF-C20750 | 1809410 | 129 | HOUSING,REAR,L,SUP,ASSY.,C |
| WORKFORCE WF-C20750 | 1908302 | 129 | HOUSING,REAR,L,SUP,ASSY.,C |
| WORKFORCE WF-C20750 | 1800054 | 130 | COVER,CONNECTOR |
| WORKFORCE WF-C20750 | 1905302 | 130 | COVER,CONNECTOR |
| WORKFORCE WF-C20750 | 1699088 | 131 | HOUSING,FD,ASSY. |
| WORKFORCE WF-C20750 | 1905514 | 131 | HOUSING,FD,ASSY. |
| WORKFORCE WF-C20750 | 1723629 | 132 | TRAY,SUB,FD,ATTACHMENT,ASP |
| WORKFORCE WF-C20750 | 1692651 | 135 | BEZEL,OUTLET |
| WORKFORCE WF-C20750 | 1868685 | 135 | BEZEL,OUTLET |
| WORKFORCE WF-C20750 | 1825349 | 136 | ADJUSTER,ASSY. |
| WORKFORCE WF-C20750 | 1913517 | 136 | ADJUSTER,ASSY. |
| WORKFORCE WF-C20750 | 1762871 | 137 | COVER,ADJUSTER,ADKB |
| WORKFORCE WF-C20750 | 1762880 | 138 | SPANNER,13,ADJUSTER |
| WORKFORCE WF-C20750 | 1689382 | 139 | CASTER,CHAM60-N |
| WORKFORCE WF-C20750 | 1804478 | 142 | SHEET,BLIND,PANEL |
| WORKFORCE WF-C20750 | 1832150 | 200 | BOARD ASSY.,MAIN,G2,ASSY,ASP |
| WORKFORCE WF-C20750 | 1846439 | 200 | BOARD ASSY.,MAIN,G2,ASSY,ASP |
| WORKFORCE WF-C20750 | 1891417 | 200 | BOARD ASSY.,MAIN,G2,ASSY,ASP |
| WORKFORCE WF-C20750 | 1809763 | 300 | POWER SUPPLY UNIT,D,ASP |
| WORKFORCE WF-C20750 | 1897035 | 300 | POWER SUPPLY UNIT,D,ASP |
| WORKFORCE WF-C20750 | 2208828 | 350 | BOARD ASSY.,PROG |
| WORKFORCE WF-C20750 | 1697856 | 351 | RCH-40-V0 |
| WORKFORCE WF-C20750 | 1832151 | 352 | BOARD ASSY.,MCU ASSY,G2,ASP |
| WORKFORCE WF-C20750 | 2208829 | 353 | BOARD ASSY.,PROG |
| WORKFORCE WF-C20750 | 1773881 | 354 | Head CON PCB ASSY.,C,ASP |
| WORKFORCE WF-C20750 | 2188380 | 356 | HDD |
| WORKFORCE WF-C20750 | 2176778 | 358 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 2208830 | 359 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C20750 | 1808190 | 360 | AC INLET ASSY.,G2 |
| WORKFORCE WF-C20750 | 2202525 | 361 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 2176786 | 362 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 2195151 | 363 | HIGH VOLTAGE POWER SUPPLY UNIT |
| WORKFORCE WF-C20750 | 2216963 | 363 | HIGH VOLTAGE POWER SUPPLY UNIT |
| WORKFORCE WF-C20750 | 1717364 | 364 | SPONGE,SEALING,HEAD P.C.B.,RIGHT |
| WORKFORCE WF-C20750 | 1717365 | 365 | SPONGE,SEALING,HEAD P.C.B.,LEFT |
| WORKFORCE WF-C20750 | 2178140 | 368 | HARNESS,PNL |
| WORKFORCE WF-C20750 | 2178235 | 370 | HARNESS,MINI USB,MAIN-MAIN-C ,2178235-01 |
| WORKFORCE WF-C20750 | 2181205 | 371 | HARNESS,MICRO USB,MAIN-MAIN-C |
| WORKFORCE WF-C20750 | 2178145 | 373 | HARNESS,PS-1 |
| WORKFORCE WF-C20750 | 2178146 | 374 | HARNESS,PS-2 ,2178146-01 |
| WORKFORCE WF-C20750 | 2178147 | 375 | HARNESS,PS-3 |
| WORKFORCE WF-C20750 | 2178602 | 376 | HARNESS SET,LUP ,2178602-01 |
| WORKFORCE WF-C20750 | 2178603 | 377 | HARNESS SET,LUS ,2178603-01 |
| WORKFORCE WF-C20750 | 1832148 | 378 | RAICHO,BOX,ASSY.,WW,G2,ASP |
| WORKFORCE WF-C20750 | 1856849 | 378 | RAICHO,BOX,ASSY.,WW,G2,ASP |
| WORKFORCE WF-C20750 | 1913323 | 378 | RAICHO,BOX,ASSY.,WW,G2,ASP |
| WORKFORCE WF-C20750 | 2202523 | 379 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 2208834 | 380 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C20750 | 2209052 | 381 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 1830324 | 501 | MAIN,INK SUPPLY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1842431 | 501 | MAIN,INK SUPPLY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1830336 | 502 | CONNECTOR,CSIC,UNIT.G2,ASP |
| WORKFORCE WF-C20750 | 1842432 | 502 | CONNECTOR,CSIC,UNIT.G2,ASP |
| WORKFORCE WF-C20750 | 1890300 | 502 | CONNECTOR,CSIC,UNIT.G2,ASP |
| WORKFORCE WF-C20750 | 1807971 | 503 | GUIDE,TUBE,RELAY,UNIT,G2 |
| WORKFORCE WF-C20750 | 1913514 | 503 | GUIDE,TUBE,RELAY,UNIT,G2 |
| WORKFORCE WF-C20750 | 1830325 | 504 | PRESSURE,PUMP,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1830326 | 505 | MENTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1861420 | 505 | MENTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1862196 | 505 | MENTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1830331 | 506 | DETECTOR,MENTE,BOX,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1890301 | 506 | DETECTOR,MENTE,BOX,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1709585 | 507 | PULLY,39.47,S2M ASSY. |
| WORKFORCE WF-C20750 | 1709586 | 508 | COMBINATION GEAR,16.49,53.20 ASSY. |
| WORKFORCE WF-C20750 | 1688658 | 509 | HELICAL GEAR,26.6 |
| WORKFORCE WF-C20750 | 1699080 | 510 | HELICAL GEAR,32.99,ONEWAY,ASSY. |
| WORKFORCE WF-C20750 | 1688615 | 511 | HERICAL GEAR,30.329 |
| WORKFORCE WF-C20750 | 1688663 | 512 | HERICAL GEAR,16.49 |
| WORKFORCE WF-C20750 | 2176029 | 513 | ELECTROMAGNETIC CLUTCH,MCA-35TL,DRIVE,EJ |
| WORKFORCE WF-C20750 | 1688655 | 514 | TIMING BELT,DRIVE,FD,EJ |
| WORKFORCE WF-C20750 | 2176065 | 515 | ELECTROMAGNETIC CLUTCH,MCA-35TL,DRIVE,PF |
| WORKFORCE WF-C20750 | 1688582 | 516 | HELICAL GEAR,44.695 |
| WORKFORCE WF-C20750 | 1768988 | 517 | MOUNTING,PLATE,DUPLEX,DRIVE,ASSY.,B |
| WORKFORCE WF-C20750 | 1908305 | 517 | MOUNTING,PLATE,DUPLEX,DRIVE,ASSY.,B |
| WORKFORCE WF-C20750 | 1718587 | 518 | SHAFT,BELT,DRIVE,ASSY. |
| WORKFORCE WF-C20750 | 1688569 | 519 | TIMING BELT,DRIVEN,PFD |
| WORKFORCE WF-C20750 | 1831999 | 520 | DETECTOR,PAPER,LENGTH,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 2200268 | 521 | PUSH SWITCH,PS-12C02-F NS |
| WORKFORCE WF-C20750 | 1827370 | 522 | WIPER,ASSY.G2 |
| WORKFORCE WF-C20750 | 1913512 | 522 | WIPER,ASSY.G2 |
| WORKFORCE WF-C20750 | 1827369 | 523 | WIPER,VALVE,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1913511 | 523 | WIPER,VALVE,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1932292 | 523 | WIPER,VALVE,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1830337 | 524 | CAP,CLEANER,ASSYG2,ASP |
| WORKFORCE WF-C20750 | 1830333 | 525 | ANTISTATIC,BRUSH,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1855305 | 525 | ANTISTATIC,BRUSH,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1808192 | 526 | MOTOR,ASSY,PG,G2 |
| WORKFORCE WF-C20750 | 1723635 | 527 | MOUNT,PLATE,BRUSH,ASSY.,ATTACHMENT,ASP |
| WORKFORCE WF-C20750 | 2176054 | 528 | ELECTROMAGNETIC CLUTCH,MCA-35TL,DRIVE,PF |
| WORKFORCE WF-C20750 | 2150699 | 531 | LEAF SENSOR,P599 |
| WORKFORCE WF-C20750 | 1830338 | 533 | LIFT,HOPPER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1888528 | 533 | LIFT,HOPPER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 2202418 | 534 | MOTOR,MAIN,PFD |
| WORKFORCE WF-C20750 | 2202415 | 535 | MOTOR,REVERSE,EJ |
| WORKFORCE WF-C20750 | 2217903 | 535 | MOTOR,REVERSE,EJ |
| WORKFORCE WF-C20750 | 2176011 | 536 | FAN,7530GA-24M-AL |
| WORKFORCE WF-C20750 | 1804106 | 537 | FILTER KIT,B,ASP SDOT |
| WORKFORCE WF-C20750 | 1802613 | 538 | COVER,DRIVE,BASE,CASSETTE,FR,B |
| WORKFORCE WF-C20750 | 1832003 | 539 | MP TRAY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1879396 | 539 | MP TRAY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1895431 | 539 | MP TRAY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1913948 | 539 | MP TRAY,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1689179 | 540 | COVER,ROLLER,RETARD,MPT |
| WORKFORCE WF-C20750 | 1793587 | 541 | ROLLER KIT,MP,C,ASP |
| WORKFORCE WF-C20750 | 1730675 | 542 | PHOTO INTERRUPTER KIT,ASP |
| WORKFORCE WF-C20750 | 1689168 | 543 | BELT,STOPPER,COVER,MPT |
| WORKFORCE WF-C20750 | 2176026 | 544 | SOLENOID ASSY.,EJ |
| WORKFORCE WF-C20750 | 2176061 | 545 | ELECTROMAGNETIC CLUTCH,MCA-35TL,HOPPER |
| WORKFORCE WF-C20750 | 2176062 | 546 | ELECTROMAGNETIC CLUTCH,MCA-50TL,DRIVE,LD |
| WORKFORCE WF-C20750 | 1723620 | 547 | PAD MP ASSY.,ASP |
| WORKFORCE WF-C20750 | 1730863 | 548 | DETECTOR,PS122-TL-4A KIT,ASP |
| WORKFORCE WF-C20750 | 1689162 | 549 | COVER,ROLLER,LD,MPT |
| WORKFORCE WF-C20750 | 1905181 | 549 | COVER,ROLLER,LD,MPT |
| WORKFORCE WF-C20750 | 1817880 | 550 | HOPPER,MPT,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1895434 | 550 | HOPPER,MPT,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1689090 | 551 | PG,DUPLEX,RES |
| WORKFORCE WF-C20750 | 1720275 | 552 | RESIST,ROLLER,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1832000 | 553 | CLEANER,RESIST,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1838413 | 553 | CLEANER,RESIST,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1830332 | 554 | FRAME,RESIST,DRIVEN,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1830335 | 555 | CLEANER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1889039 | 555 | CLEANER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1831996 | 557 | PW SENSOR,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1830334 | 558 | PAPER,FEED,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1831994 | 559 | PICK UP,1ST,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 2176048 | 560 | ELECTROMAGNETIC CLUTCH,MCA-50TL,ASF |
| WORKFORCE WF-C20750 | 1775719 | 561 | ROLLER KIT,ASF,B,ASP |
| WORKFORCE WF-C20750 | 1917674 | 561 | ROLLER KIT,ASF,B,ASP |
| WORKFORCE WF-C20750 | 1832004 | 562 | COVER,RIGHT,LU,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1913958 | 562 | COVER,RIGHT,LU,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1831995 | 563 | PICK UP,LU,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 2176802 | 564 | BOARD ASSY.,SNS |
| WORKFORCE WF-C20750 | 1723608 | 565 | COVER,SENSOR,IE ASSY.,ASP |
| WORKFORCE WF-C20750 | 1832144 | 566 | PAPER,SUPPORT,MP,TRAY,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1895432 | 566 | PAPER,SUPPORT,MP,TRAY,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1913949 | 566 | PAPER,SUPPORT,MP,TRAY,ASSY.,G2,ASP |
| WORKFORCE WF-C20750 | 1832002 | 567 | CASSETTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1863422 | 567 | CASSETTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1891822 | 567 | CASSETTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1895964 | 567 | CASSETTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1913947 | 567 | CASSETTE,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1703160 | 568 | LABEL,PAPER SIZE,CASSETTE |
| WORKFORCE WF-C20750 | 1808188 | 569 | MOTOR,CLEANER,DRIVEN,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1839539 | 570 | BELT DRAWER,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 2073156 | 571 | DETECTOR,V-162-3A5 |
| WORKFORCE WF-C20750 | 2176792 | 572 | BOARD ASSY.,SUB |
| WORKFORCE WF-C20750 | 1723618 | 573 | PLATE,DUP,DRIVE,ASSY.,ASP |
| WORKFORCE WF-C20750 | 2176012 | 574 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| WORKFORCE WF-C20750 | 1808169 | 576 | MOUNT,DRAWER,LEFT,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1906117 | 576 | MOUNT,DRAWER,LEFT,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1697494 | 581 | CLAMP,FFC,FR |
| WORKFORCE WF-C20750 | 1831997 | 582 | STACKER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1895429 | 582 | STACKER,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1688360 | 584 | PRESSING PLATE,REAR,HM |
| WORKFORCE WF-C20750 | 1723636 | 585 | HOLDER,PG,HEAD,LEFT,PF,ATTACHMENT,ASP |
| WORKFORCE WF-C20750 | 1751805 | 586 | HOLDER, PG,HEAD,R,PF ATTACHMENT,B,ASP |
| WORKFORCE WF-C20750 | 1699087 | 587 | REVERSE,GUIDE,MIDDLE,ASSY. |
| WORKFORCE WF-C20750 | 1905508 | 587 | REVERSE,GUIDE,MIDDLE,ASSY. |
| WORKFORCE WF-C20750 | 1723638 | 588 | MOTOR,LIFT,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1831998 | 589 | TRAY,LIFT,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1895433 | 589 | TRAY,LIFT,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1749924 | 590 | FFC HEAD ASSY.,B,ASP |
| WORKFORCE WF-C20750 | 1800051 | 591 | SLIDE RAIL,C355T-300-2743 |
| WORKFORCE WF-C20750 | 1830327 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1856036 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1860593 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1862195 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1871612 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1918473 | 592 | MENTE MOTION,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 2178283 | 593 | MOTOR,BD |
| WORKFORCE WF-C20750 | 2180129 | 594 | DETECTOR,OJN-EP04-N23 |
| WORKFORCE WF-C20750 | 1723624 | 596 | PAPER GUIDE,REV,INNER,3RD,EJ,Assy.,ASP |
| WORKFORCE WF-C20750 | 1723625 | 597 | PAPERGUIDE,END,SUB,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1807816 | 598 | PAPERGUIDE,INNER,END,ASSY.,D,ASP |
| WORKFORCE WF-C20750 | 1859945 | 598 | PAPERGUIDE,INNER,END,ASSY.,D,ASP |
| WORKFORCE WF-C20750 | 1830328 | 599 | EJ,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1863856 | 599 | EJ,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1891823 | 599 | EJ,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1892459 | 599 | EJ,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1913957 | 599 | EJ,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1700701 | 600 | STACKER,EJ,ASSY. |
| WORKFORCE WF-C20750 | 1700708 | 601 | HOUSING,EJ,ASSY. |
| WORKFORCE WF-C20750 | 1692581 | 602 | HOUSING,SUPPORT,EJ |
| WORKFORCE WF-C20750 | 1905218 | 602 | HOUSING,SUPPORT,EJ |
| WORKFORCE WF-C20750 | 1817884 | 603 | PAPER,GUIDE,FU,UPPER,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1688623 | 604 | EXTENSION SPRING,1.0,EJ |
| WORKFORCE WF-C20750 | 1697318 | 605 | EXTENTION SPRING,1.263,FLAP,DUP |
| WORKFORCE WF-C20750 | 1766983 | 606 | PAPER GUIDE,SUPPORT,1ST,EJ,B |
| WORKFORCE WF-C20750 | 1700684 | 607 | HOLDER,NAIL,ASSY. |
| WORKFORCE WF-C20750 | 1817886 | 608 | PHOTO REFLECTOR,EJ,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1700671 | 609 | PAPER,GUIDE,SB,LOWER,ASSY. |
| WORKFORCE WF-C20750 | 1723609 | 611 | PLATE,COMBGEAR,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1688617 | 612 | COMBINATION GEAR,31,32.99 |
| WORKFORCE WF-C20750 | 1812891 | 614 | GUIDE,RIGHT,INNER,LU,B:ASSY. |
| WORKFORCE WF-C20750 | 1913515 | 614 | GUIDE,RIGHT,INNER,LU,B:ASSY. |
| WORKFORCE WF-C20750 | 1688394 | 615 | TIMING BELT,BRUSH,BAS |
| WORKFORCE WF-C20750 | 1807976 | 616 | INTER,LOCKING,VALVE,UNIT,G2 |
| WORKFORCE WF-C20750 | 1913510 | 616 | INTER,LOCKING,VALVE,UNIT,G2 |
| WORKFORCE WF-C20750 | 1830306 | 617 | ROLLER,1ST,DUPLEX,DUP,B,ASP |
| WORKFORCE WF-C20750 | 1830307 | 618 | ROLLER,2ND,DUPLEX,DUP,B,ASP |
| WORKFORCE WF-C20750 | 1699086 | 619 | SUPPORT,FRAME,RESIST,ASSY. |
| WORKFORCE WF-C20750 | 1723617 | 620 | ROLLER,FD,2ND,EJ,ASP |
| WORKFORCE WF-C20750 | 1830314 | 621 | ROLLER,FD,3RD,EJ,B,ASP |
| WORKFORCE WF-C20750 | 1830308 | 622 | ROLLER,DUP,ASSY.,B,ASP |
| WORKFORCE WF-C20750 | 1688991 | 623 | TORQUE LIMITER,OTLP6-350-061 |
| WORKFORCE WF-C20750 | 1604350 | 624 | P.W.-5,6,F/NI |
| WORKFORCE WF-C20750 | 1114006 | 625 | E-RING,4,L/NA |
| WORKFORCE WF-C20750 | 1700711 | 626 | MOUNT,DRIVE,MP,ASSY. |
| WORKFORCE WF-C20750 | 1908304 | 626 | MOUNT,DRIVE,MP,ASSY. |
| WORKFORCE WF-C20750 | 1688554 | 627 | HELICAL GEAR,21.28 |
| WORKFORCE WF-C20750 | 1688558 | 628 | HELICAL GEAR,21.28,PFD,2ND |
| WORKFORCE WF-C20750 | 1688555 | 629 | HELICAL GEAR,21.28,PFD,1ST |
| WORKFORCE WF-C20750 | 1688577 | 630 | SPUR GEAR,25 |
| WORKFORCE WF-C20750 | 1828993 | 631 | ROLLER,FU,EJ,B,ASP |
| WORKFORCE WF-C20750 | 1688616 | 632 | HERICAL GEAR,32.99,SHAFT,DRIVE |
| WORKFORCE WF-C20750 | 1802636 | 633 | PROTECTION PLATE,DETECTOR,COVER,LU,B |
| WORKFORCE WF-C20750 | 1749793 | 634 | EXTENSION SPRING,4.35,MOUNTING PLATE,RES |
| WORKFORCE WF-C20750 | 1689108 | 635 | HELICAL GEAR,30.329 |
| WORKFORCE WF-C20750 | 1689068 | 636 | SHEET,PAPER LOAD,GUIDE,CST |
| WORKFORCE WF-C20750 | 1688964 | 637 | STOPPER,CASSETTE,LOCK,ASF |
| WORKFORCE WF-C20750 | 1722217 | 638 | ROLLER,PF,FI,MU,ASP |
| WORKFORCE WF-C20750 | 1810904 | 639 | BALL BEARING,LNR-1360X3ZZ,LY764 |
| WORKFORCE WF-C20750 | 1827427 | 640 | COURSE,BODY,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1913513 | 640 | COURSE,BODY,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1773886 | 641 | BUSHING,4 |
| WORKFORCE WF-C20750 | 1689288 | 642 | HELICAL GEAR,22.36 |
| WORKFORCE WF-C20750 | 1689292 | 643 | SLIDER,DRIVE,WIPE |
| WORKFORCE WF-C20750 | 1154250 | 644 | ERING,3,L/NA |
| WORKFORCE WF-C20750 | 1806088 | 645 | COVER,MM,B |
| WORKFORCE WF-C20750 | 2204280 | 646 | FAN,7530GS-24M-AL |
| WORKFORCE WF-C20750 | 1830329 | 800 | SC,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1861306 | 800 | SC,UNIT,G2,ASP |
| WORKFORCE WF-C20750 | 1800073 | 801 | HOUSING,RIGHT,SC |
| WORKFORCE WF-C20750 | 1905305 | 801 | HOUSING,RIGHT,SC |
| WORKFORCE WF-C20750 | 1800074 | 802 | HOUSING,REAR,SC |
| WORKFORCE WF-C20750 | 1905306 | 802 | HOUSING,REAR,SC |
| WORKFORCE WF-C20750 | 2208833 | 803 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C20750 | 2223655 | 803 | BOARD ASSY.,MAIN |
| WORKFORCE WF-C20750 | 2199171 | 804 | CIS MODULE |
| WORKFORCE WF-C20750 | 1800071 | 805 | HOUSING,LEFT,SC |
| WORKFORCE WF-C20750 | 1905303 | 805 | HOUSING,LEFT,SC |
| WORKFORCE WF-C20750 | 1609249 | 806 | COMPRESSION SPRING,1.84,CIS |
| WORKFORCE WF-C20750 | 1687873 | 807 | CAP,HOUSING,UPPER,SC |
| WORKFORCE WF-C20750 | 1868689 | 807 | CAP,HOUSING,UPPER,SC |
| WORKFORCE WF-C20750 | 2179820 | 811 | DETECTOR,DOCUMENT,SIZE,PS181EL1-S,SC |
| WORKFORCE WF-C20750 | 1833700 | 812 | HOLDER,LEVER,SENSOR,SC ASSY.,ASP |
| WORKFORCE WF-C20750 | 1800072 | 813 | HOUSING,FRONT,SC |
| WORKFORCE WF-C20750 | 1905304 | 813 | HOUSING,FRONT,SC |
| WORKFORCE WF-C20750 | 1839446 | 900 | ADF,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 1870228 | 900 | ADF,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 1878867 | 900 | ADF,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 1883171 | 900 | ADF,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 1906996 | 900 | ADF,UNIT,B,G2,ASP |
| WORKFORCE WF-C20750 | 1831404 | 901 | CIS MODULE ASSY.,ASP |
| WORKFORCE WF-C20750 | 1817898 | 902 | COVER,REAR,ADF,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1792297 | 903 | STOPPER,SUPPORT,ADF |
| WORKFORCE WF-C20750 | 1830157 | 904 | COVER,FRONT,ADF,ASSY.,G2 |
| WORKFORCE WF-C20750 | 2143464 | 905 | PHOTO INTERRUPTER |
| WORKFORCE WF-C20750 | 1792311 | 907 | DOCUMENT SUPPORT,LOWER,ADF |
| WORKFORCE WF-C20750 | 1792296 | 908 | STOPPER,STACKER,ADF |
| WORKFORCE WF-C20750 | 1792411 | 909 | PAD,PICKUP,ADF |
| WORKFORCE WF-C20750 | 1282417 | 910 | E-RING,4,F/UC-3C |
| WORKFORCE WF-C20750 | 1837842 | 912 | MAT,COVER,DOCUMENT,ADF,t3 ASSY.,ASP |
| WORKFORCE WF-C20750 | 1856087 | 912 | MAT,COVER,DOCUMENT,ADF,T3 ASSY.,ASP |
| WORKFORCE WF-C20750 | 1830160 | 913 | ADF,LD,ASSY.,G2 |
| WORKFORCE WF-C20750 | 1792413 | 914 | COVER,RETARD,ADF |
| WORKFORCE WF-C20750 | 1836705 | 915 | COVER,ROLLER,LD,ADF,B |
| WORKFORCE WF-C20750 | 1835689 | 916 | ROLLER,RETARD,ASSY.,B,ASP |
| WORKFORCE WF-C20750 | 1832149 | 919 | MAIN BOARD ASSY,ADF,G2,ASP |
| WORKFORCE WF-C20750 | 1883173 | 919 | MAIN BOARD ASSY,ADF,G2,ASP |
| WORKFORCE WF-C20750 | 2200787 | 921 | REFLECTIVE PHOTO INTERRUPTER,PS126GL1 |
| WORKFORCE WF-C20750 | 1800514 | 922 | LABEL,INSTRUCTION,ADF,B |
| WORKFORCE WF-C20750 | 1804794 | 923 | LABEL,FUNCTION,ASF |
| WORKFORCE WF-C20750 | 1800506 | 924 | LABEL,CAUTION,ADF |
| WORKFORCE WF-C20750 | 1832152 | 927 | COVER,LD,ADF,G2,ASP |
| WORKFORCE WF-C20750 | 1913329 | 927 | COVER,LD,ADF,G2,ASP |
| WORKFORCE WF-C20750 | 1839699 | 931 | LEVER,LOCK,ADF,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1849448 | 931 | LEVER,LOCK,ADF,ASSY.,ASP |
| WORKFORCE WF-C20750 | 1830829 | 932 | EXTENTION SPRING,3.79 |
Validate your login
