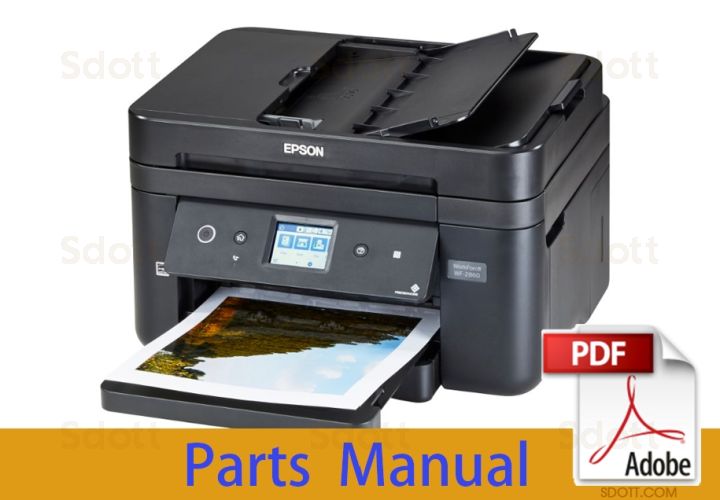

EPSON WorkForce WF-2860 WF-2861 WF-2865 Parts Manual
In stock
SKU
EP-WF2860-PM
$1.60
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON WorkForce WF-2860 WF-2861 WF-2865 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 2.08M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WF-2860 Series WF-2860 2861 2865 |
EPSON WorkForce WF-2860 WF-2861 WF-2865
Parts Manual
EPSON WorkForce WF-2860 Series WF-2860 2861 2865
****** The following content is not included in the PDF manual. Please refer to ONLINE ******
| WORKFORCE WF-2860 | 1717906 | 100 | STACKER,MAIN,FASF |
| WORKFORCE WF-2860 | 1717945 | 101 | HOUSING,LEFT |
| WORKFORCE WF-2860 | 1737236 | 102 | HOUSING,FRONT |
| WORKFORCE WF-2860 | 1717985 | 103 | COVER,HINGE,SC |
| WORKFORCE WF-2860 | 1737235 | 104 | HOUSING,RIGHT |
| WORKFORCE WF-2860 | 1748648 | 105 | PANEL ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1815034 | 105 | PANEL ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1850964 | 105 | PANEL ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1732848 | 106 | Cover,Ink,Eject |
| WORKFORCE WF-2860 | 1737234 | 107 | HOUSING,UPPER,REAR |
| WORKFORCE WF-2860 | 1745520 | 108 | LABEL,MODEL,NAME,WF-2860 |
| WORKFORCE WF-2860 | 2192813 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-2860 | 2214094 | 200 | BOARD ASSY.,MAIN |
| WORKFORCE WF-2860 | 2195631 | 300 | BOARD ASSY.,POWER SUPPLY |
| WORKFORCE WF-2860 | 2192161 | 350 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-2860 | 1797195 | 351 | FAX ASSY C..,CG19,EPPI |
| WORKFORCE WF-2860 | 1767046 | 501 | PICK UP ASSY.,CG20,EPPI |
| WORKFORCE WF-2860 | 1790715 | 503 | ASF BANK ASSY.,CG20,EPPI |
| WORKFORCE WF-2860 | 1801803 | 503 | ASF BANK ASSY.,CG20,EPPI |
| WORKFORCE WF-2860 | 1572114 | 504 | FRAME,BANK |
| WORKFORCE WF-2860 | 1720079 | 505 | PAPER GUIDE,GIZA,FRAME,BANK |
| WORKFORCE WF-2860 | 1741784 | 506 | PAPER GUIDE,CENTER,FRAME,BANK |
| WORKFORCE WF-2860 | 1881399 | 506 | PAPER GUIDE,CENTER,FRAME,BANK |
| WORKFORCE WF-2860 | 1717908 | 507 | POROUS PAD,PAPER GUIDE,LOWER |
| WORKFORCE WF-2860 | 1743613 | 508 | PAPER GUIDE FRONT ASSY.,CG29,EPPI |
| WORKFORCE WF-2860 | 2182527 | 509 | MOTOR ASSY.,CR |
| WORKFORCE WF-2860 | 1748636 | 510 | CARRIAGE ASSY.,CG29,EPPI,ASP |
| WORKFORCE WF-2860 | 2181521 | 511 | BOARD ASSY.,SNS |
| WORKFORCE WF-2860 | 2186445 | 512 | CABLECSIC |
| WORKFORCE WF-2860 | 2186560 | 513 | CABLE,HEAD |
| WORKFORCE WF-2860 | 1759427 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| WORKFORCE WF-2860 | 1921129 | 514 | DETECTOR PE ASSY,CG22,EPPI |
| WORKFORCE WF-2860 | 1724136 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| WORKFORCE WF-2860 | 1864167 | 515 | PGU RIGHT ASSY,CG19,EPPI |
| WORKFORCE WF-2860 | 1724137 | 516 | PGU LEFT ASSY,CG19,EPPI |
| WORKFORCE WF-2860 | 1864168 | 516 | PGU LEFT ASSY,CG19,EPPI |
| WORKFORCE WF-2860 | 1548480 | 517 | EXTENSION SPRING,1.41 |
| WORKFORCE WF-2860 | 1717899 | 518 | SCALE,PF |
| WORKFORCE WF-2860 | 1750924 | 519 | SCALE,CR |
| WORKFORCE WF-2860 | 2181519 | 524 | BOARD ASSY.,ENCODER |
| WORKFORCE WF-2860 | 1717912 | 526 | GORUNDING PLATE,HEAD,CR |
| WORKFORCE WF-2860 | 1720073 | 528 | POROUS PAD,PAPER GUIDE,LOWER,B |
| WORKFORCE WF-2860 | 1720075 | 529 | POROUS PAD,PAPER GUIDE,LOWER,C |
| WORKFORCE WF-2860 | 1720076 | 530 | POROUS PAD,PAPER GUIDE,LOWER,D |
| WORKFORCE WF-2860 | 1766269 | 531 | HOLDER STARWHEEL M1 ASSY .,CG28,EPPI |
| WORKFORCE WF-2860 | 1901070 | 531 | HOLDER STARWHEEL M1 ASSY .,CG28,EPPI |
| WORKFORCE WF-2860 | 2150454 | 532 | BOARD ASSY.,SUB |
| WORKFORCE WF-2860 | 2186444 | 533 | CABLE,PIS |
| WORKFORCE WF-2860 | 1717901 | 534 | ROLLER,EJ |
| WORKFORCE WF-2860 | 1832107 | 534 | ROLLER,EJ SDOTT |
| WORKFORCE WF-2860 | 2186983 | 541 | MOTOR,ASSY,PF,B |
| WORKFORCE WF-2860 | 1717883 | 542 | ROLLER,PF |
| WORKFORCE WF-2860 | 1767047 | 701 | HOLDER DAMPER ASSY.,CG23,EPPI |
| WORKFORCE WF-2860 | 1717987 | 702 | RACK,DUMPER,SC |
| WORKFORCE WF-2860 | 1752917 | 703 | CASSETTE ASSY.,CG21,EPPI |
| WORKFORCE WF-2860 | 1717922 | 704 | COVER,CABLE,HEAD |
| WORKFORCE WF-2860 | 1748644 | 710 | IS M1 ASSY.,CG29,EPPI,ASP |
| WORKFORCE WF-2860 | 1902552 | 710 | IS M1 ASSY.,CG29,EPPI,ASP |
| WORKFORCE WF-2860 | 1772595 | 712 | DUPLEX ASSY, CG29,EPPI[1760626] |
| WORKFORCE WF-2860 | 1741765 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| WORKFORCE WF-2860 | 1881398 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| WORKFORCE WF-2860 | 1743690 | 724 | HOLDER,BOARD ASSY.,CG29,EPPI |
| WORKFORCE WF-2860 | 1738271 | 725 | GUIDE,FFC |
| WORKFORCE WF-2860 | 2184967 | 726 | CONNECTOR,CSIC |
| WORKFORCE WF-2860 | 2185770 | 727 | CABLE,CSIC,INK EJECT,B |
| WORKFORCE WF-2860 | 1760357 | 729 | POROUS PAD,CR,u1 |
| WORKFORCE WF-2860 | 2192844 | 800 | SCANNER ADF UNIT.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 2222152 | 800 | SCANNER ADF UNIT.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 2225389 | 800 | SCANNER ADF UNIT.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 2230996 | 800 | SCANNER ADF UNIT.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1694135 | 801 | MAT,COVER,DOCUMENT |
| WORKFORCE WF-2860 | 1791102 | 900 | ADF ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1876493 | 900 | ADF ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1910041 | 900 | ADF ASSY.,CG28,EPPI,ASP |
| WORKFORCE WF-2860 | 1718007 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2860 | 1859472 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2860 | 1718011 | 902 | DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2860 | 1724258 | 903 | PGU LD ADF ASSY.,CG19,EPPI |
| WORKFORCE WF-2860 | 1724316 | 904 | STACKER ADF ASSY.,CG19,EPPI |
| WORKFORCE WF-2860 | 1718010 | 905 | STACKER,SUB,ADF |
| WORKFORCE WF-2860 | 1724257 | 907 | PAD ADF ASSY.,CG19,EPPI |
| WORKFORCE WF-2860 | 1740240 | 908 | COMPRESSION SPRING,1.62 |
