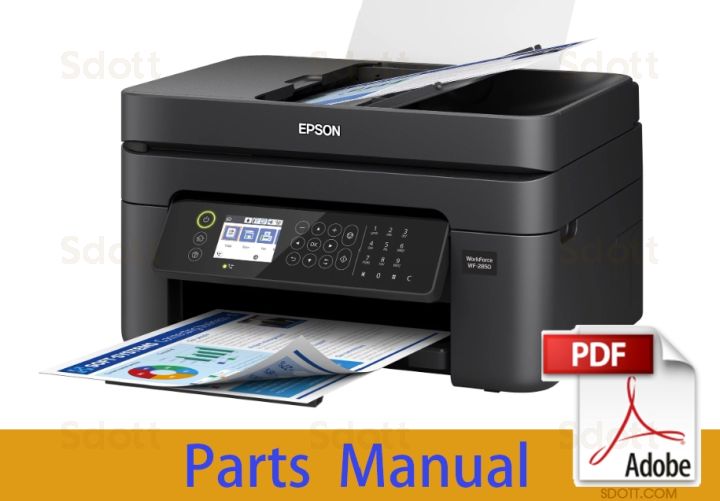

EPSON WorkForce WF-2850 WF-2851 Parts Manual
In stock
SKU
EP-WF2850-PM
$1.50
- Email with download link immediately
- Files without viruses
- PDF format service manual
- Allow high-definition printing
| Manual Name | EPSON WorkForce WF-2830 WF-2831 WF-2835 WF-2840 WF-2845 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 1.38M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | EPSON WorkForce WF-2850 Series WF-2850 2851 |
EPSON WorkForce WF-2830 WF-2831 WF-2835 WF-2840 WF-2845
Parts Manual
EPSON WorkForce WF-2850 Series WF-2850 2851
****** The following content is not included in the PDF manual. Please refer to ONLINE ******
| WORKFORCE WF-2850DWF | 1764211 | 100 | HOUSING,LEFT,FAX |
| WORKFORCE WF-2850DWF | 1796928 | 101 | COVER,INK EJECT,ASSY ASP |
| WORKFORCE WF-2850DWF | 1764210 | 102 | HOUSIING,RIGHT |
| WORKFORCE WF-2850DWF | 1764212 | 103 | HOUSING,UPPER,REAR,FAX |
| WORKFORCE WF-2850DWF | 1764213 | 104 | COVER,FFC |
| WORKFORCE WF-2850DWF | 1796927 | 106 | HOPPER ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1768658 | 108 | STACKER ASSY,CG30,IEI |
| WORKFORCE WF-2850DWF | 1796916 | 111 | PANEL ASSY,CG31,IEI,ASP |
| WORKFORCE WF-2850DWF | 1850573 | 111 | PANEL ASSY,CG31,IEI,ASP |
| WORKFORCE WF-2850DWF | 1284698 | 112 | H.N.-1,3,F/ZN-3C |
| WORKFORCE WF-2850DWF | 1764263 | 113 | STAND,SC,SUPPORT |
| WORKFORCE WF-2850DWF | 2194954 | 200 | BOARD ASSY.MAIN |
| WORKFORCE WF-2850DWF | 2195631 | 300 | BOARD ASSY.,POWER SUPPLY |
| WORKFORCE WF-2850DWF | 2194159 | 350 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-2850DWF | 2207229 | 350 | WIRELESS LAN USB MODULE |
| WORKFORCE WF-2850DWF | 1796934 | 351 | FAX ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1796926 | 501 | INK SYSTEM ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1888298 | 501 | INK SYSTEM ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1768660 | 502 | ROLLER LD ASSY,CG30,IEI |
| WORKFORCE WF-2850DWF | 1855206 | 502 | ROLLER LD ASSY,CG30,IEI |
| WORKFORCE WF-2850DWF | 1807240 | 504 | PAPER GUIDE,UPPER,CENTER,ASSY,B,ASP |
| WORKFORCE WF-2850DWF | 1807245 | 505 | PAPER GUIDE,UPPER,RIGHT,ASSY,B,ASP |
| WORKFORCE WF-2850DWF | 1807243 | 506 | PAPER GUIDE,UPPER,LEFT,ASSY,B,ASP |
| WORKFORCE WF-2850DWF | 2189475 | 507 | MOTOR,ASSY,CR |
| WORKFORCE WF-2850DWF | 1796921 | 508 | CARRIAGE F2 ASSY.,ASP |
| WORKFORCE WF-2850DWF | 1796930 | 510 | CABLE,HEAD ASSY,ASP |
| WORKFORCE WF-2850DWF | 1893381 | 510 | CABLE,HEAD ASSY,ASP |
| WORKFORCE WF-2850DWF | 2181521 | 511 | BOARD ASSY.,SNS |
| WORKFORCE WF-2850DWF | 1548528 | 512 | CLUTCH SDOTT.COM |
| WORKFORCE WF-2850DWF | 1881357 | 512 | CLUTCH |
| WORKFORCE WF-2850DWF | 1801341 | 513 | HOLDER,CLUTCH |
| WORKFORCE WF-2850DWF | 1718063 | 514 | EXTENSION SPRING,0.137 |
| WORKFORCE WF-2850DWF | 1796932 | 515 | MOTOR,PF ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1801344 | 521 | SPUR GEAR,CLUTCH,45.6 |
| WORKFORCE WF-2850DWF | 1859312 | 521 | SPUR GEAR,CLUTCH,45.6 |
| WORKFORCE WF-2850DWF | 1796937 | 531 | HOLDER STARWHEEL, ASSY,CG30,IEI.,ASP |
| WORKFORCE WF-2850DWF | 2196627 | 533 | CABLE,PIS |
| WORKFORCE WF-2850DWF | 1796933 | 542 | ROLLER,PF ASSY,CG30,IEI.,ASP |
| WORKFORCE WF-2850DWF | FA04040 | 700 | Relpace: FA04060 |
| WORKFORCE WF-2850DWF | 1796913 | 702 | DUPLEX ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1905045 | 702 | DUPLEX ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1764246 | 704 | PIN,POROUS PAD |
| WORKFORCE WF-2850DWF | 1764271 | 705 | POROUS PAD,PAPER GUIDE,FRONT |
| WORKFORCE WF-2850DWF | 1746669 | 711 | SCALE,CR,180 |
| WORKFORCE WF-2850DWF | 2181518 | 712 | BOARD ASSY.,ENCODER |
| WORKFORCE WF-2850DWF | 1581304 | 713 | SCALE PF ASSY,B |
| WORKFORCE WF-2850DWF | 1548480 | 714 | EXTENSION SPRING,1.41 |
| WORKFORCE WF-2850DWF | 1768685 | 715 | HOLDER RETARD ASSY,CG30,IEI |
| WORKFORCE WF-2850DWF | 1718074 | 718 | EXTENSION SPRING,0.023 |
| WORKFORCE WF-2850DWF | 1796920 | 719 | LEVER, AP SENSOR,ASSY,ASP |
| WORKFORCE WF-2850DWF | 2197079 | 720 | PHOTO INTERRUPTER,ASF |
| WORKFORCE WF-2850DWF | 1764232 | 721 | COVER,CABLE,HEAD |
| WORKFORCE WF-2850DWF | 1768687 | 722 | HOLDER BOARD ASSY ,CG30,IEI |
| WORKFORCE WF-2850DWF | 1693877 | 723 | HOLDER,CONNECTOR,CSIC,IS |
| WORKFORCE WF-2850DWF | 1796939 | 724 | GROUNDING PLATE,HEAD,F2 ASSY,ASP |
| WORKFORCE WF-2850DWF | 1764231 | 725 | GUIDE,FFC SP |
| WORKFORCE WF-2850DWF | 2197925 | 726 | CONECTOR,CSIC |
| WORKFORCE WF-2850DWF | 2196561 | 727 | CABLE,CSIC,INK EJECT |
| WORKFORCE WF-2850DWF | 1760358 | 729 | POROUS PAD,CR,F2 |
| WORKFORCE WF-2850DWF | 2190470 | 730 | CABLE,ENCODER,PF,B |
| WORKFORCE WF-2850DWF | 1796909 | 800 | SCANNER UNIT,CG30,IEI, ASP |
| WORKFORCE WF-2850DWF | 1891008 | 800 | SCANNER UNIT,CG30,IEI, ASP |
| WORKFORCE WF-2850DWF | 1796912 | 900 | ADF UNIT,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1764209 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2850DWF | 1854540 | 901 | COVER,DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2850DWF | 1764208 | 902 | DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2850DWF | 1854981 | 902 | DOCUMENT SUPPORT,ADF |
| WORKFORCE WF-2850DWF | 1796931 | 903 | COVER ADF ASSY,CG30,IEI,ASP |
| WORKFORCE WF-2850DWF | 1694135 | 905 | MAT,COVER,DOCUMENT |
| WORKFORCE WF-2850DWF | 1801134 | 907 | PAD ADF ASSY.,CG30,IEI,ASP |
