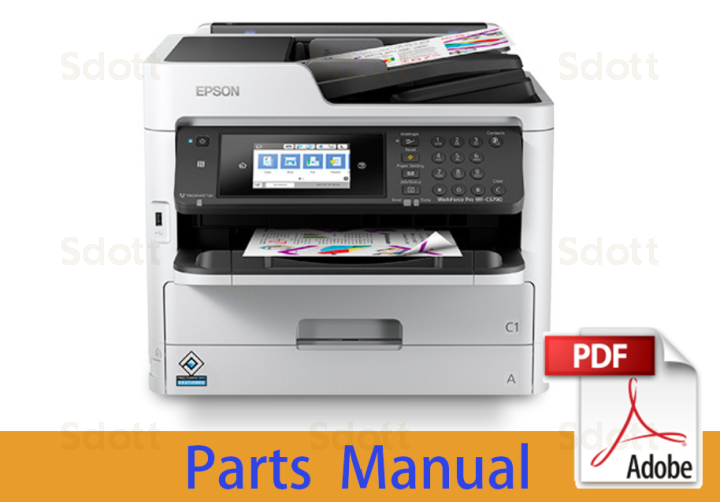

main product photo

EPSON WF-C5710 PX-M884F Parts Manual

In stock
SKU
EP-WFC5710-PM
$1.20
Compare
Email

Share it:

  • Email with download link immediately
  • Files without viruses
  • PDF format manual
  • Allow high-definition printing

Share it:

Links
$1.20
More Information
Manual Name EPSON WF-C5710 PX-M884F Parts Manual
Format PDF
PDF Archive 5.03M
Pages 4
Brand EPSON
Type SERVICE or PARTS MANUAL
Compatible Model Epson WF-C5700 Series

EPSON WF-C5710 PX-M884F Parts Manual



****** The following content is not included in the PDF manual, please use it online ******

ArticleReferenceDescription

1729293100HOUSING,UPPER
1747608101PANEL ASSY.,CG03,ASP
1821735101PANEL ASSY.,CG03,ASP
1753854102HOUSING,LEFT,C
1729295104HOUSING,RIGHT
1748198105COVER,INK EJECT,ASP
1821730105COVER,INK EJECT,ASP
1732762107HINGE,ASSY.,SC
2184131108HARNESS
1729296110HOUSING,REAR
1762714110HOUSING,REAR
1753879111COVER,ASF,CG03,B,ASP
1822795111COVER,ASF,CG03,B,ASP
1757016112COVER,ASF,FRONT,C
1762718112COVER,ASF,FRONT,C
1729262113PAPER SUPPORT
2183610114BOARD ASSY.,PANEL
2192259200BOARD ASSY.,MAIN 7112C,CG03 STANDARD
2196685200BOARD ASSY.,MAIN 7112C,CG03 STANDARD
2214313200BOARD ASSY.,MAIN
1765218300POWER SUPPLY,E.ASSY,IEI
2192161352WIRELESS LAN USB MODULE
1736243353FAX ASSY.,B,IEI
1796860353FAX ASSY.,B,IEI
2184121355BOARD ASSY.,SUB
1720151501BOARD ASSY.,SUB,CF24,ASP
1824012501BOARD ASSY.,SUB,CF24,ASP
1720135502SCALE,PF,ASP
1824006502SCALE,PF,ASP
1736257503HOUSING,PICKUP,ASSY
1758322504HOLDER,RETARD,ES,B,ASSY
1775149504HOLDER,RETARD,ES,B,ASSY
1807457504HOLDER,RETARD,ES,B,ASSY
1823059504HOLDER,RETARD,ES,B,ASSY
1732730505EXTENSION SPRING,1.379,RETARD
1756698506PE ASSY.,IEI
1747592507CARRIAGE ASSY.,ASP
1768777507CARRIAGE ASSY.,ASP
1821725507CARRIAGE ASSY.,ASP
1747600508INK SYSTEM,ASSY.,ASP
1821733508INK SYSTEM,ASSY.,ASP
1832105508INK SYSTEM,ASSY.,ASP
1872679508INK SYSTEM,ASSY.,ASP
1706495509POROUS PAD,CAP,LOWER
1736293510FFC HEAD,ASSY.,IEI
1733463511C.B.(S-P1)SCREW,2.5X18,F/ZN-3C
1607571512HOLDER, PULLEY, DRIVEN,ASSY.,IEI
2189741513MOTOR,ASSY.,CR
1736295514HOLDER LEVER PE ASSY
1736296515HOLDER,STAR,WHEEL,ASSY.,IEI
1736294516PAPER,GUIDE,UPPER,ASSY.,IEI
1522628517EXTENSION SPRING,11.11
1761385518HOLDER CONECTOR,ASSY.B,IEI
1283832519H.N.-1,2.5,F/ZN-3C
1747624520TUBE,ASSY.,SUPPLY,ASP
1801375520TUBE,ASSY.,SUPPLY,ASP
1821742520TUBE,ASSY.,SUPPLY,ASP
1766374521SEAL,JOINT,HEAD,WASH
1706511522POROUS PAD,HOUSING,LOWER
1736260524HOUSING,ASF,ASSY.B,IEI
FA39001700PRINT HEAD,IG238V,ASP ORDER TO SEC WITH MOQ=12PCS, S
1736230701STACKER ASSY
1854634701STACKER ASSY
1736222702SOLENOID,RASF,ASSY
1747596703DUPLEX,ASSY.,ASP
1770440703DUPLEX,ASSY.,ASP
1821731703DUPLEX,ASSY.,ASP
1860147703DUPLEX,ASSY.,ASP
1604764704SCALE,CR
1743906705SPEAKER ASSY.,IEI
1736241707SCREW HEAD ASSY
1747620708RASF,ASSY.,ASP
1821754708RASF,ASSY.,ASP
2184133709HARNESS
2150699710LEAF SENSOR,P599
1607106712C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C
1706723714TORTION SPRING,13.11
1747593719CASSETTE,1st BIN,ASSY.,ASP
1821726719CASSETTE,1ST BIN,ASSY.,ASP
1860901719CASSETTE,1ST BIN,ASSY.,ASP
1762617750RIPS UNIT, ASSY.,C,ASP
1736249751IS DECOMP PUMP,ASSY.,IEI
1757212752HOUSING,RIPS ASSY.,B,ASP
1821732752HOUSING,RIPS ASSY.,B,ASP
1757210753COVER,FRONT,RIPS,B,ASP
1821729753COVER,FRONT,RIPS,B,ASP
1748195754TRAY,INK PACK,CL,ASP
1768783754TRAY,INK PACK,CL,ASP
1748194755TRAY,INK PACK,BK,ASP
1768782755TRAY,INK PACK,BK,ASP
1732472756POROUS PAD,INK,DETECTION,E
2185165757CABLE,CSIC,BK
2194002757CABLE,CSIC,BK
2185166758CABLE,CSIC,Y
2185167759CABLE,CSIC,M
2194004759CABLE,CSIC,M
2185168760CABLE,CSIC,C
2194005760CABLE,CSIC,C
1729929762GUIDE,TUBE,INK HOLDER,UPPER
1792908762GUIDE,TUBE,INK HOLDER,UPPER
1729378763LOCK,LEVER,RIPS
1762700763LOCK,LEVER,RIPS
2176012764SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F
1575274765FOOT
2185169766CABLE,CRCM
1731428767POROUS PAD,INK,DETECTION,D
2176802768BOARD ASSY.,SNS
2172422769CR CONTACT MODULE
1747589900ADF/SCN UNIT,ASP
1770434900ADF/SCN UNIT,ASP
1821724900ADF/SCN UNIT,ASP
1736283901DOCUMENT SUPPORT ADF ASSY
1748196902COVER,ADF ASSY.,ASP
1770437902COVER,ADF ASSY.,ASP
1821727902COVER,ADF ASSY.,ASP
1555114903PAD,ADF ASSY.,SEC
1729431904COVER,REAR,ADF
1762709904COVER,REAR,ADF
1736282905FRAME LD ASSY
1748192906COVER,FRONT,ADF,ASP
1821728906COVER,FRONT,ADF,ASP
1550947907MAT,COVER,DOCUMENT
