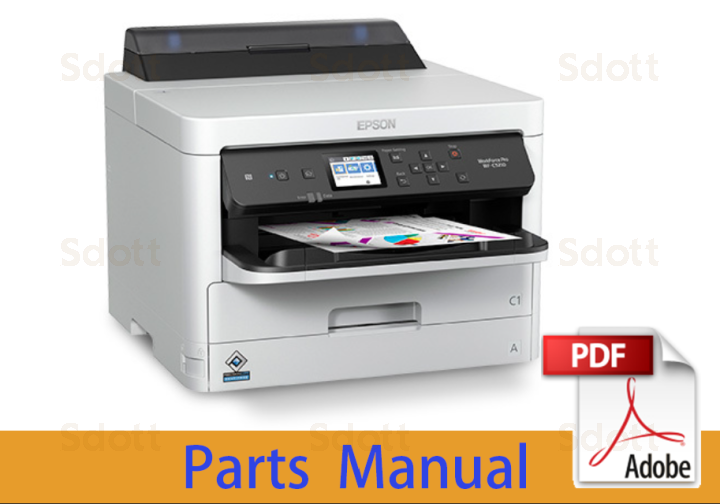

EPSON WF-C5210 PX-S884 Parts Manual
In stock
SKU
EP-WFC5210-PM
$1.20
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WF-C5210 PX-S884 Parts Manual |
|---|---|
| Format | |
| PDF Archive | 4.64M |
| Pages | 4 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-C5200 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1729475 | 100 | HOUSING,UPPER |
| 1747617 | 101 | PANEL ASSY.,CG06,ASP |
| 1822261 | 101 | PANEL ASSY.,CG06,ASP |
| 1753856 | 102 | HOUSING,LEFT,B |
| 1762722 | 102 | HOUSING,LEFT,B |
| 1729304 | 104 | HOUSING,RIGHT |
| 1762723 | 104 | HOUSING,RIGHT |
| 1748198 | 105 | COVER,INK EJECT,ASP |
| 1821730 | 105 | COVER,INK EJECT,ASP |
| 1729269 | 110 | HOUSING,REAR |
| 1762726 | 110 | HOUSING,REAR |
| 1748152 | 111 | COVER,ASF,CG06,ASP |
| 1822264 | 111 | COVER,ASF,CG06,ASP |
| 1729476 | 112 | HOUSING,TOP |
| 1762725 | 112 | HOUSING,TOP |
| 1729262 | 113 | PAPER SUPPORT |
| 1751778 | 115 | COVER,PRINTER,CG06,ASP |
| 1822265 | 115 | COVER,PRINTER,CG06,ASP |
| 1729270 | 116 | HOUSING,ASF |
| 2193083 | 200 | BOARD ASSY.,MAIN 7112F,CG06 STANDARD |
| 1765218 | 300 | POWER SUPPLY,E.ASSY,IEI |
| 2192161 | 352 | WIRELESS LAN USB MODULE |
| 2184121 | 355 | BOARD ASSY.,SUB |
| 1720151 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1824012 | 501 | BOARD ASSY.,SUB,CF24,ASP |
| 1720135 | 502 | SCALE,PF,ASP |
| 1824006 | 502 | SCALE,PF,ASP |
| 1736257 | 503 | HOUSING,PICKUP,ASSY |
| 1758322 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1775149 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1807457 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1823059 | 504 | HOLDER,RETARD,ES,B,ASSY |
| 1732730 | 505 | EXTENSION SPRING,1.379,RETARD |
| 1756698 | 506 | PE ASSY.,IEI |
| 1747592 | 507 | CARRIAGE ASSY.,ASP |
| 1768777 | 507 | CARRIAGE ASSY.,ASP |
| 1821725 | 507 | CARRIAGE ASSY.,ASP |
| 1747600 | 508 | INK SYSTEM,ASSY.,ASP |
| 1821733 | 508 | INK SYSTEM,ASSY.,ASP |
| 1832105 | 508 | INK SYSTEM,ASSY.,ASP |
| 1872679 | 508 | INK SYSTEM,ASSY.,ASP |
| 1706495 | 509 | POROUS PAD,CAP,LOWER |
| 1736293 | 510 | FFC HEAD,ASSY.,IEI |
| 1733463 | 511 | C.B.(S-P1)SCREW,2.5X18,F/ZN-3C |
| 1607571 | 512 | HOLDER, PULLEY, DRIVEN,ASSY.,IEI |
| 2189741 | 513 | MOTOR,ASSY.,CR |
| 1736295 | 514 | HOLDER LEVER PE ASSY |
| 1736296 | 515 | HOLDER,STAR,WHEEL,ASSY.,IEI |
| 1736294 | 516 | PAPER,GUIDE,UPPER,ASSY.,IEI |
| 1522628 | 517 | EXTENSION SPRING,11.11 |
| 1761385 | 518 | HOLDER CONECTOR,ASSY.B,IEI |
| 1283832 | 519 | H.N.-1,2.5,F/ZN-3C |
| 1747624 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1801375 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1821742 | 520 | TUBE,ASSY.,SUPPLY,ASP |
| 1766374 | 521 | SEAL,JOINT,HEAD,WASH |
| 1706511 | 522 | POROUS PAD,HOUSING,LOWER |
| 1736260 | 524 | HOUSING,ASF,ASSY.B,IEI |
| FA39001 | 700 | PRINT HEAD,IG238V,ASP ORDER TO SEC WITH MOQ=12PCS, S |
| 1736230 | 701 | STACKER ASSY |
| 1854634 | 701 | STACKER ASSY |
| 1736222 | 702 | SOLENOID,RASF,ASSY |
| 1747596 | 703 | DUPLEX,ASSY.,ASP |
| 1770440 | 703 | DUPLEX,ASSY.,ASP |
| 1821731 | 703 | DUPLEX,ASSY.,ASP |
| 1860147 | 703 | DUPLEX,ASSY.,ASP |
| 1604764 | 704 | SCALE,CR |
| 1736241 | 707 | SCREW HEAD ASSY |
| 1747620 | 708 | RASF,ASSY.,ASP |
| 1821754 | 708 | RASF,ASSY.,ASP |
| 2150699 | 710 | LEAF SENSOR,P599 |
| 1607106 | 712 | C.B.EP-TITE SCREW,2.6X17(B=14),F/ZN-3C |
| 1706723 | 714 | TORTION SPRING,13.11 |
| 1747593 | 719 | CASSETTE,1st BIN,ASSY.,ASP |
| 1821726 | 719 | CASSETTE,1ST BIN,ASSY.,ASP |
| 1860901 | 719 | CASSETTE,1ST BIN,ASSY.,ASP |
| 1762617 | 750 | RIPS UNIT, ASSY.,C,ASP |
| 1736249 | 751 | IS DECOMP PUMP,ASSY.,IEI |
| 1757212 | 752 | HOUSING,RIPS ASSY.,B,ASP |
| 1821732 | 752 | HOUSING,RIPS ASSY.,B,ASP |
| 1757210 | 753 | COVER,FRONT,RIPS,B,ASP |
| 1821729 | 753 | COVER,FRONT,RIPS,B,ASP |
| 1748195 | 754 | TRAY,INK PACK,CL,ASP |
| 1768783 | 754 | TRAY,INK PACK,CL,ASP |
| 1748194 | 755 | TRAY,INK PACK,BK,ASP |
| 1768782 | 755 | TRAY,INK PACK,BK,ASP |
| 1732472 | 756 | POROUS PAD,INK,DETECTION,E |
| 2185165 | 757 | CABLE,CSIC,BK |
| 2194002 | 757 | CABLE,CSIC,BK |
| 2185166 | 758 | CABLE,CSIC,Y |
| 2185167 | 759 | CABLE,CSIC,M |
| 2194004 | 759 | CABLE,CSIC,M |
| 2185168 | 760 | CABLE,CSIC,C |
| 2194005 | 760 | CABLE,CSIC,C |
| 1729929 | 762 | GUIDE,TUBE,INK HOLDER,UPPER |
| 1792908 | 762 | GUIDE,TUBE,INK HOLDER,UPPER |
| 1729378 | 763 | LOCK,LEVER,RIPS |
| 1762700 | 763 | LOCK,LEVER,RIPS |
| 2176012 | 764 | SENSOR,TEMPERATURE,HUMIDITY,HSHCAA106F |
| 1575274 | 765 | FOOT |
| 2185169 | 766 | CABLE,CRCM |
| 1731428 | 767 | POROUS PAD,INK,DETECTION,D |
| 2176802 | 768 | BOARD ASSY.,SNS |
| 2172422 | 769 | CR CONTACT MODULE |
