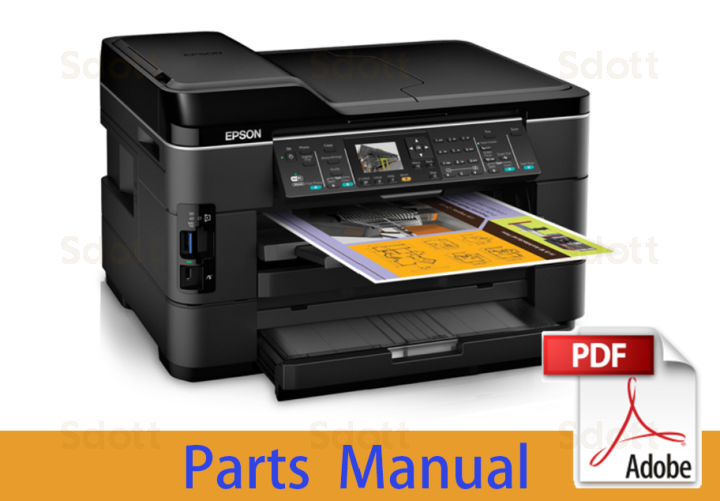

EPSON WF-7520 WF-7521 WF-7525 PX-1700F Parts Manual
In stock
SKU
EP-WF7520-PM
$1.10
- Email with download link immediately
- Files without viruses
- PDF format manual
- Allow high-definition printing
| Manual Name | EPSON WF-7520 WF-7521 WF-7525 PX-1700F Parts Manual |
|---|---|
| Format | |
| PDF Archive | 3.22M |
| Pages | 5 |
| Brand | EPSON |
| Type | SERVICE or PARTS MANUAL |
| Compatible Model | Epson WF-7500 Series |
****** The following content is not included in the PDF manual, please use it online ******
| Article | Reference | Description |
| 1549938 | 100 | HOUSING,UPPER |
| 1490041 | 101 | LABEL,POSITION,CARTRIDGE |
| 1549939 | 103 | HOUSING,RIGHT |
| 1549940 | 104 | HOUSING,LEFT |
| 1549941 | 105 | COVER,USB |
| 1557364 | 106 | LEVER SC SENSOR ASSY.,SEC |
| 1576128 | 110 | PANEL ASSY.,CB58,EURO,SEC ( SB017748) |
| 2164983 | 200 | BOARD ASSY.,MAIN |
| 2142507 | 200 | Ersetzt durch: 2159007 |
| 2159007 | 200 | Ersetzt durch: 2164983 |
| 1558174 | 201 | FAX ASSY.,SEC |
| 2136444 | 202 | HARNESS |
| 2135226 | 203 | Ersetzt durch: 2169212 |
| 2169212 | 203 | WIRELESS LAN USB MODULE |
| 1566086 | 300 | Ersetzt durch: 1594820 |
| 1594820 | 300 | Ersetzt durch: 1619733 |
| 1619733 | 300 | POWER SUPPLY ASSY.,B,SEC |
| 2119140 | 400 | POWER CABLE |
| 1573195 | 500 | FRAME BASE ASSY.,P2,B,ASP |
| 1557359 | 501 | 1ST BIN PIC UP ASSY.,SEC |
| 1805332 | 501 | 1ST BIN PIC UP ASSY.,SEC |
| 1549805 | 502 | POROUS PAD,PAPER GUIDE,LOWER |
| 1564266 | 503 | POROUS PAD, PAPER GUIDE FRONT,ASP,IEI |
| 2129450 | 504 | BOARD ASSY.,ENCORDER,PF |
| 2188536 | 504 | BOARD ASSY.,ENCORDER,PF |
| 1557470 | 505 | Ersetzt durch: 1630129 |
| 1630129 | 505 | PAPER STOPPER ASSY.,SEC |
| 1805335 | 505 | PAPER STOPPER ASSY.,SEC |
| 1630130 | 600 | 2ND BIN BASE ASSY.,SEC |
| 1560607 | 600 | Ersetzt durch: 1586219 |
| 1586219 | 600 | Ersetzt durch: 1630130 |
| 1560608 | 601 | 2ND BIN PICK UP ASSY.,SEC |
| F190020 | 700 | PRINT HEAD |
| 1558178 | 701 | CR ASSY.,SEC |
| 1805336 | 701 | CR ASSY.,SEC |
| 1488541 | 702 | COVER,CABLE,HEAD,INNER |
| 1430589 | 703 | HINGE,COVER,CARTRIDGE |
| 1558175 | 704 | HOLDET BOARD ASSY.,SEC |
| 1549898 | 705 | GUIDE PLATE,CR |
| 1557468 | 706 | HOLDER CAM ASSY.,SEC |
| 1805330 | 706 | HOLDER CAM ASSY.,SEC |
| 1559405 | 707 | INK SYSTEM ASSY.,IEI |
| 1549955 | 708 | SCALE,CR |
| 1551429 | 709 | TORSION SPRING,7.13 |
| 2136592 | 711 | CABLE,ENCODER,PF |
| 1557358 | 712 | POROUS PAD INK ASSY.,SEC |
| 1805328 | 712 | POROUS PAD INK ASSY.,SEC |
| 1557357 | 713 | DUP ASSY.,SEC |
| 1805313 | 713 | DUP ASSY.,SEC |
| 1557371 | 714 | STACKER,ASSY.,SEC |
| 1576999 | 715 | 1ST BIN CASSETTE ASSY.,C,SEC |
| 1805348 | 715 | 1ST BIN CASSETTE ASSY.,C,SEC |
| 1576998 | 716 | 2ND BIN CASSETTE ASSY.,C,SEC |
| 1805347 | 716 | 2ND BIN CASSETTE ASSY.,C,SEC |
| 2136616 | 720 | MOTOR ASSY.,CR |
| 1563231 | 721 | PAPER GUIDE UPPER CENTER ASSY.(P2),SEC |
| 1563232 | 722 | PAPER GUIDE UPPER LEFT ASSY.,SEC |
| 1563233 | 723 | PAPER GUIDE UPPER RIGHT ASSY.,SEC |
| 1805339 | 723 | PAPER GUIDE UPPER RIGHT ASSY.,SEC |
| 1563612 | 800 | Ersetzt durch: 1590394 |
| 1590394 | 800 | Ersetzt durch: 1597012 |
| 1597012 | 800 | Ersetzt durch: 1639304 |
| 1639304 | 800 | SCANNER ASSY.,ASP |
| 1550598 | 801 | Ersetzt durch: 1595929 |
| 1595929 | 801 | SHEET,PAPER GUIDE,SC |
| 1550597 | 802 | HOLDER,SHEET,PAPER GUIDE,SC |
| 1597871 | 900 | ADF ASSY.,ASP |
| 1563610 | 900 | Ersetzt durch: 1597871 |
| 1550493 | 901 | COVER,FRONT,ADF |
| 1550490 | 902 | COVER,RIGHT,ADF |
| 1557368 | 903 | DOC SUPPORT ADF ASSY.,SEC |
| 1805320 | 903 | DOC SUPPORT ADF ASSY.,SEC |
| 1550470 | 904 | COVER,BASE,ADF |
| 1550492 | 905 | COVER,REAR,ADF |
| 1550489 | 906 | COVER,STACKER,ADF |
| 2126855 | 907 | FERRITE CORE,28R0986-070 |
| 1557361 | 910 | PAPER GUIDR,UPPER,ADF ASSY.,SEC |
| 1557362 | 911 | ADF LD ASSY.,SEC |
| 1557363 | 912 | HOLDER PAD ADF ASSY.,SEC |
| 1805319 | 912 | HOLDER PAD ADF ASSY.,SEC |
